FXB Composite Tension & Suspension Insulator

FXB Composite Tension & Suspension Insulator

mainly consists of a core rod (ECR type or FRP type), silicone rubber housing and metal end fittings

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

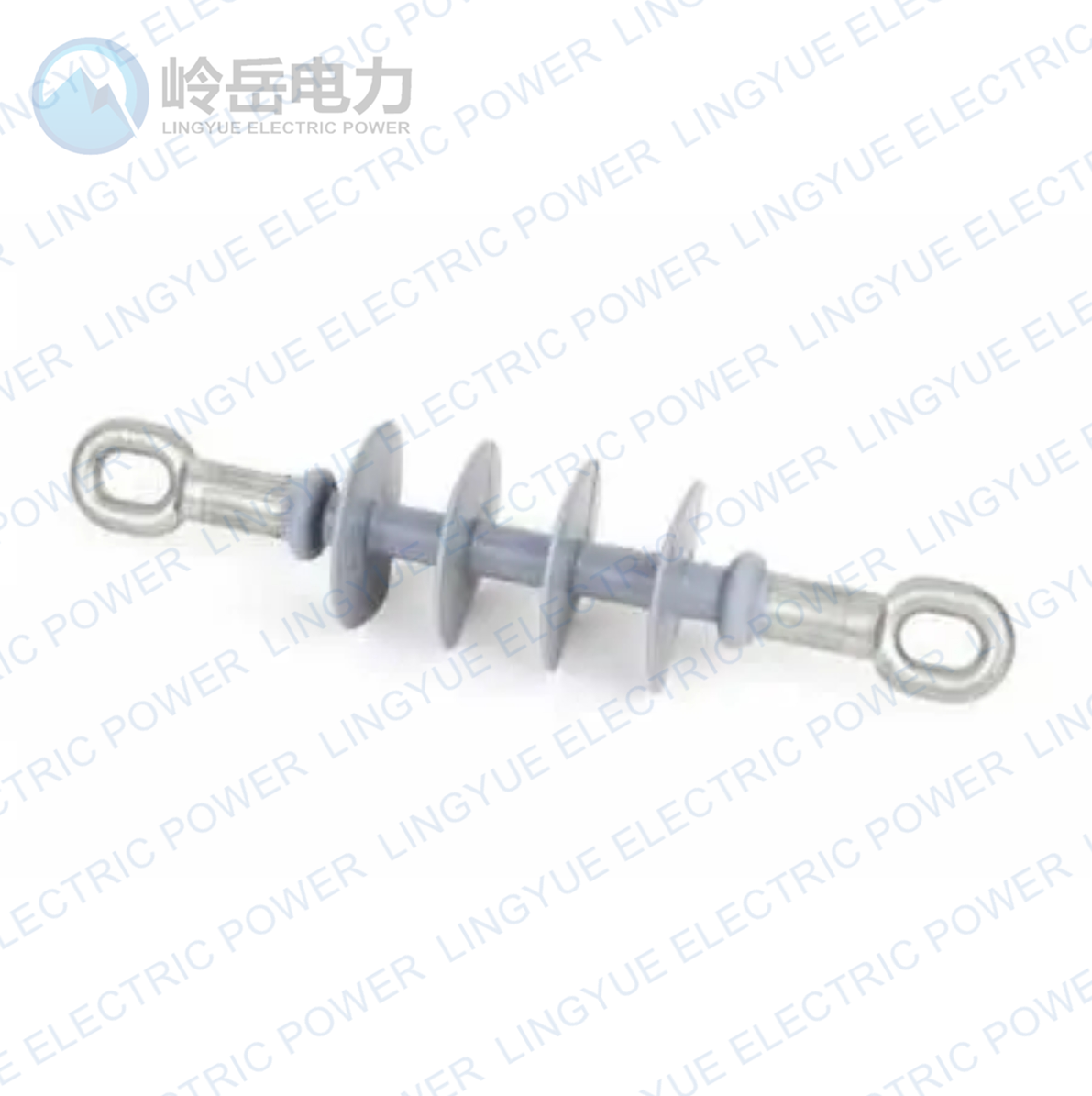

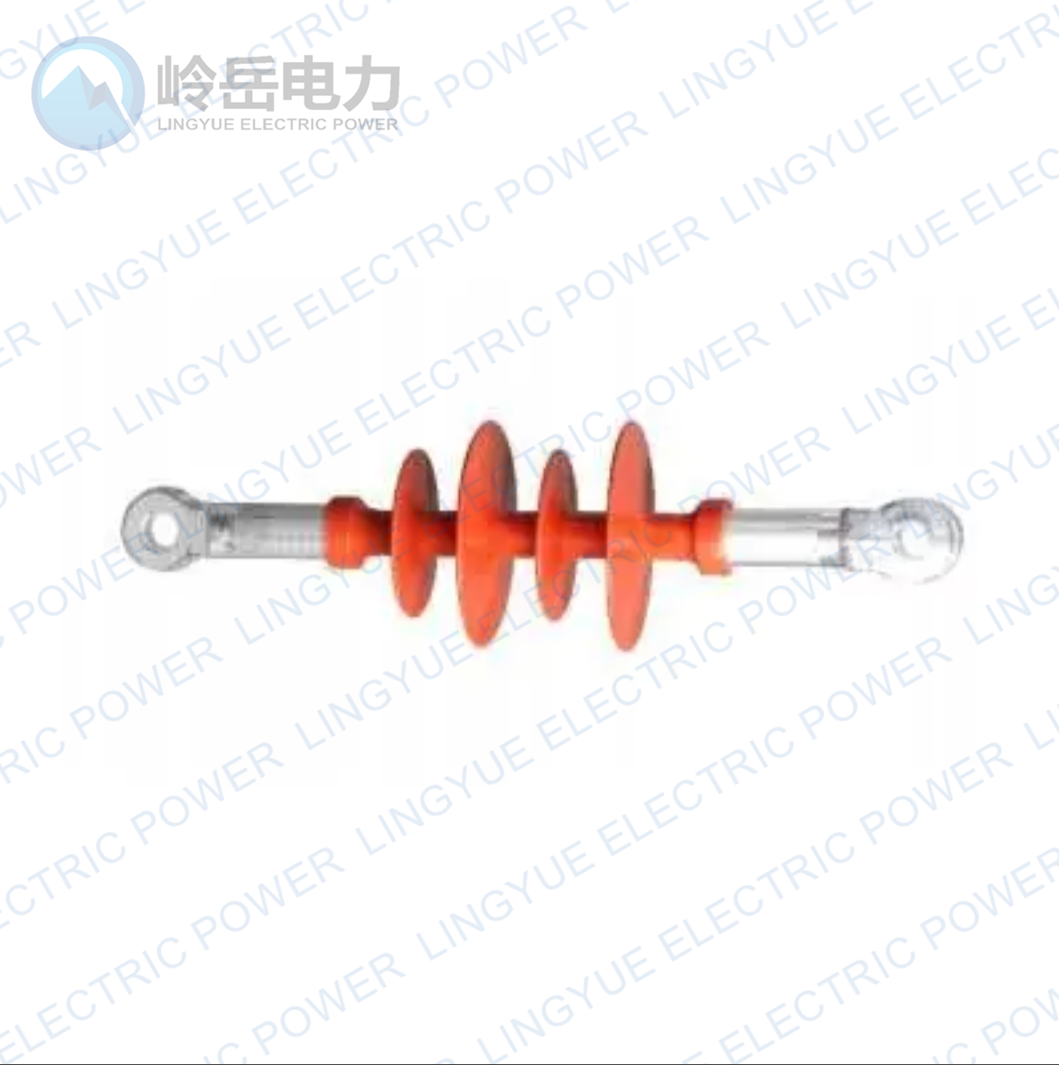

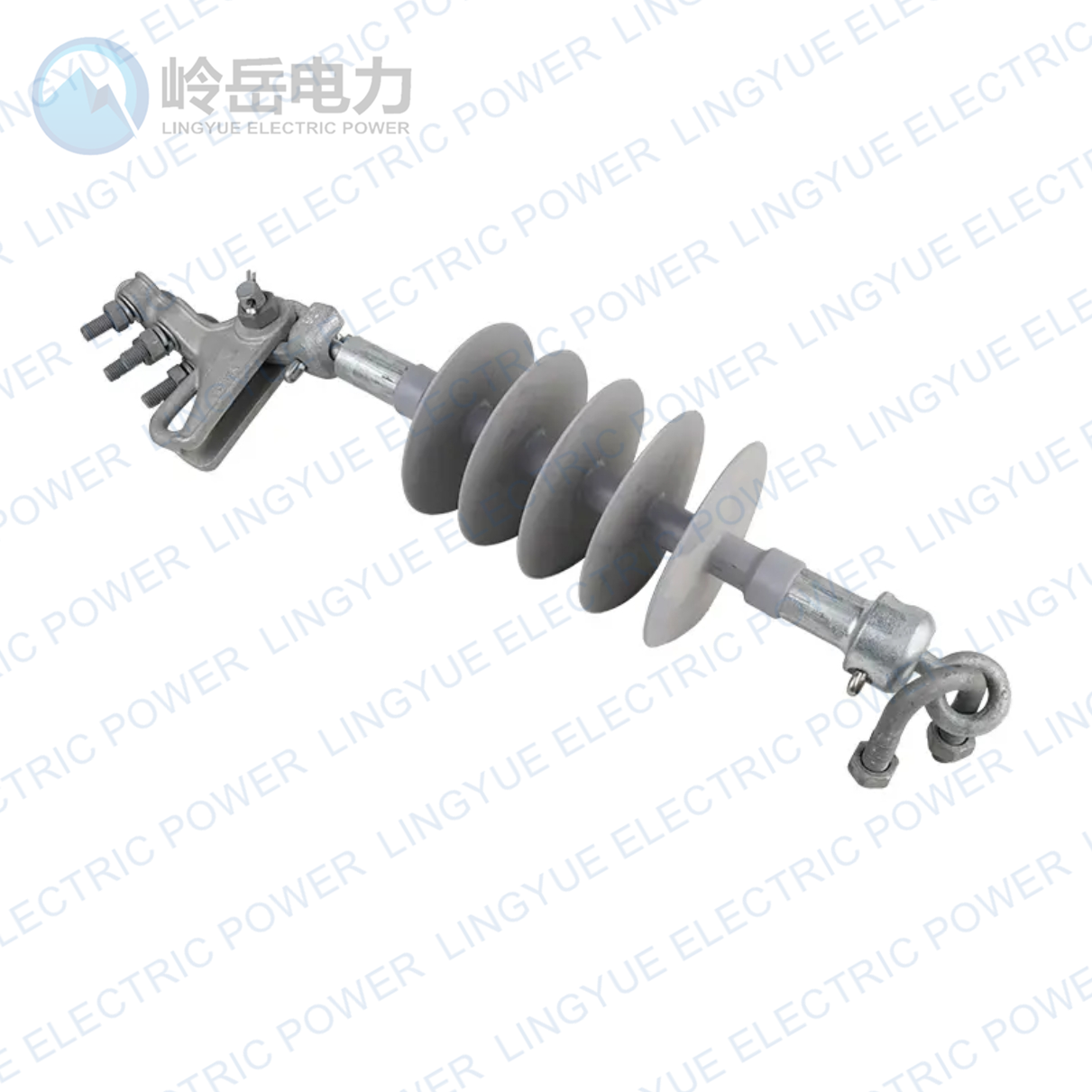

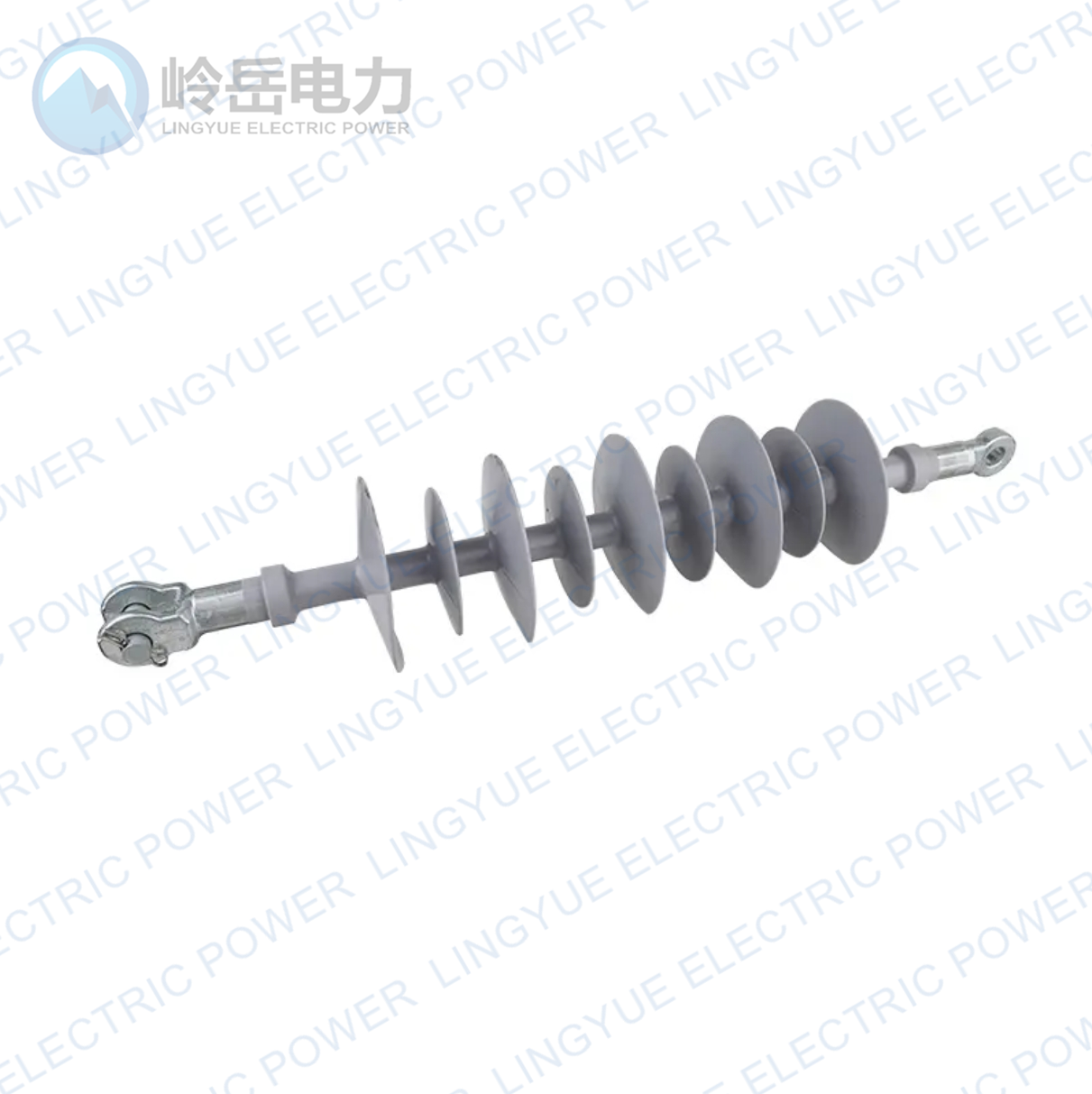

Composite tension & suspension insulator mainly consists of a core rod (ECR type or FRP type), silicone rubber housing and metal end fittings.
Material of end fittings: #45 forged steel, hot dip galvanized，thickness of the galvanization: ≥86μm
Material of the core: Epoxy & glass fiber (ECR type or FRP type).
Material of the weather sheds: HTV silicone, color grey
Corona ring: Made of high grade aluminum alloy, which is suitable for insulators voltage above 110 kV
Housing to core: They are chemically bonded and the interface strength between the housing and core is higher than the tearing strength of housing itself.
Sealing: Juncture between end fitting and core rod is totally embedded in HTV silicone rubber, eliminating conventional and traditional sealing defects: (The other type is available that use RTV silicone sealant to seal the juncture between end fitting and core rod).

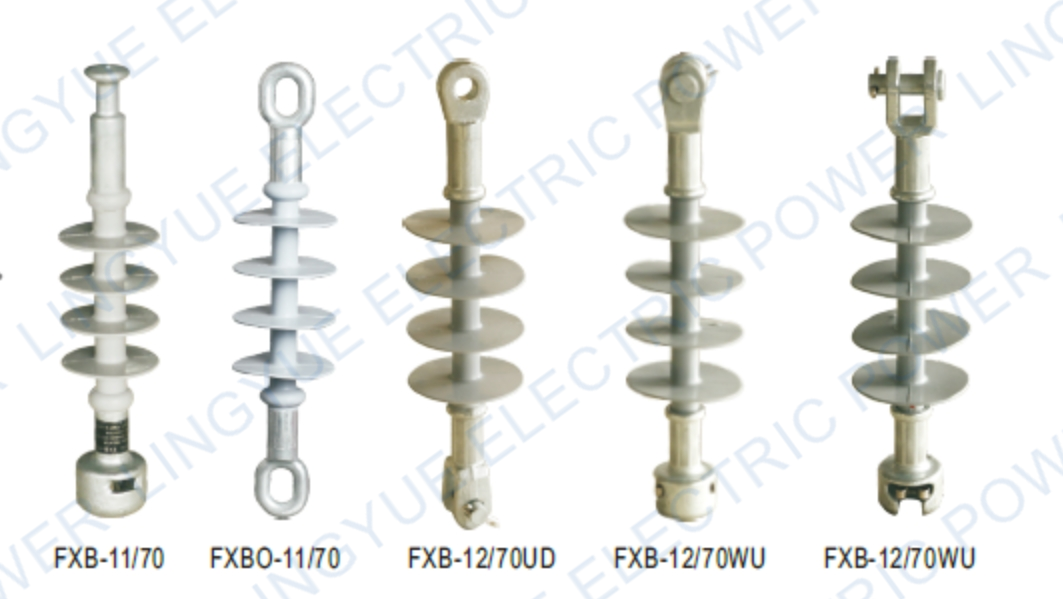

Item No.	Dimensions					Mechanical		Electrical
	Height	Min Dry Arcing Distance(mm)	Min Creepage Distance(mm)	Diameter of the rod(mm)	Number of sheds	Specified Mechanical Load(SML) (kN)	Routine Test Load(RTL)(kN)	Rated VoltagekV	Critical Impulse Flashover Voltage(Pos/Neg) kV	Power Frequency Flashover Voltage(Dry/Wet) kV
FXB 11-15kV	335	200	460	17	4	70	35	11-15	140/145	70/60
FXB 24-27kV	460	235	675	17	6	70	35	24-27	170/190	75/65
FXB 33-36kV	545	350	900	17	8	70	35	33-36	230/250	105/95
FXB 33-36kV	440	360	900	18	9	40	20	33-36	230/250	95/85
FXB 33-36kV	440	360	900	18	9	70	35	33-36	230/250	95/85
FXB 69kV	970±10	780	2130	18	18	100	50	69	410	200/185
FXB 132kV	1475±15	1300	3850	18	30	100	50	132	550	275/235
FXB 230kV	2380±30	1900	6000	24	60	160	80	230	1315	780/700
