Product Introduction

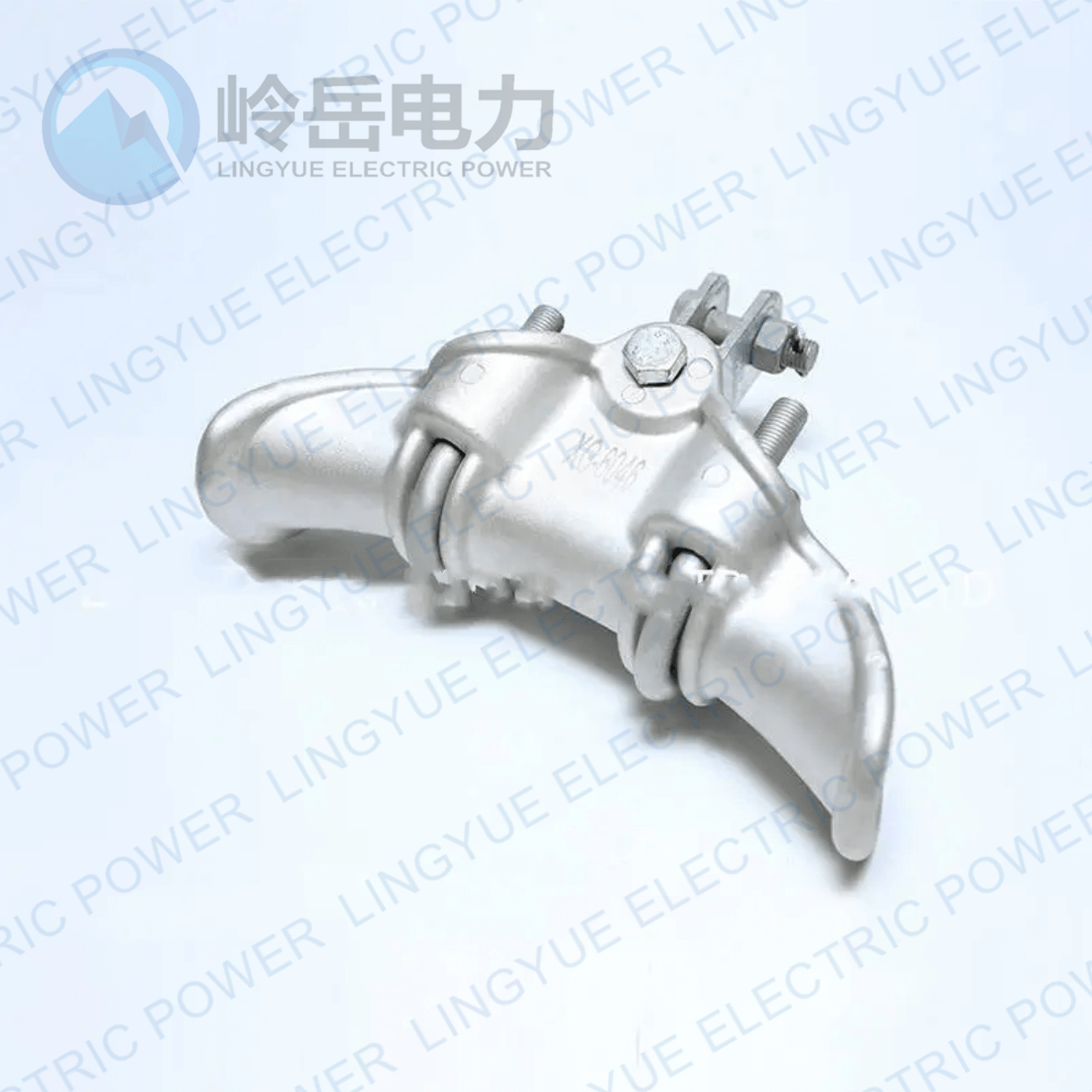

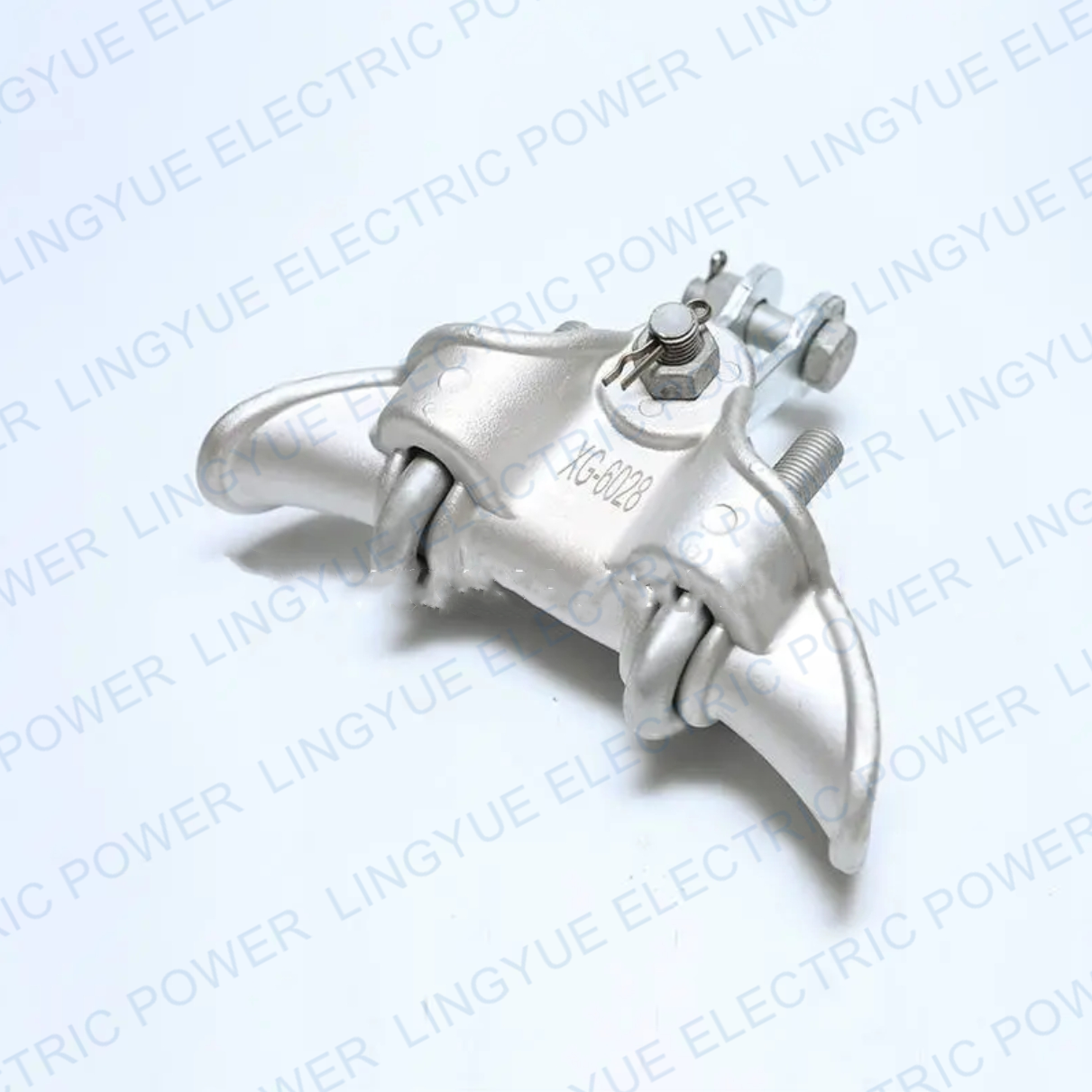

The suspension wire clamp is mainly used for overhead power lines or substations. The wire and lightning conductor are suspended on the insulator string or the lightning conductor is suspended on the pole tower by connecting the metal fittings.It is made of two kinds of materials: iron and aluminum alloy.The hanging Angle of the suspension wire clip shall not be less than 25, and the radius of curvature shall not be less than eight times of the diameter of the installed wire. When the suspension wire clip is used for aluminum strand and steel strand, it can be wrapped around the aluminum wrap or guard wire outside the wire to protect the wire. The applicable outer diameter of the wire includes the wrapping

Material:

The Clamp body and keepers are made of aluminium alloy

The Cotter-pins are made of stainless steel,

The other parts are hot-dip galvanized.

Catalog No.	Applicable of wire diameter	Main dimensions(mm)					Specified Failure load (kN)	Weight （kg）

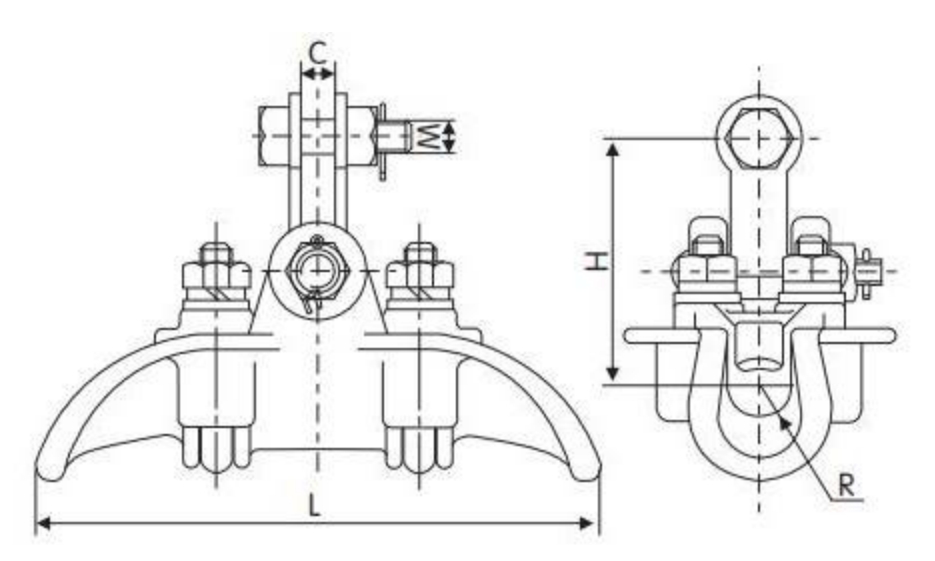

Catalog No.	Applicable of wire diameter	L	C	R	H	M	Specified Failure load (kN)	Weight （kg）
XG-4022	13.2-22.0	210	20	11	120	16	40	2.9
XG-4028	19.6-28	250	20	14	130	16	40	3.5
XG-4034	27.4-34	280	20	17	130	16	40	4.0
XG-6028	19.6-28	250	20	14	130	16	60	3.5
XG-6034	27.4-34	300	20	17	130	16	60	4.0
XG-6040	32-40	300	20	20	135	16	60	4.8
XG-6046	36.8-46	330	20	23	135	16	60	5.4
XG-8034	27.4-34	300	20	17	130	16	80	4.8
XG-8040	32-40	300	20	20	140	16	80	5.0
XG-8046	36.8-46	330	20	23	140	16	80	5.8
XG-8054	43.2-54	345	20	27	150	16	80	7.0
