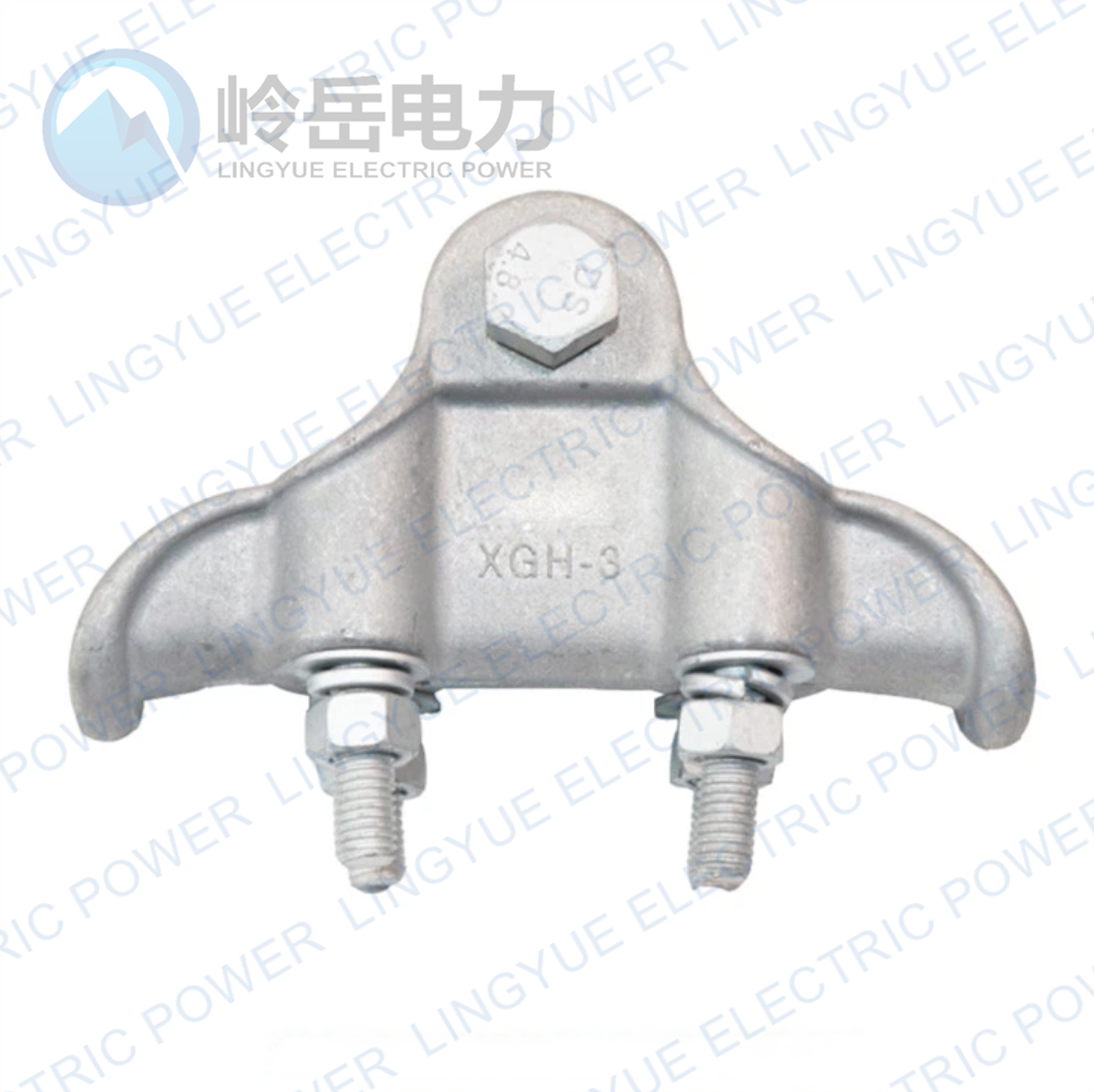

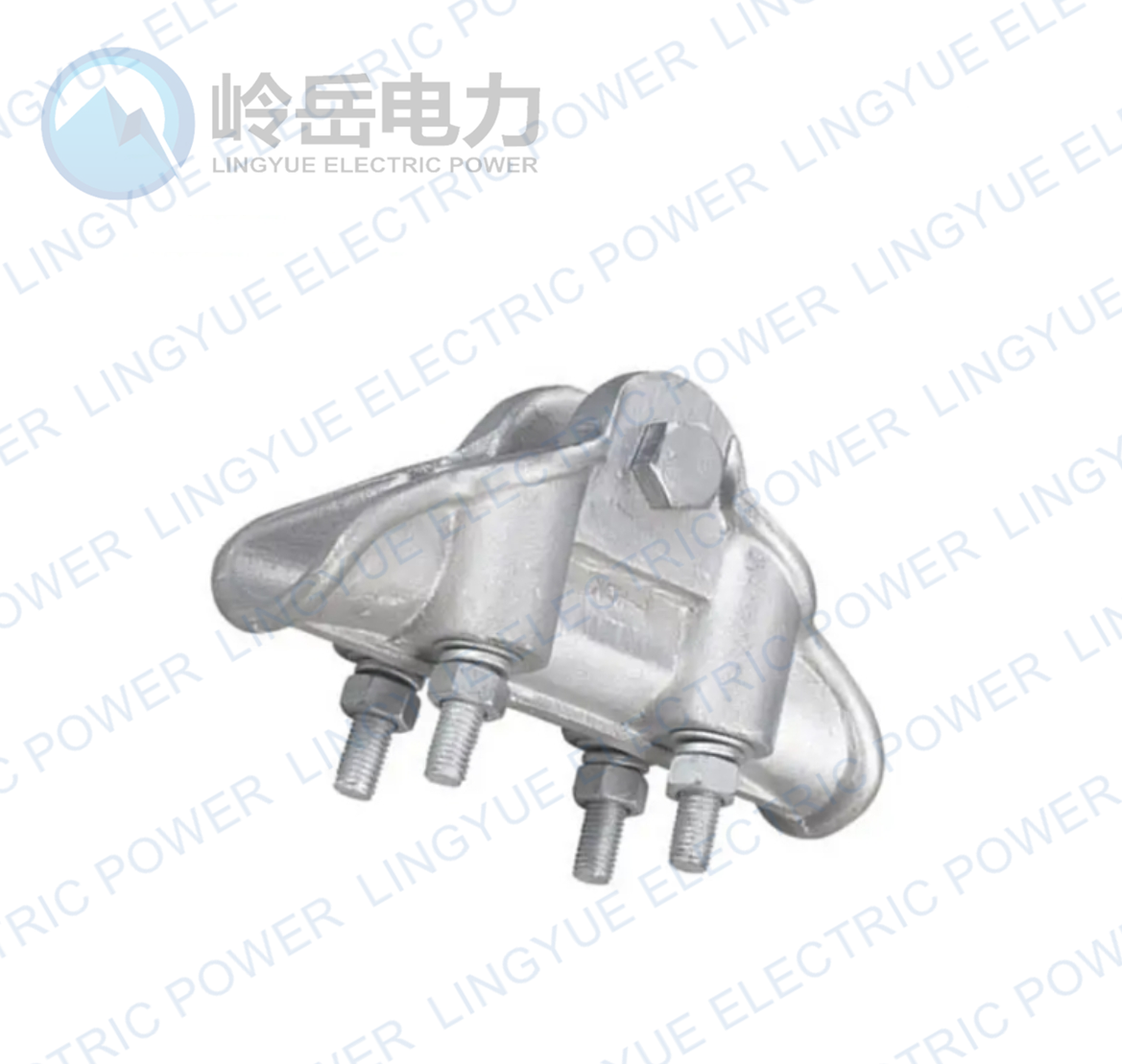

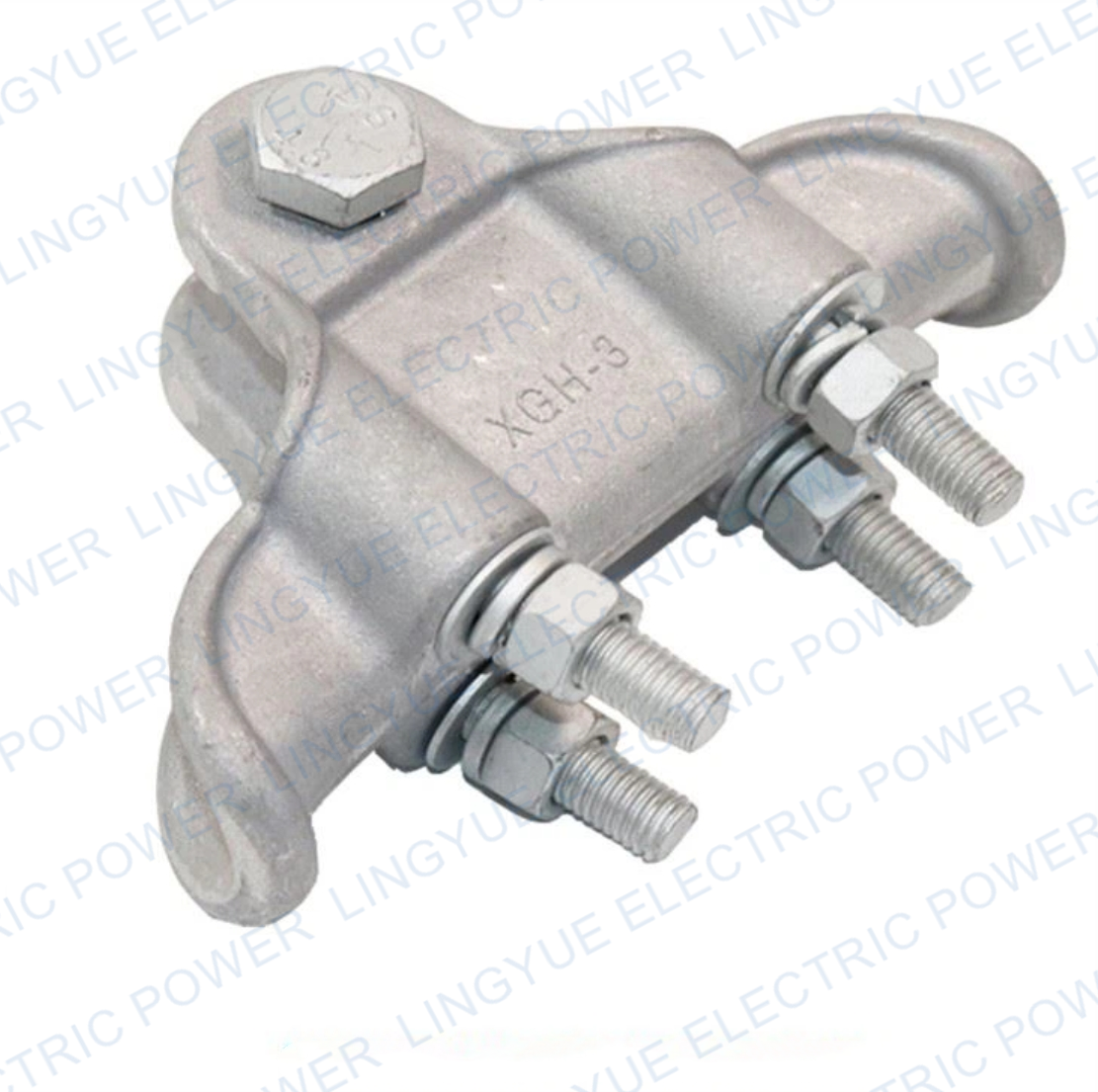

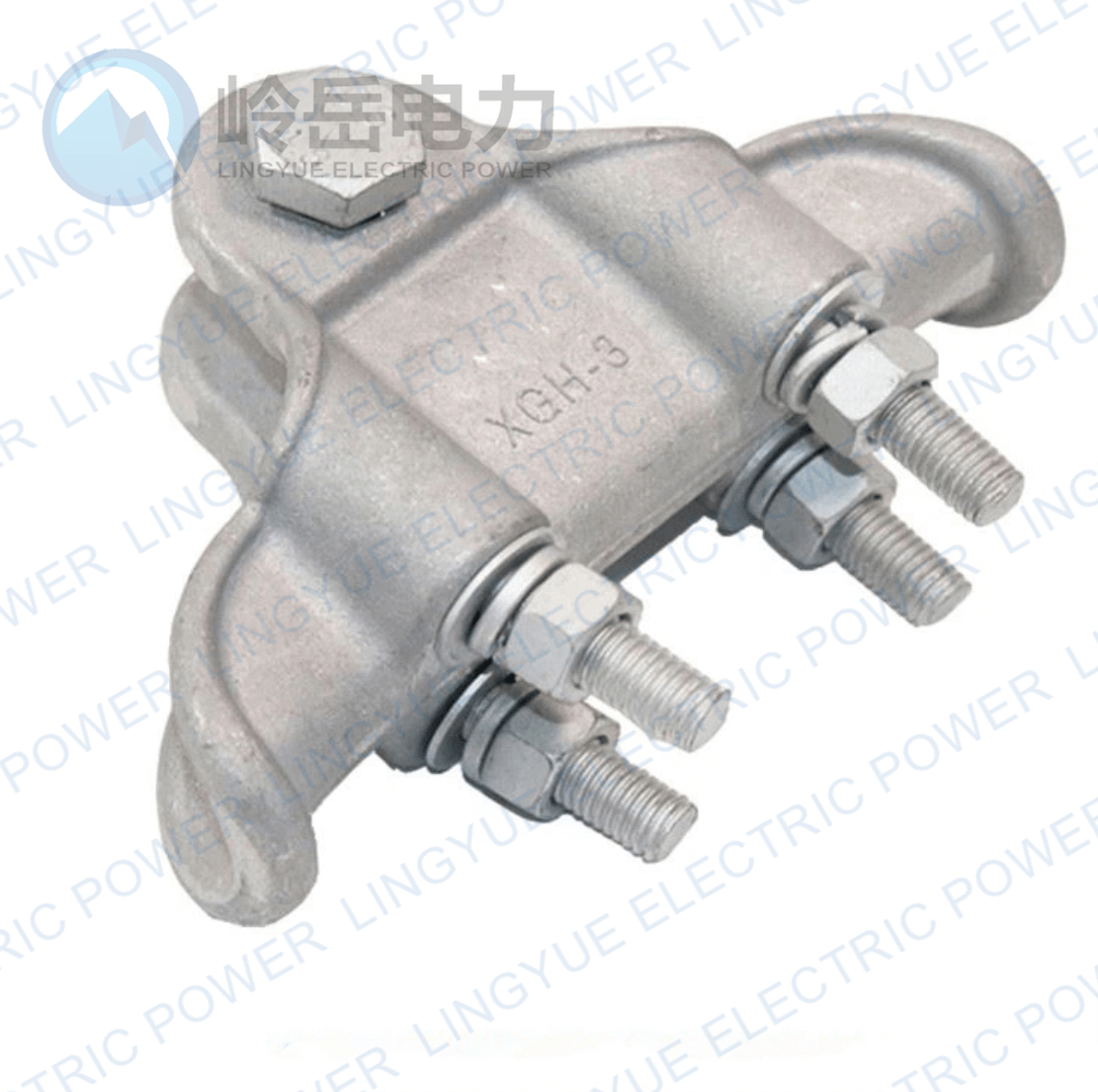

The XGH Suspension clamp is a highly dependable and adaptable component utilized in overhead power line systems. Its primary function is to securely suspend and support conductors, ensuring stability and optimal tension in the power line. Renowned for its sturdy construction, long-lasting durability, and exceptional resistance to corrosion and harsh weather conditions, the XGH Suspension clamp excels in maintaining reliable performance. Its user-friendly design facilitates effortless installation and adjustment, accommodating a wide range of conductor sizes and types.
The Clamp body and keepers are made of aluminium alloy.
The Cotter-pins are made of stainless steel,
The other parts are made of steel.
All ferrous parts are hot-dip galvanized.
Application:
· Overhead Power Transmission Lines: The XGH Suspension clamp is widely used in overhead power transmission lines to securely suspend and support conductors of different sizes and types;
· Distribution Lines: The XGH Suspension clamp is also utilized in distribution lines, which deliver electricity from transmission lines to consumers;
· Substation Installations: The XGH Suspension clamp is employed in substation installations, where it helps in the suspension and support of conductors connecting various equipment and components;
· Industrial Power Systems: The XGH Suspension clamp is suitable for industrial power systems, where it supports conductors in complex configurations and varying load conditions；
· Renewable Energy Projects: The XGH Suspension clamp is utilized in renewable energy projects, such as wind farms and solar power installations.

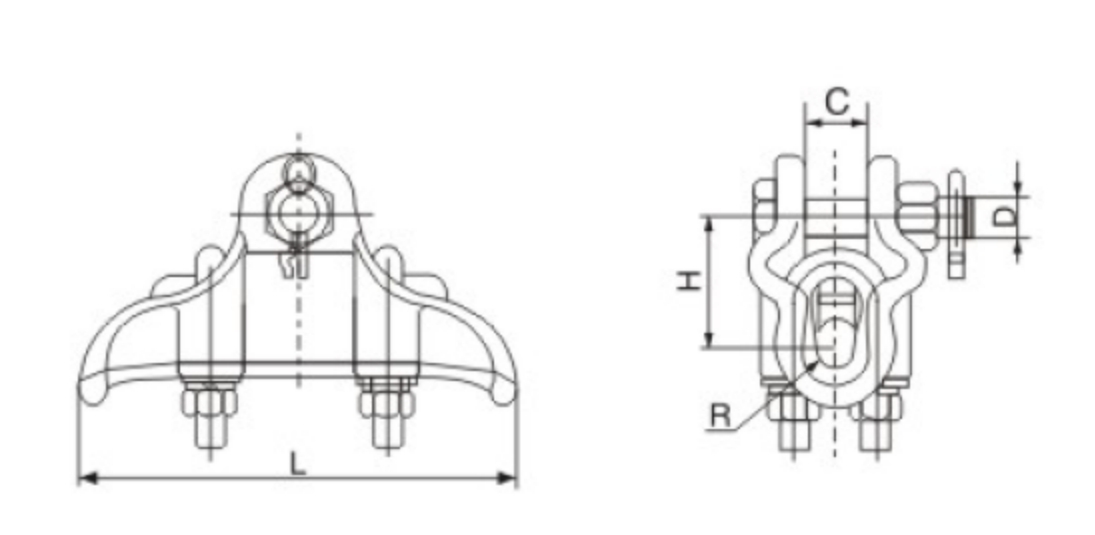

Item | Applicable conductor (mm) | Dimensions (mm) | Failure load (kN) | Weight (kg） |
|
| H | C | D | R | L |
|
|
XGH-2 | 5.1-12.5 | 54.00 | 22.50 | 16.00 | 18.50 | 166.00 | 40 | 0.9 |
XGH-3 | 12.4-17 | 61.50 | 25.50 | 16.00 | 23.50 | 202.50 | 40 | 1.4 |
XGH-4 | 18-23.5 | 60.50 | 29.00 | 16.00 | 26.50 | 225.00 | 40 | 1.6 |
XGH-5 | 24.2-28 | 70.00 | 32.00 | 16.00 | 26.00 | 260.00 | 80 | 2.55 |
