XTS clamp

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

The body and suspension holders are made of malleable cast iron, the cotter pins are made of stainless steel, the remaining parts are made of steel. All iron parts are hot-dip galvanized.

Descriptions:

The body and suspension holders are made of malleable cast iron, the cotter pins are made of stainless steel, the remaining parts are made of steel. All iron parts are hot-dip galvanized.

Bid:

The iron suspension clamp is used for double jumpers, for fixing the wire on the insulating column of the tower, or for hanging the lightning protection line on the tower. When the suspension line is used for aluminum stranded wire and aluminum core steel core, the double wire suspension clamp can be wrapped around the wire to protect the wire, and the outer diameter of the wire should include the package.

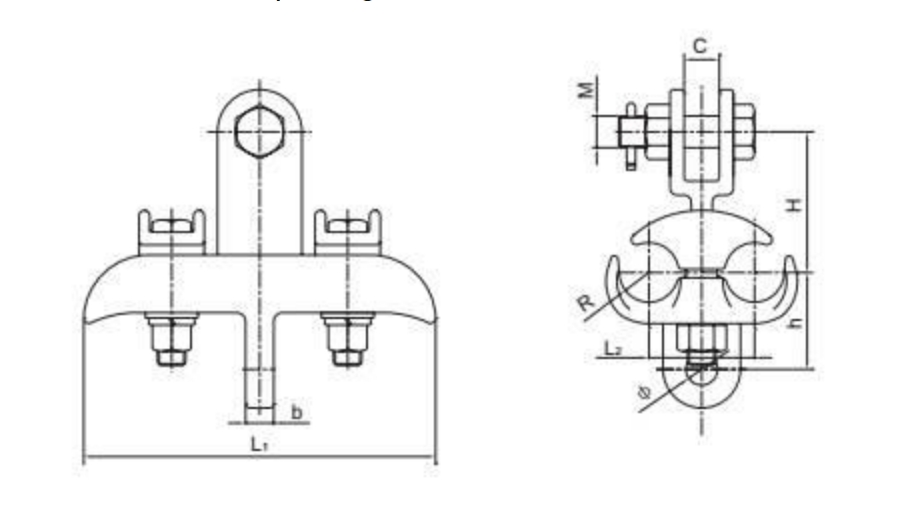

Catalog No .	conductor Diameter (mm)	Dimensions (mm)									Nominal Fail-Safe Load (kN)	Weight (kg)
		Φ	r	L1	L2	M	WITH	hour	HOUR	b
XTS-1	21.0-25.0	-	13	200	50	16	19	-	77	-	70	3.4
XTS-2	25.0-31.0	18	16	200	56	16	18	62	77	16	70	5.0
XTS-5	23.0-33.0	18	17	200	60	18	20	55	70	16	100	4.2
XTS-6	34.0-45.0	18	23	250	77	16	20	70	103	18	70	7.5
XTS-2A	17.0-21.0	18	11	200	50	16	18	57	76	15	70	4.5
XTS-2B	21.0-27.0	18	14	200	52	16	18	59	77	16	70	5.0
XTS-2C	29.0-35.0	18	18.5	200	70	16	19	70	61.5	16	40	6.5
