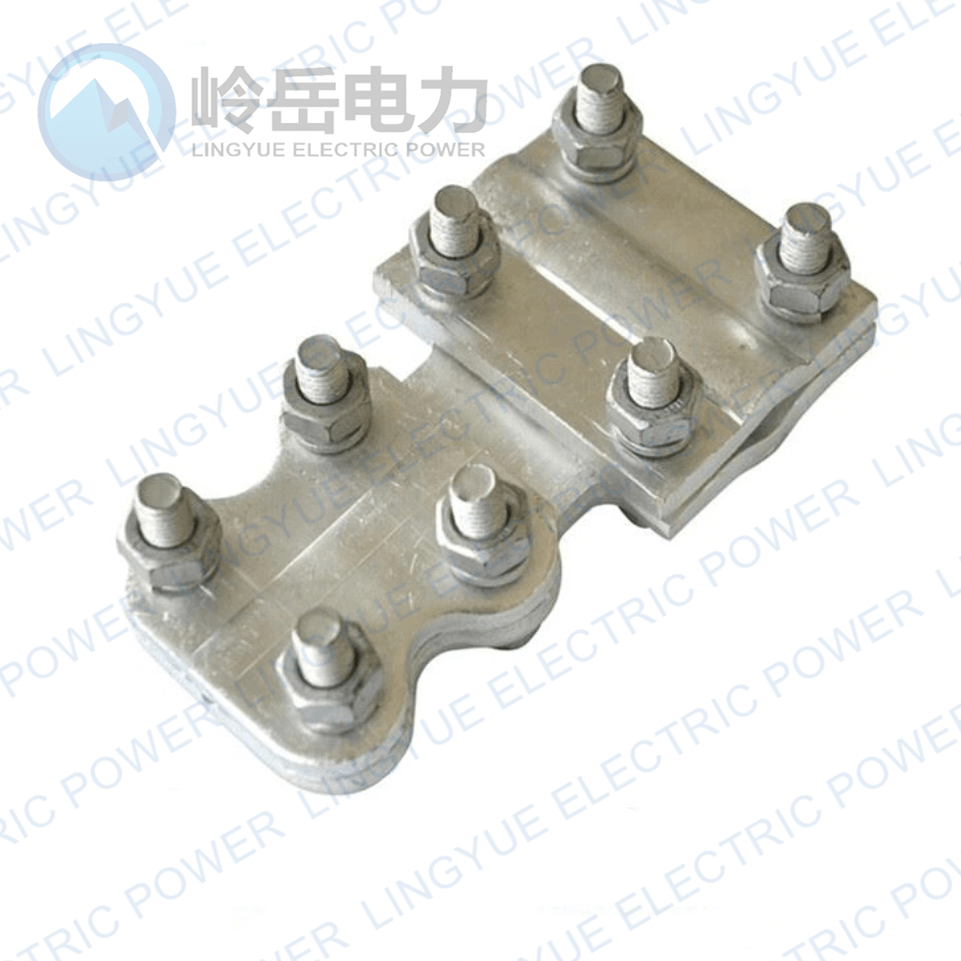

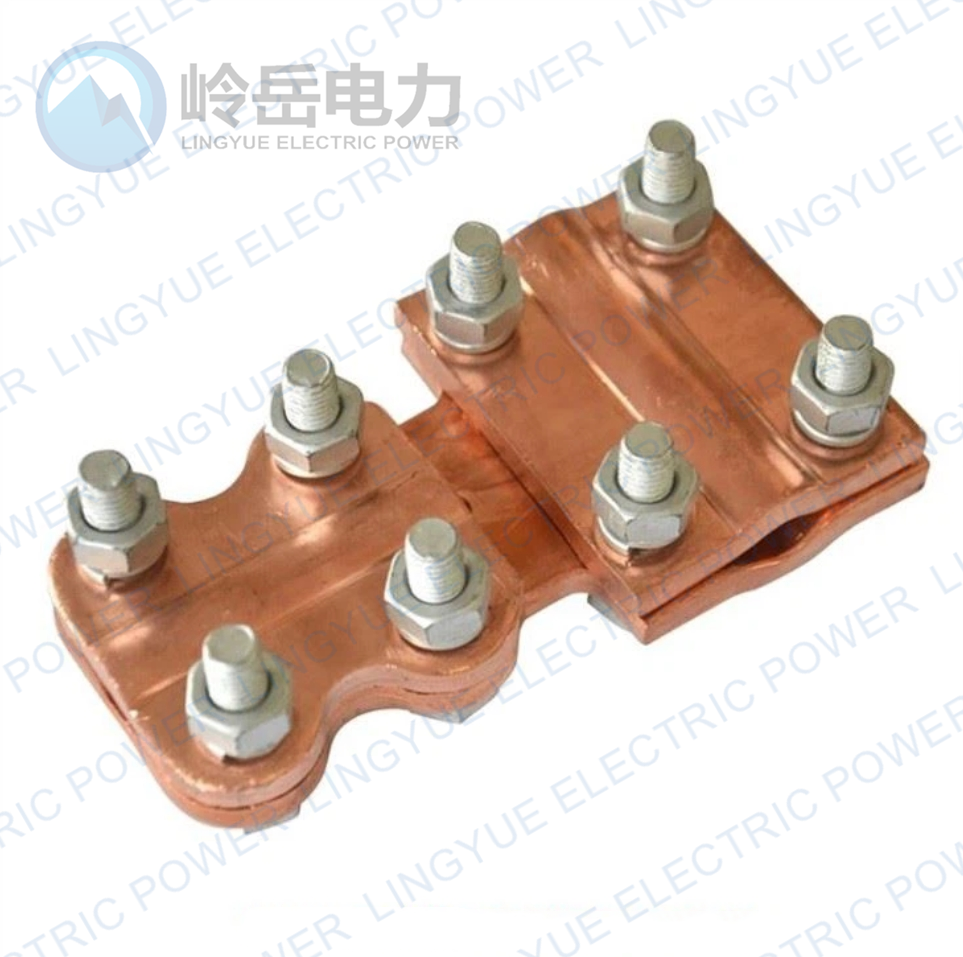

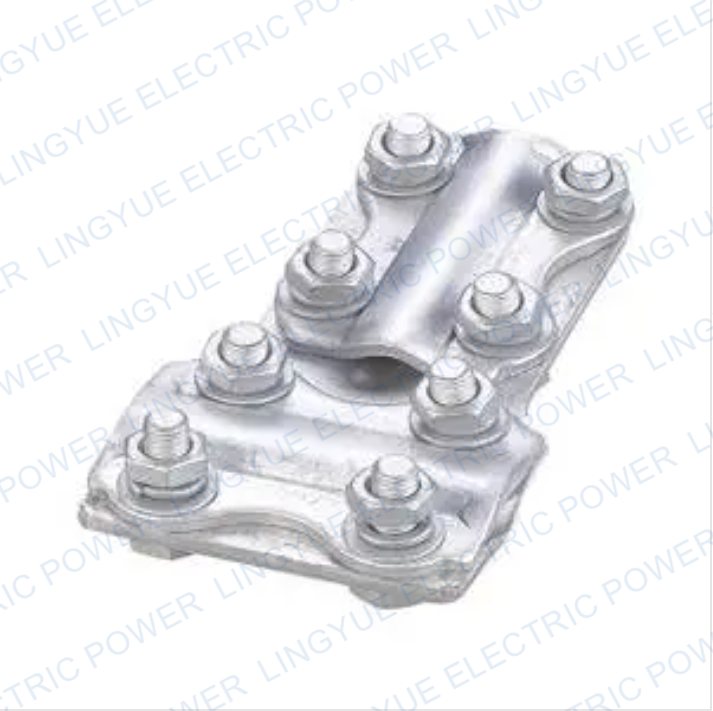

T-clamp is mainly used for overhead power lines or substations, in which the busbar leads the current branch in a T-shaped way.Split bolt type and compression type, for small section of the wire can also be used as a parallel line clamp or clamp oval connector As a T – type connection
T Type clamp | |||||||
Type | Cable range | Main size（mm） | Weight | ||||
Bus line | Conductor | Φ1 | Φ2 | H | L | ||
TL-45 | 185-240 | 300-400 | 22.0 | 28.0 | 210 | 118 | 2.6 |
TL-53 | 300-400 | 120-150 | 28.0 | 17.5 | 168 | 2.6 | |
TL-54 | 300-400 | 185-240 | 28.0 | 22.0 | 168 | 2.7 | |
TL-55 | 300-400 | 300-400 | 28.0 | 28.0 | 196 | 3.0 | |
TL-56 | 300-400 | 500-630 | 28.0 | 34.5 | 196 | 3.1 | |
TL-64 | 500-630 | 185-240 | 43.5 | 22.0 | 196 | 3.3 | |
TL-65 | 500-630 | 300-400 | 43.5 | 28.0 | 196 | 3.4 | |
TL-66 | 500-630 | 500-630 | 43.5 | 34.5 | 196 | 3.6 | |
