Product Introduction

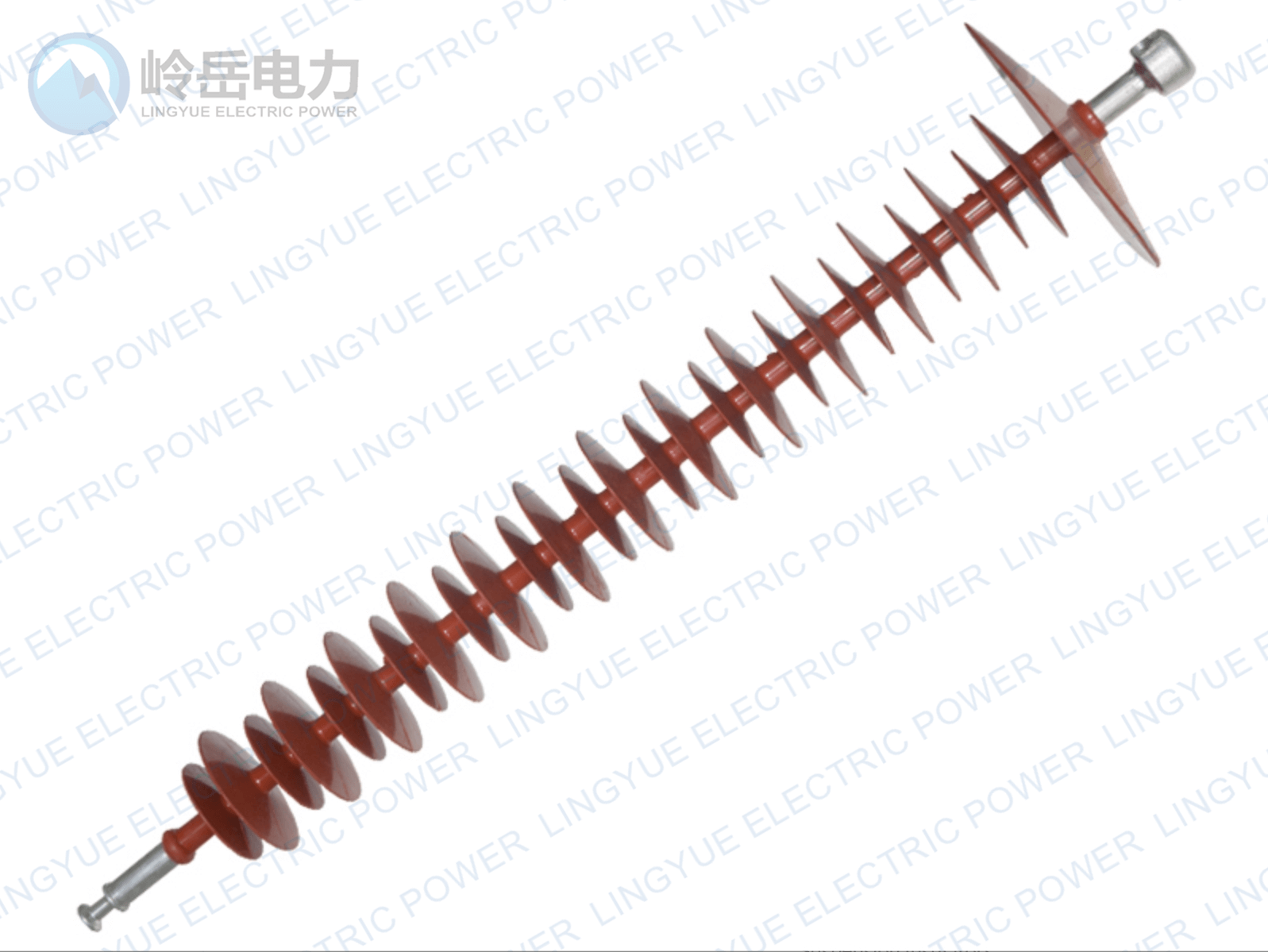

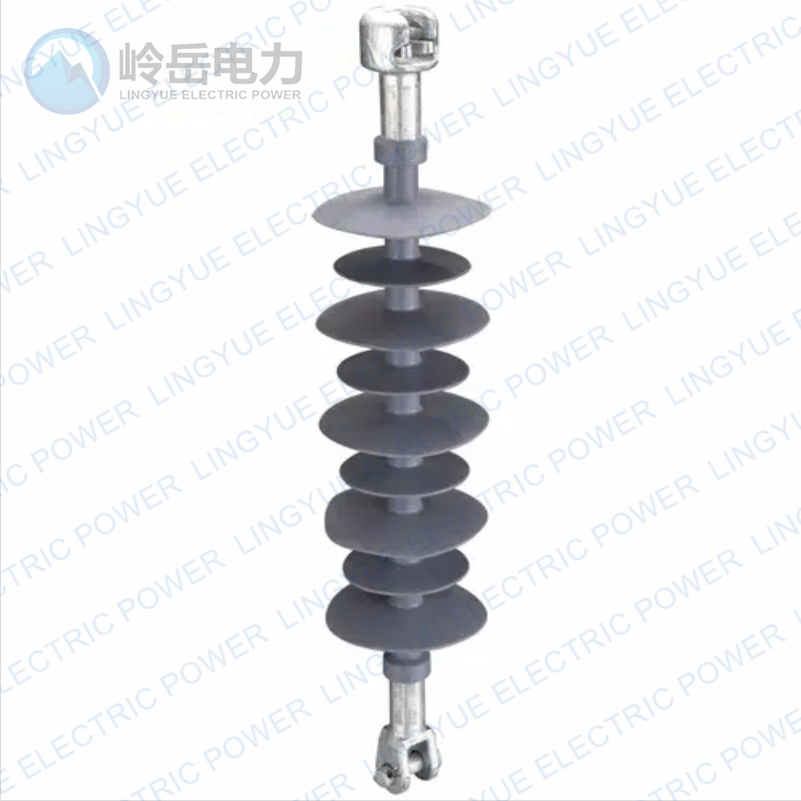

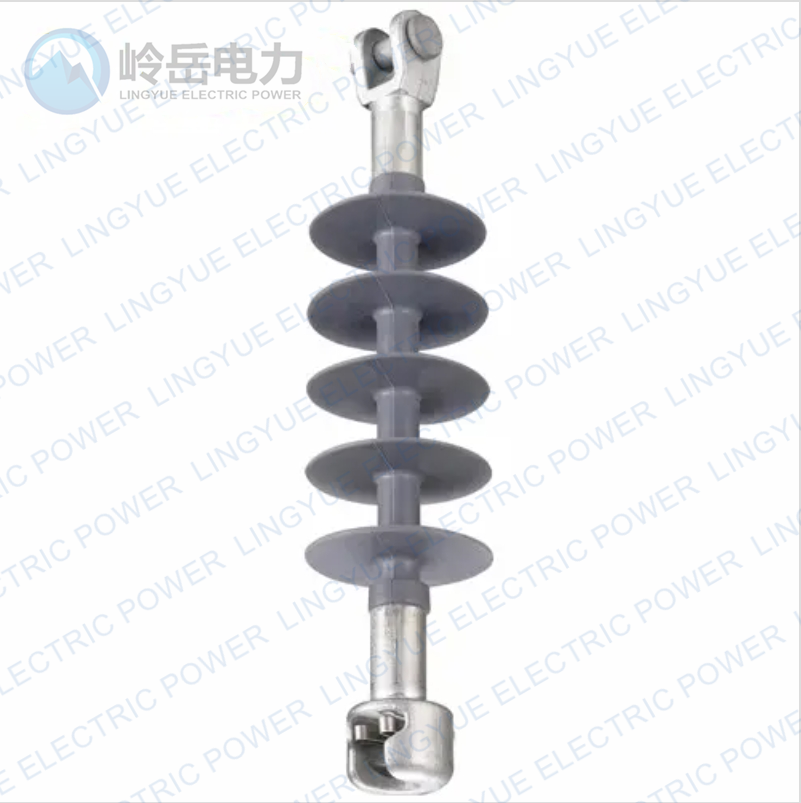

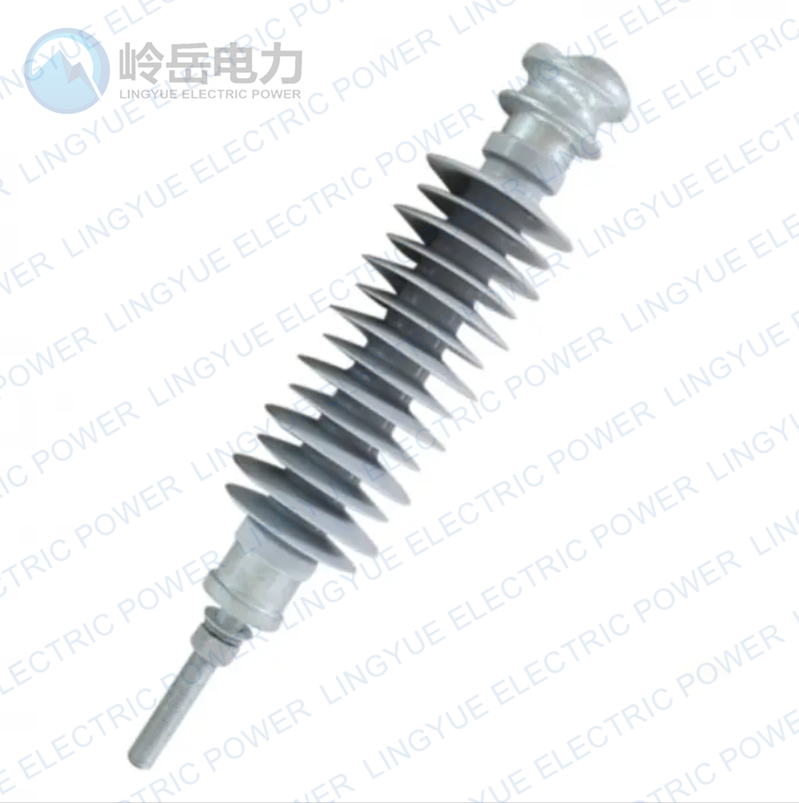

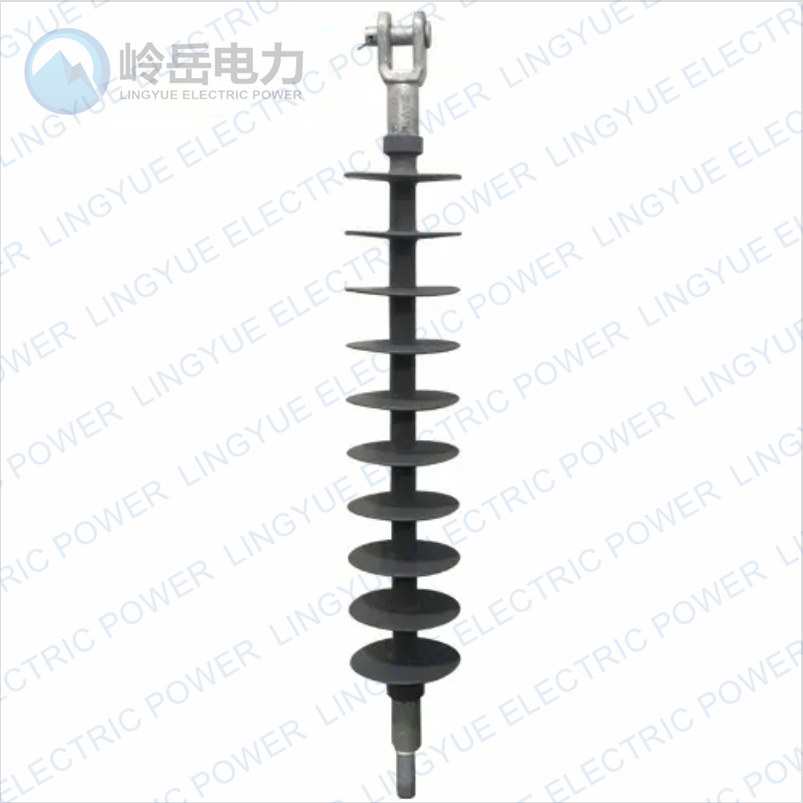

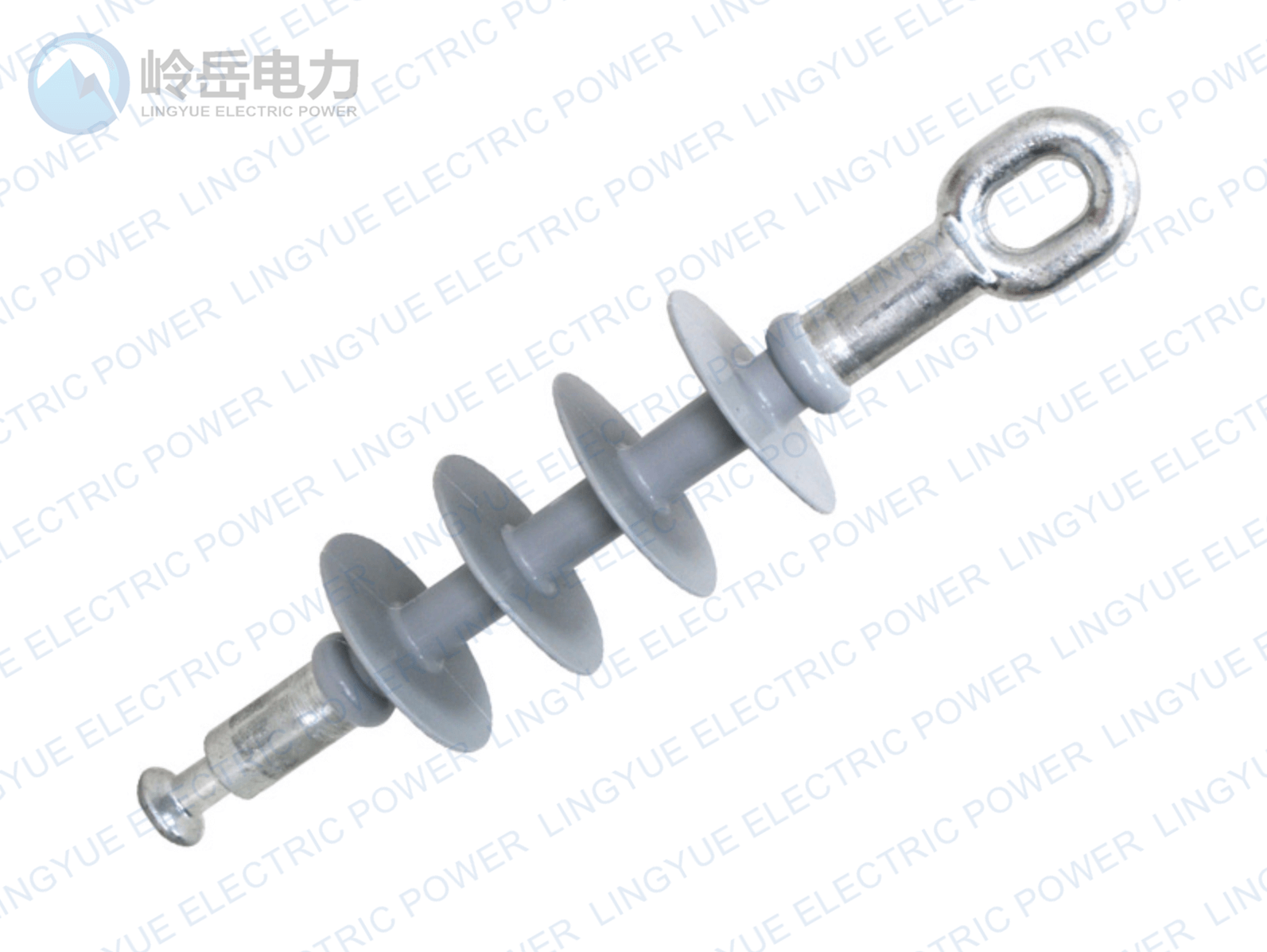

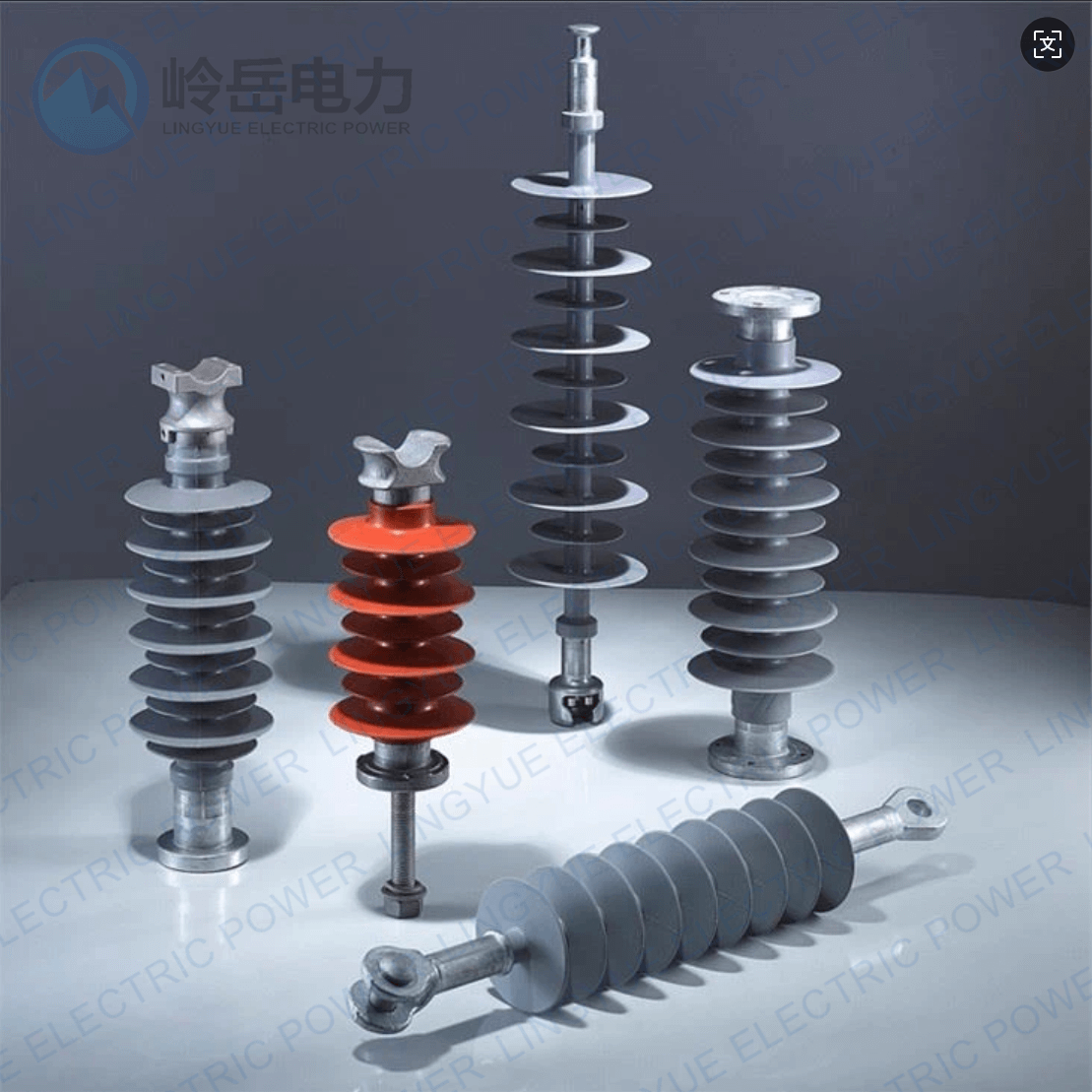

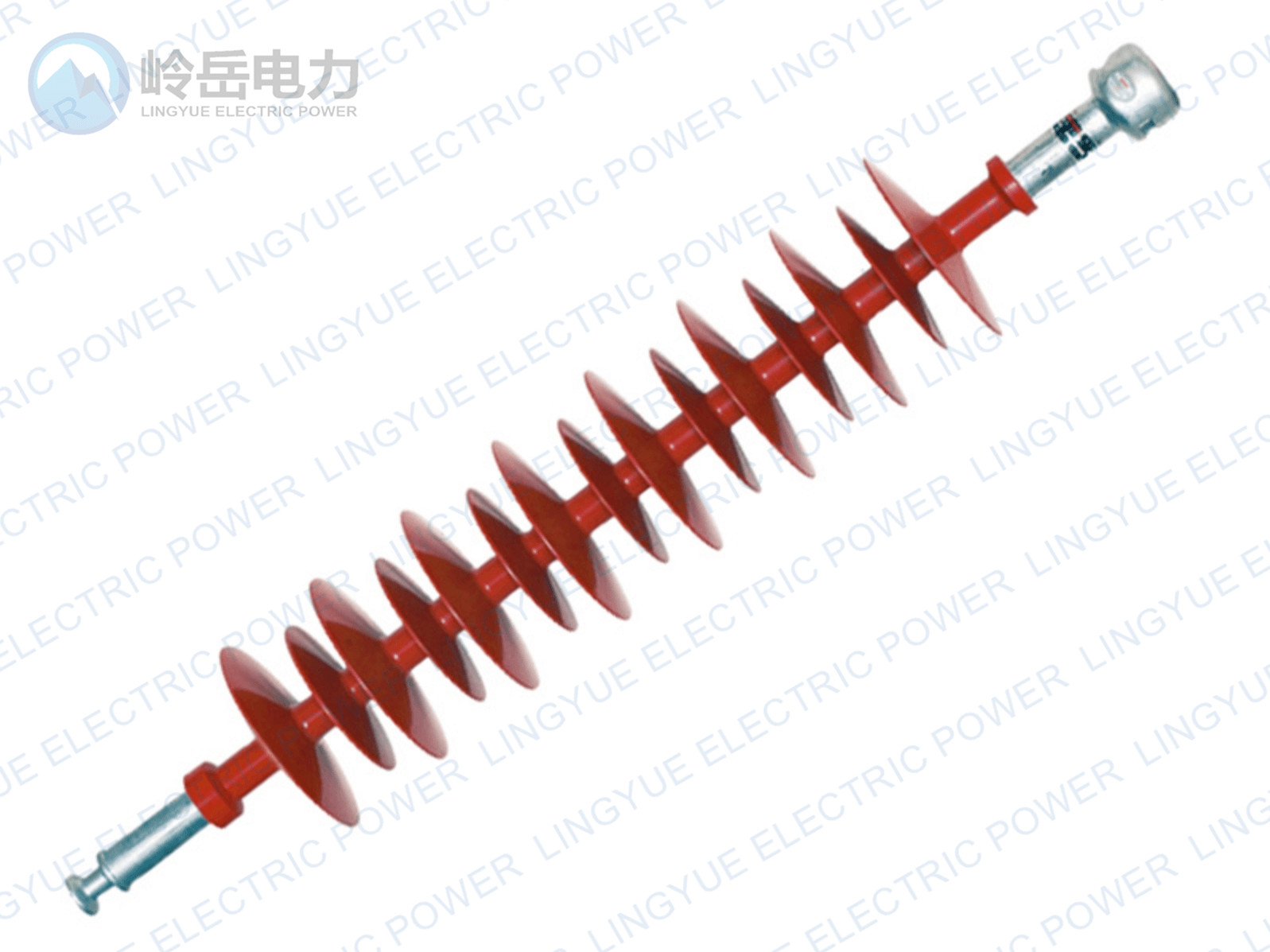

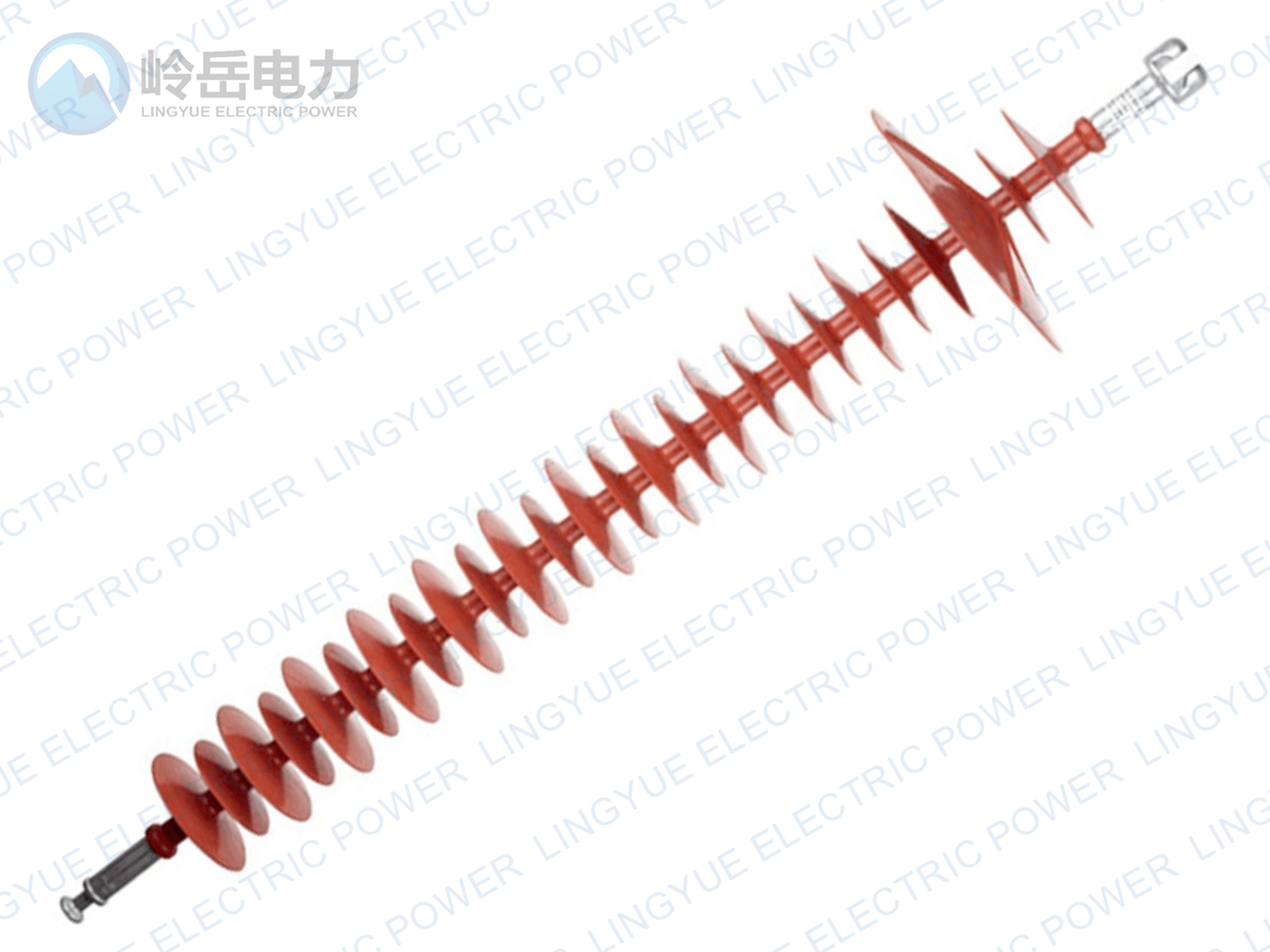

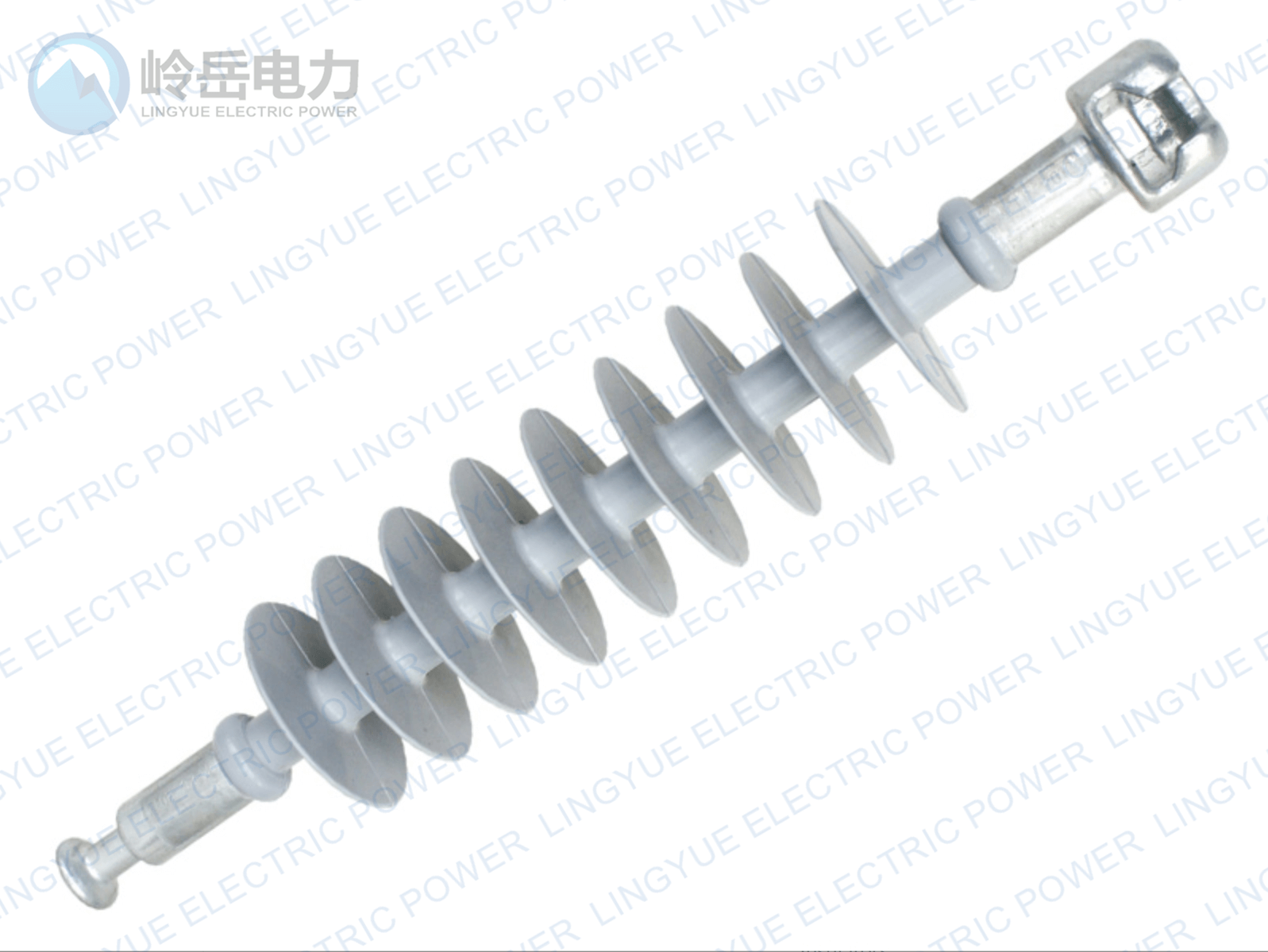

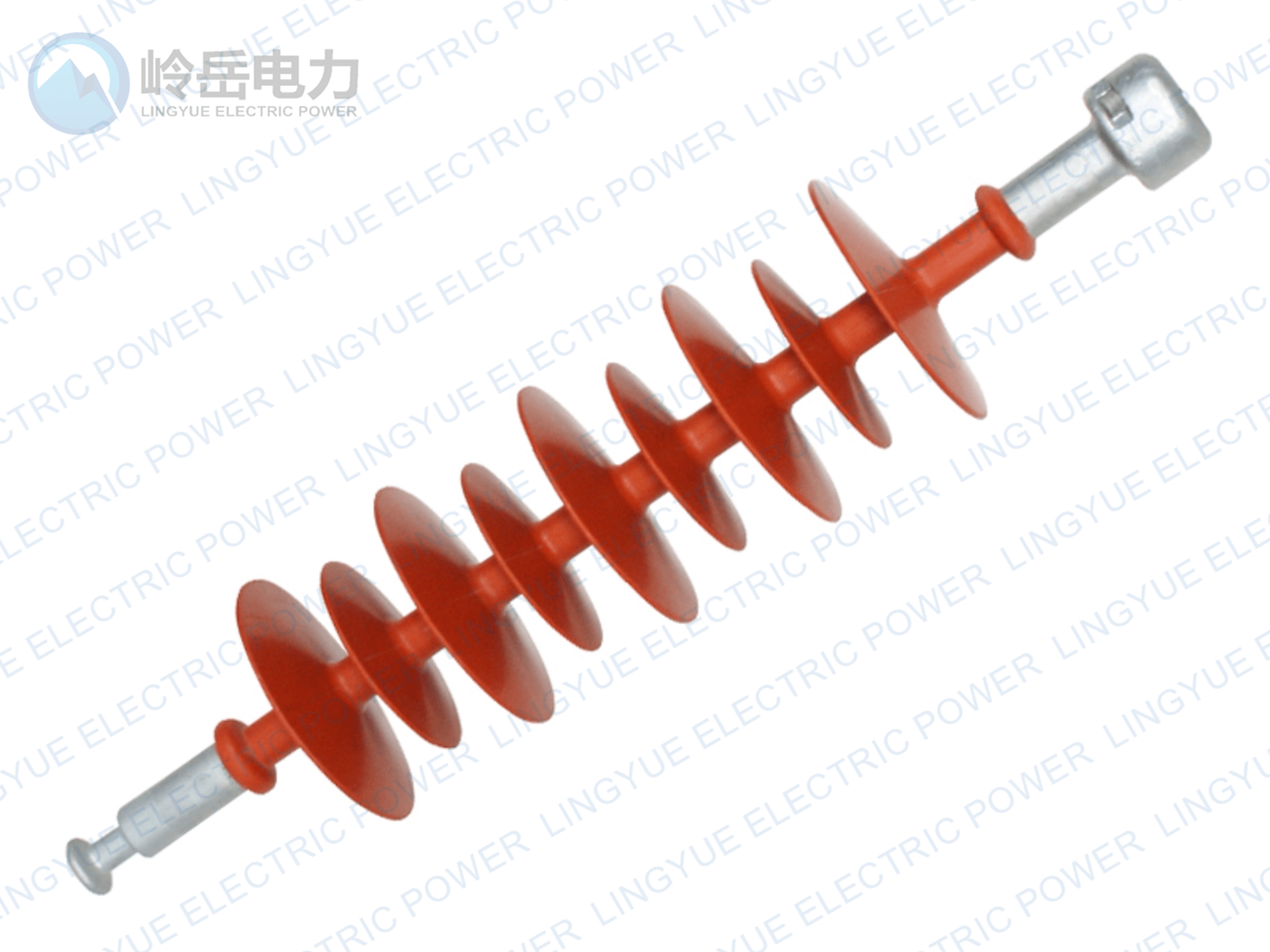

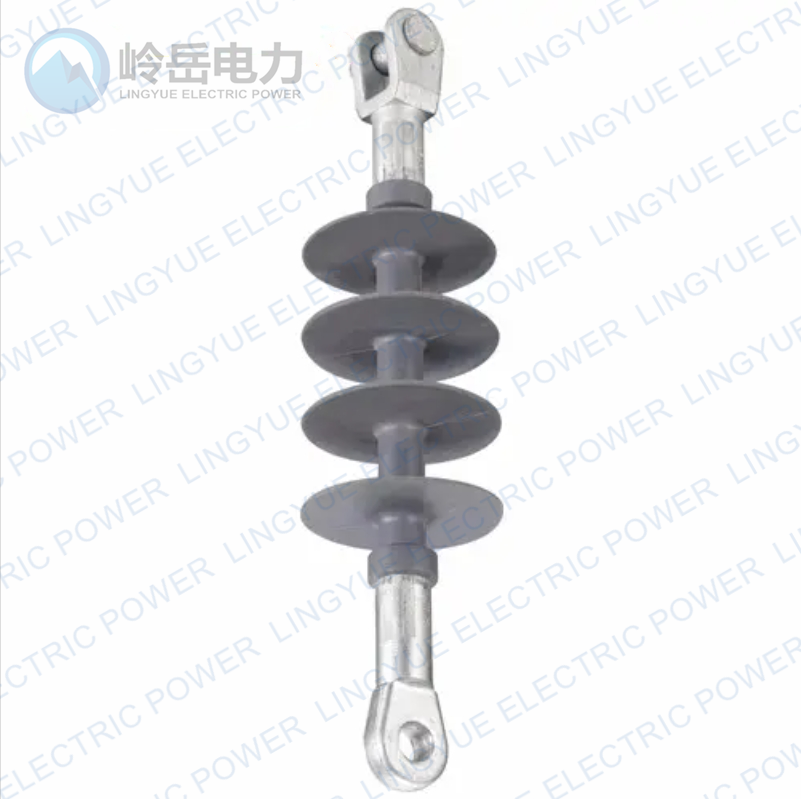

Description of composite polymer insulator

Composite polymer insulator is manufactured according to international standards and specifications. We have been a leading factory in producing composite polymer insulator for many years, and with these efforts, our company has developed a good market at home and abroad.



Technical specification of composite polymer insulator

Product model

Nominal voltage (kV)

Nominal mechanical load (kn)

Construction height H. (mm)

Minimum Arc Distance (mm)

Minimum Creepage Distance (mm)

Shed diameter (mm)

Lightning impulse withstand (peak) (kV)

PF1min Wet withstand voltage (virtual value) (kv)

FXBW-11/70 S.B.

11

70

350

180

420

92

95

45

FXBW-11/100-SB

11

100

380

185

420

92

95

45

FXBW-11/80-SB

11

80

450

280

550

144/114

125

65

FXBW-24/70 E.E.

24

70

425

230

575

98/88

125

65

FXBW-24/70 S.B.

24

70

440

270

850

130/100

125

65

FXBW-24/120-SB

24

120

545

320

900

115/85

145

65

FXBW-25/70 CT

25

70

500

330

735

92

145

65

FXBW-33/70 S.B.

33

70

505

330

900

92

200

95

FXBW-33/100-SB

33

100

570

385

920

115/75

200

95

FXBW-33/80-SB

33

80

720

555

+1650

144/114

250

135

FXBW-35/100-SB

35

100

750

430

1400

130/100

185

95



advantage

a. Free samples can be provided.

b. Competitive price (factory price).

c. The order will be delivered on time.

d. We always provide customer service and professional technology.

e. Quality control throughout the entire production process
