LINGYUE ELECTRIC POWER

TL type T connector

Inquiry Contact us

Like this product? Share with friends:

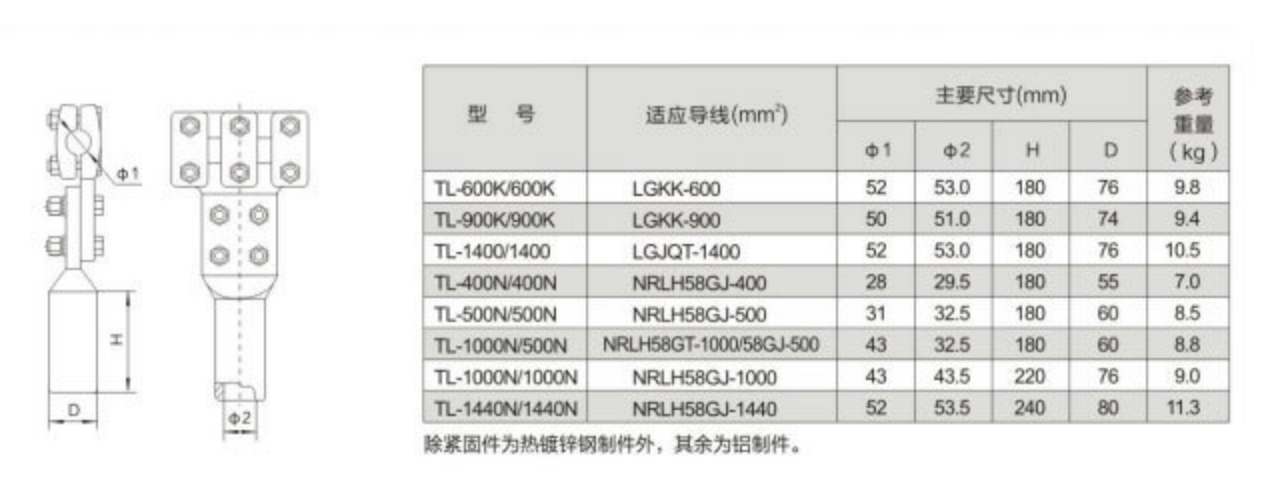

Product Introduction

Mainly used for overhead power lines or substations, the current branch is led down in a "T" shape on the main line of the busbar.

Product Description

1. The holding force of the T-shaped wire clamp on the wire is not less than 10% of the calculated breaking force of the wire;

2. The DC resistance of the wire clamp is not greater than the DC resistance of the wire of equal length, and the current-carrying temperature rise is lower than the wire temperature rise;

3. Made of high-quality aluminum alloy, it is light in weight, has good conductivity and strong corrosion resistance;

4. The main line is fastened by bolts, the down conductor is fastened by compression, and then connected by bolts, and can be installed separately.
