Product Introduction

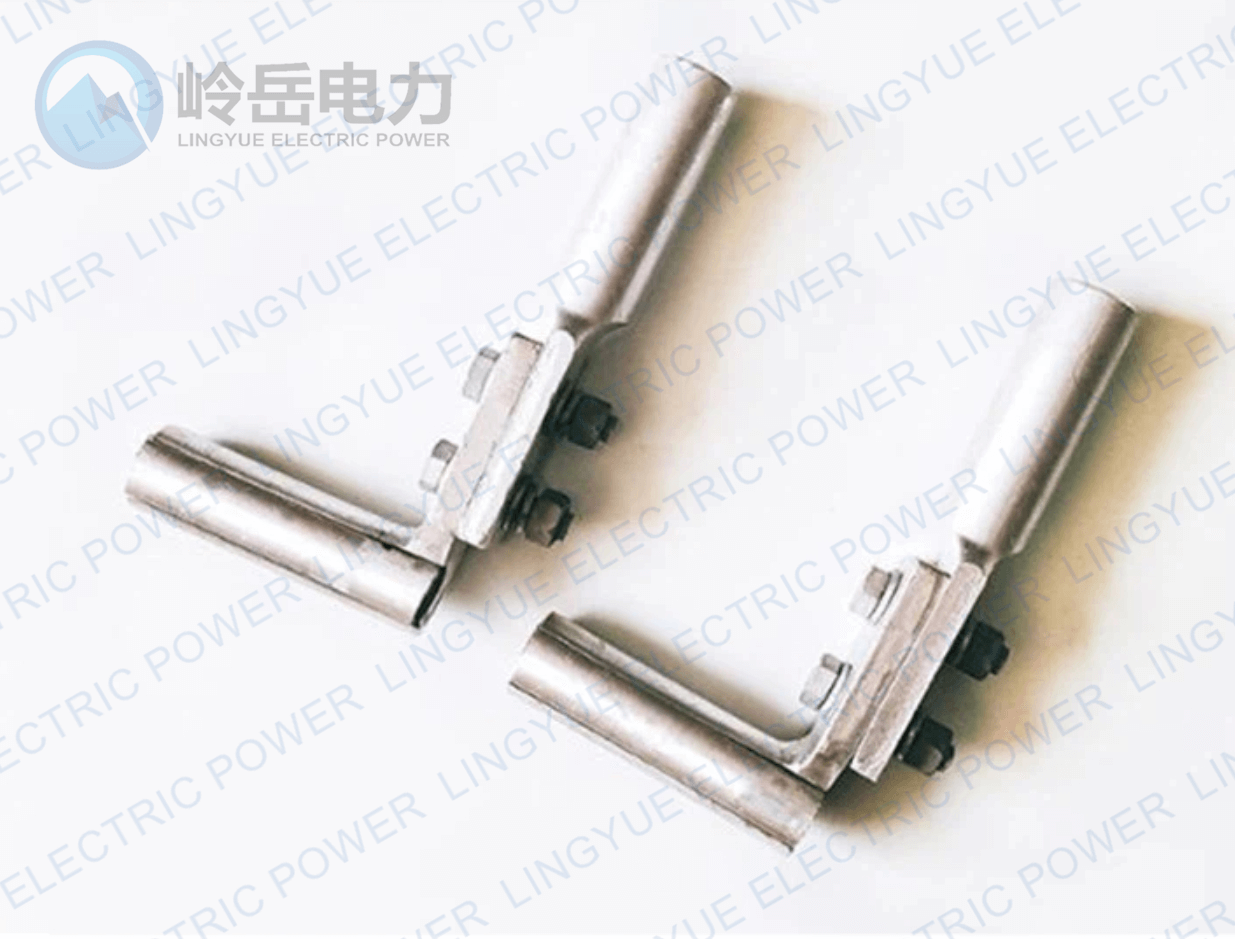

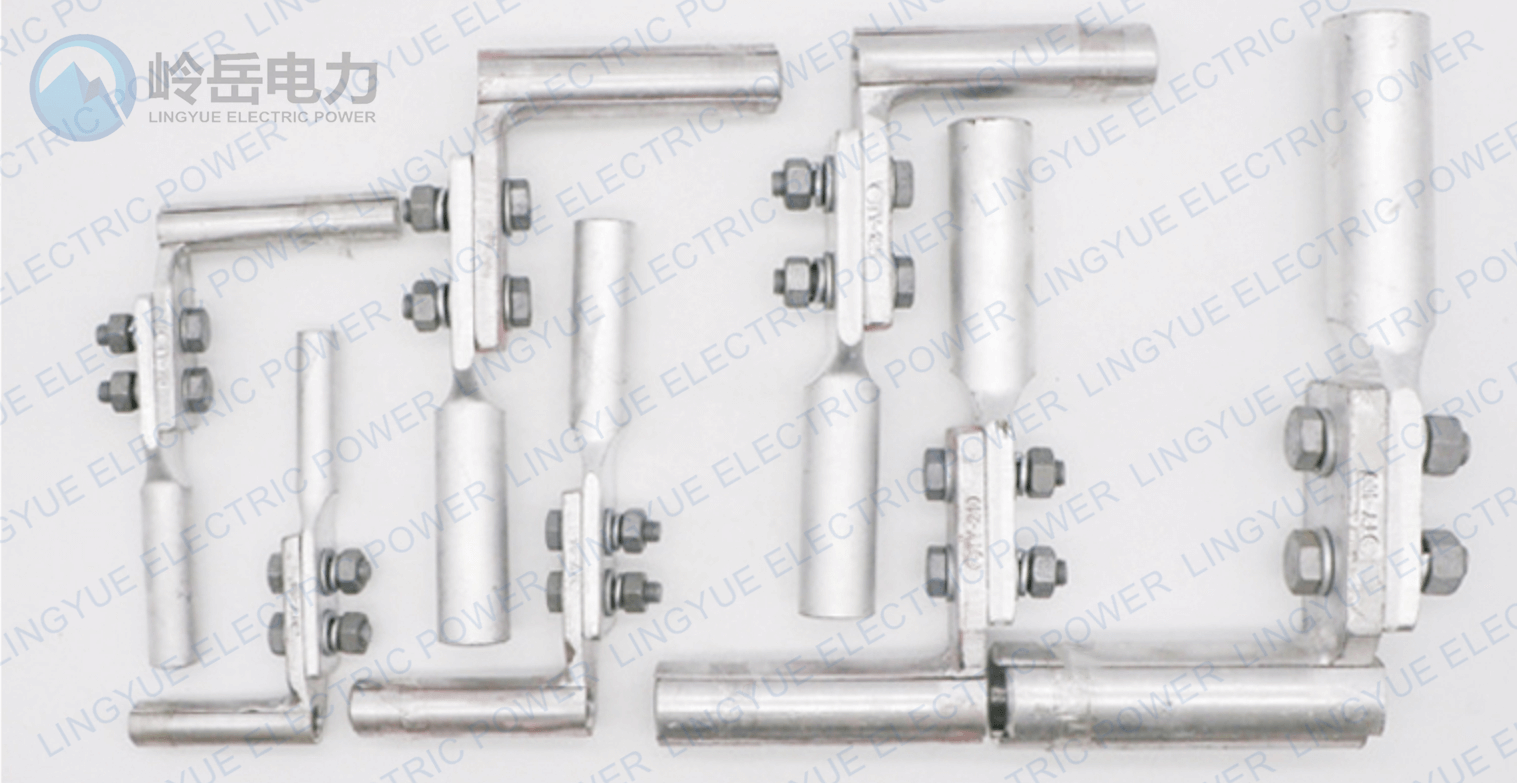

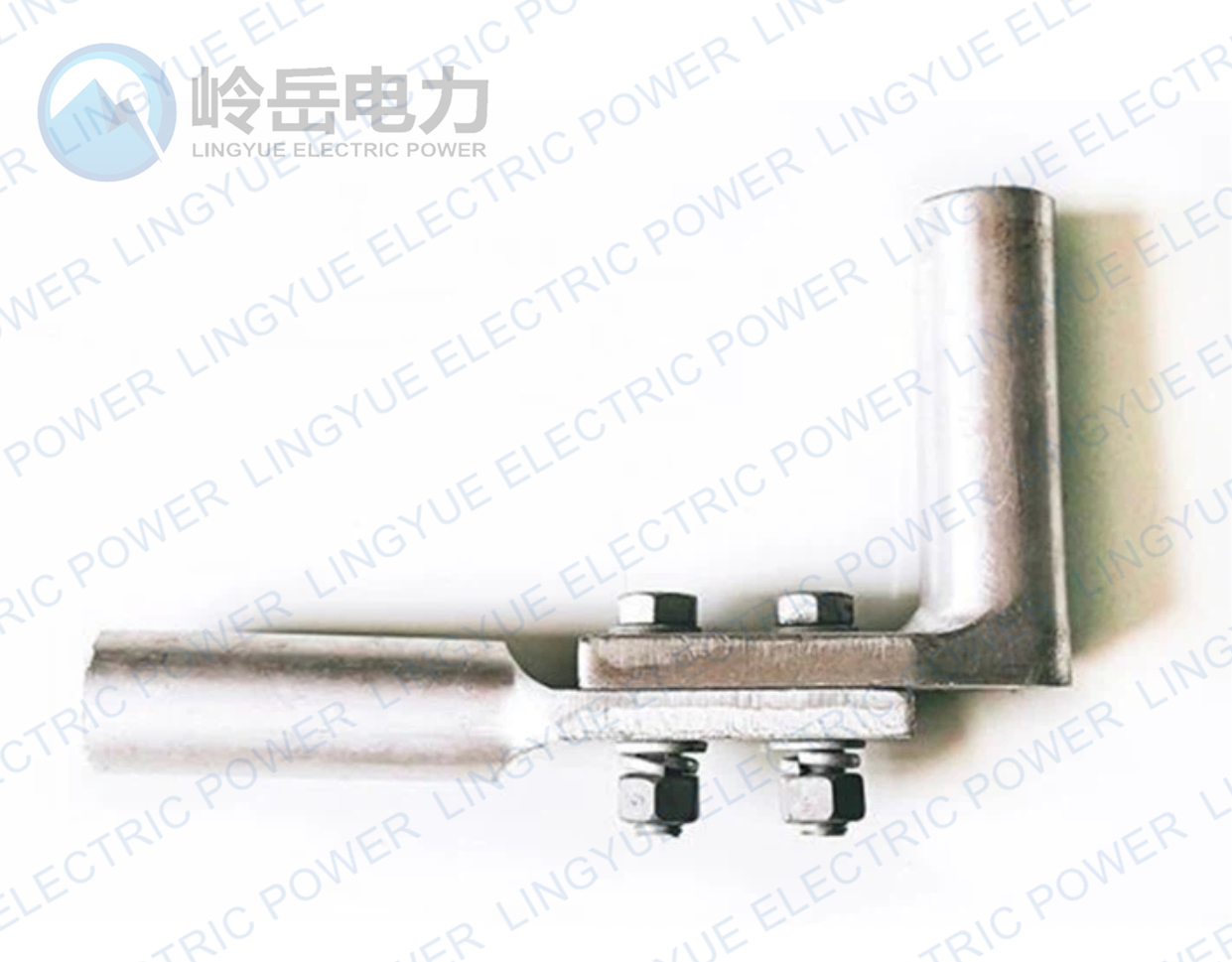

Mainly used for overhead power lines or substations, the current branch is led down in a "T" shape on the main line of the busbar. It is hydraulically tightened and has good conductivity.



Product Description



1. The gripping force of the T-shaped wire clamp on the wire is not less than 10% of the calculated breaking force of the wire;

2. The DC resistance of the wire clamp is not greater than the DC resistance of the wire of the same length, and the current-carrying temperature rise is lower than the wire temperature rise;

3. Made of high-quality aluminum alloy, it is light in weight, has good conductivity and strong corrosion resistance;

4. The wire is hydraulically tightened and has good conductivity.
