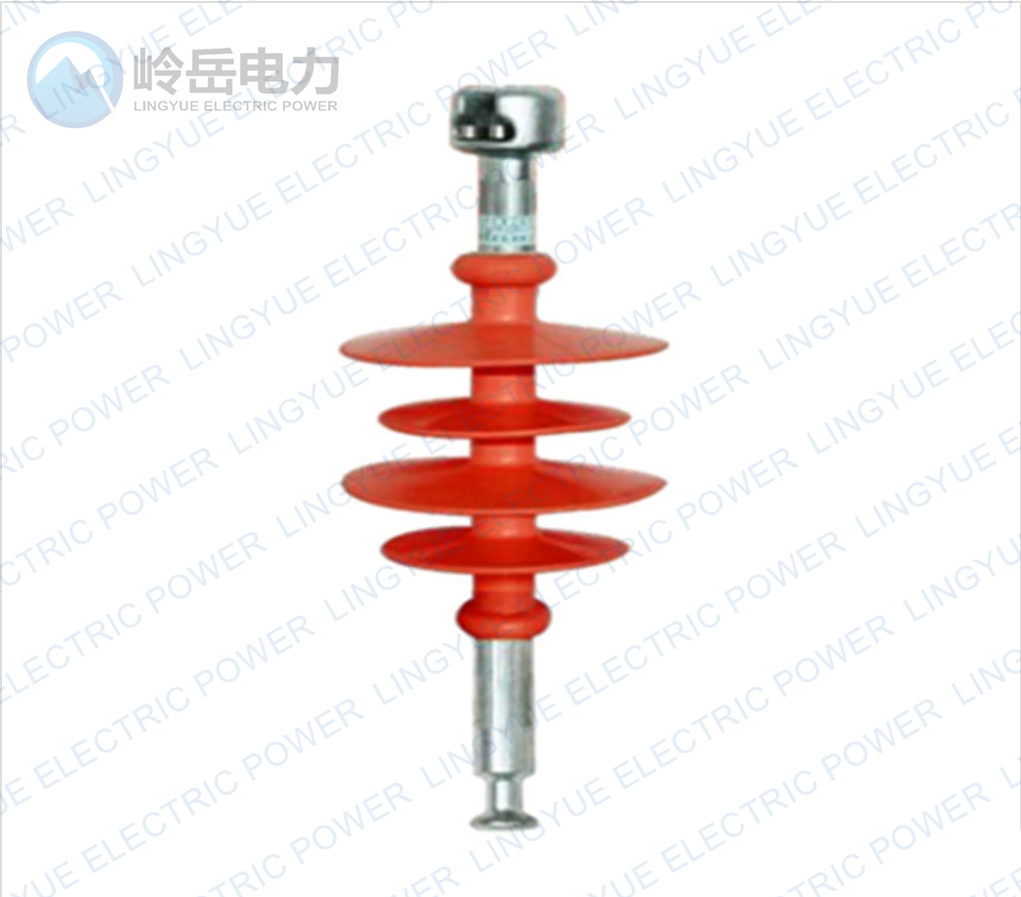

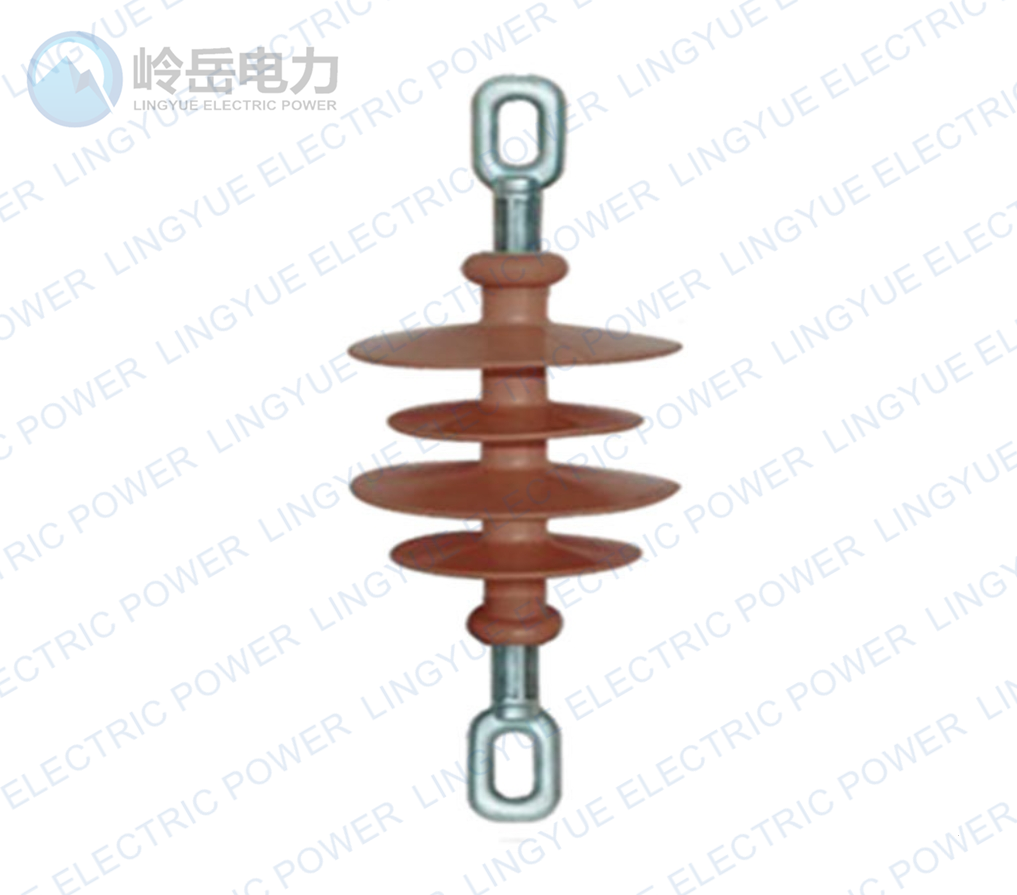

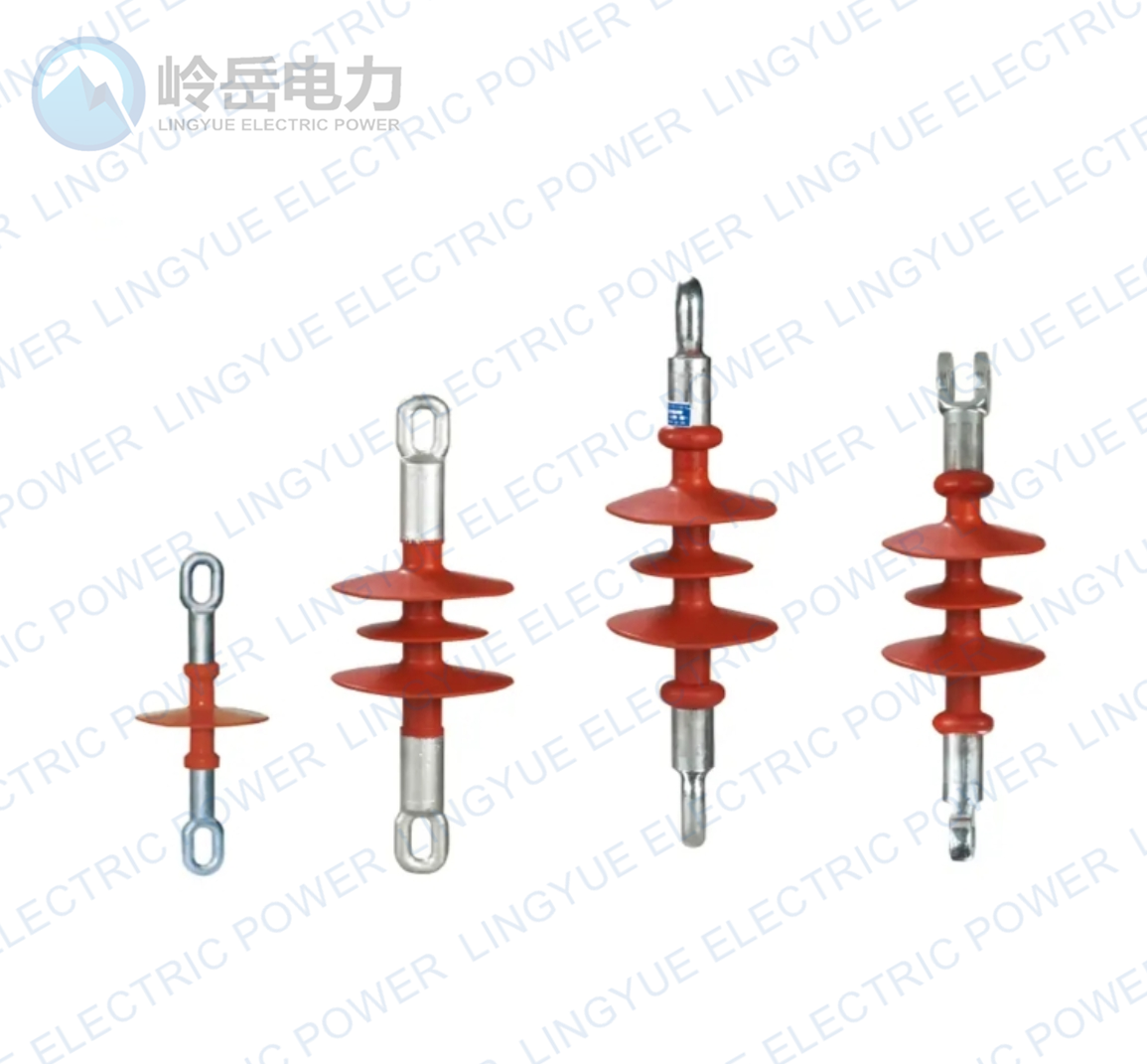

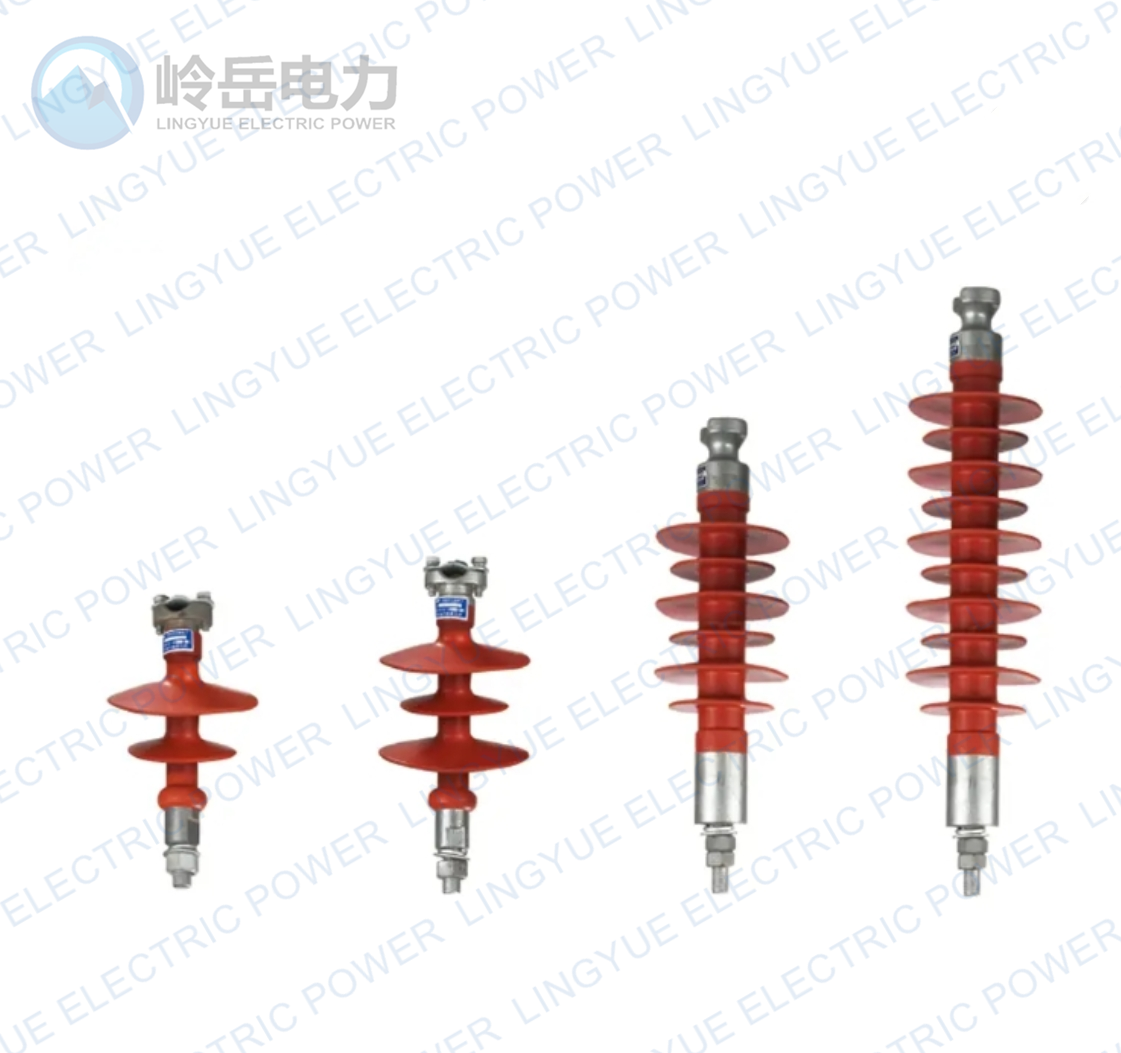

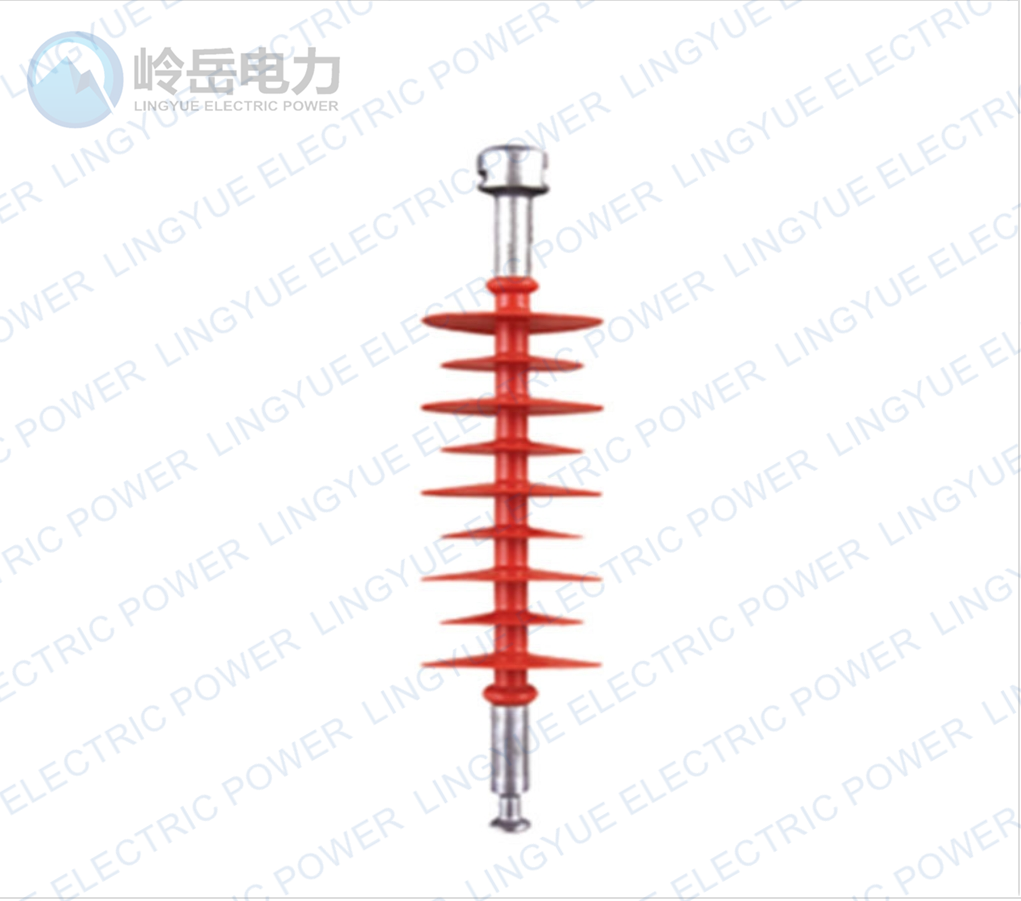

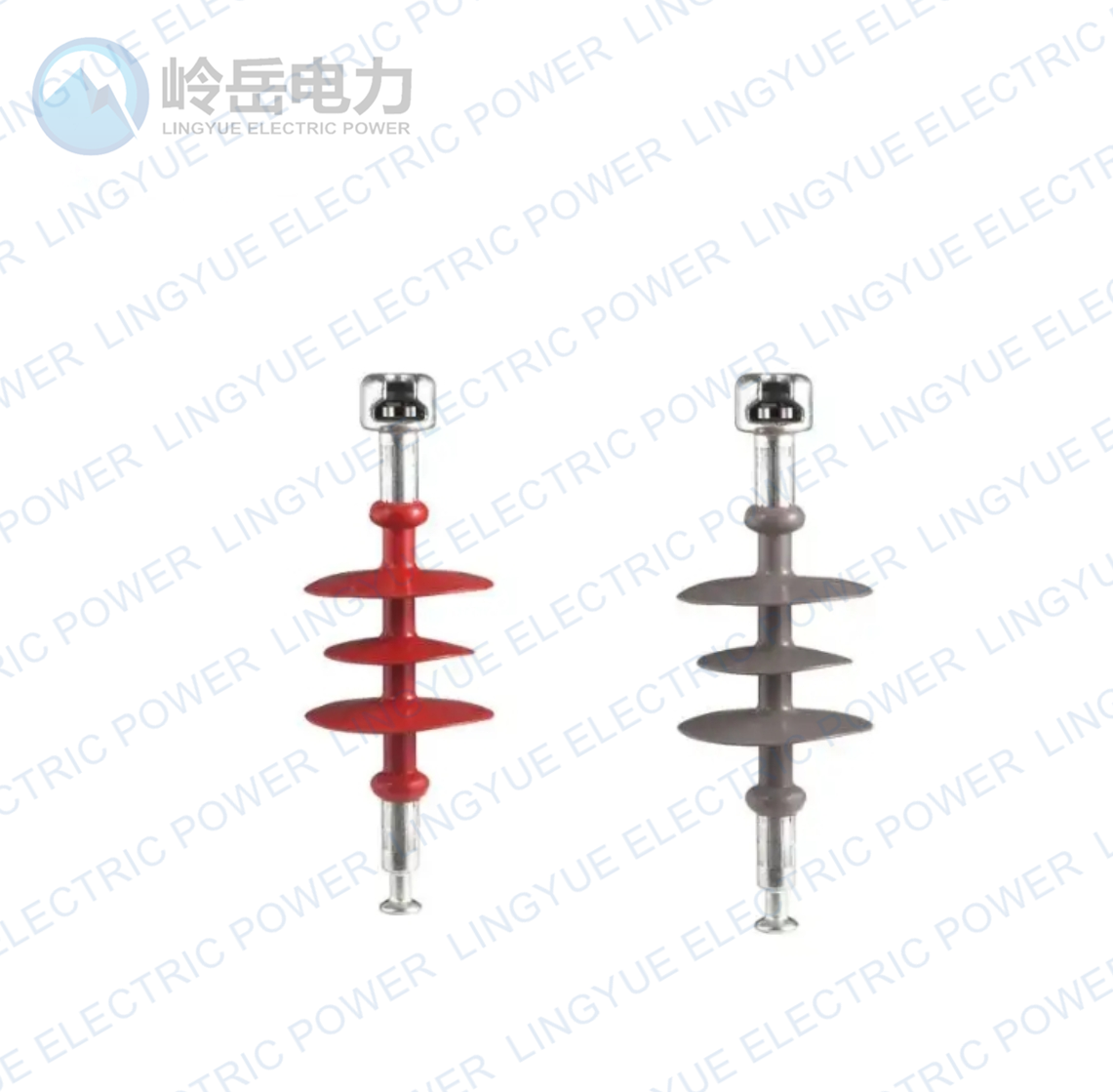

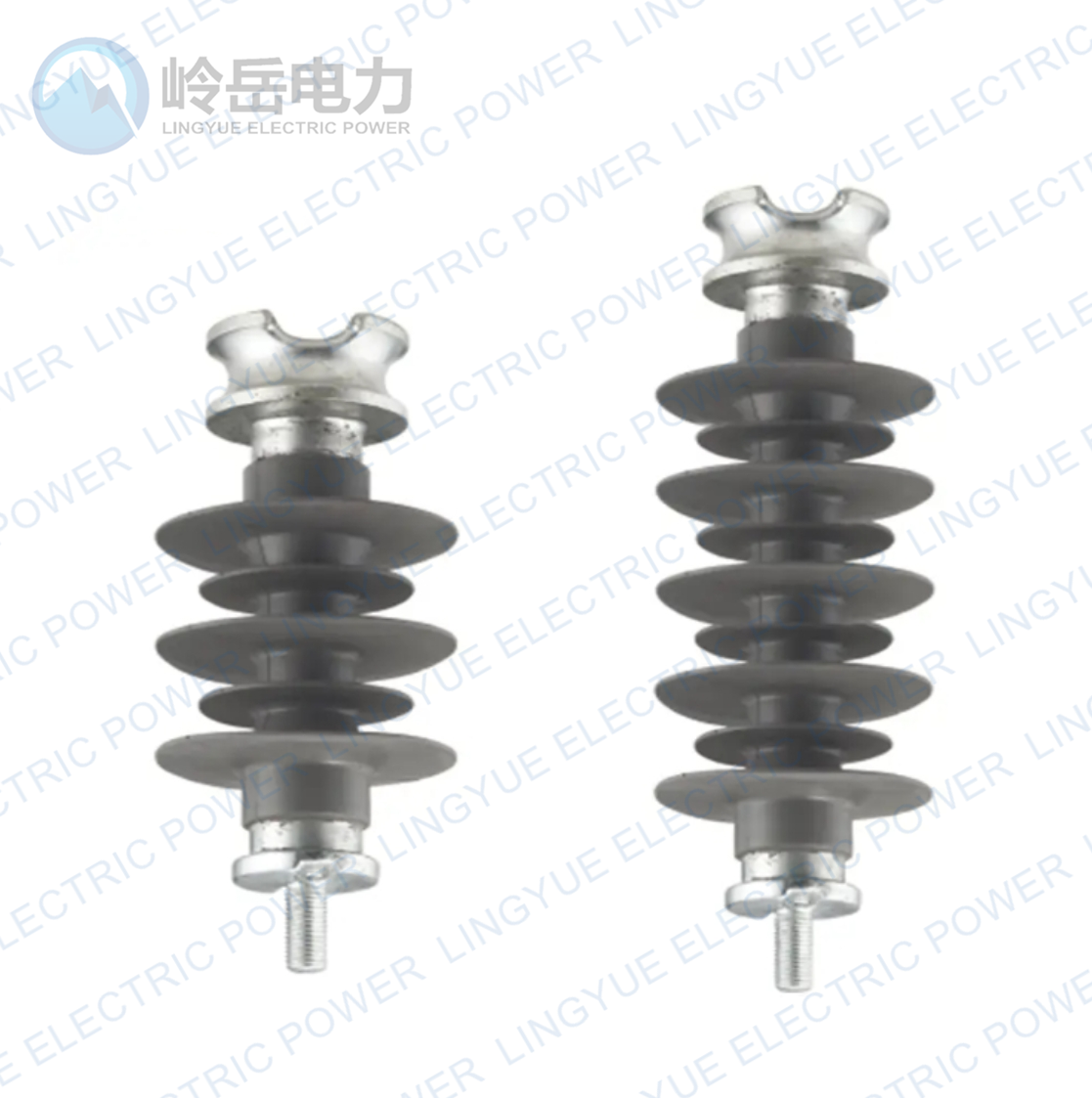

The FXBW4 Type Suspension Composite insulator is a highly efficient solution for lightning protection, offering a long service life. It consists of two main components: porcelain and hardware. This combination allows the insulator to adapt well to various temperatures and environmental conditions. Its primary function is to provide reliable insulation, ensuring the safety of both the power line and equipment. The unique umbrella-like shape not only adds to its visual appeal but also serves the purpose of providing maximum security, just like an umbrella shields people from the elements.

The Advantages of FXBW4 Type Suspension Composite Insulator

Good Insulation:

Every small component of the composite insulator undergoes rigorous testing during the production process. Despite its compact size, each part is designed to deliver exceptional functionality. The insulator is easy to install and highly resistant to damage. Its lightweight nature makes it incredibly convenient to carry. Moreover, the insulator boasts a stable mechanical performance, minimizing the occurrence of accidents during its usage.

Multiple Protection:

The porcelain material used in the composite insulator is highly resistant to dirt, making it effortless to clean. Even on rainy days, a simple cloth is sufficient to wipe it clean. The surface of the insulator feels exceptionally smooth, reflecting its high-quality construction. It is a valuable investment, particularly during thunderstorms, as it delivers consistent and reliable performance.

Insulator Installation Safety

· It should be packed well and prohibit to save it with others, like tools, paper. Once it strikes with tough items strongly, it will lose the original feature or damage;

· When lifting the insulator, the knot should be hit on the end attachment, and it is strictly forbidden to hit the shed or sheath. When the rope must touch the shed and sheath, the touching part should be wrapped with a soft cloth;

· Do not use the composite insulator as an auxiliary tool for putting or receiving the line, so as not to damage the insulator by force;

· When installing the voltage equalizing ring, it should be adjusted so that the ring is perpendicular to the axis of the insulator. For the open type voltage equalizing ring, pay attention to the same opening direction at both ends, so as to facilitate discharge.
