Product Introduction

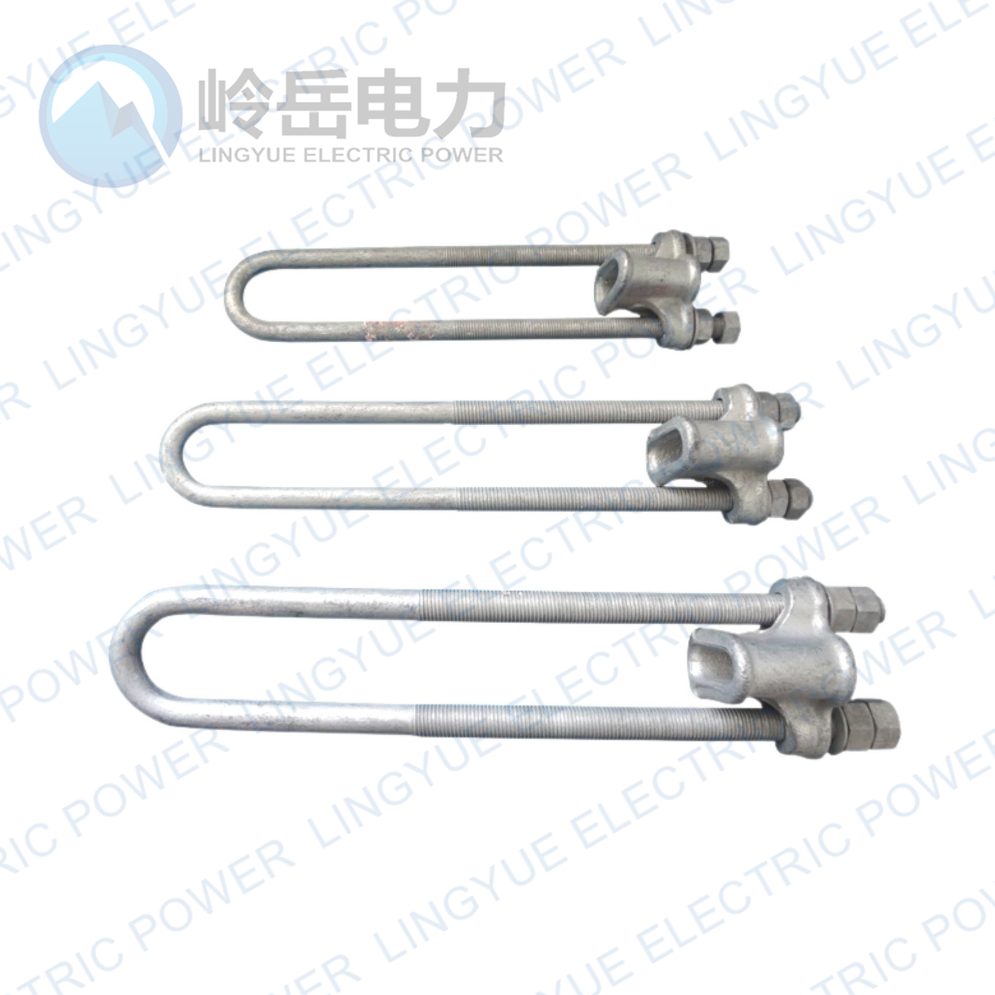

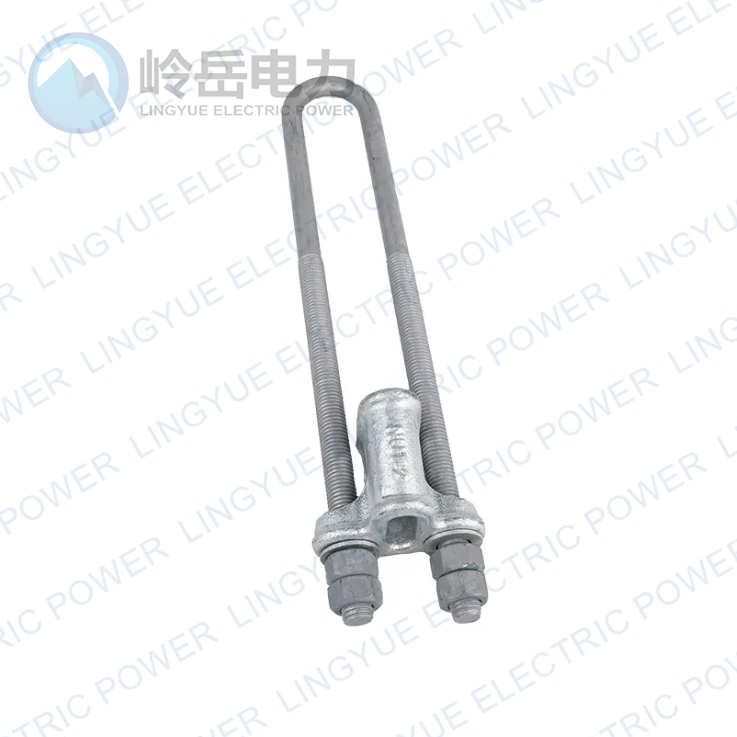

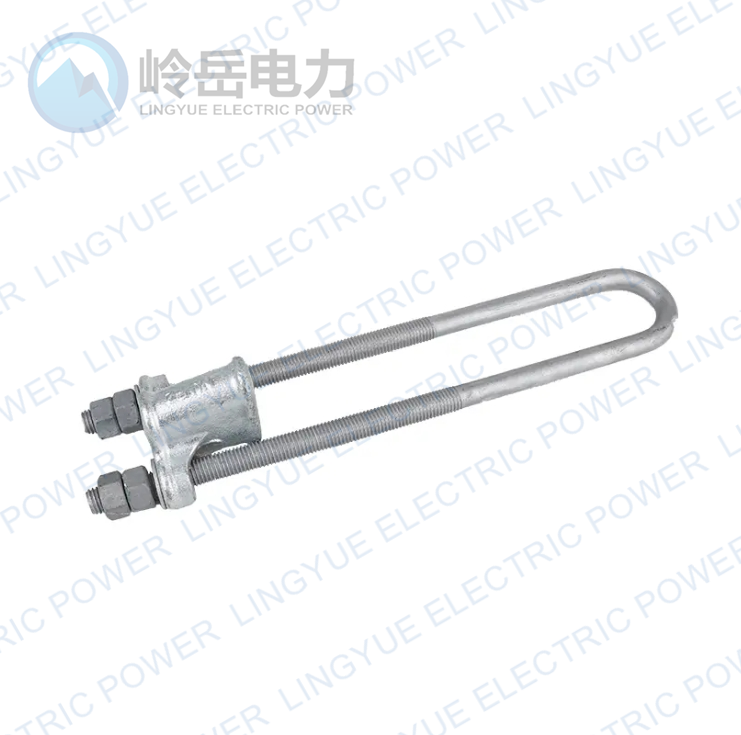

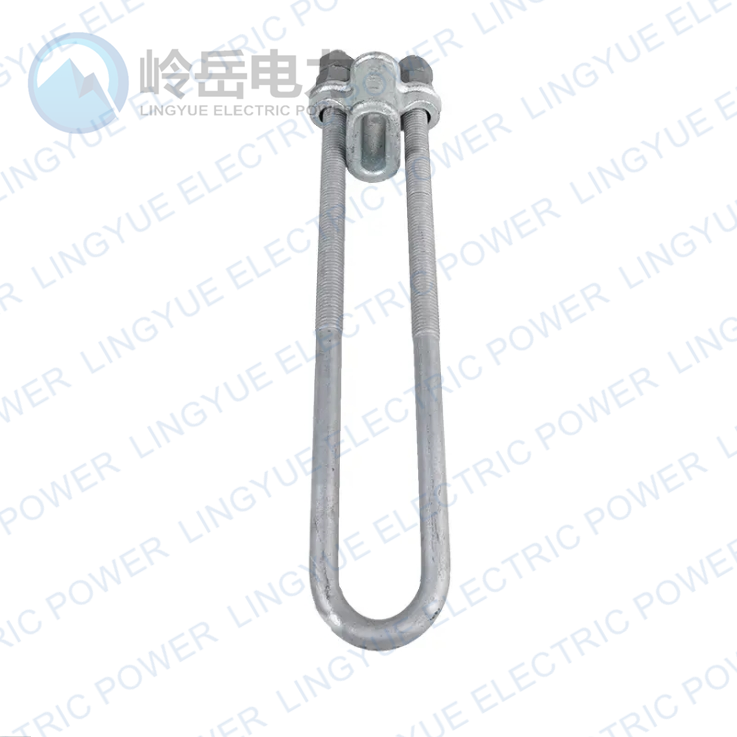

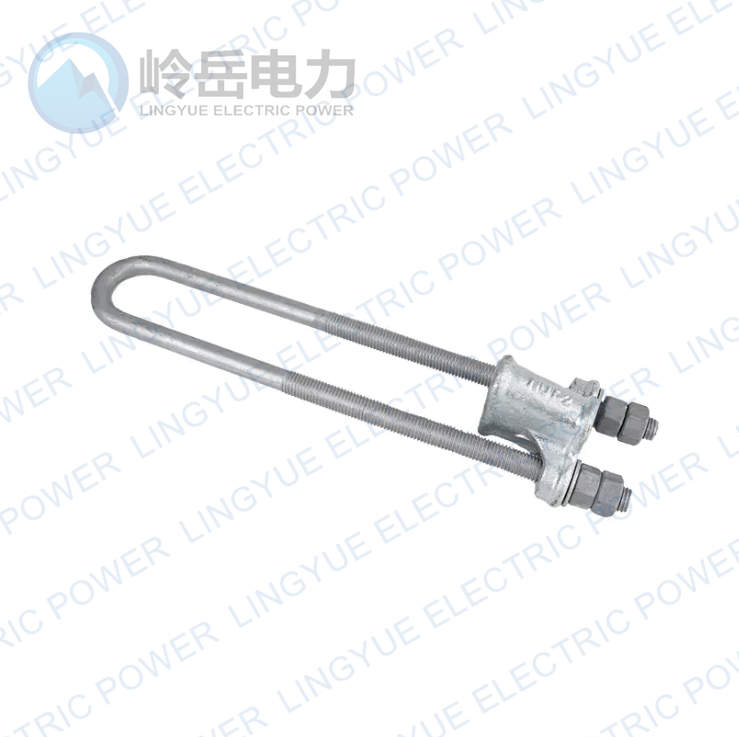

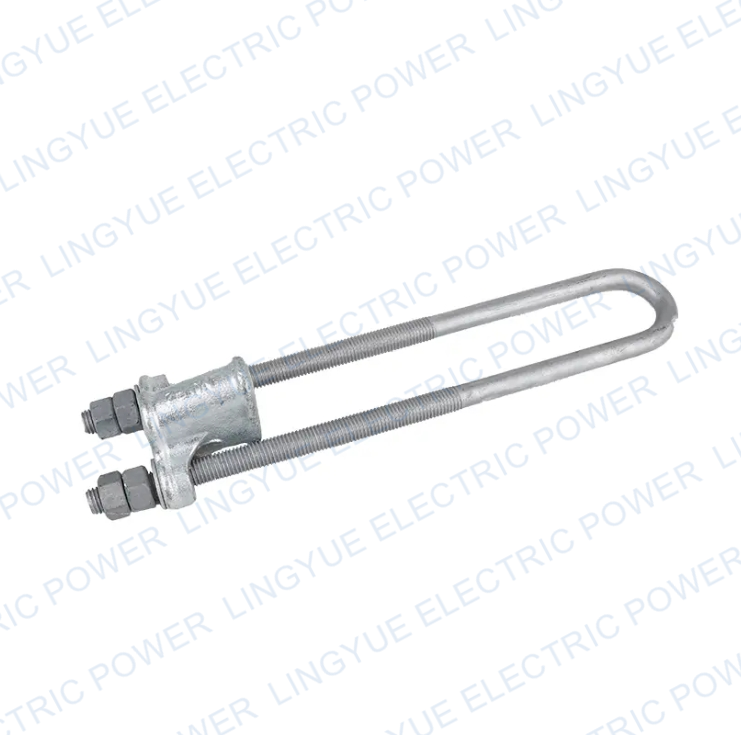

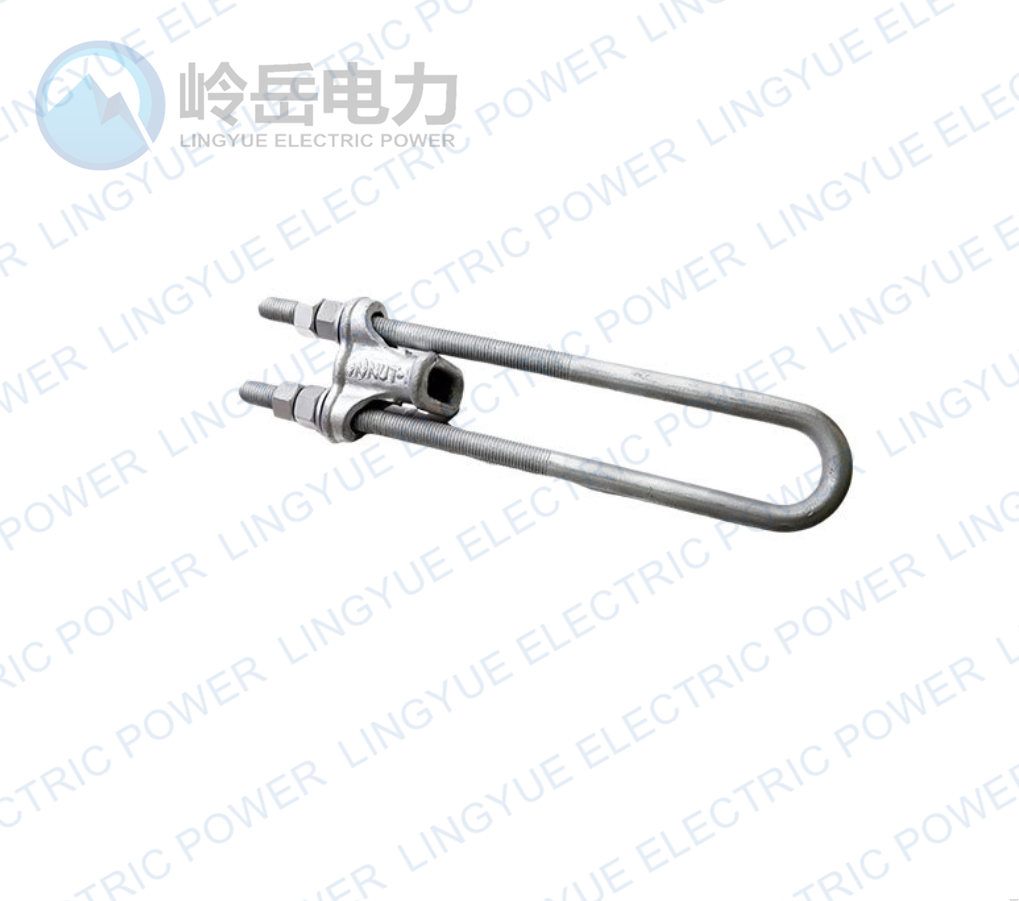

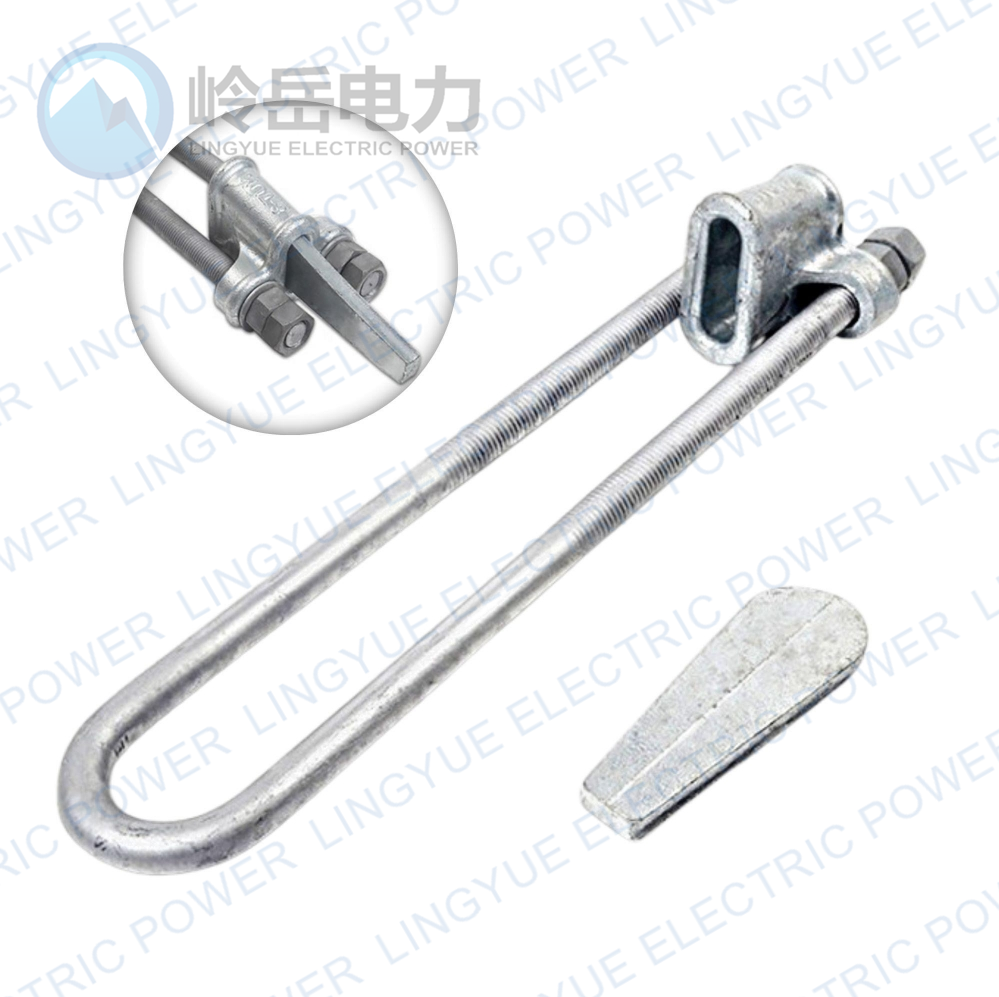

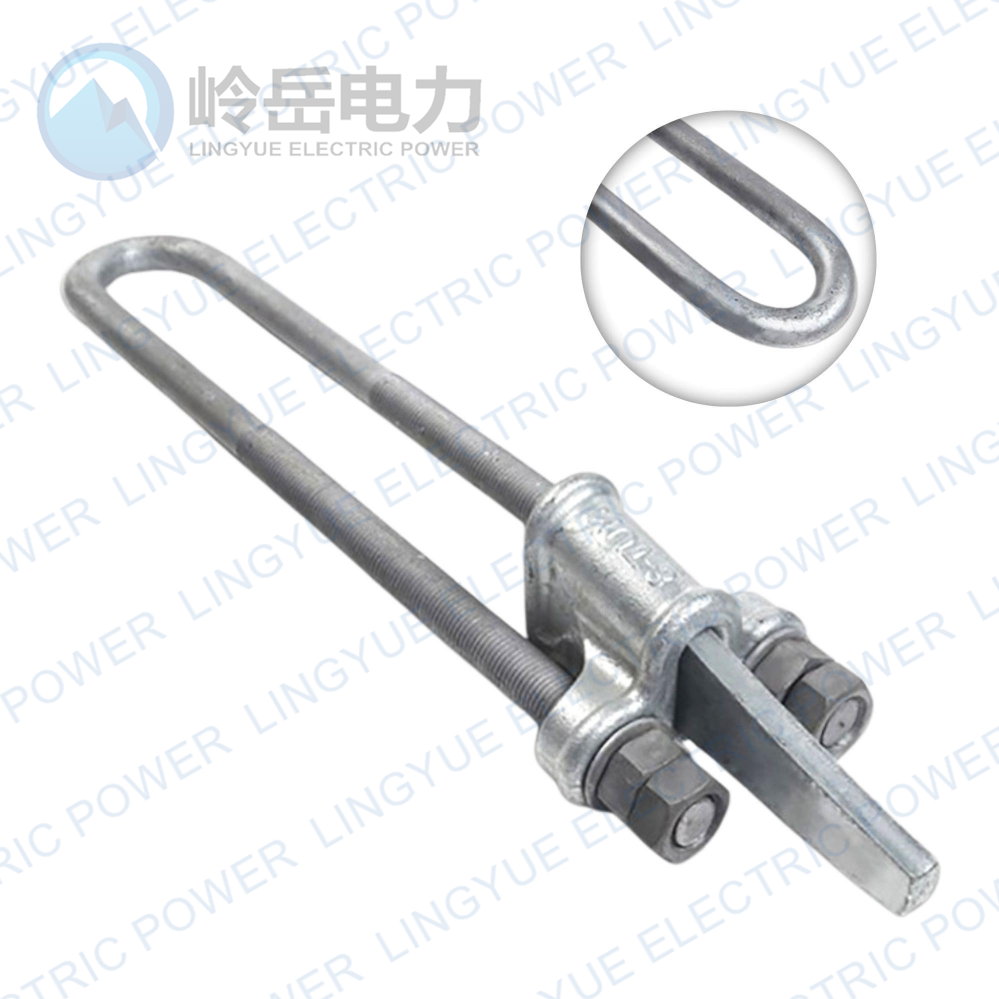

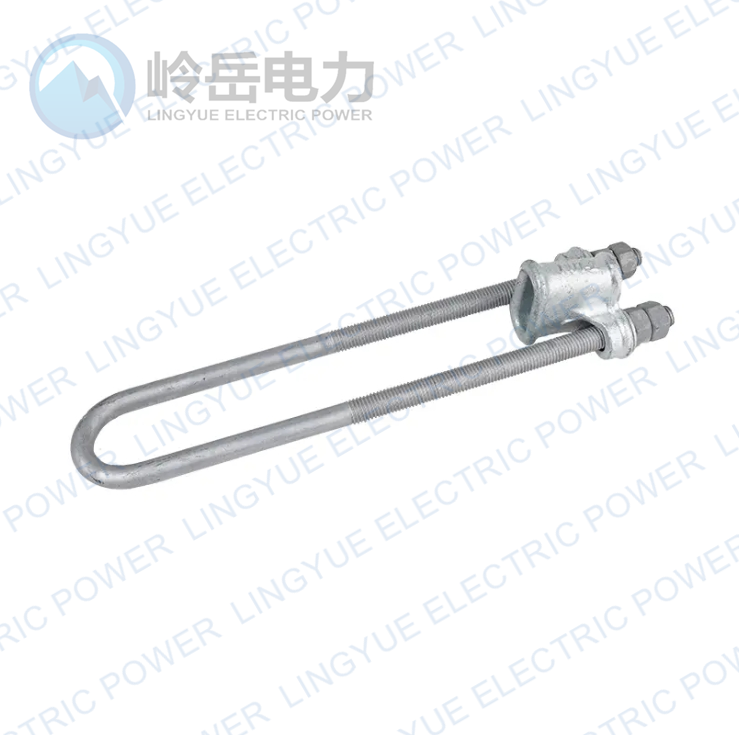

NUT  clamp adopts wedge self-locking structure and the strand is clamped in the groove.



Usually used at the lower end of the stay-rod tower.



The body and wedge are malleable iron.



All ferrous parts are steel and hot dip galvanized.



Item No.

Steel wire

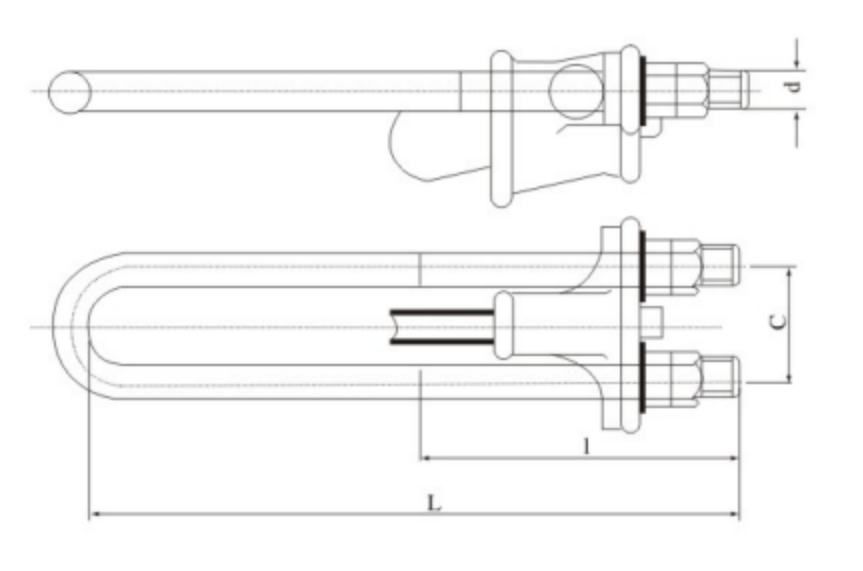

Dimension(mm)

Ultimate

Weitht


Conductor(mm)

d

L

I

C

Strength(KN)

(kg)

NUT-1

6.6~7.8

16

370

200

56

45

2.1

NUT-2

9.0~11.5

18

430

250

62

88

3.2

NUT-3

13.0~14.0

22

500

300

74

143

5.4

NUT-4

15.0~16.0

24

580

350

82

164

7.2

The body and wedge are malleable iron.The cotter pin is stainless steel. The other parts are steel, . All ferrous parts are hot-dip galvanized steel.
