NX wedge type clamp
NX wedge type clamp
NX wedge type clamp
NX wedge type clamp
NX wedge type clamp
NX wedge type clamp
NX wedge type clamp
NX wedge type clamp
NX wedge type clamp
NX wedge type clamp
NX wedge type clamp
NX wedge type clamp
NX wedge type clamp
NX wedge type clamp
NX wedge type clamp
NX wedge type clamp
NX wedge type clamp
Inquiry Contact us

Like this product? Share with friends:

Product Introduction

The wedge clamp body and wedge are made of ductile iron or steel, depending on the required breaking load. All iron parts are hot-dip galvanized and made of steel, except for the cotter pin, which is made of stainless steel.



Descriptions:

The wedge clamp body and wedge are made of ductile iron or steel, depending on the required breaking load. All iron parts are hot-dip galvanized and made of steel, except for the cotter pin, which is made of stainless steel.



Advantages:

1. The body of the wedge deformation clamp is made of high strength aluminum alloy

2. With smooth surface and long service life

3. Convenient use and installation

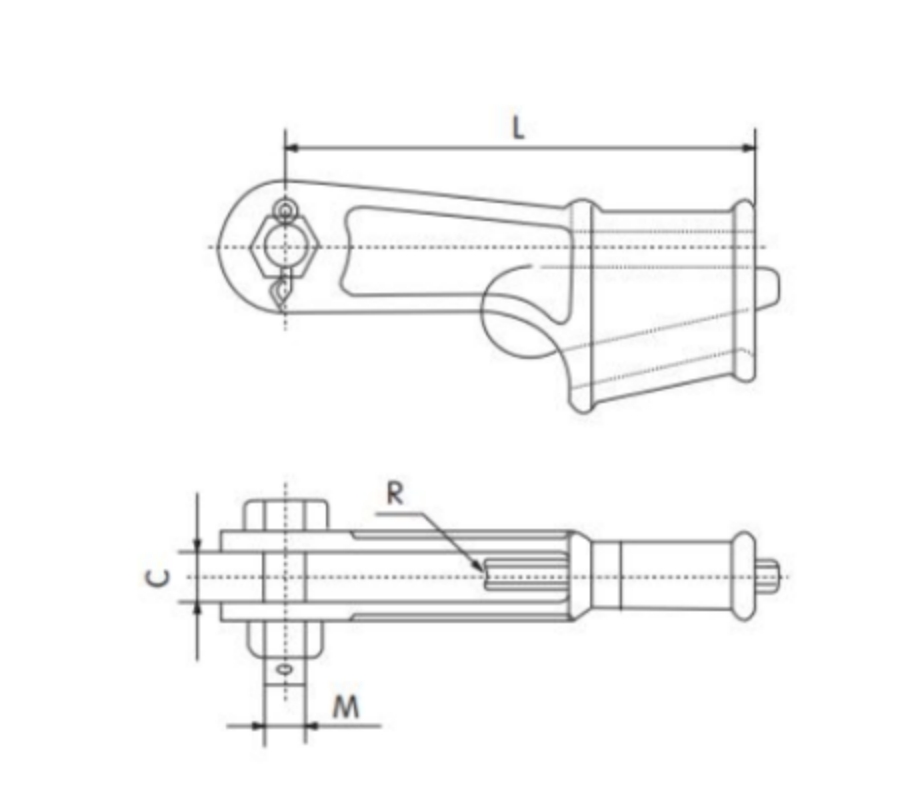

Catalog No.

Application of wire diameter

Dimensions（mm）

Specified failure load（KN）

Weight（kg）



C

M

L

R



NX-1

6.6~7.8

18

16

150

6.0

45

1.20

NX-2

9.0~11.0

20

18

180

7.3

88

1.76

NX-3

13.0~14.0

25

24

195

8.0

143

3.20

NX-4

15.0~16.0

30

27

200

8.0

164

4.60
