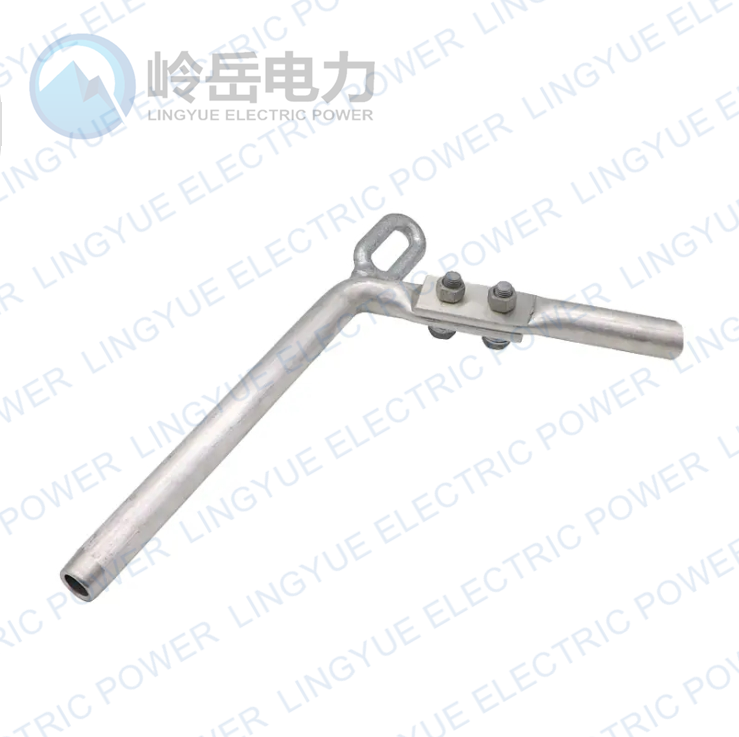

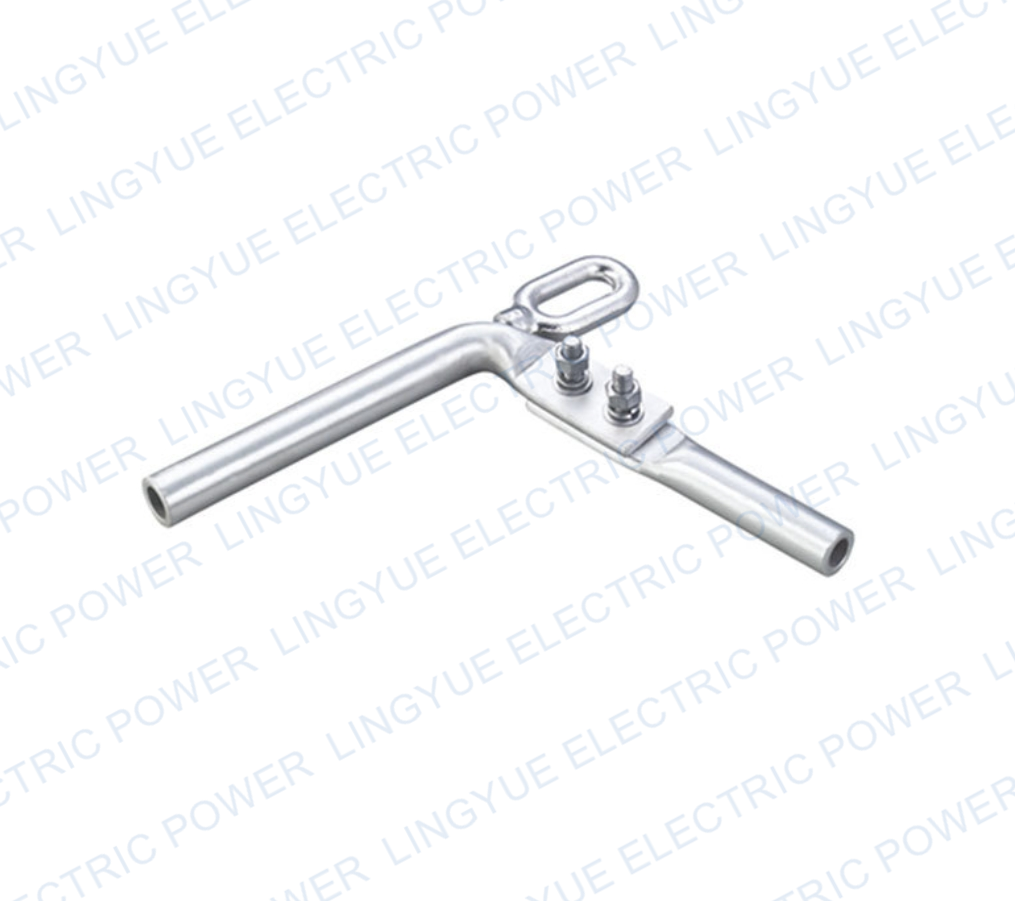

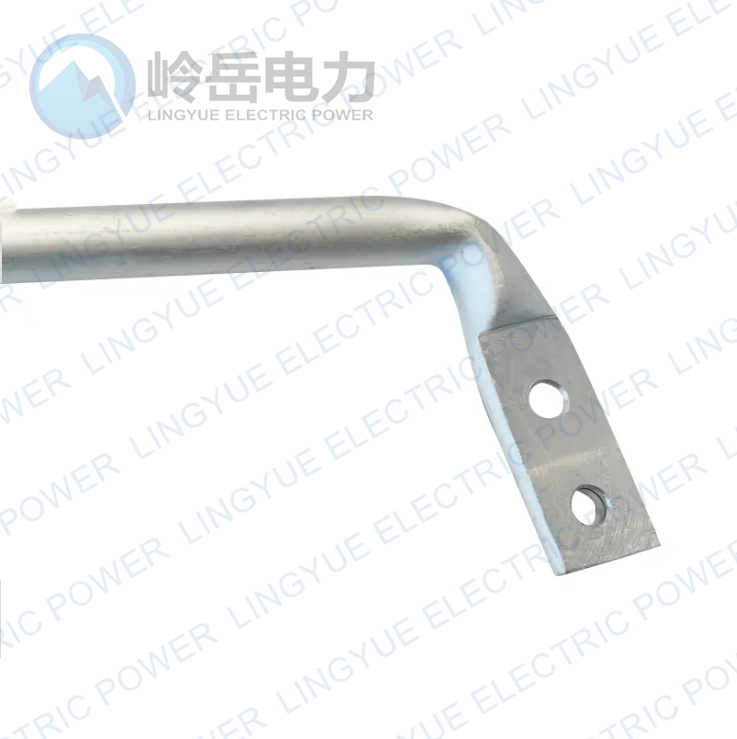

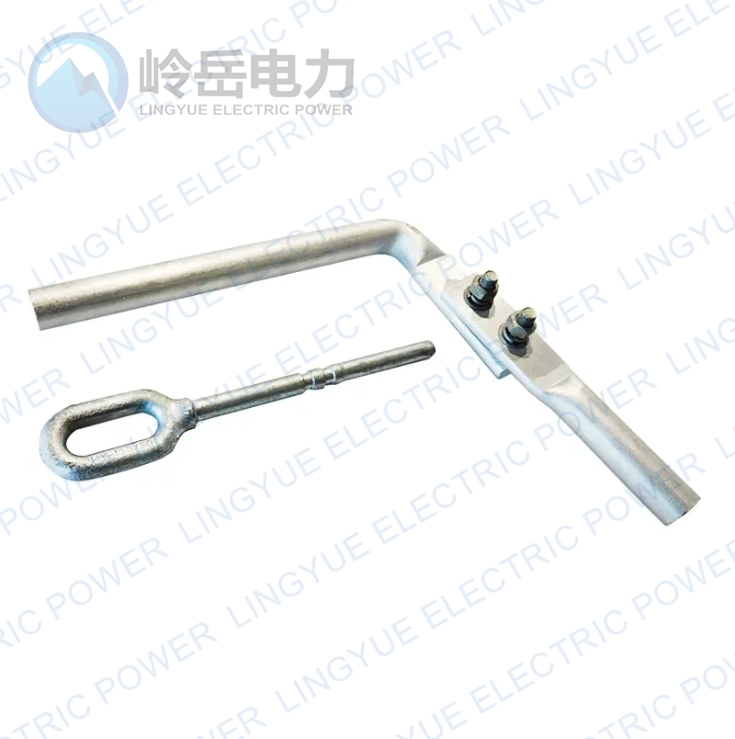

NY hydraulic compression tension clamp

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

NY series hydraulic compression tension clamp is used to fix and connect conductor onto the tension insulator string or the fittings on pole and tower through sustaining tensile force generated by the conductor.

It is made of high-strength aluminum and steel materials, with clean surface and durable usage period, meanwhile it is easy for installation, free of hysteresis loss, low carbon and energy saving.

Tension clamps（Steel anchor the whole）

Catalog No.	Suitable Conductor	Dimensions（㎜）								Grip Strength（kN）

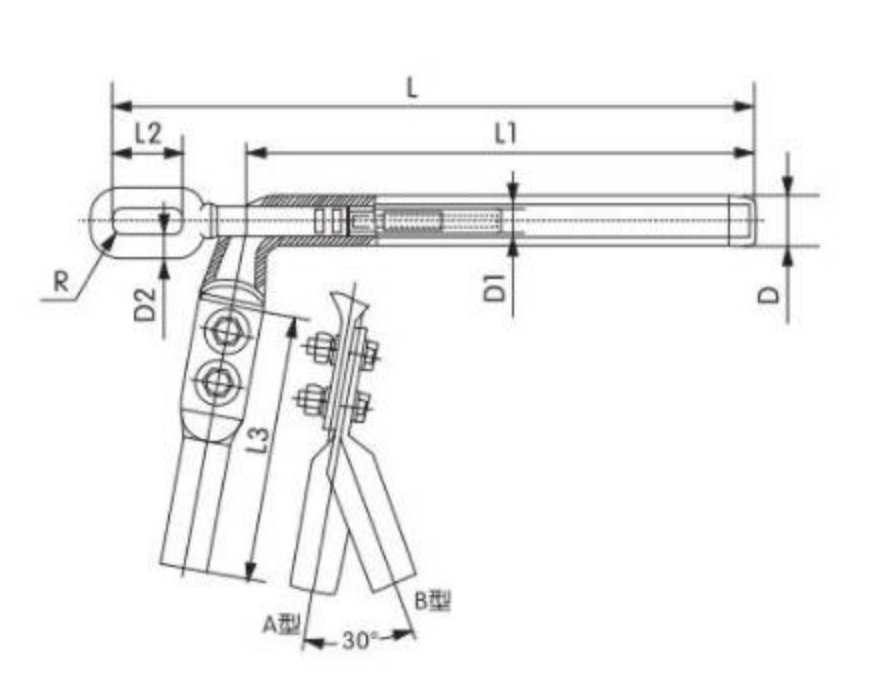

Catalog No.	Suitable Conductor	L	L1	L2	L3	D	D1	D2	R	Grip Strength（kN）
NY-50/8	LGJ-50/8	355	250	55	190	26	12	16	10	16.1
NY-50/30	LGJ-50/30	405	300	55	190	30	14	16	10	40.5
NY-70/10	LGJ-70/10	385	280	55	200	26	12	16	10	22.3
NY-70/40	LGJ-70/40	455	350	55	200	32	18	16	10	55.4
NY-95/15	LGJ-95/15	385	280	55	205	26	14	16	10	33.3
NY-95/20	LGJ-95/20	385	280	55	205	26	14	16	10	35.4
NY-95/55	LGJ-95/55	485	380	55	205	34	20	18	11	74.2
NY-120/7	LGJ-120/7	385	280	55	205	30	12	16	10	26.2
NY-120/20	LGJ-120/20	405	300	55	205	30	14	16	10	39.0
NY-120/25	LGJ-120/25	425	320	55	205	30	14	16	10	45.5
NY-120/70	LGJ-120/70	535	420	65	215	36	22	18	11	93.5
NY-150/8	LGJ-150/8	400	295	55	210	30	12	16	10	31.3
NY-150/20	LGJ-150/120	425	320	55	210	30	14	16	10	44.3
NY-150/25	LGJ-150/25	435	330	55	210	30	14	16	10	51.4
NY-150/35	LGJ-150/35	455	350	55	210	30	16	16	10	61.8
NY-185/25	LGJ-185/25	455	350	55	230	32	14	16	10	56.5
NY-185/30	LGJ-185/30	455	350	55	230	32	16	16	10	61.1
