NYZ compression tension clamp

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

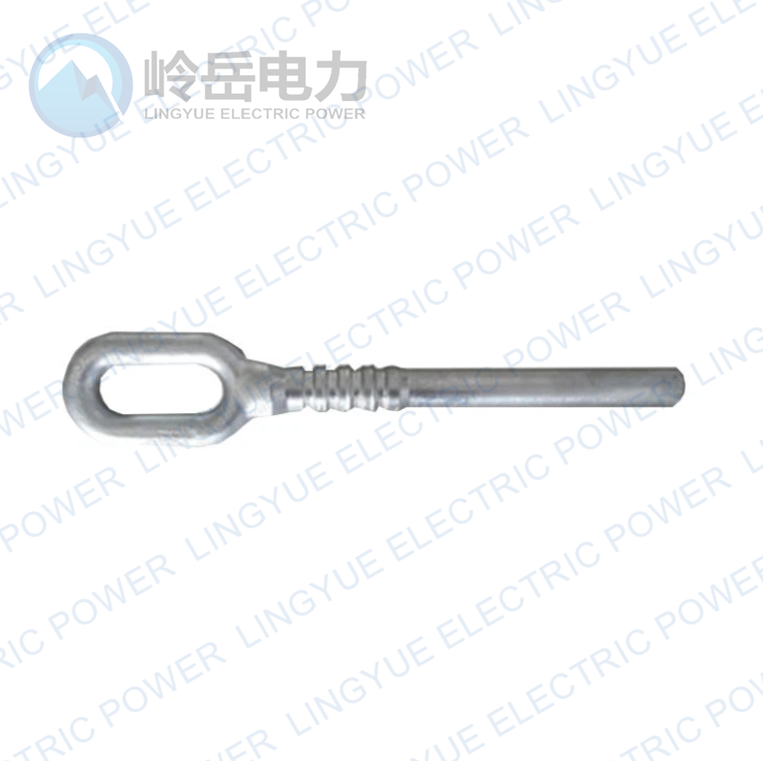

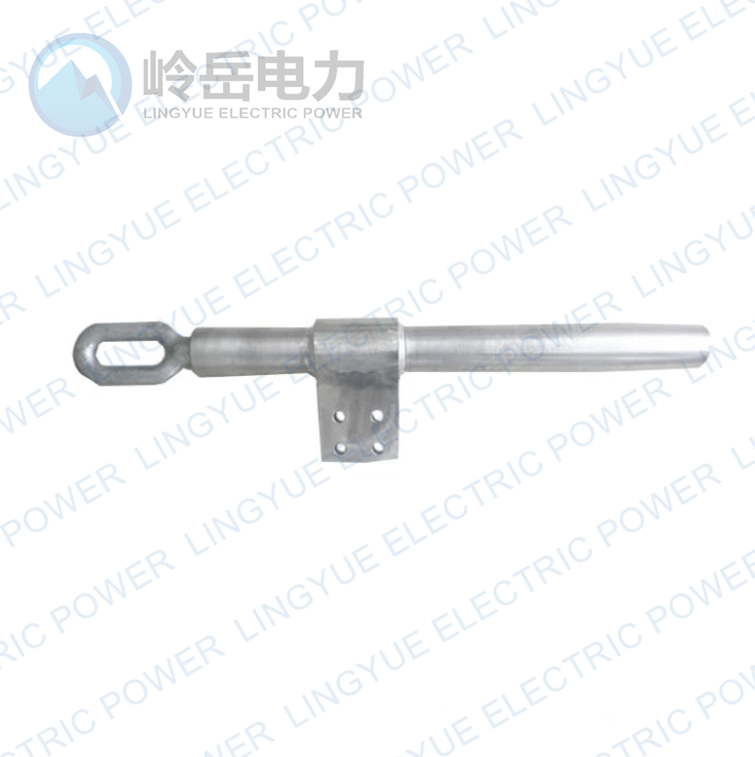

NYZ series hydraulic compression tension clamp is used for grounding wire, which is used to fix and connect the conductor to the tension insulator column or fittings on the pole and tower by means of the withstanding tensile force generated by the conductor.
This kind of product is mainly used in standing transmission line or substation, fixed transmission line and lightning rod, and can also be used to connect the strain gauge with the connecting equipment or connect the lightning rod with the perch. They can be divided into two main types, which are bolt type and compression type according to the different structure and installation method. But the compression type is also divided into hydraulic type and detonation type. ACS conductor full tension unit is composed of aluminum dead end pre-compressed on the steel block, terminal jumper, installation equipment and core gripping unit.

Advantage: It is made of high-strength aluminum steel materials, with a clean surface and a long using life; Meanwhile, it is easy to install, has no hysteresis loss, is low carbon and energy saving.

It is widely used in substation protection system and railway overhead line system of various line system, especially cross line. It has novel design, convenient installation, outstanding resistance to electric leakage and halogen-free flame retardant performance.

Type	Dimensions (mm)							ACSR/AS Range (kN)

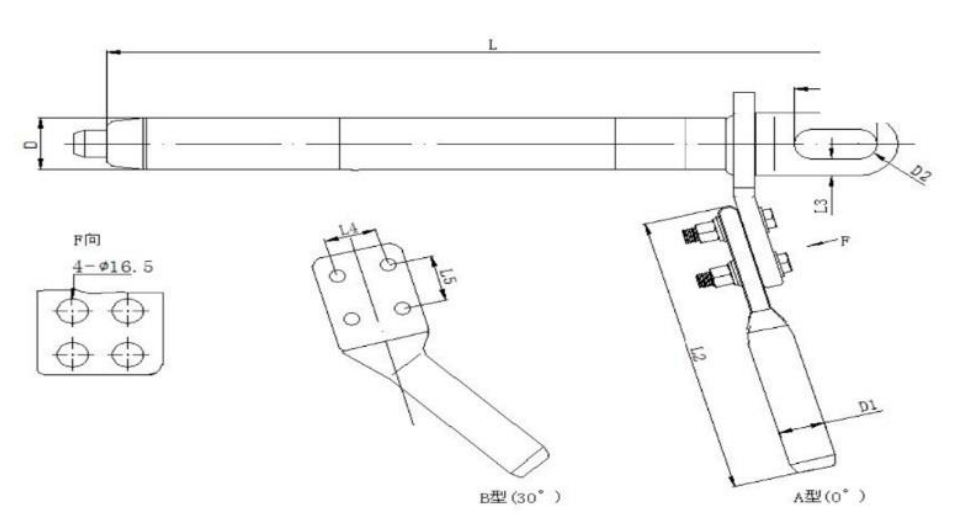

	D1	D2	D3	r	L1	L2	L3
NYZ-50BG	32	18	16	9.5	275	64	195	LB20J-50
NYZ-70BG	32	20	16	10	380	50	185	LB27J-70
NYZ-80BG	36	24	18	12	417	67	185	LB20J-80
NYZ-95BG	34	24	16	10	400	60	200	LB40J-95
NYZ-120BG	36	26	20	13	375	70	210	LB27J-120
NYZ-150BG	42	20	20	13	530	75	265	LB40J-150
NYZ-240BG	50	36	30	18	620	110	280	LB27J-240
