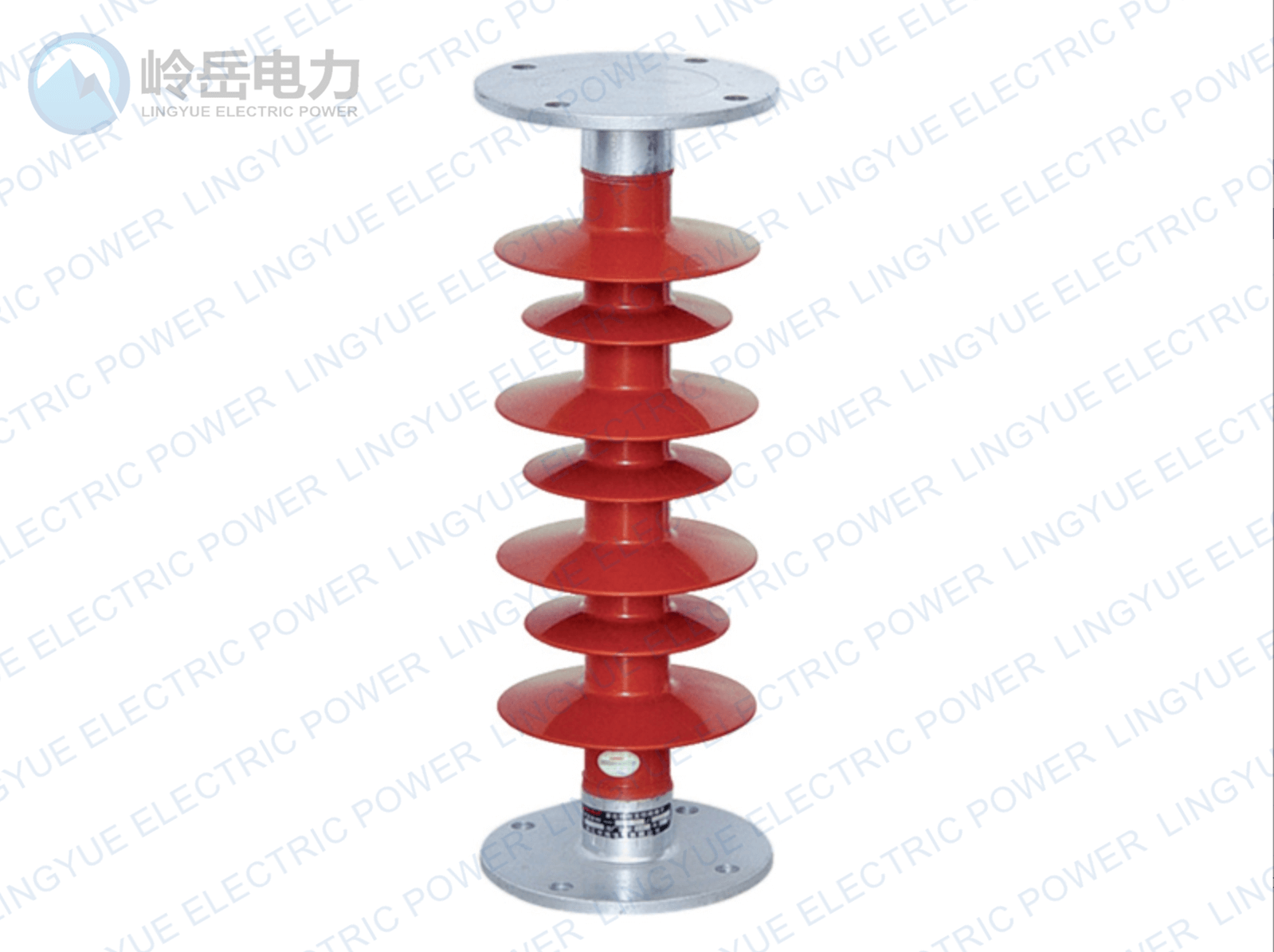

FZS-10/8.9

Dimensions
Shed Diameter: 140 & 114mm
Shed Spacing: 30mm
Section Length: 250mm
Dry Arcing Distance: 165mm
Leakage Distance: 450mm

Mechanical Values
Cantilever Strength: 8.9kN
Tension Strength: 38kN
Torsion Strength: 791Nm
Compression Strength: 44.5kN

Electrical Values
Low Frequency Dry Flashover Voltage: 85kV
Low Frequency Wet Flashover Voltage: 55kV
Critical Impulse Flashover Voltage, Positive: 125kV
Critical Impulse Flashover Voltage, Negative: 200kV

Packing and Shipping Data
Net Weight, Approximate: 2.2kg

FZS-110/10

Dimensions
Shed Diameter: 215 & 185mm
Shed Spacing: 40mm
Section Length: 1400mm
Dry Arcing Distance: 1240mm
Leakage Distance: 3910mm

Mechanical Values
Cantilever Strength: 10kN
Tension Strength: 89kN
Torsion Strength: 4520Nm
Compression Strength: 267kN

Electrical Values
Low Frequency Dry Flashover Voltage: 435kV
Low Frequency Wet Flashover Voltage: 335kV
Critical Impulse Flashover Voltage, Positive: 710kV
Critical Impulse Flashover Voltage, Negative: 900kV

Packing and Shipping Data
Net Weight, Approximate: 26.0kg

FZS-20/4

Dimensions
Shed Diameter: 120 & 100mm
Shed Spacing: 40mm
Section Length: 355mm
Dry Arcing Distance: 230mm
Leakage Distance: 680mm

Mechanical Values
Cantilever Strength: 4kN
Tension Strength: 44.5kN
Torsion Strength: 904Nm
Compression Strength: 44.5kN

Electrical Values
Low Frequency Dry Flashover Voltage: 110kV
Low Frequency Wet Flashover Voltage: 75kV
Critical Impulse Flashover Voltage, Positive: 170kV
Critical Impulse Flashover Voltage, Negative: 250kV

Packing and Shipping Data
Net Weight, Approximate: 3.3kg

FZS-220/10

Dimensions
Shed Diameter: 245 & 215mm
Shed Spacing: 76mm
Section Length: 1930mm
Dry Arcing Distance: 1650mm
Leakage Distance: 6510mm

Mechanical Values
Cantilever Strength: 10kN
Tension Strength: 111kN
Torsion Strength: 10170Nm
Compression Strength: 333kN

Electrical Values
Low Frequency Dry Flashover Voltage: 575kV
Low Frequency Wet Flashover Voltage: 475kV
Critical Impulse Flashover Voltage, Positive: 1010kV
Critical Impulse Flashover Voltage, Negative: 1240kV

Packing and Shipping Data
Net Weight, Approximate: 75.0kg

FZS-33/12.5

Dimensions
Shed Diameter: 140 & 110mm
Shed Spacing: 20mm
Section Length: 600mm
Dry Arcing Distance: 440mm
Leakage Distance: 1650mm

Mechanical Values
Cantilever Strength: 12.5kN
Tension Strength: 62kN
Torsion Strength: 1356Nm
Compression Strength: 66.7kN

Electrical Values
Low Frequency Dry Flashover Voltage: 170kV
Low Frequency Wet Flashover Voltage: 125kV
Critical Impulse Flashover Voltage, Positive: 280kV
Critical Impulse Flashover Voltage, Negative: 340kV

Packing and Shipping Data
Net Weight, Approximate: 5.8kg

FZS-66/6

Dimensions
Shed Diameter: 160 & 130mm
Shed Spacing: 65mm
Section Length: 770mm
Dry Arcing Distance: 650mm
Leakage Distance: 1800mm

Mechanical Values
Cantilever Strength: 6kN
Tension Strength: 71kN
Torsion Strength: 1695Nm
Compression Strength: 111kN

Electrical Values
Low Frequency Dry Flashover Voltage: 235kV
Low Frequency Wet Flashover Voltage: 180kV
Critical Impulse Flashover Voltage, Positive: 390kV
Critical Impulse Flashover Voltage, Negative: 475kV

Packing and Shipping Data
Net Weight, Approximate: 10.7kg
