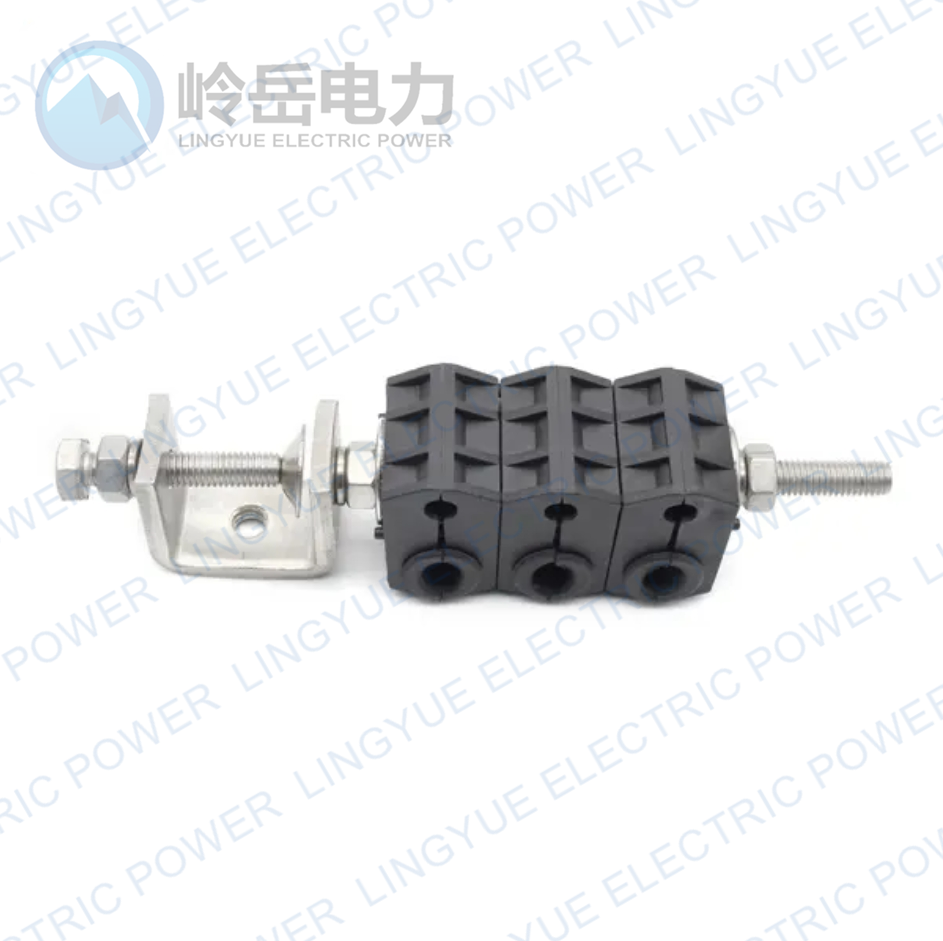

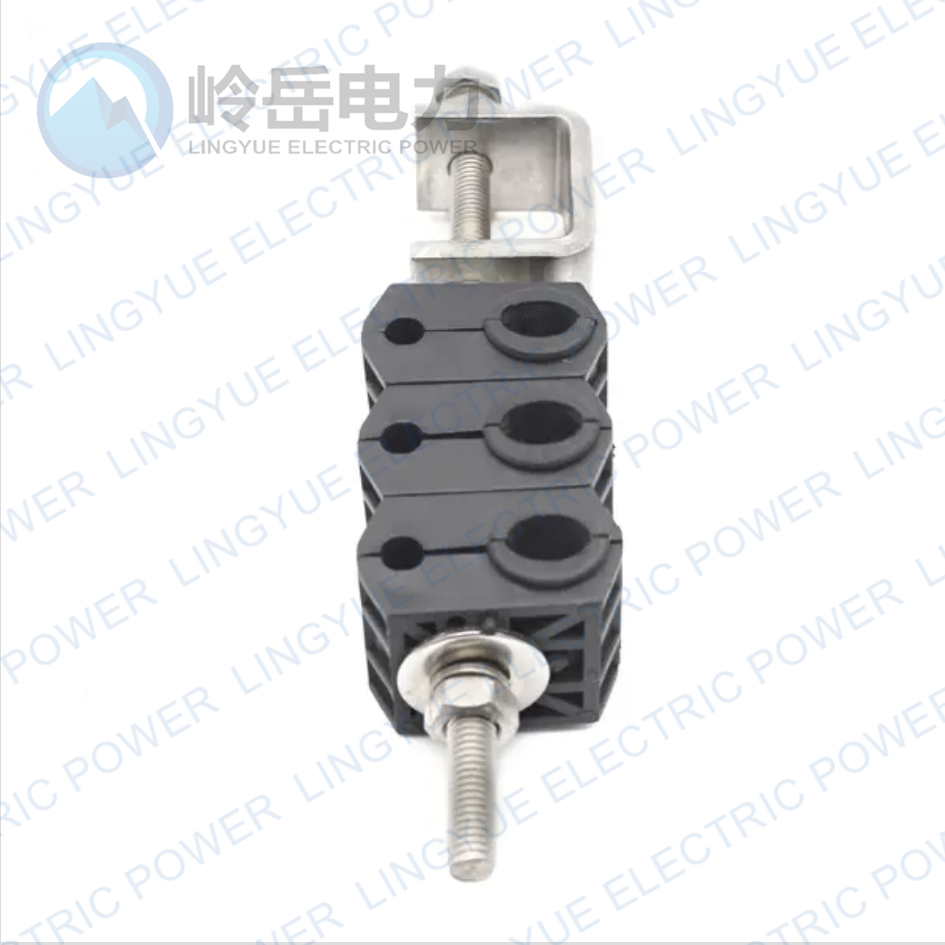

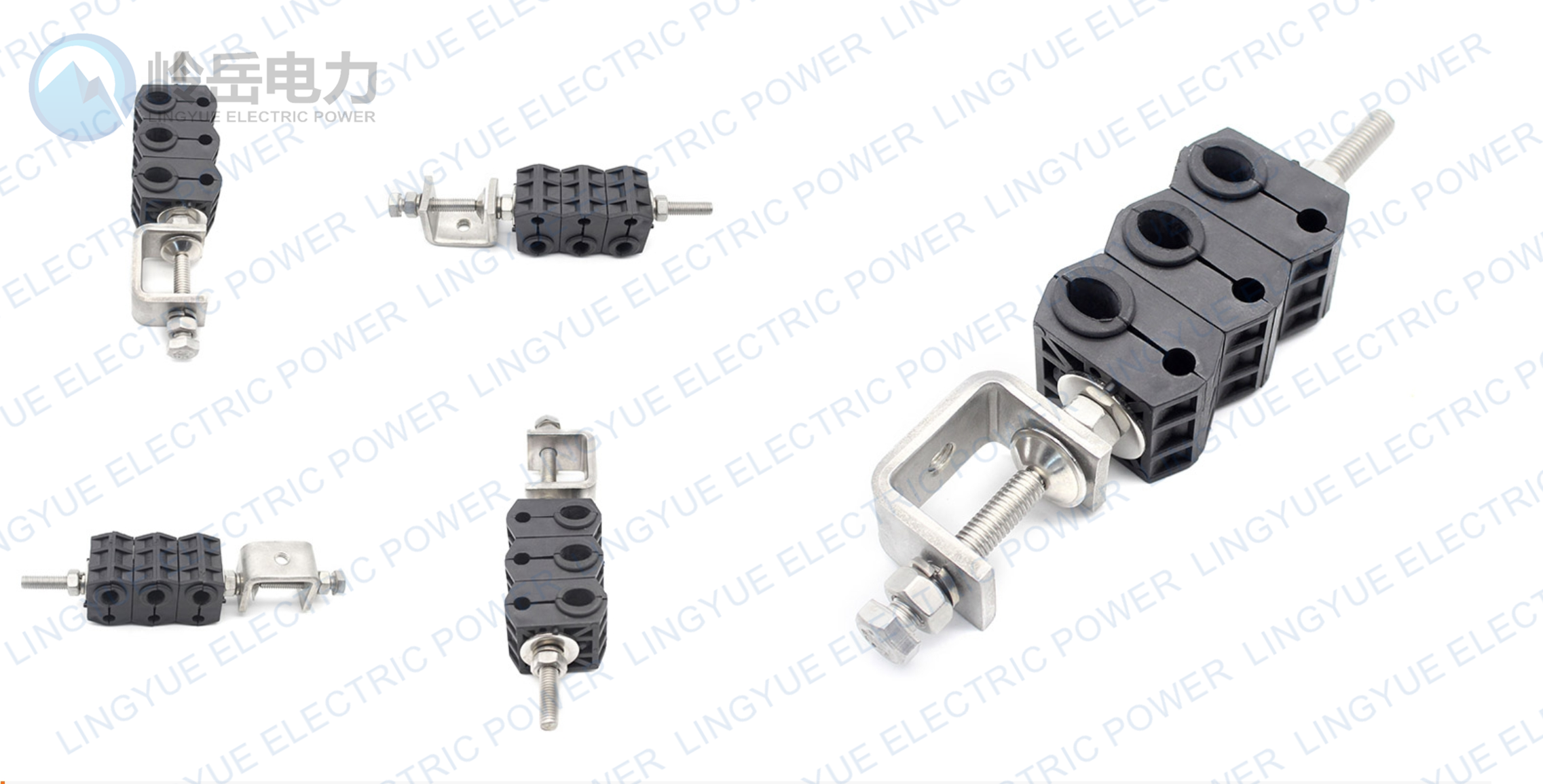

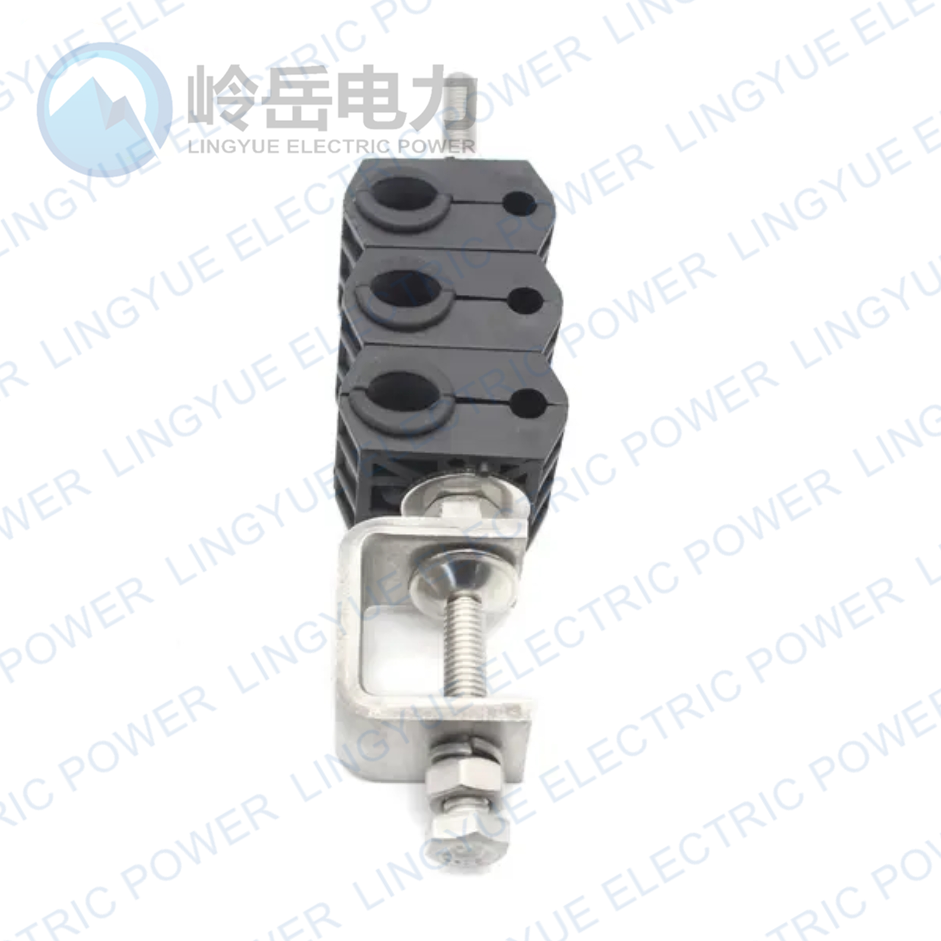

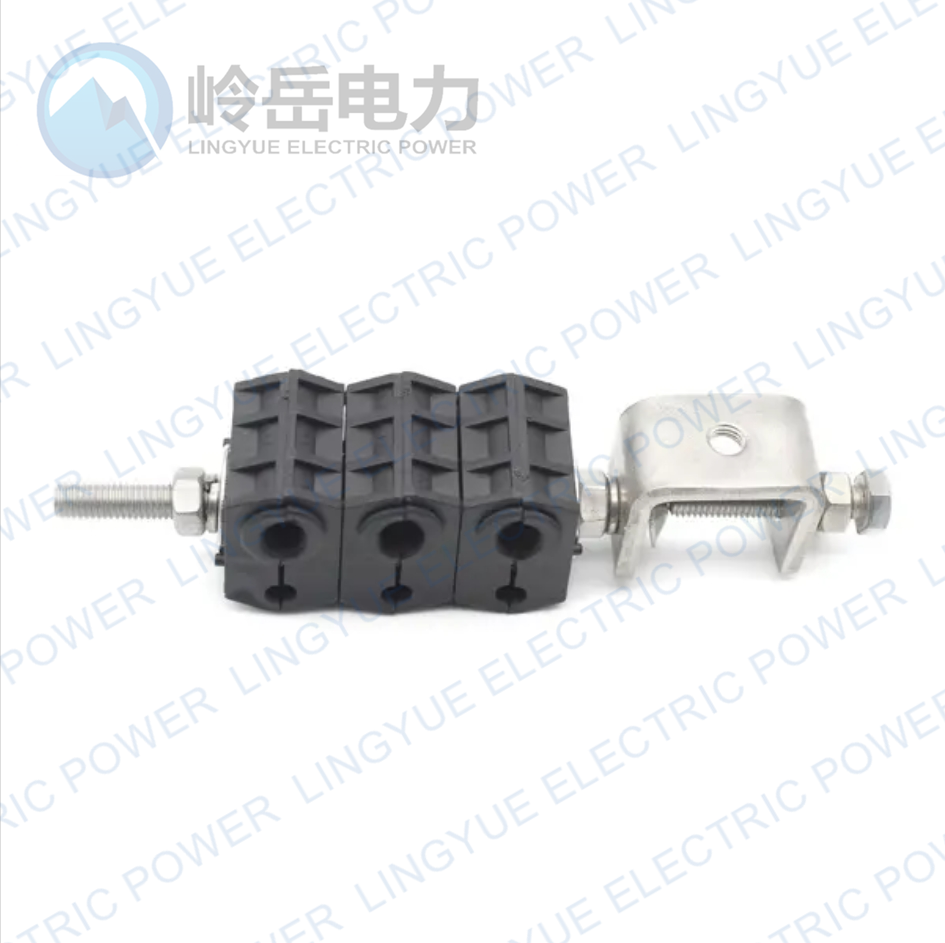

This cable clamp is a kind of modular assembly for fixing cables. It is made of UV-resistant and high temperature-resistant material. It is suitable for fixing 7mm or 7.5mm diameter round fiber optic cable, as well as 3.3, 4, 6, 8.3 square cable. In most cases, it can install three fiber optic cables and three cables. The C-shaped bracket is lightweight and concise, easy to fix and secure.
In addition, it can provide a combined solution for DC power cables and FO cables. This clamp is very effective and flexible in fixing DC power cables of different sizes.

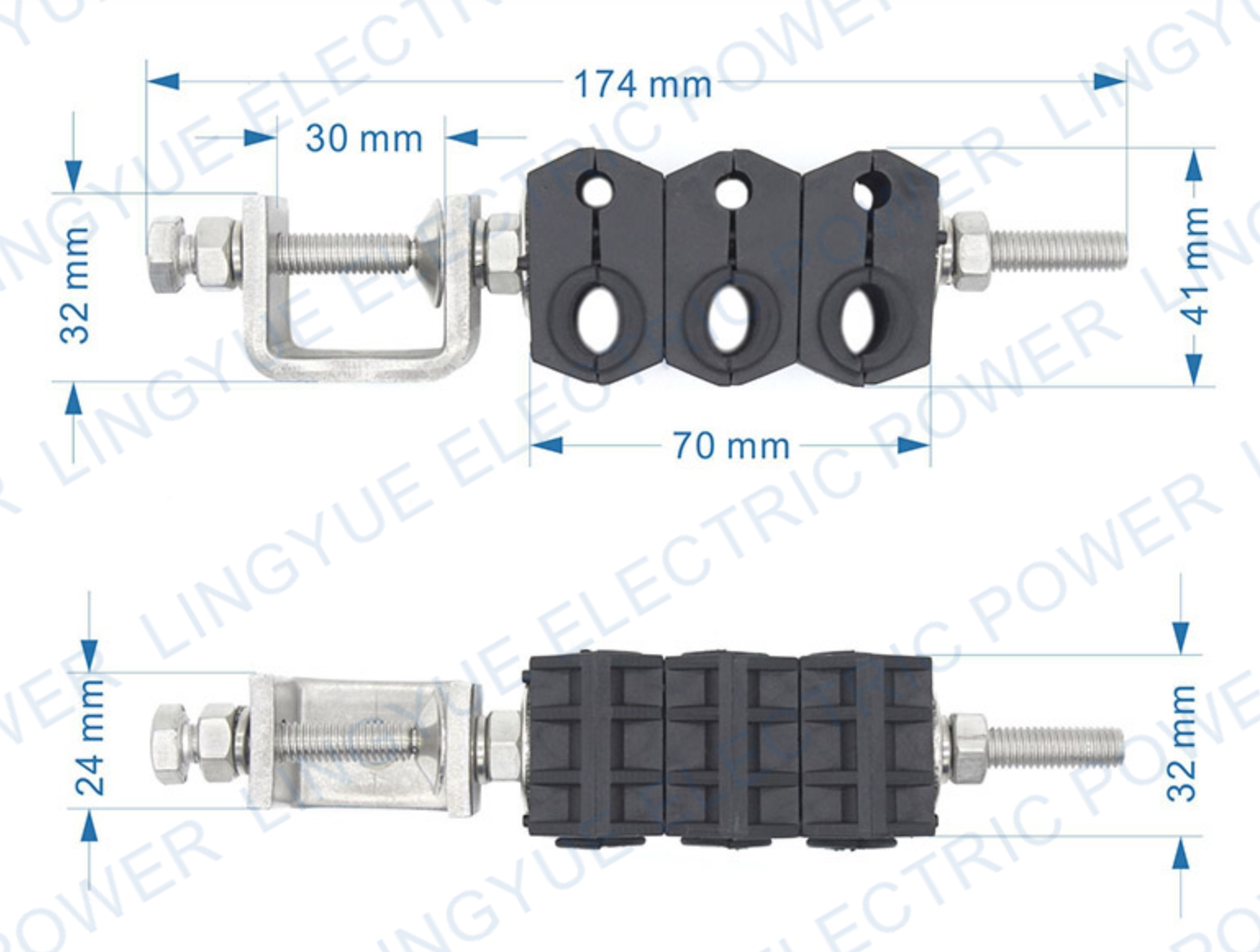

Clamp type | European standard | Cable type | Power (hybrid) cable and fiber optic cable |
Size | DC Power Cable 12-22mm Diameter Fiber optic cable with an outer diameter of 7-8 mm | Number of cables | 3 power cables + 3 fiber optic cables |
Operating temperature | -50 °C ~ 85 °C | UV resistance | ≥1000 hours |
CompatibleMax. Diameter | 19-25 mm | Compatible minimum diameter | 5-7 mm |
Material of double plastic clamps | PP, glass fiber reinforced, Black | Metal material | Stainless steel 304 or hot galvanized. |
Mounting on | Steel wire cable tray | Maximum stack height | 3 |
Survival Vibration | ≥4 hours at resonant frequency | Limitation of environmental sustainability | Double cable weight |
Application:
This fiber optic cable clamp is widely used for:
Telecommunication cable
Fiber optic cable
Coaxial cable
Power cable
Hybrid cable
Corrugated cable
Smooth cable
Braided cable
Installation:
1. Loosen the special C-bracket bolt until the distance between the rings becomes greater than the thickness of one.
side of the angle iron.And then tighten the special bolt M8;(Reference torque: 15Nm)
2. Place the nut on the threaded rod and release the plastic clamp;
3. Disconnect the plastic clamp, insert the 7mm or 7.5mm diameter fiber optic cable into the small hole in the plastic.
clamp, insert the 3.3 or 4 square cable into the hole in the black rubber tube in the plastic clamp.
Remove the rubber tube from the plastic clamp of the 6 or 8.3 square cable and insert
cable into the hole of the plastic clamp (picture on the right);
4. Finally tighten all the nuts.(Nominal tightening torque of M8 clamp lock nut: 11Nm)
