Brief description:
● Lightweight, economical and compact design.
● Wide range, compatible with all cables from 5mm to 17mm in diameter.
● Installs in seconds, no tools required.
● Mounting on any pole line equipment with closed eye and min.Ø 10 mm
● Mobile suspension clamps provide increased cable protection against aeolian vibration.

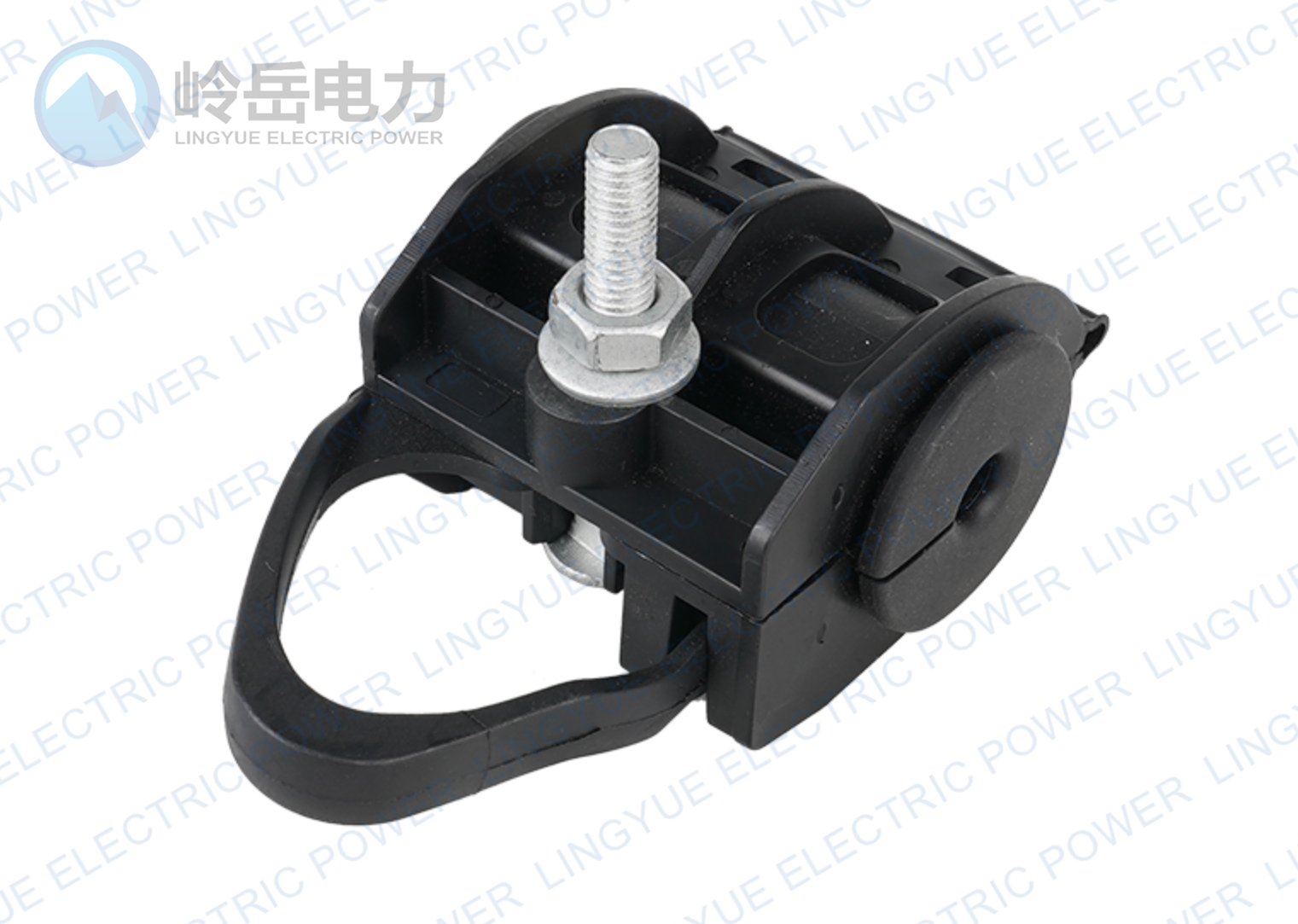

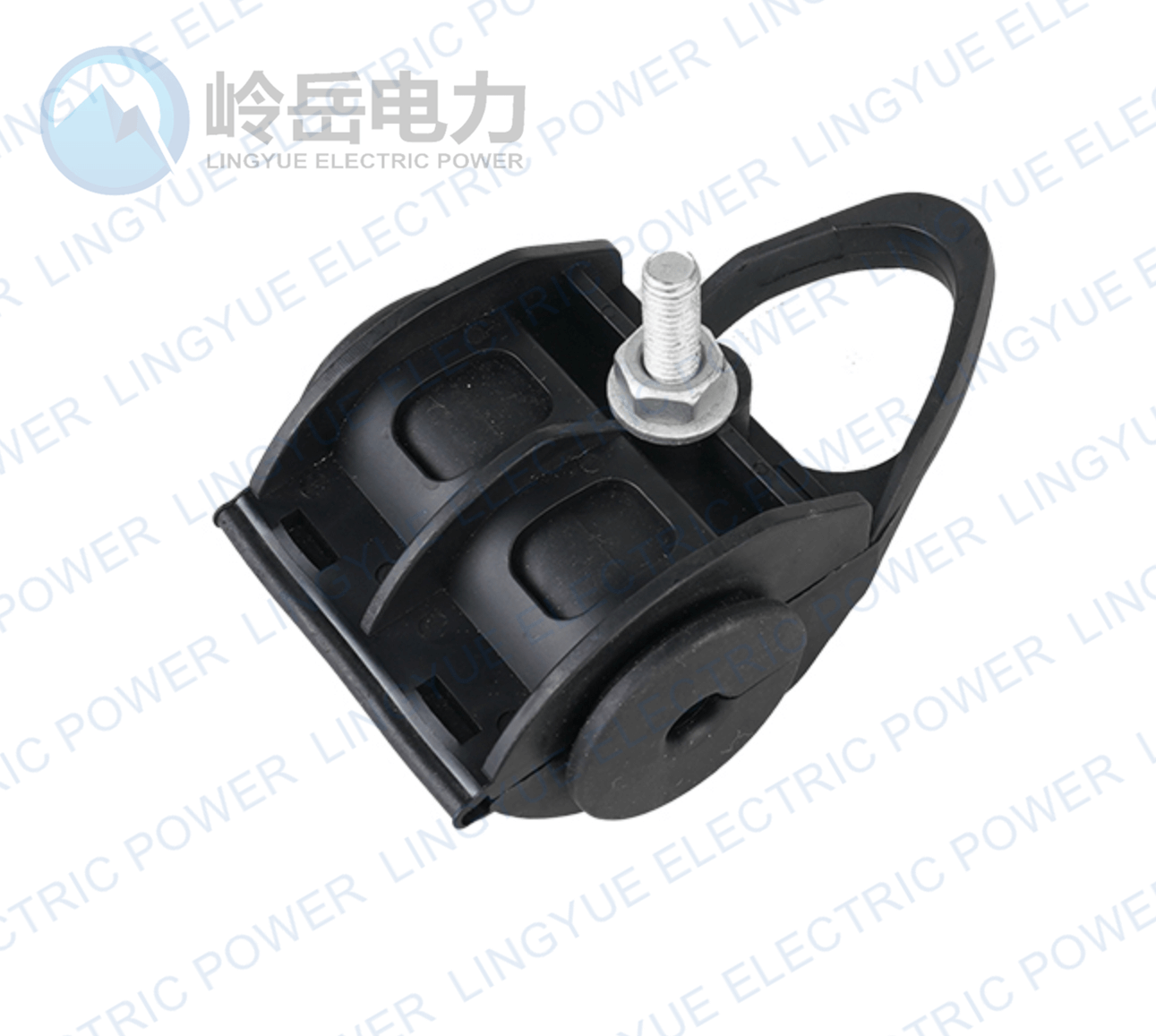

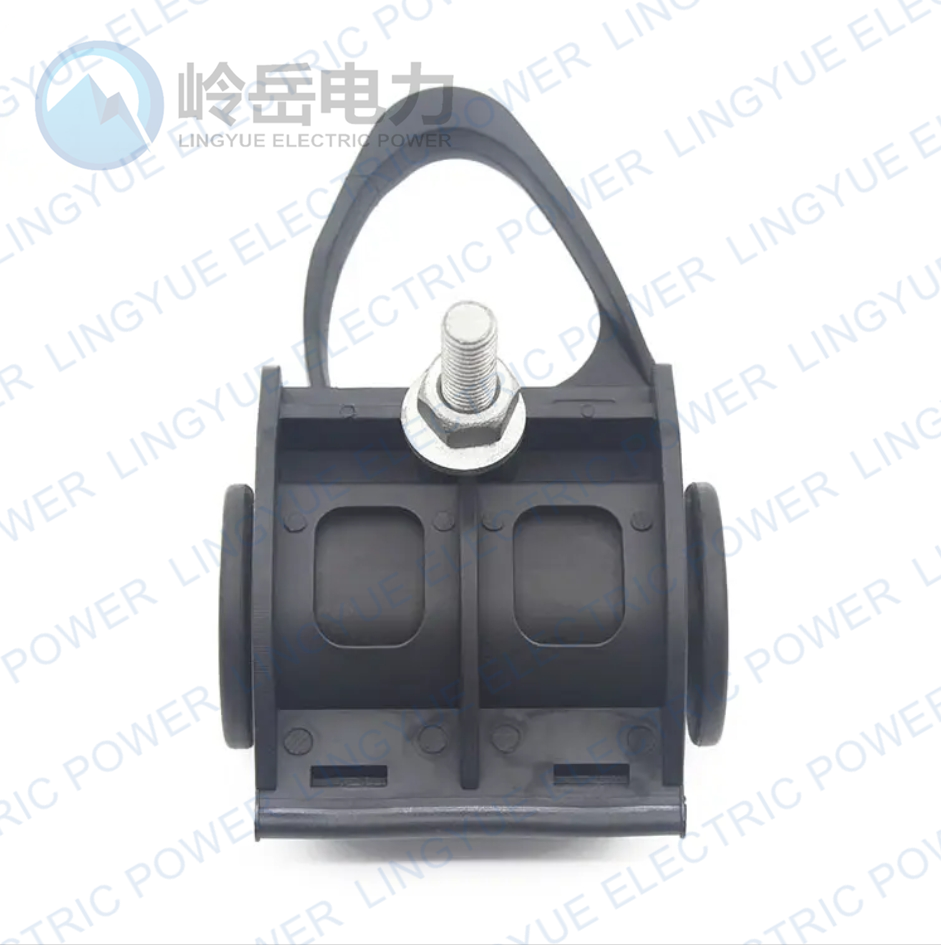

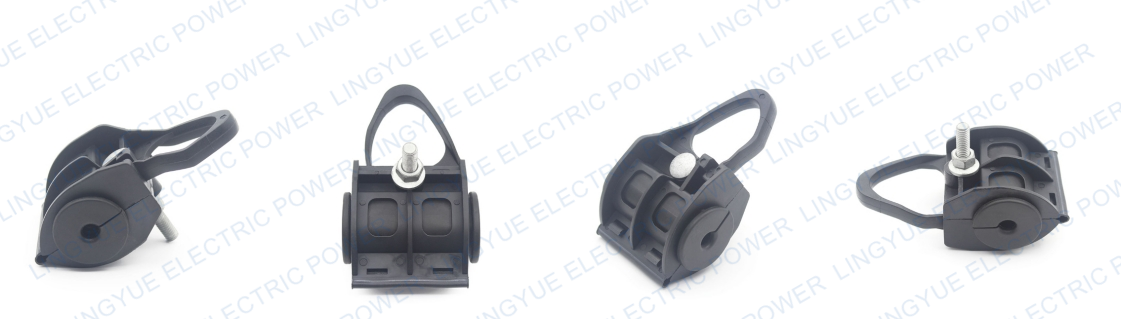

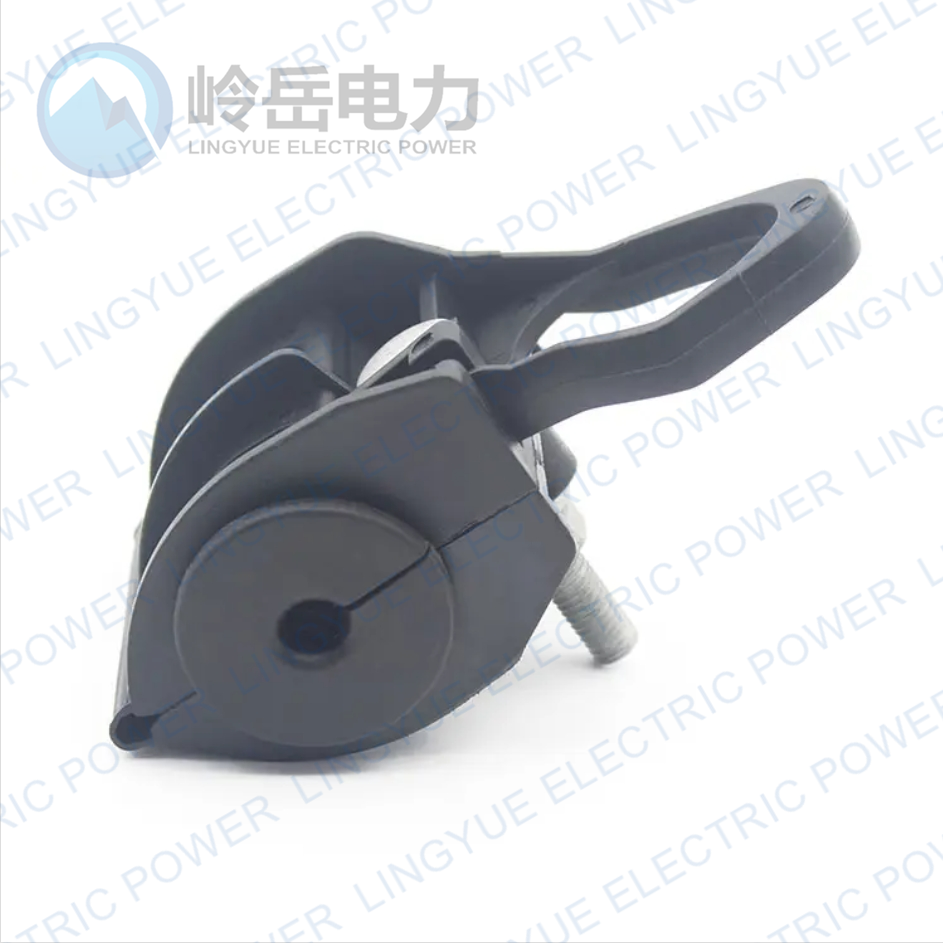

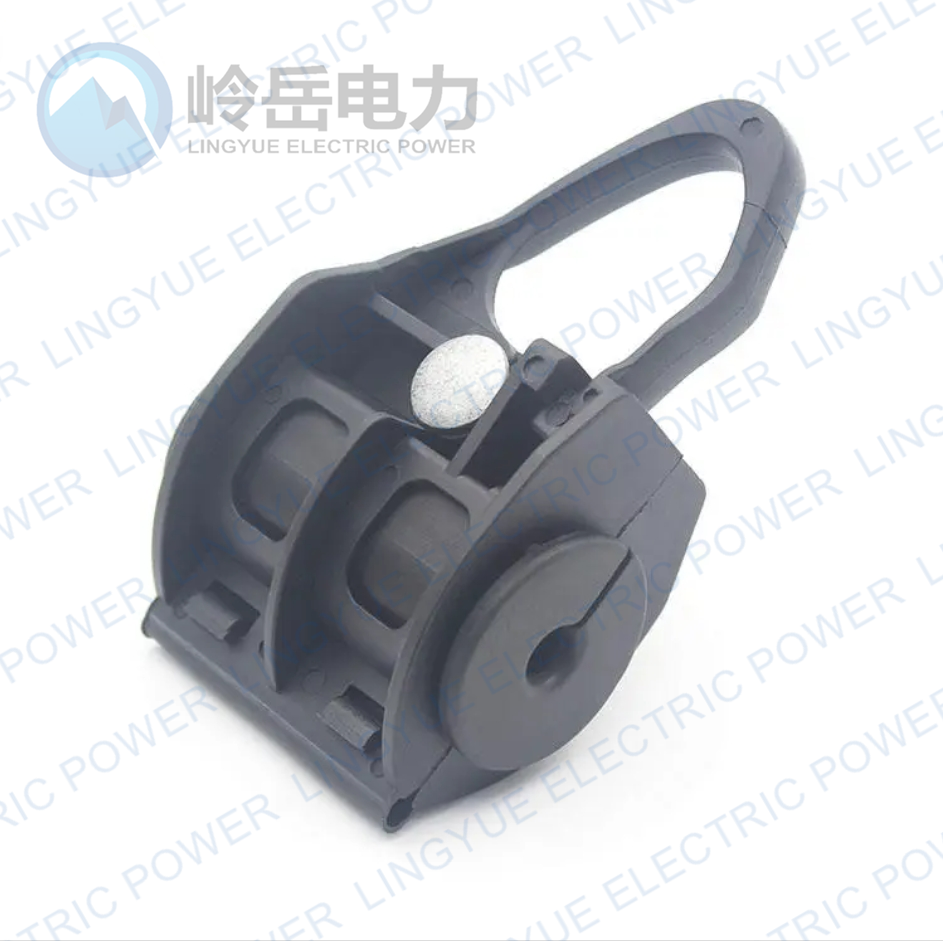

The DS suspension clamps have a hinged plastic body equipped with a protective elastomer insert and an opening bracket. The clamp body is fixed by tightening the built-in bolt.

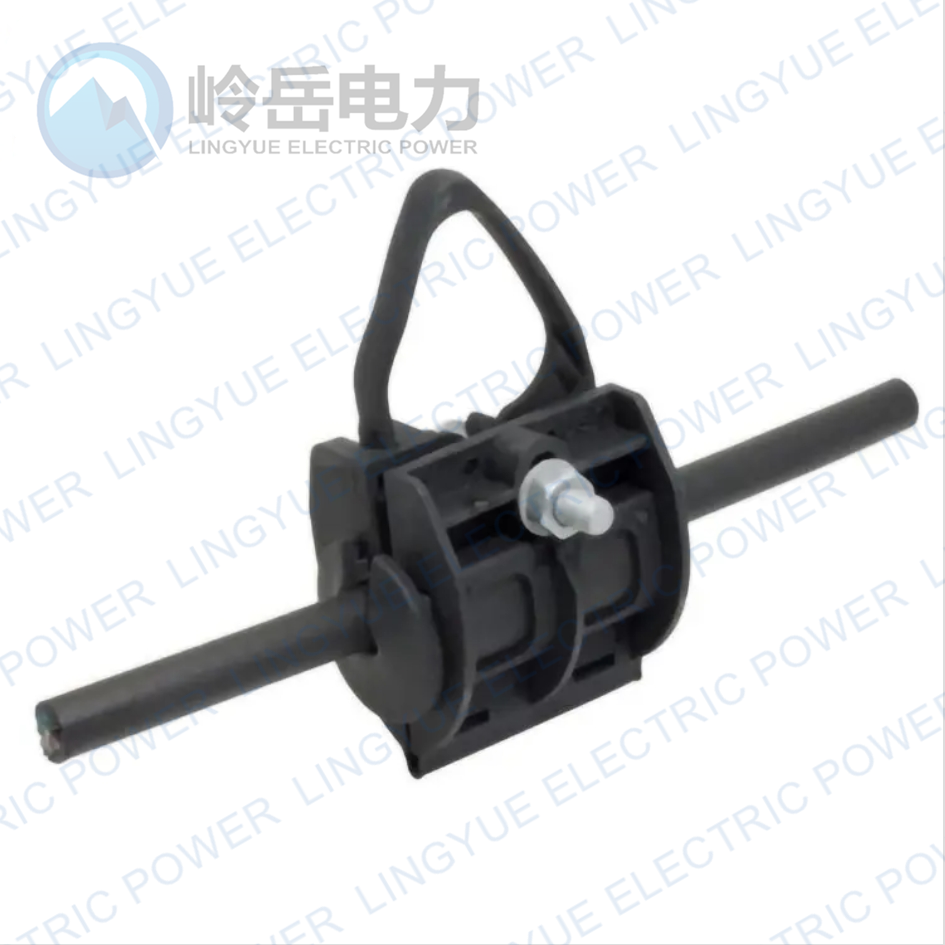

DS clamps are designed for mobile suspension of round or flat branch cables with a diameter of 5 to 17 mm on intermediate supports of distribution networks with spans of up to 70 m. At angles greater than 20°, it is recommended to install a double anchor.
Item No. | Conductor(mm) |
D58 | 8-12 |
DS12 | 12-16 |
This item was made by Nylon 66 and rubber.
Nylon-66 is a thermoplastic resin. White solid. Insoluble in general solvents, only soluble in m-cresol etc. The mechanical strength and hardness are high, and the rigidity is great.
Rubber refers to a highly elastic polymer material with reversible deformation. It is elastic at room temperature and can produce greater deformation under a small external force. It can be restored to its original shape after the external force is removed.
It is made by Injection molding, which is a method of producing shapes for industrial products. Products usually use rubber injection molding and plastic injection molding. Injection molding can also be divided into injection molding compression method and die casting method.
Injection molding machine (abbreviated as injection machine or injection molding machine) is the main molding equipment that uses plastic molding molds to make various shapes of plastic products from thermoplastics or thermosets. Injection molding is achieved through injection molding machines and molds.
The advantages of injection molding are fast production speed, high efficiency, automatic operation, and the ability to form parts with complex shapes, which is especially suitable for mass production.
