HC clamp for ADSS cable J hook other calls ADSS cable supporting clamp ,designed to hold and suspend all dielectric
self-supporting cable in outdoor FTTH line constructions.
Product information:
HC suspension clamp is consists of plastic insert, it’s made of UV resistant thermoplastic by plastic injection technology.The metal hook
of this clamp is made of galvanized steel which is corrosion resistant and with high mechanical strength.It can be installed on wooden,concrete
pole by stainless steel straps, pole bolt or hooks.
All four assemblies passed a series of standard related type tests which are available in our internal laboratory, such as+70°C~-40°C Temperature
and humidity cycling test, Tensile strength test, Aging test,Corrosion resistance test etc.
Product application:

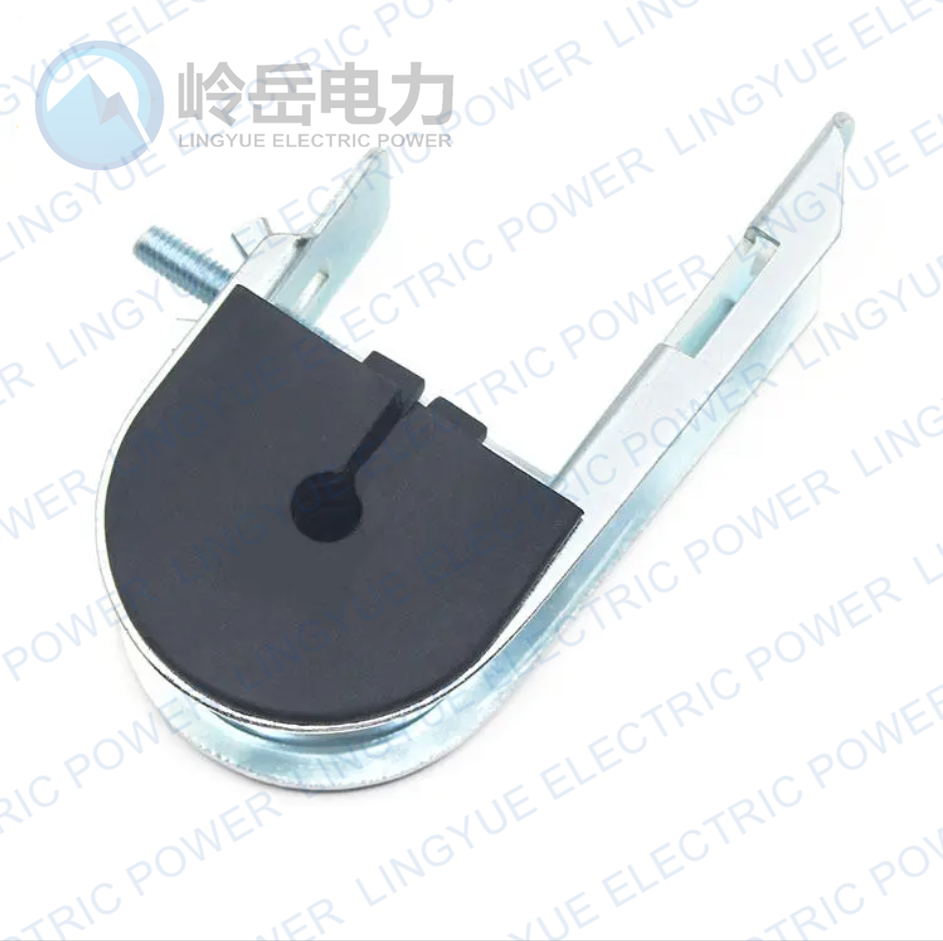

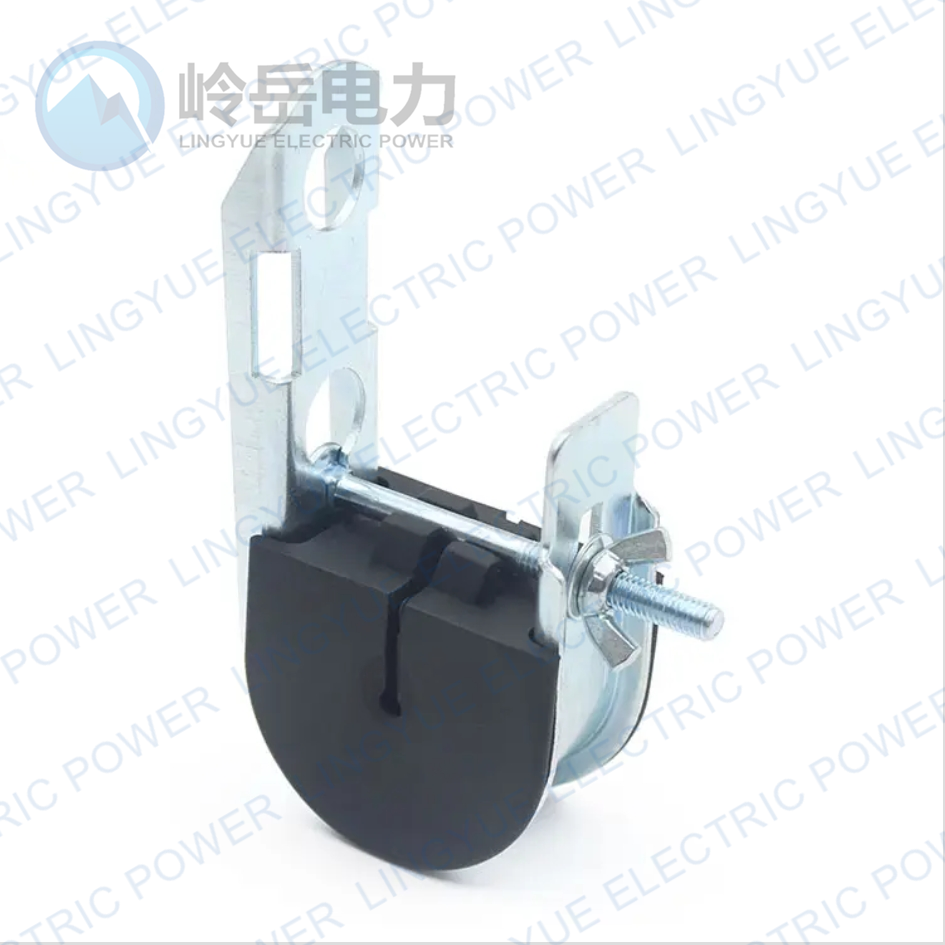

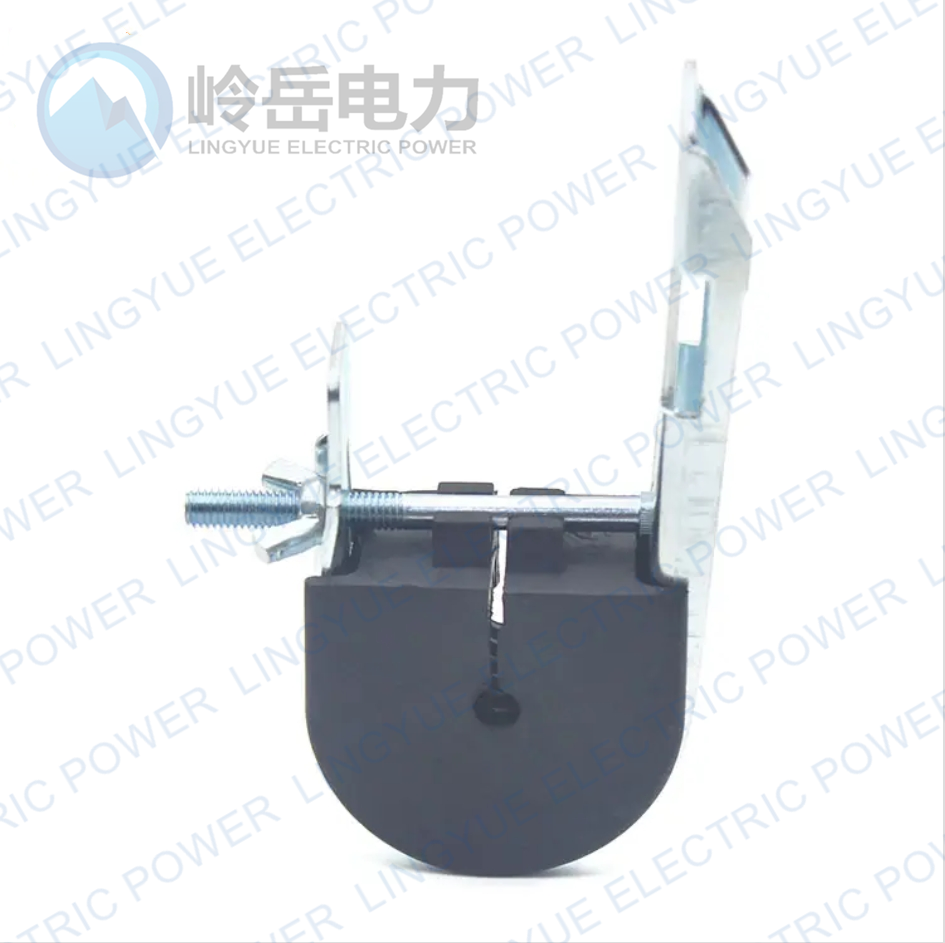

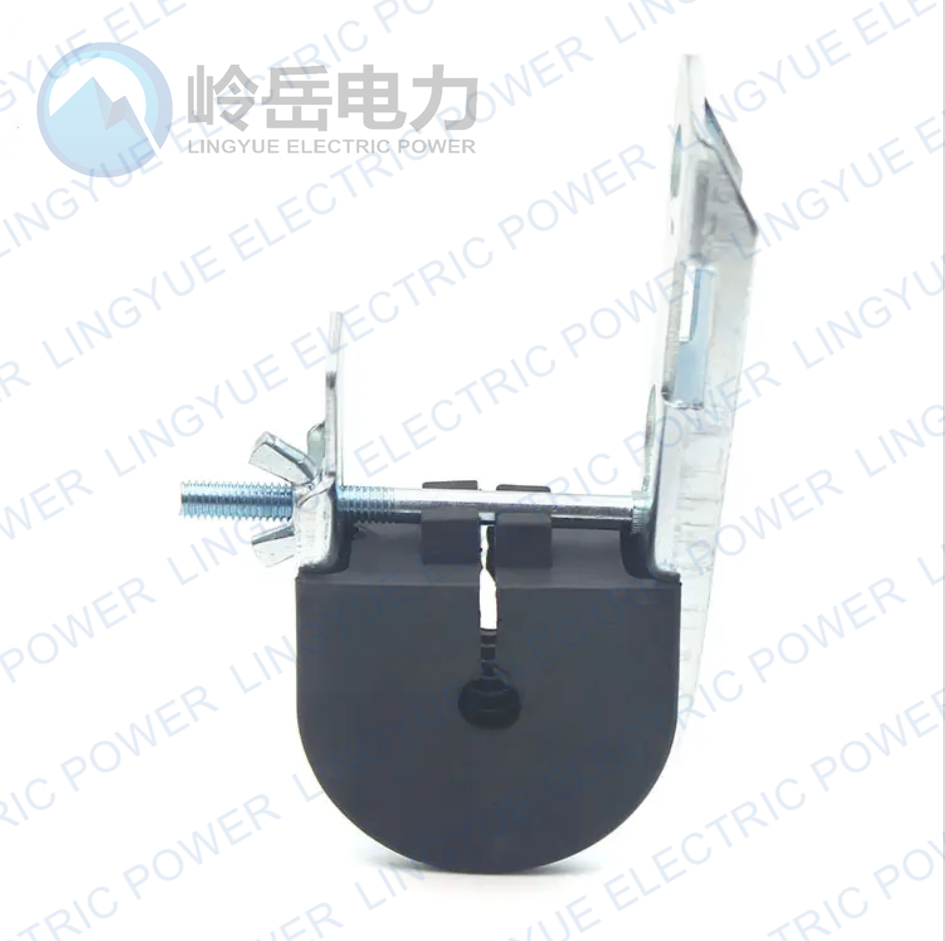

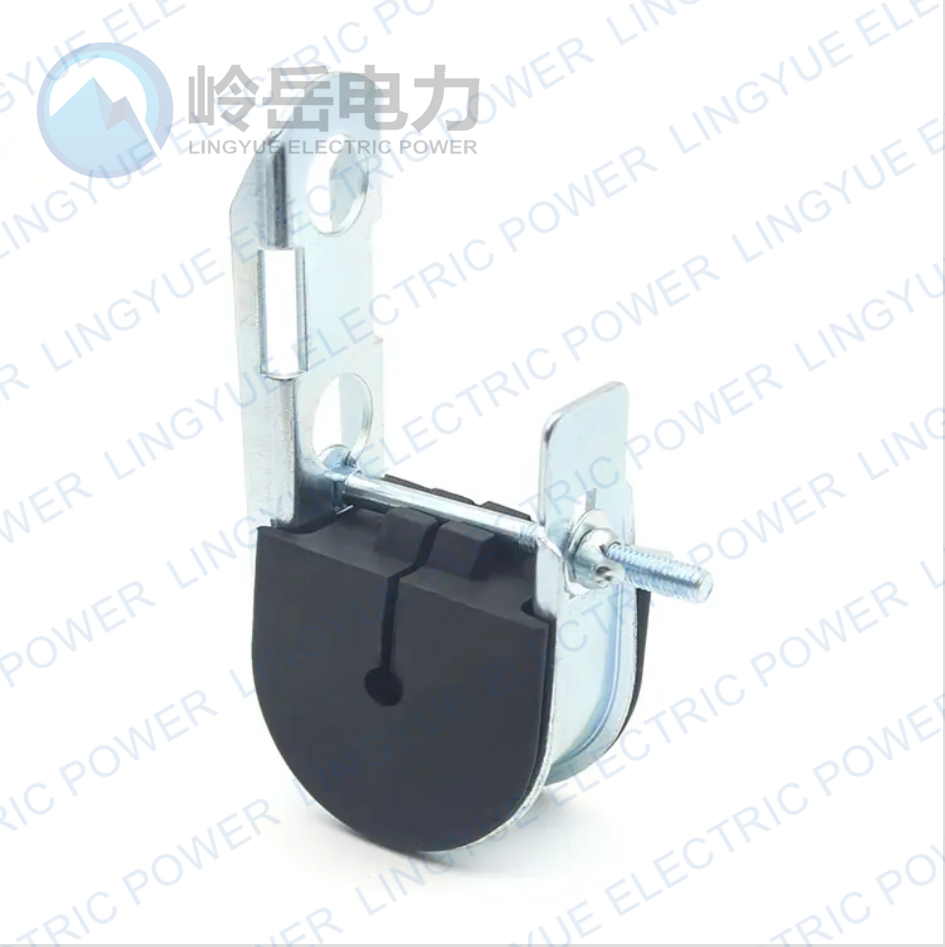

HC type suspension clamp consist of a steel J hook, and a rubber part inset and a long bolt.

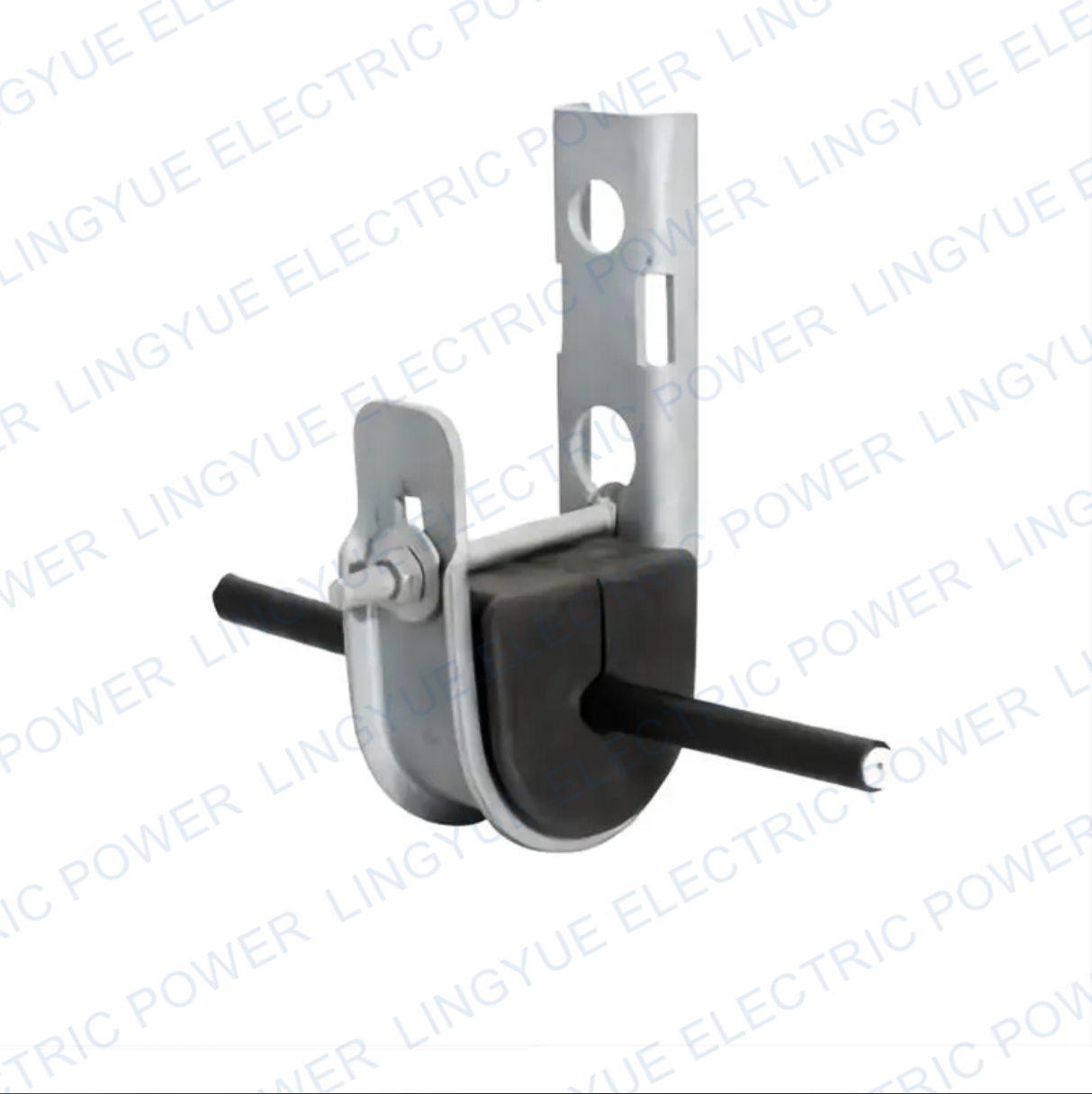

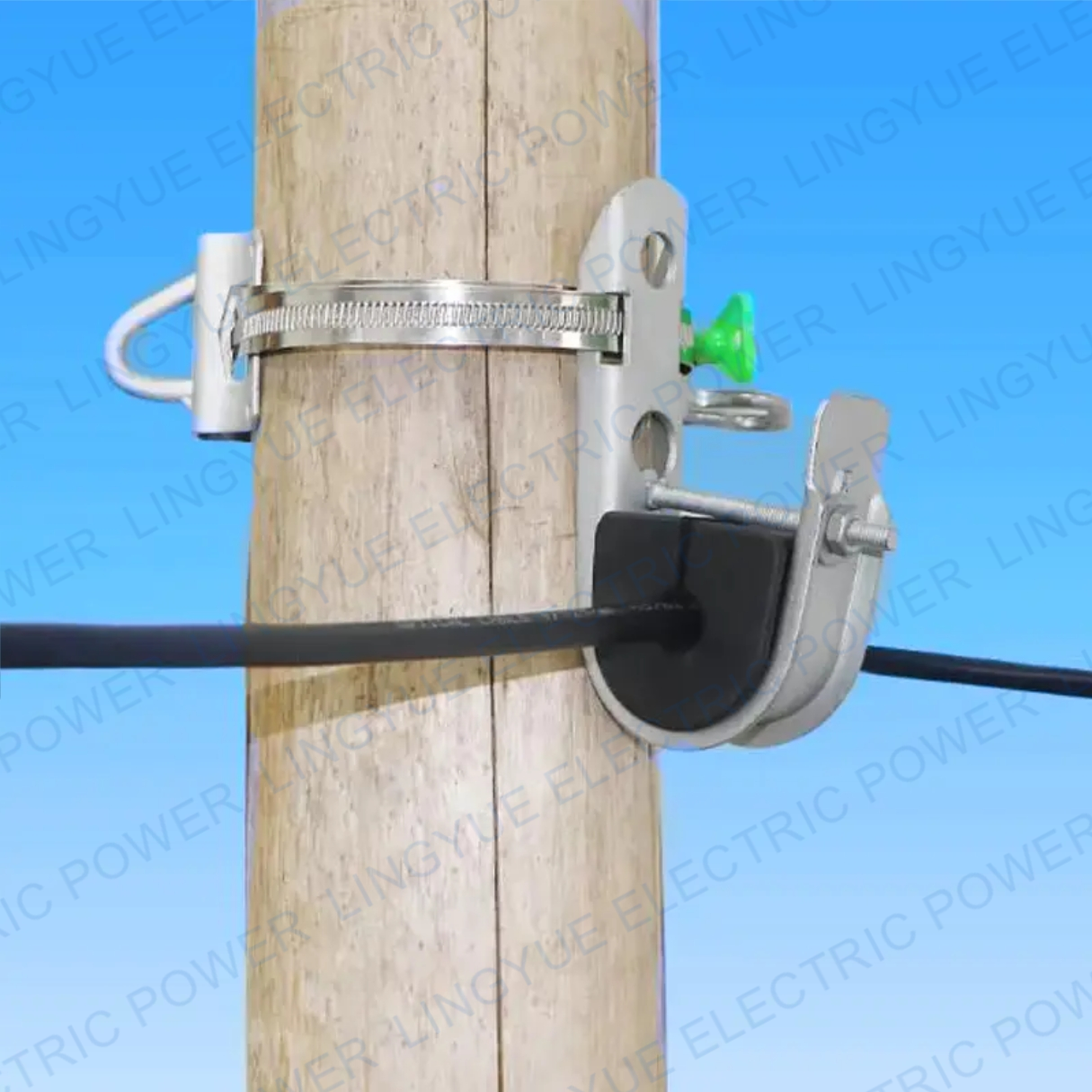

The rubber part insert is used to wrap the ADSS cable to protect it from friction。The steel J hook will be assembled on the pole by hanging on the pigtail hook. Other types of J hook type suspension clamp will be fastened on the pole by a stainless steel band.

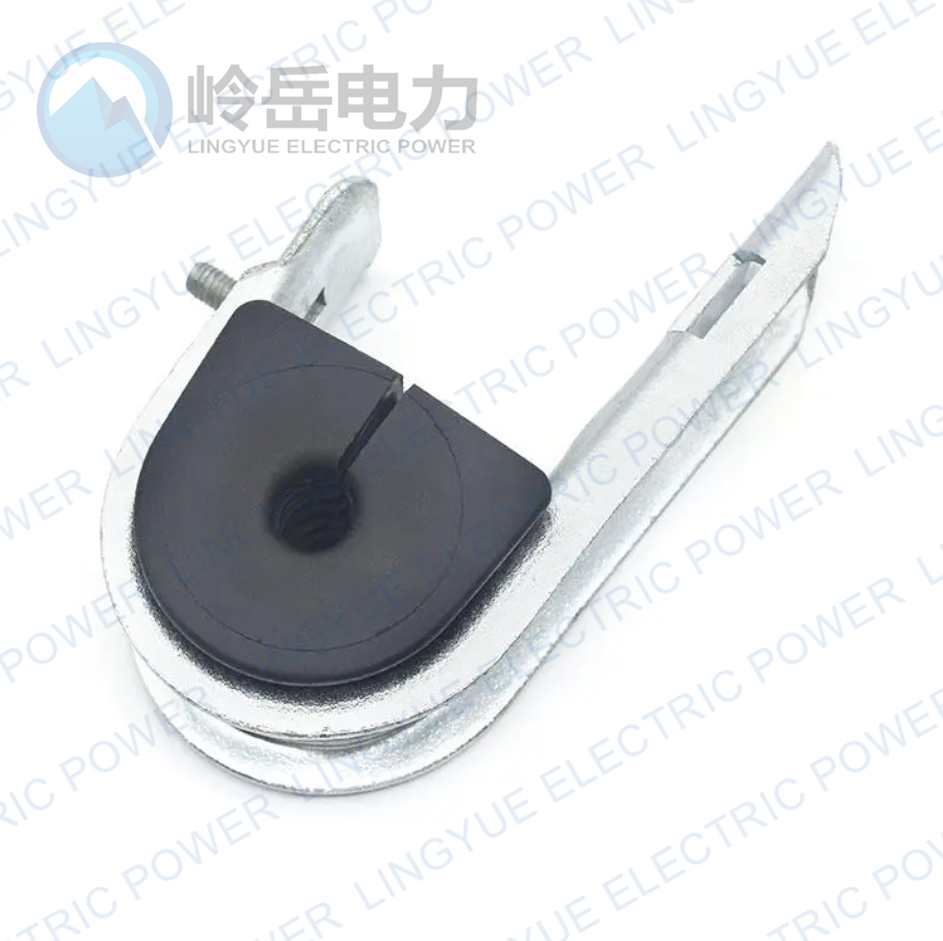

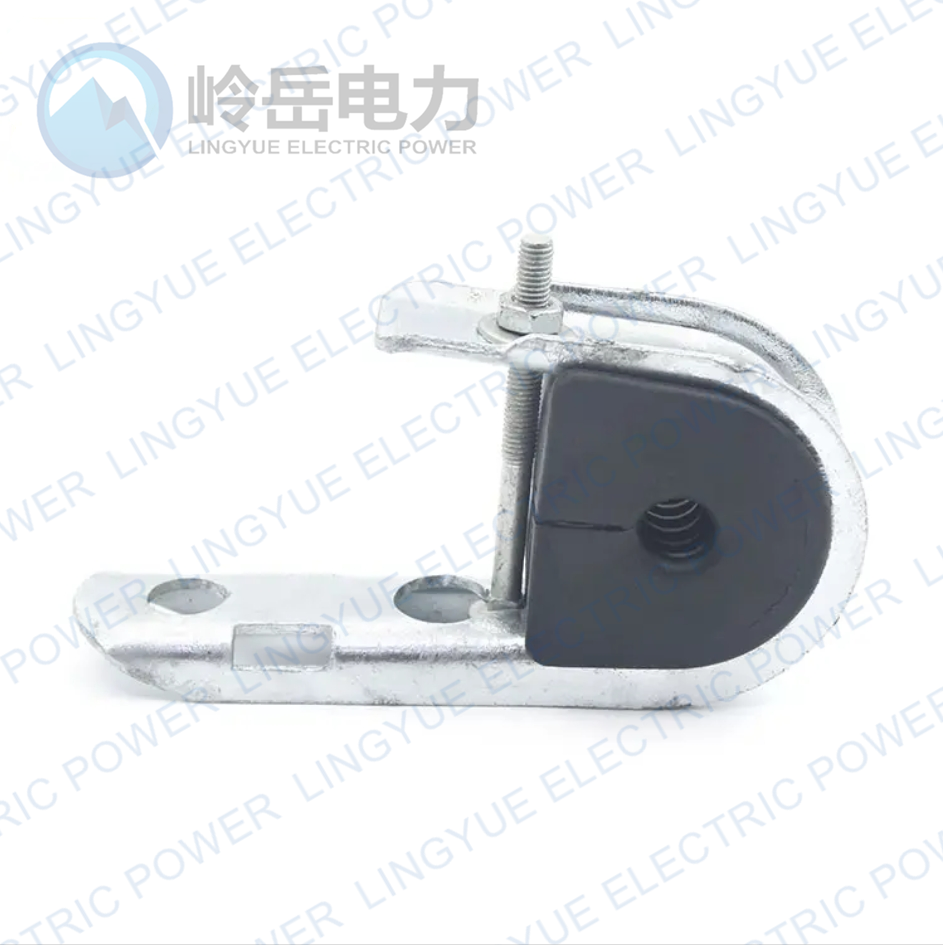

There is a hole in the middle of the rubber part insert. The big hole is designed for ABC bundle conductors line. The small types of holes diameter should be fit with the cable diameter. The J hook suspension clamp is designed according to different spans between poles.
Key Features:
1.Easy operation, free tools
2.High mechanical strength,up to 4KN
3.Stainless steel J-shape hook and UV proof insert
4.Can be installed on poles with stainless steel strap or pole bolt
5.Excellent environmental stability
6.Competitive price
Brief description:
● Clamp made of galvanized steel.
● UV-resistant neoprene insert.
● For suspension spans up to 150 meters.
● Versatility with multiple installation options.
● No special tools required.

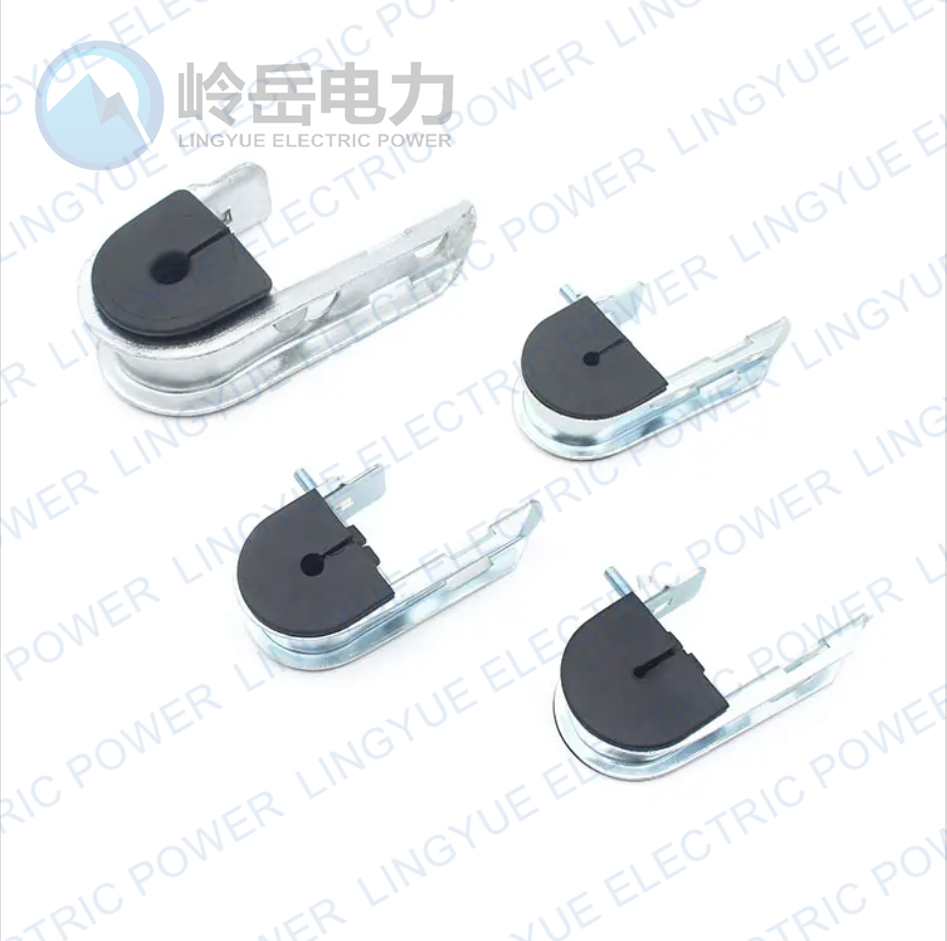

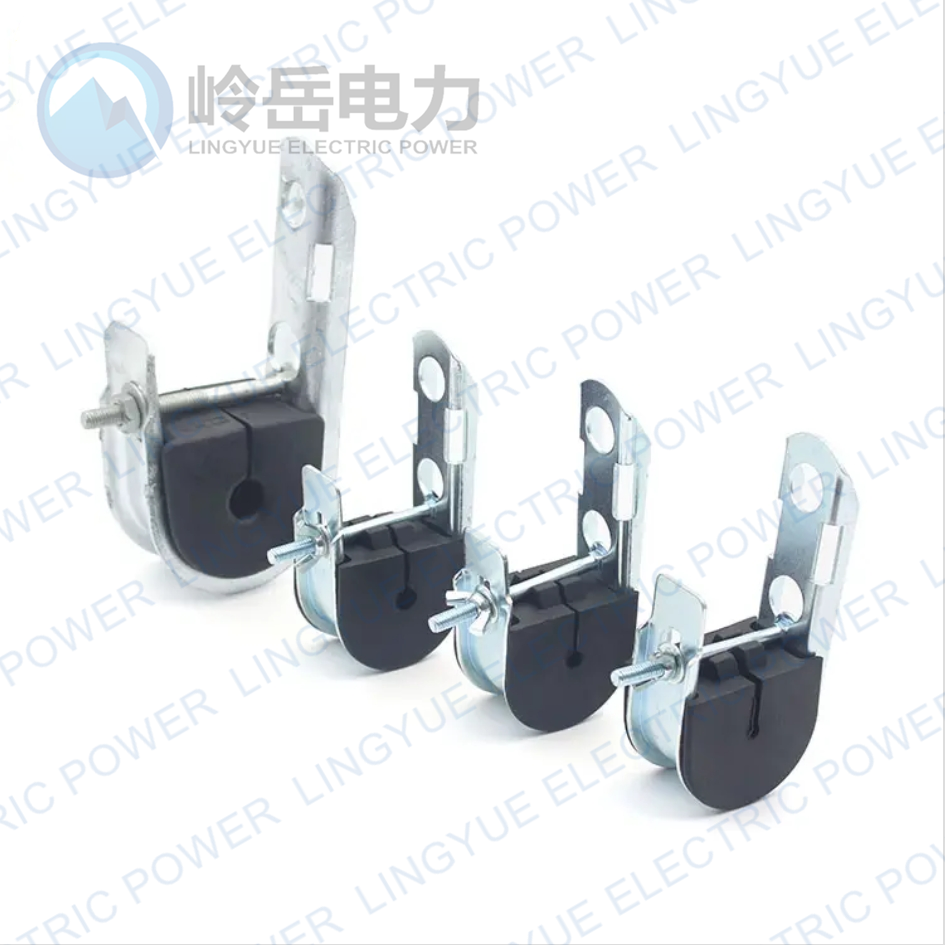

Item No. | Cable size, mm | MBL,KN | Weight, KG | Material |
HC 5-8 | 5-8 | 4 | 0.19 | Galvanized steel, UV resistant plastic |
HC 8-12 | 8-12 | 4 | 0.19 |
HC 10-15 | 10-15 | 4 | 0.19 |
HC 15-20 | 15-20 | 4 | 0.19 |
