Good bending resistance performance, strong anti-fouling ability and impact resistance, vibration and anti-brittle fracture performance, small volume, light weight, convenient installation, free maintenance.

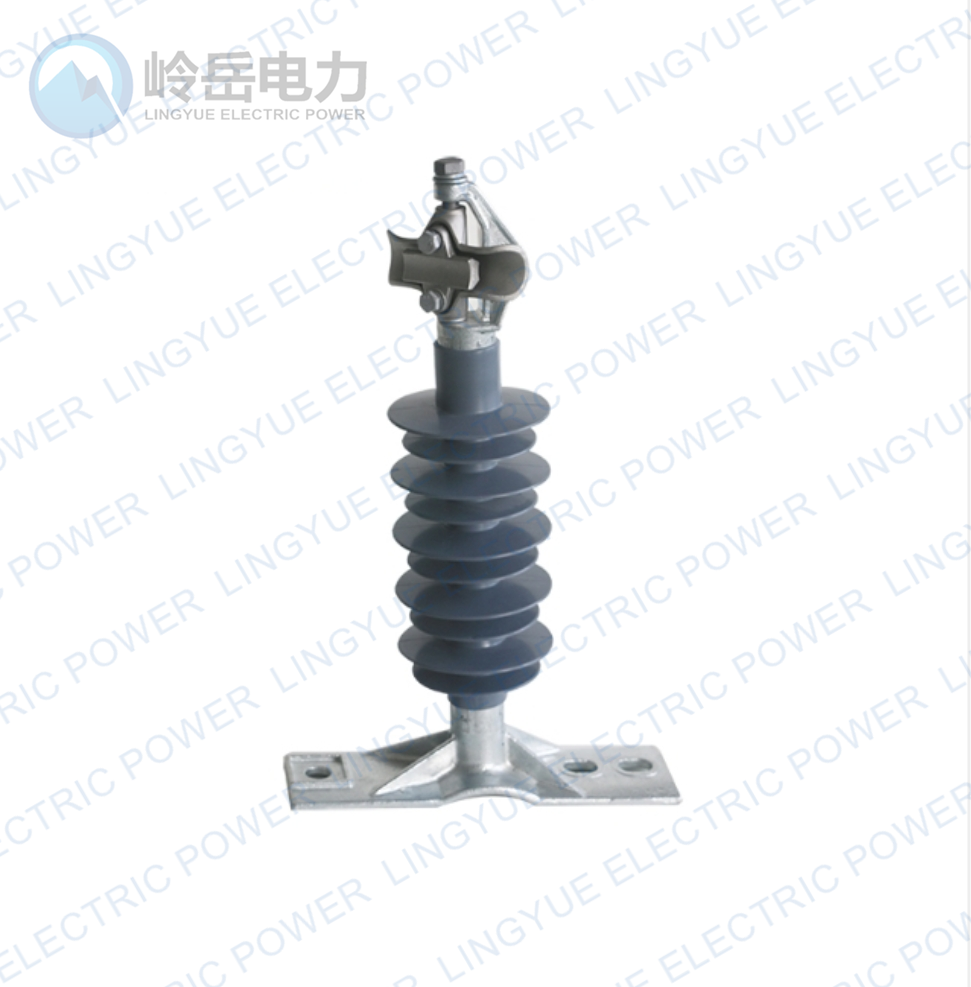

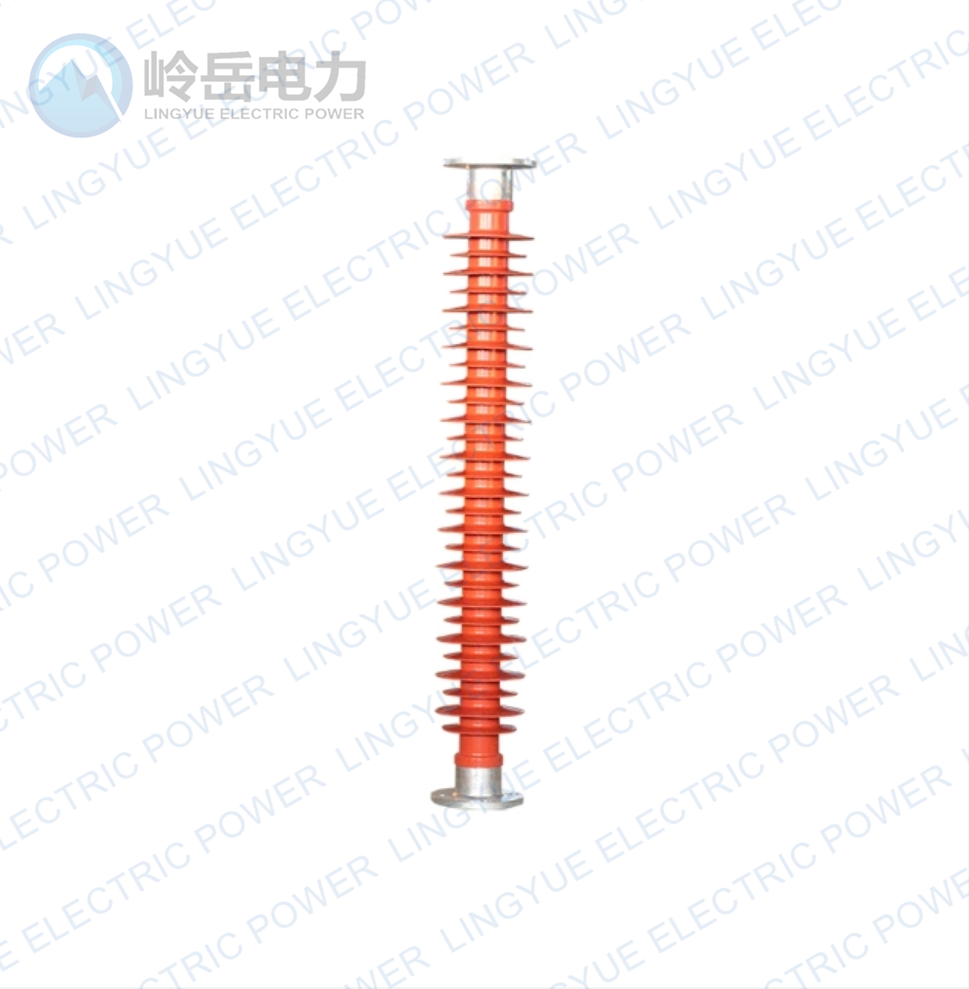

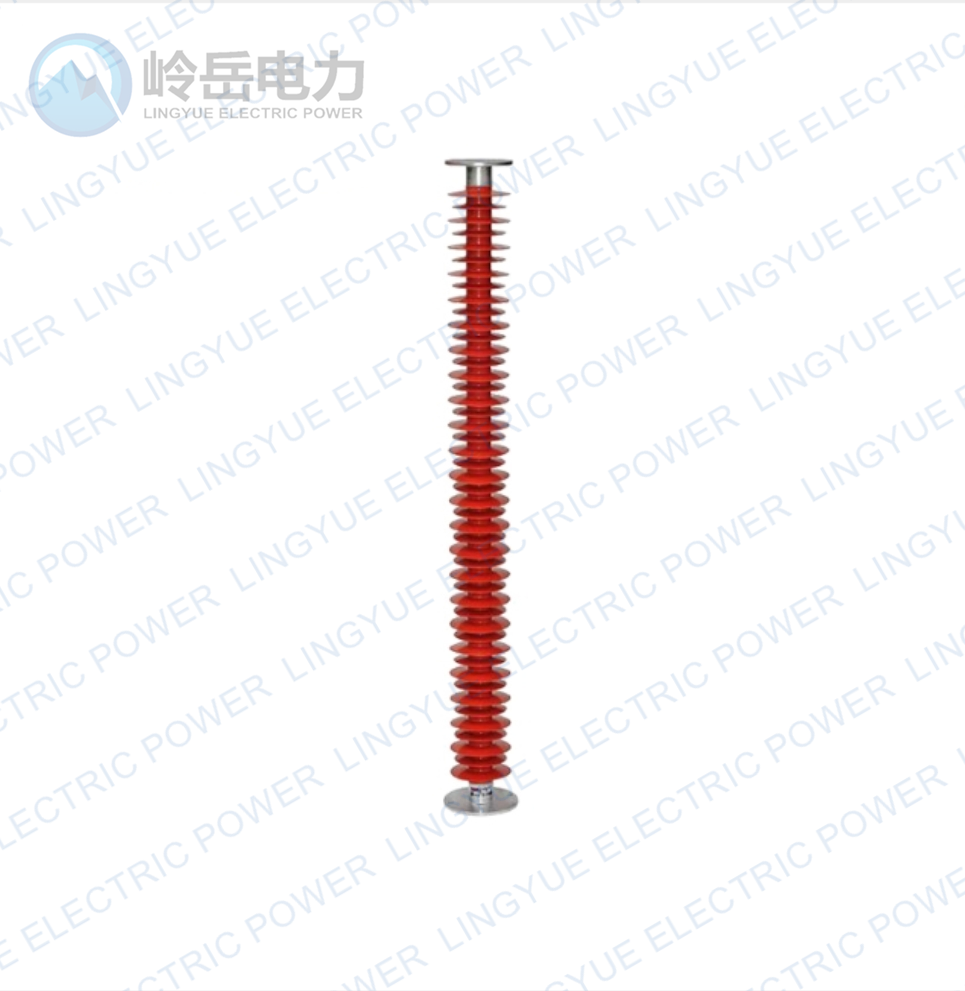

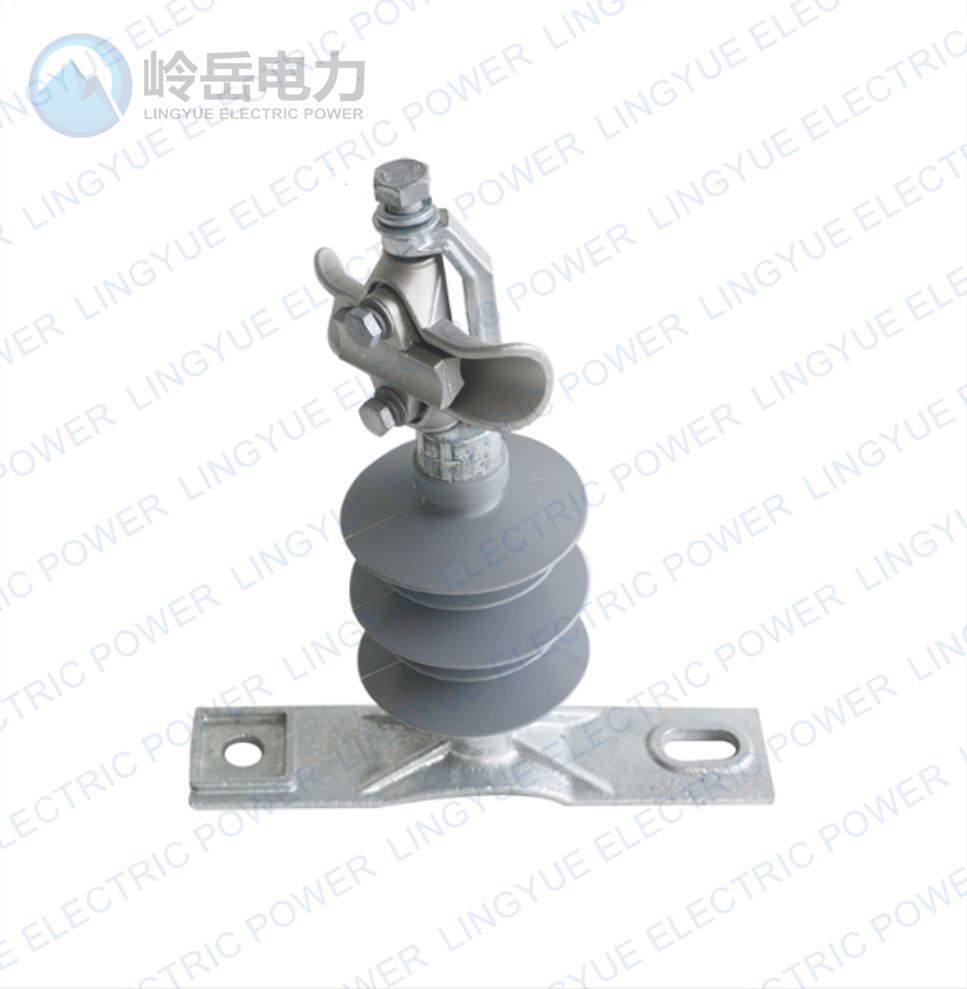

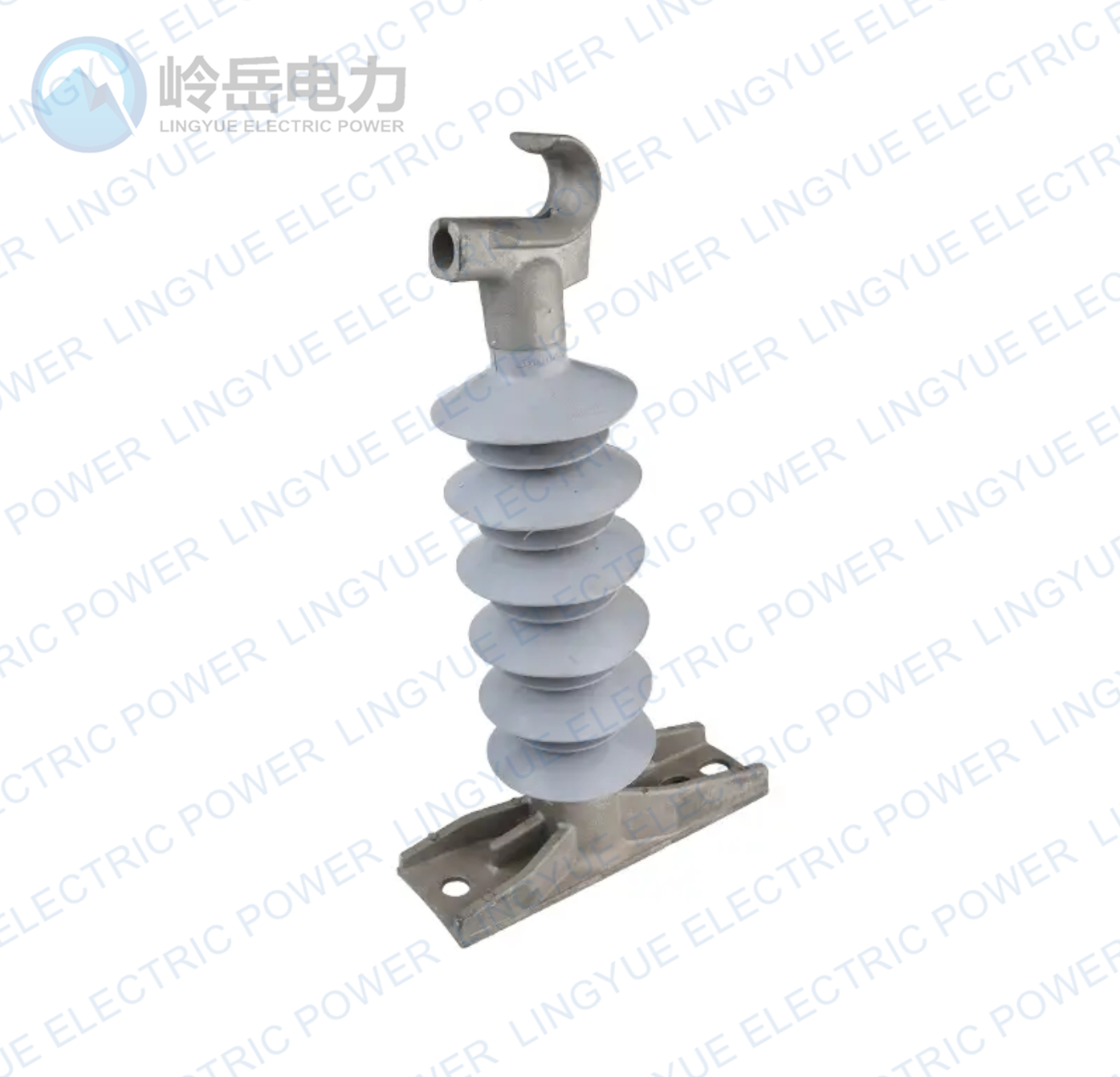

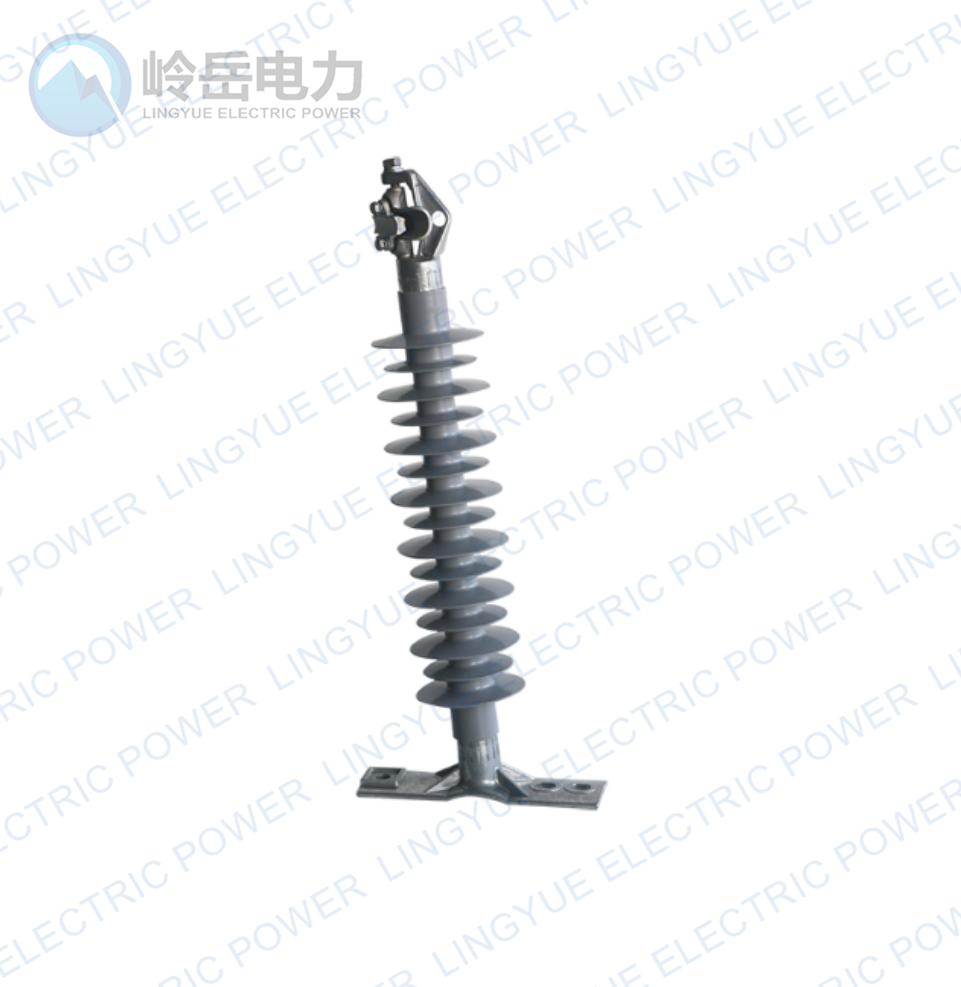

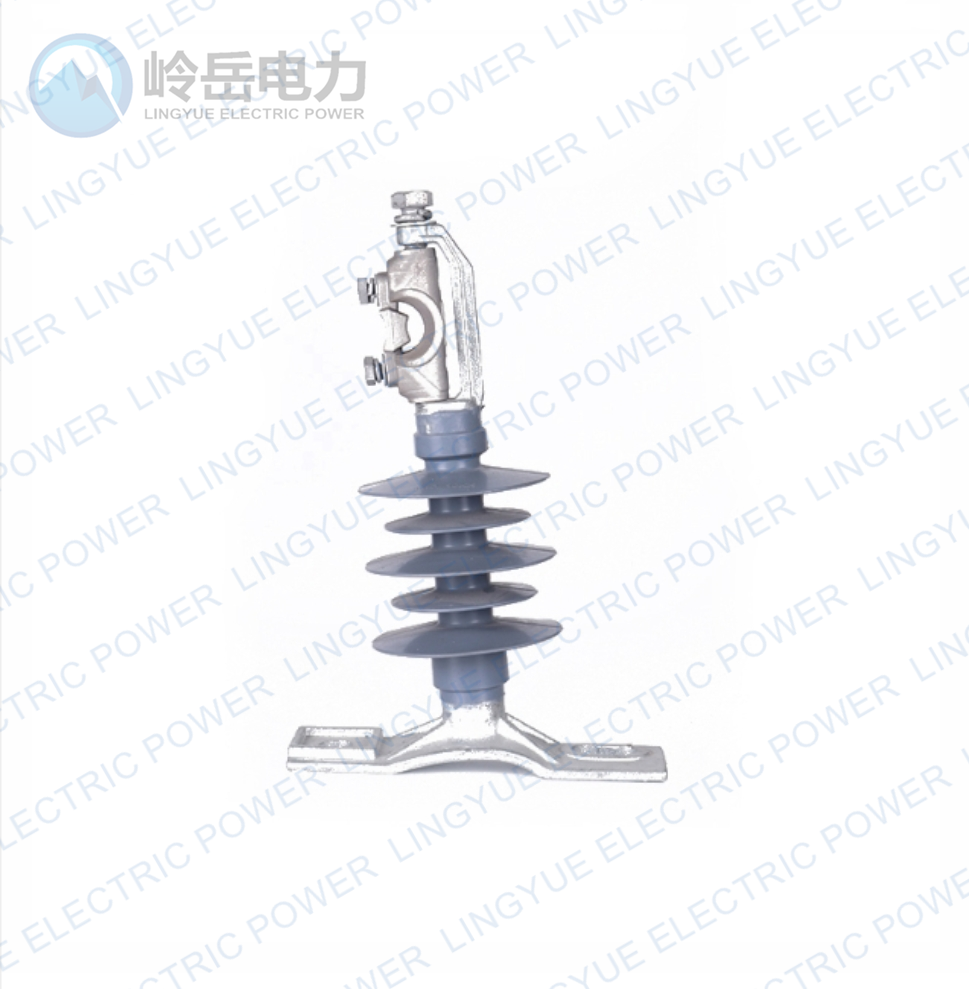

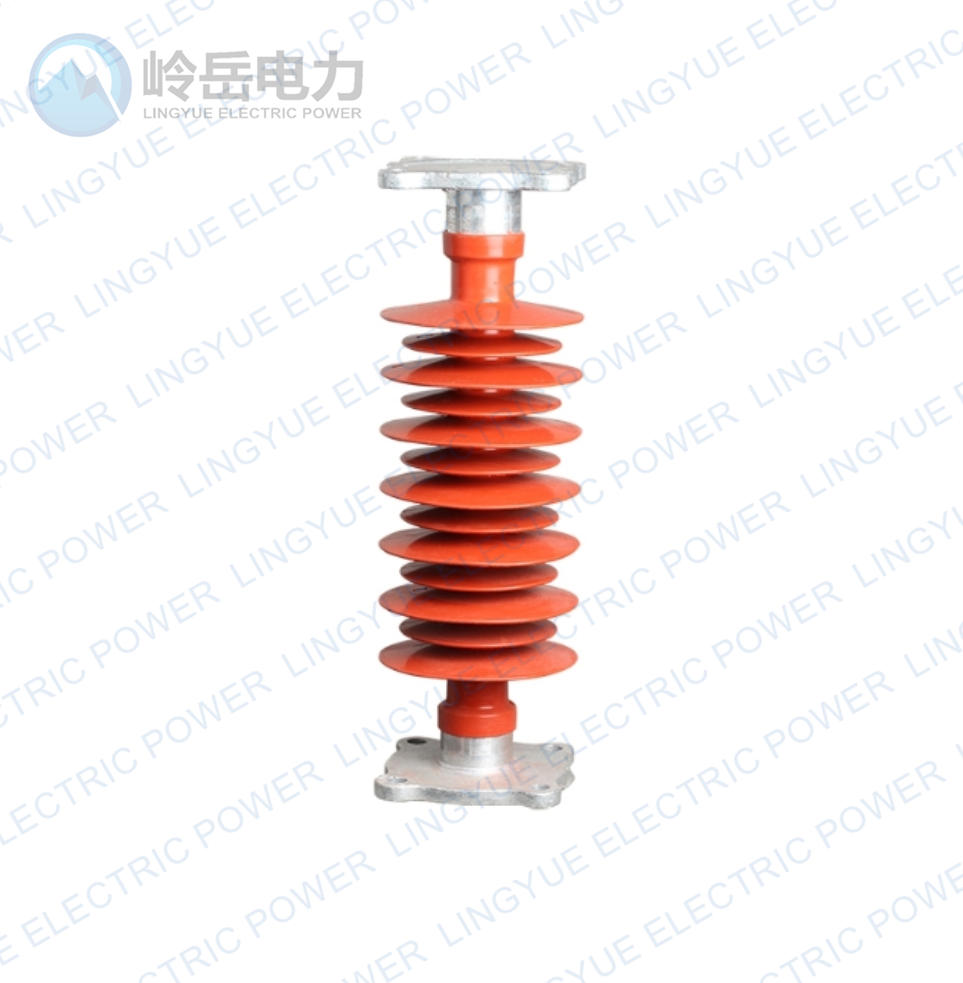

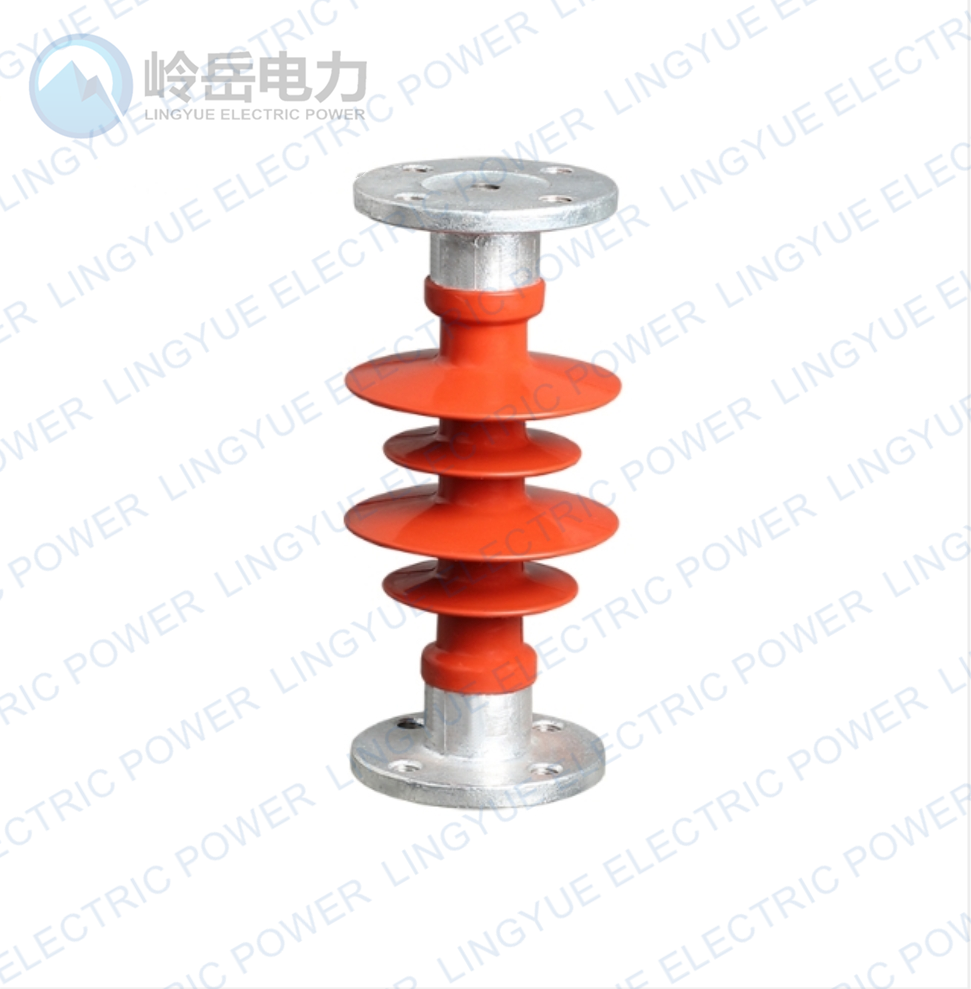

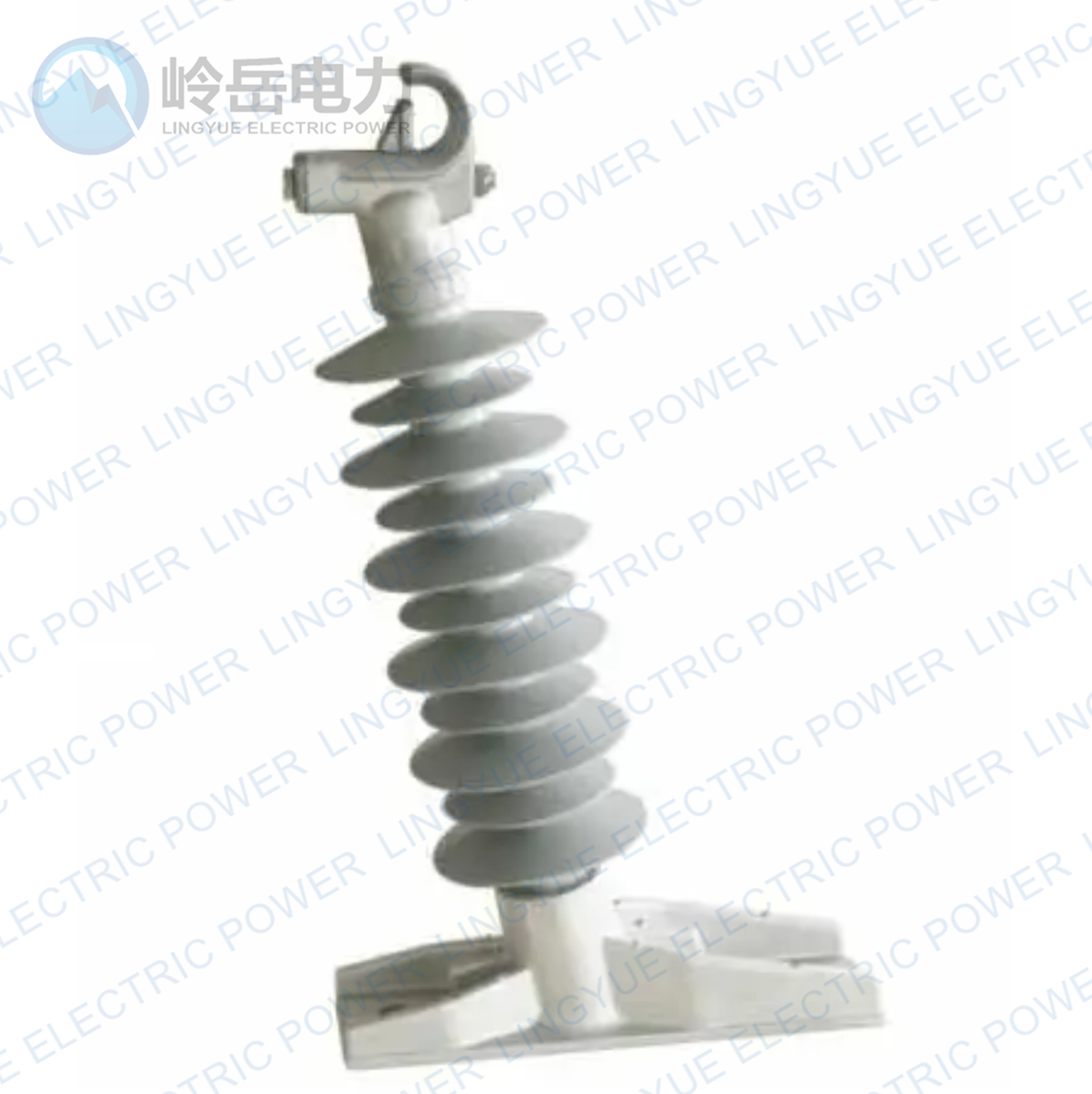

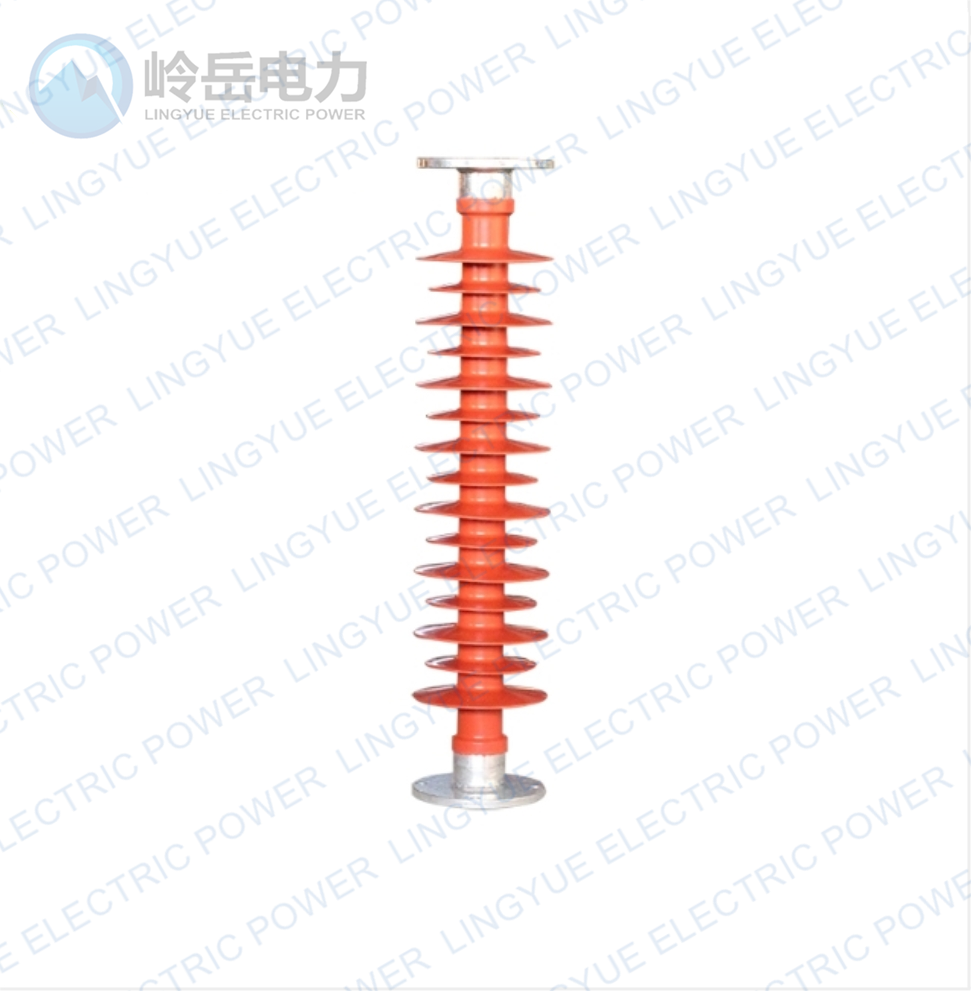

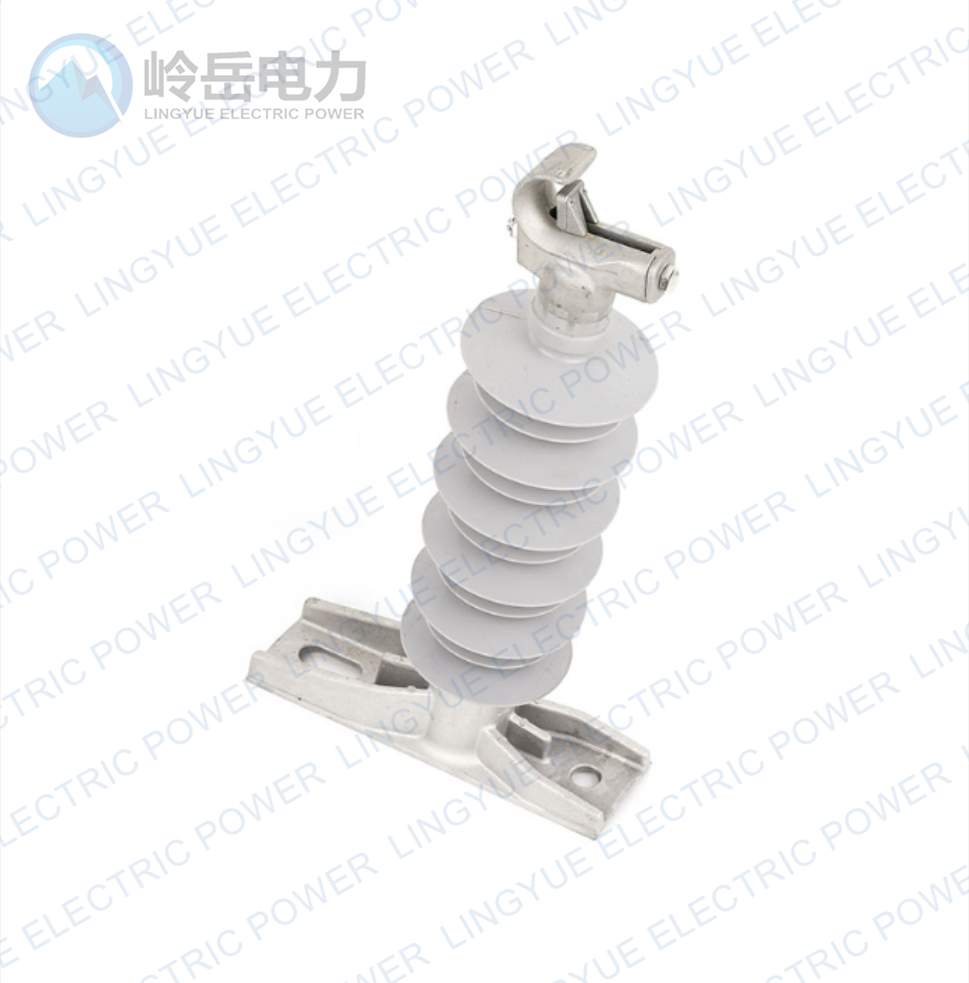

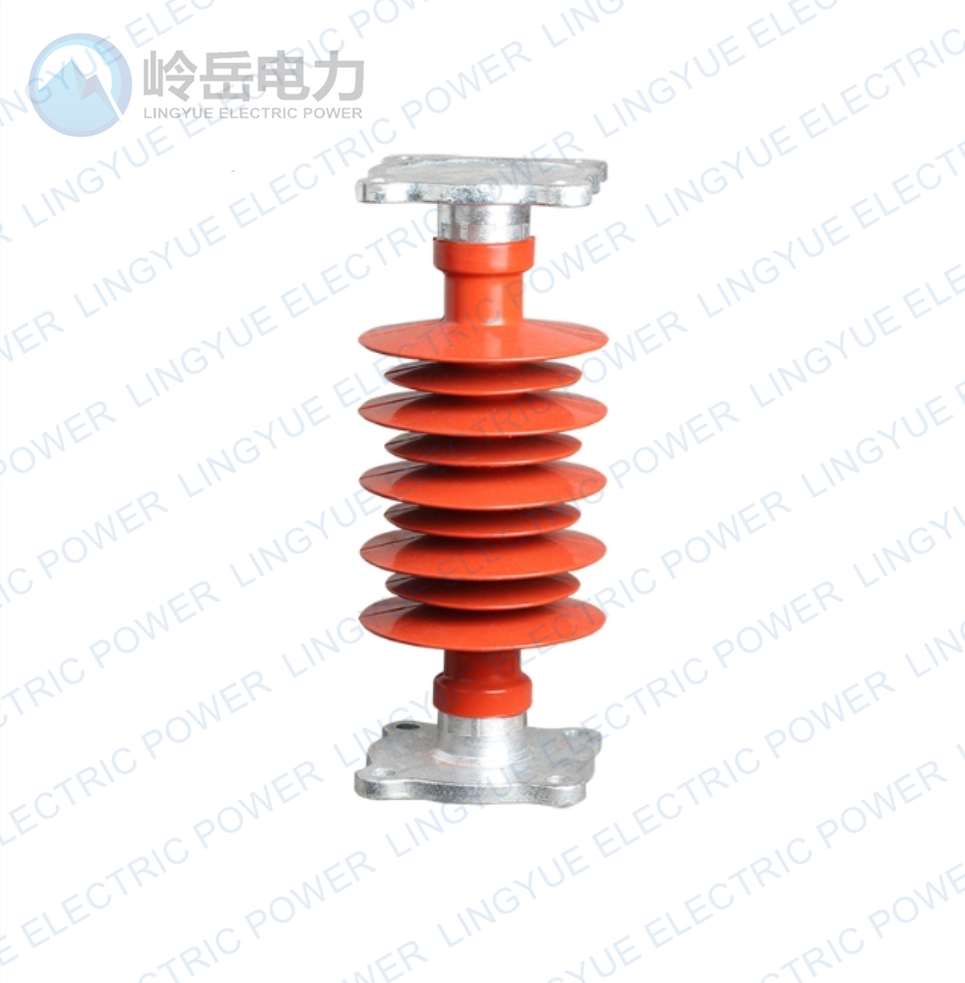

With high hydrophobicity as well as strong resistance to aging, tracking, and erosion, the composite post insulator is usually applied in the power stations. It has high tensile strength and flexural strength. It is also impact resistant. Quake proof, and anti brittle fracture. In addition, this lightweight product is easy to install.Its top and bottom mounting dimensions are the same with those of the porcelain type pin insulator, so they can be used interchangeably.
Item No. | Rated voltage
kV | Rated bending load
kN | Structure Height
(mm) | Min Arcing Distance
(mm) | Min Nominal Creepage Distance (mm) | Lighting full- wave impulse withstand voltage
(kV) | Power Frequency Withstand Voltage (wet) | Mounting Dimensions |
|
|
|
|
|
|
|
| Mounting Hole | Lower mounting hole |

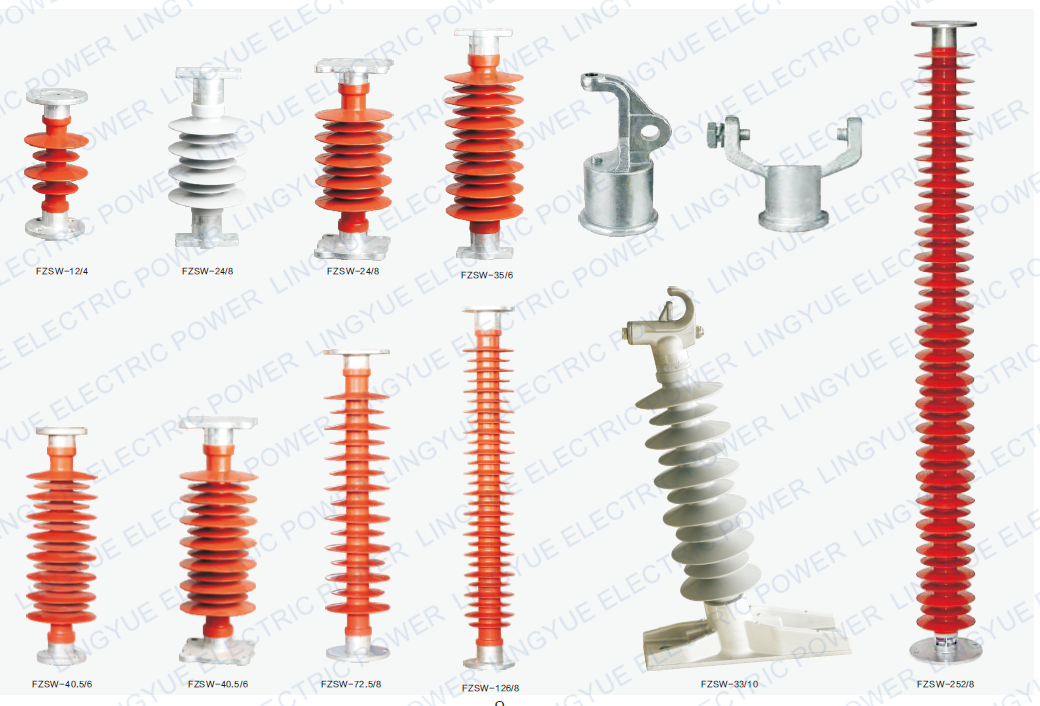

FZN4-12/4 | 12 | 4 | 230±3 | 125 | 330 | 75 | 75 | M10 | 4×Φ14-Φ76 |
FZSW-12/4 | 12 | 4 | 235±3 | 125 | 330 | 75 | 75 | 2×M12-Φ76 | 4×M12-Φ76 |
FZSW-24/8 | 24 | 8 | 345±3 | 200 | 540 | 150 | 150 | 4×M12-Φ76 | 4×M12-Φ76 |
FZSW-24/8 | 24 | 8 | 345±3 | 200 | 540 | 150 | 150 | 4×Φ14-Φ140 | 4×Φ14-Φ140 |
FZSW-33/10 | 33 | 10 | 618±10 | 450 | 1080 | 220 | 220 | 4×Φ14-Φ140 | 4×Φ14-Φ140 |
FZSW-35/6-76 | 40.5 | 6 | 435±3 | 290 | 1260 | 185 | 185 | 2×M8-Φ36 | 4×Φ14-Φ76 |
FZSW-40.5/6L(IEC) | 40.5 | 6 | 435±3 | 340 | 1260 | 200 | 200 | 4×M12-Φ76 | 4×M12-Φ76 |
FZSW-72.5/8 | 72.5 | 8 | 780±5 | 600 | 1850 | 350 | 350 | 4×Φ14-Φ140 | 4×Φ14-Φ140 |
FZSW-72.5/10 | 72.5 | 10 | 780±5 | 600 | 1950 | 350 | 350 | 4×Φ14-Φ140 | 4×Φ14-Φ140 |
FZSW-126/8 | 126 | 8 | 1240±5 | 1050 | 3150 | 550 | 550 | 4×M12-Φ140 | 4×Φ18-Φ140 |
FZSW-126/10 | 126 | 10 | 1240±5 | 1050 | 3150 | 550 | 550 | 4×M12-Φ140 | 4×Φ14-Φ140 |
FZSW-126/12.5 | 126 | 12.5 | 1440±5 | 1050 | 3500 | 550 | 550 | 4×M12-Φ140 | 4×Φ14-Φ140 |
FZSW-252/6K | 252 | 6 | 2240±15 | 2070 | 6300 | 1050 | 1050 | 4×M16-Φ140 | 8×Φ20-Φ225 |
FZSW-252/8 | 252 | 8 | 2340±15 | 2000 | 6700 | 1050 | 1050 | 4×M16-Φ190 | 8×Φ20-Φ225 |
