PGP2 suspension clamp

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

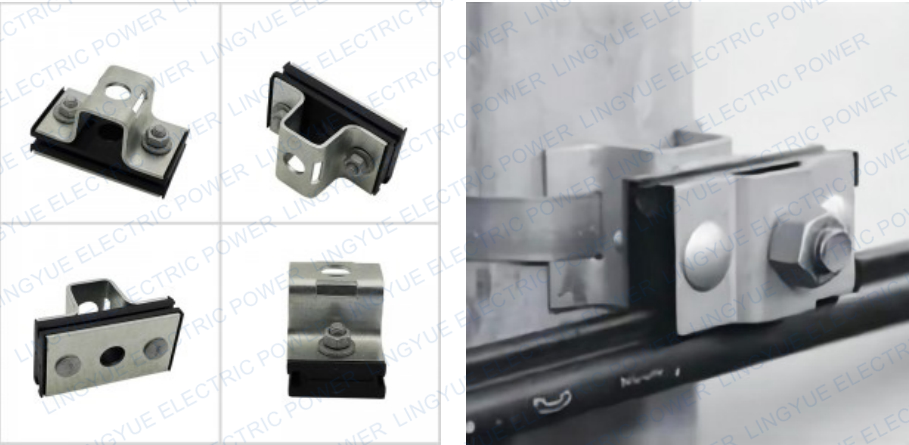

Product information: Fig 8 cable suspension clamp other called figure 8 cable suspension clamp is designed to suspend figure-8fiber optic cable on short spans during outdoor FTTX transmission line constructions.

Key Features:

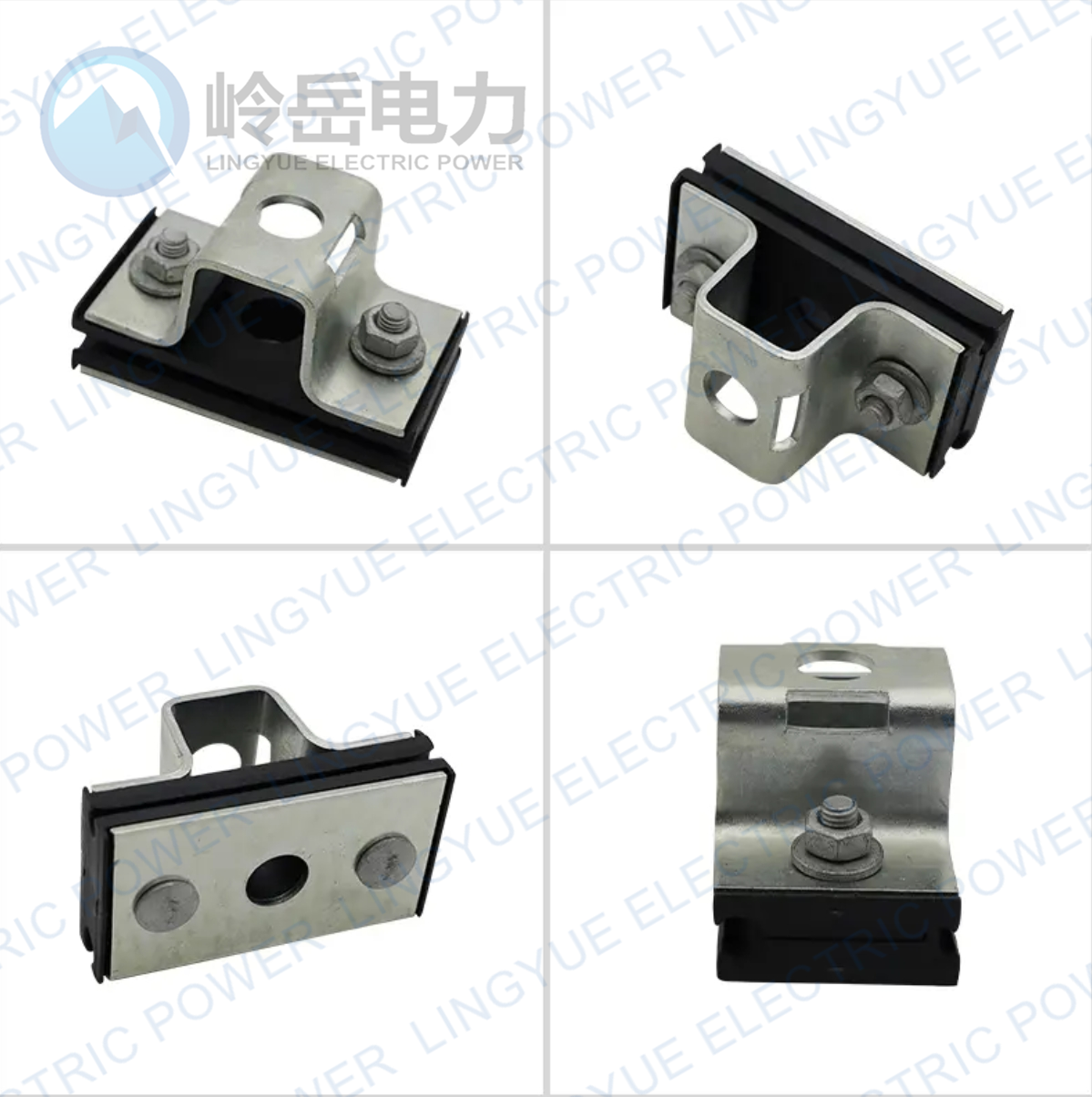

Double side clamp design Easy installation, tools free；

Applied in straight routes of FTTH lines；

No damage to cable jacket or insulating messenger；

UV resistant thermoplastic insert, galvanized steel plate, durable Excellent environmental stability；

Technical specification:

Item No.	Round cable diameter,mm	messenger diameter,mm	MBL,KN	Weight,kg	Material
PGP-2	4-5	5-9	8	0.19	UV resistant plastic&galvanized steel

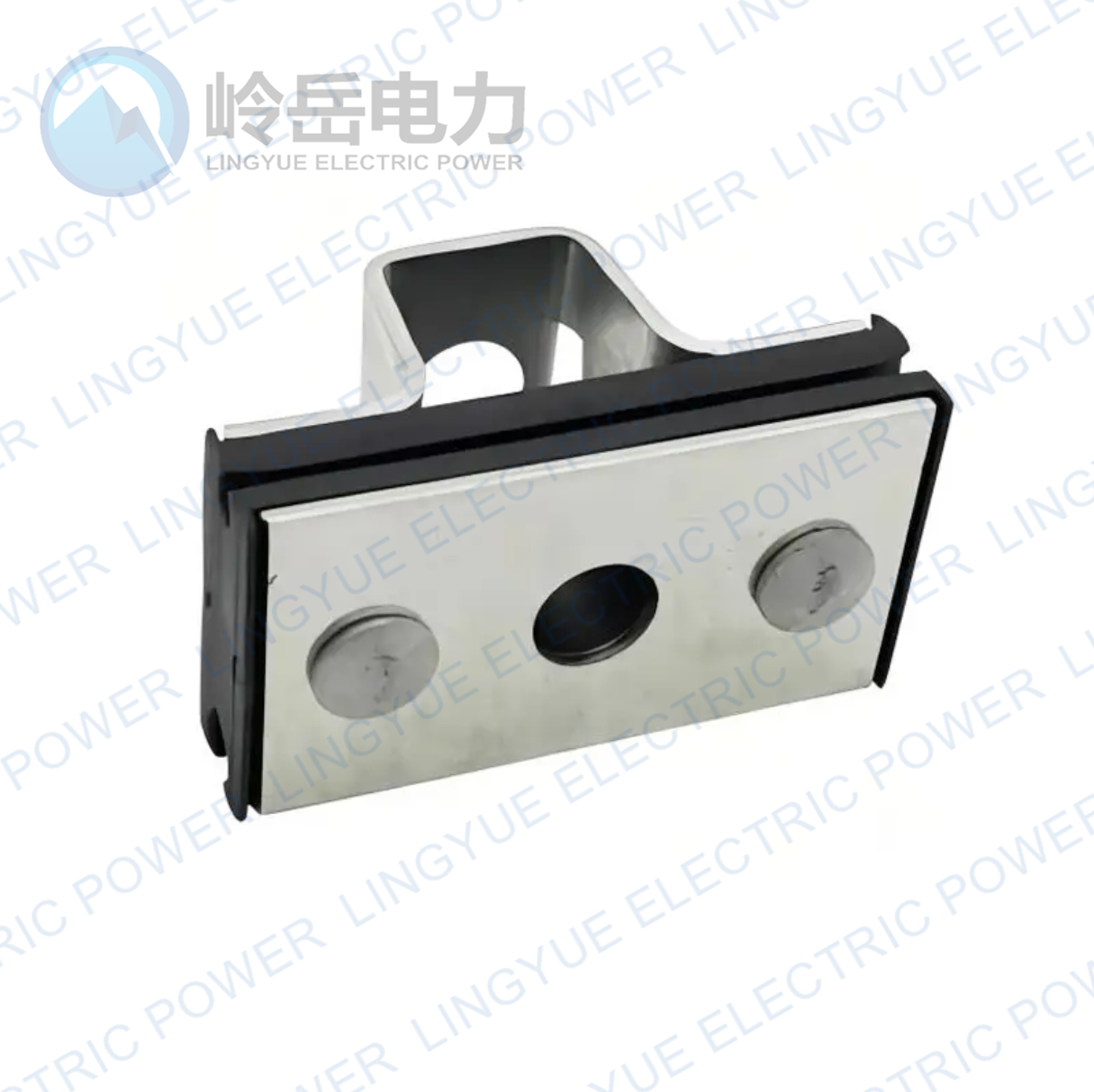

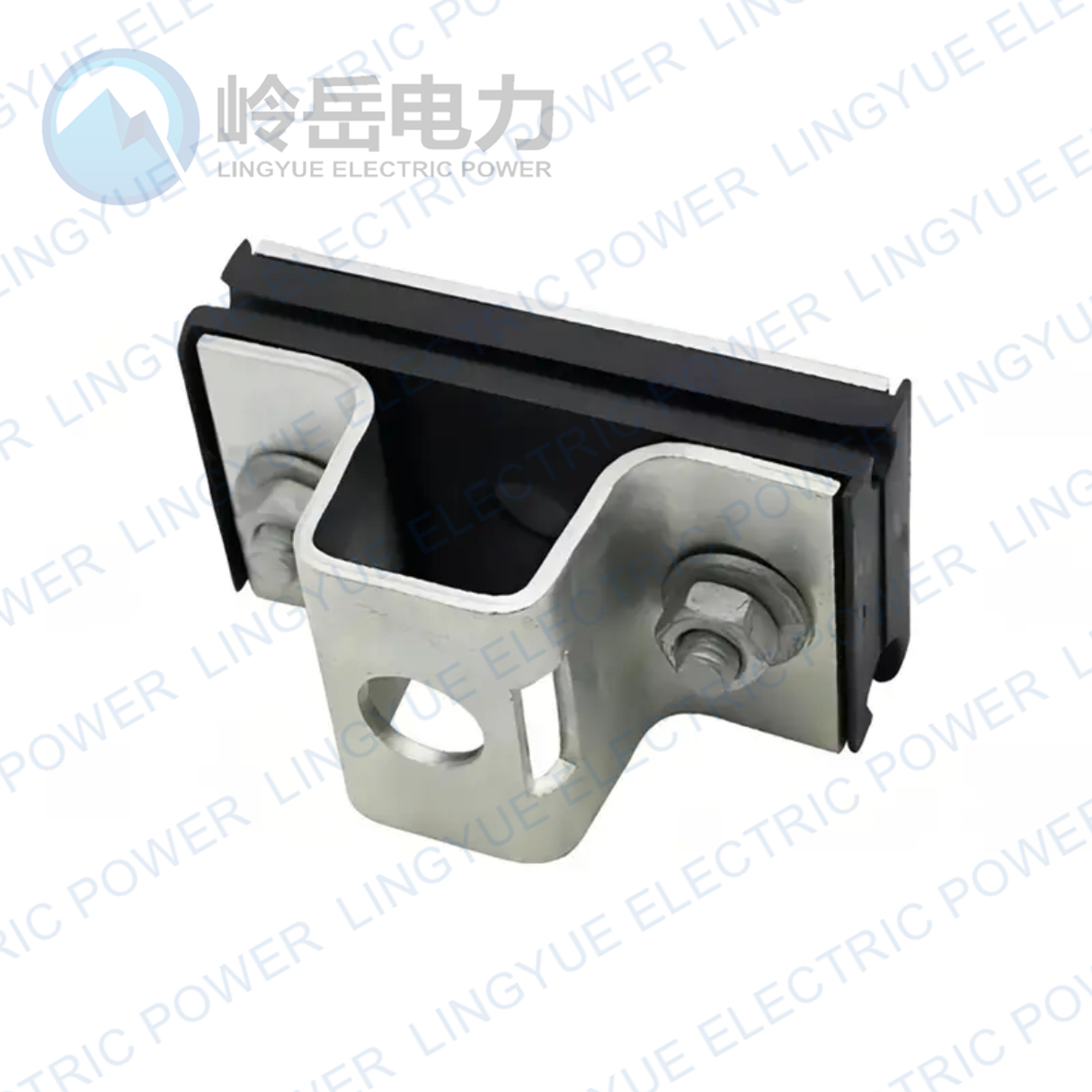

This suspension clamp is consists of plastic insert, metal plates and stainless steel hardware. Plastic insert is made of UV resistant thermoplastic by plastic injection technology. The metal plates was processed by hot dip galvanized finish which is corrosion resistant and with high mechanical

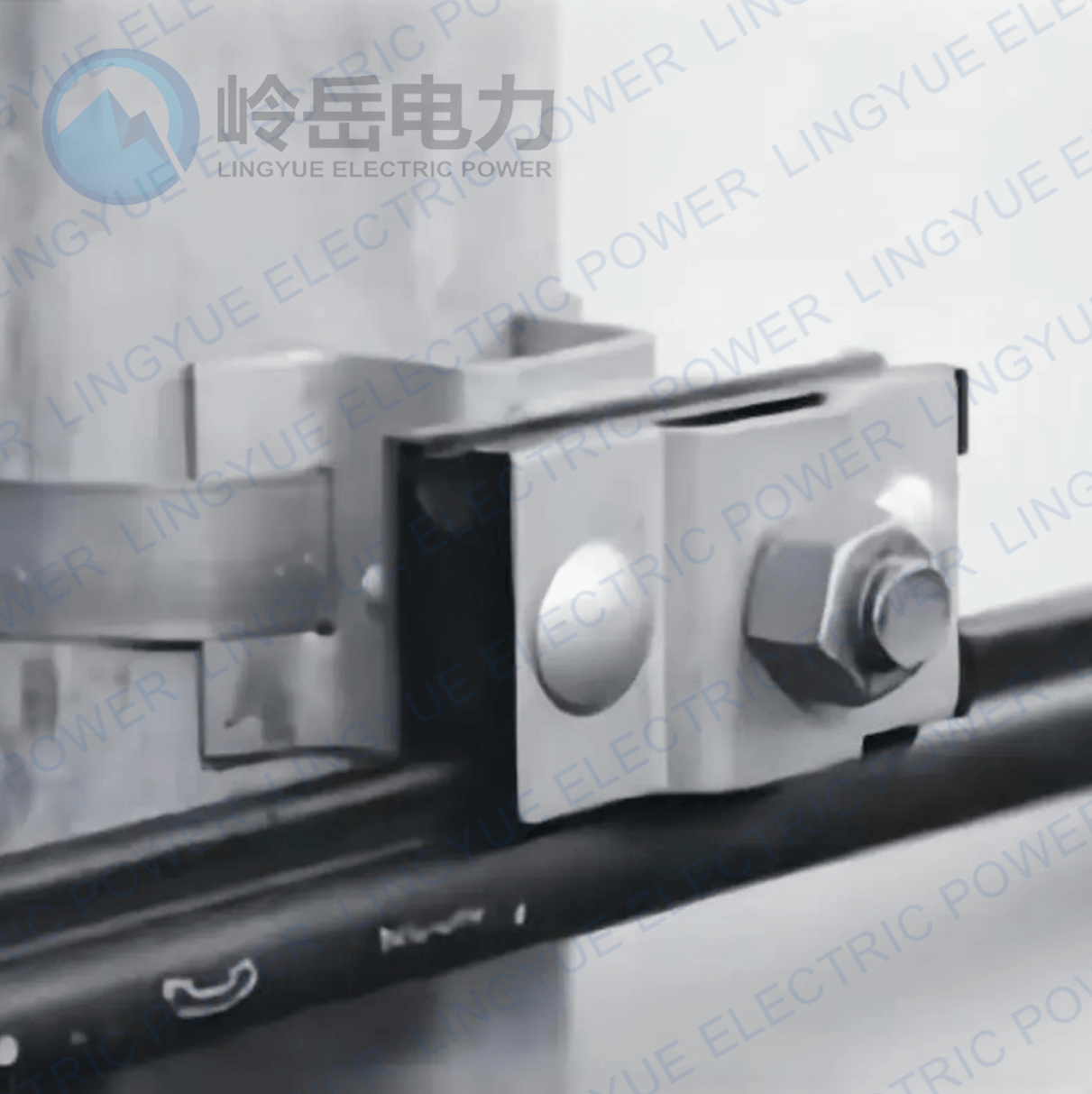

strength. It can be installed on wooden, concrete pole by pigtail hook, bolt or brackets .All of our assemblies passed a series of standard related

type tests which are available in our internal laboratory,such as +70℃~-40CTemperature and humidity cycling test,Tensile strength test, Ageing test,Corrosion resistance test etc.
