Product Introduction

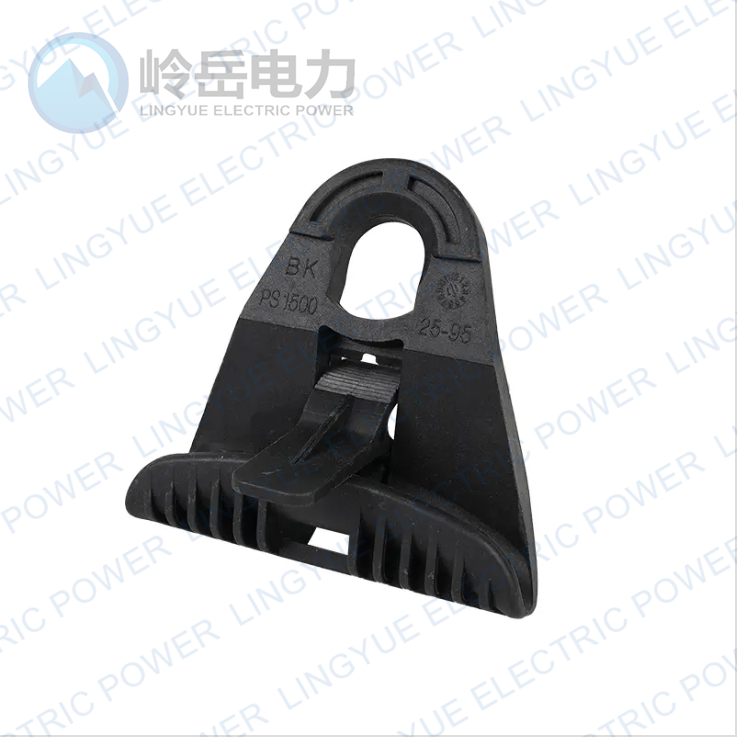

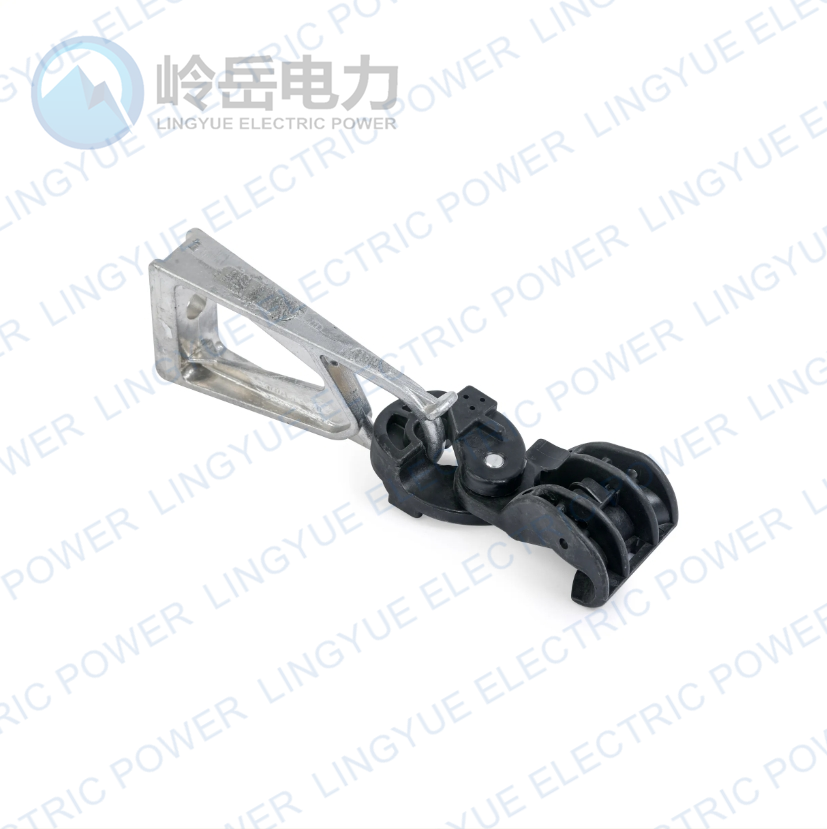

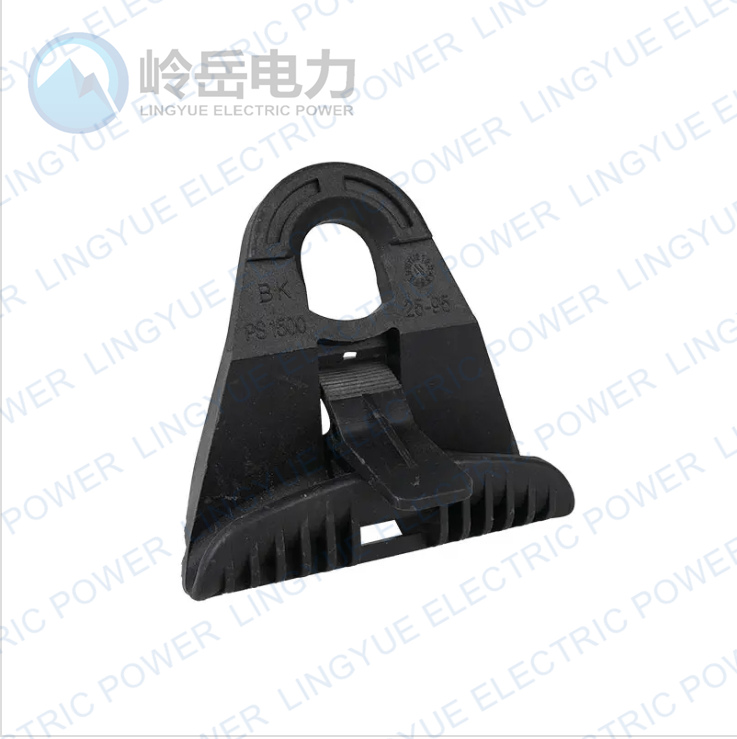

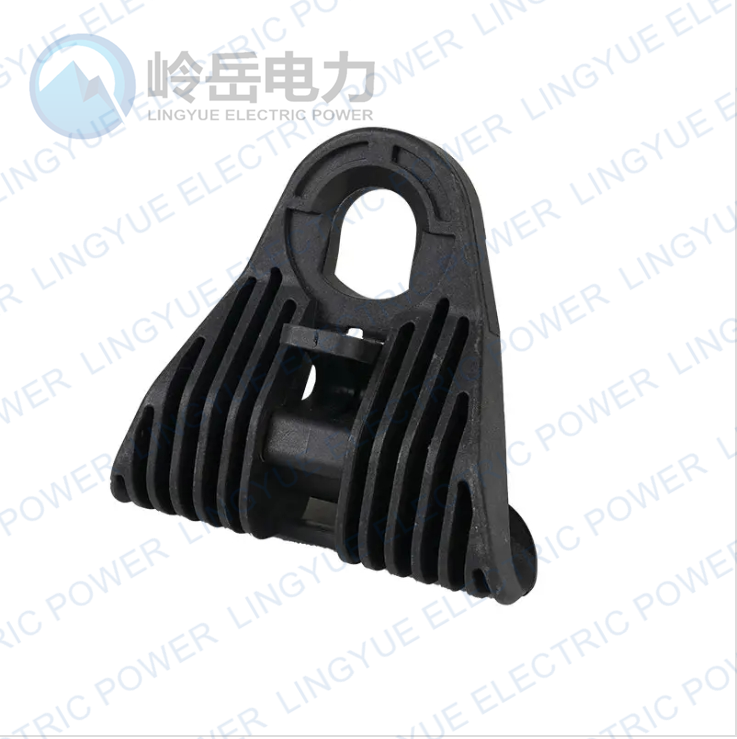

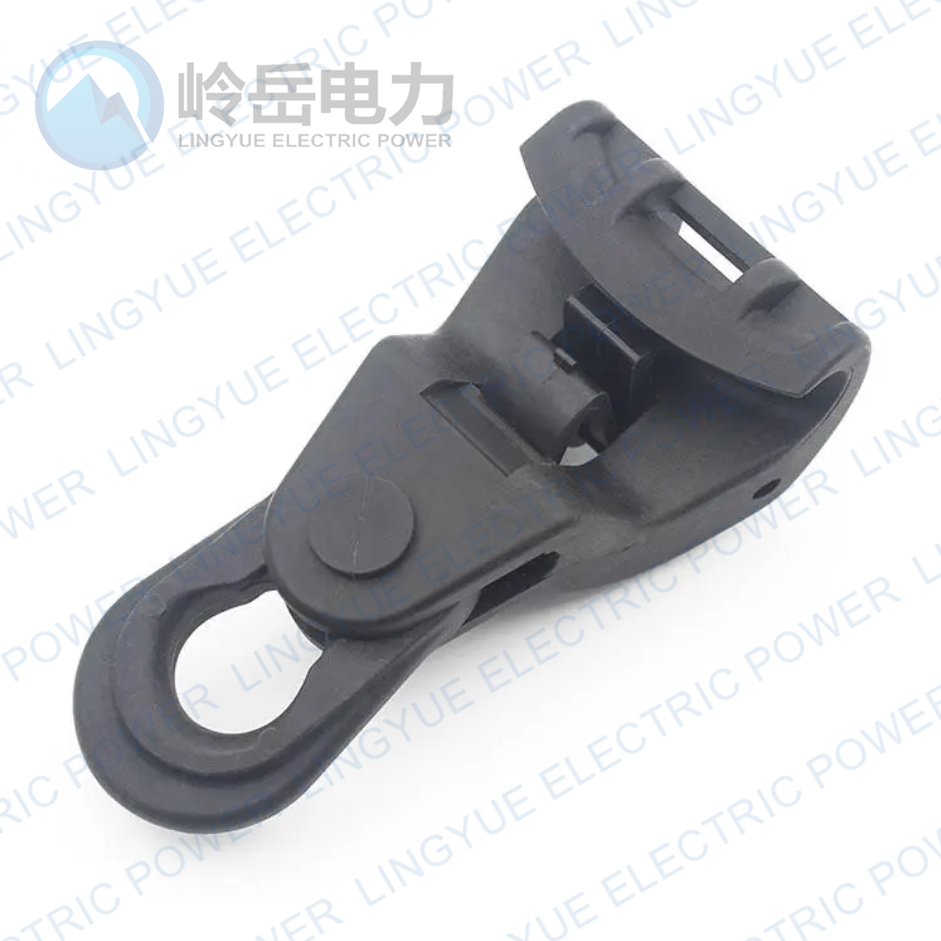

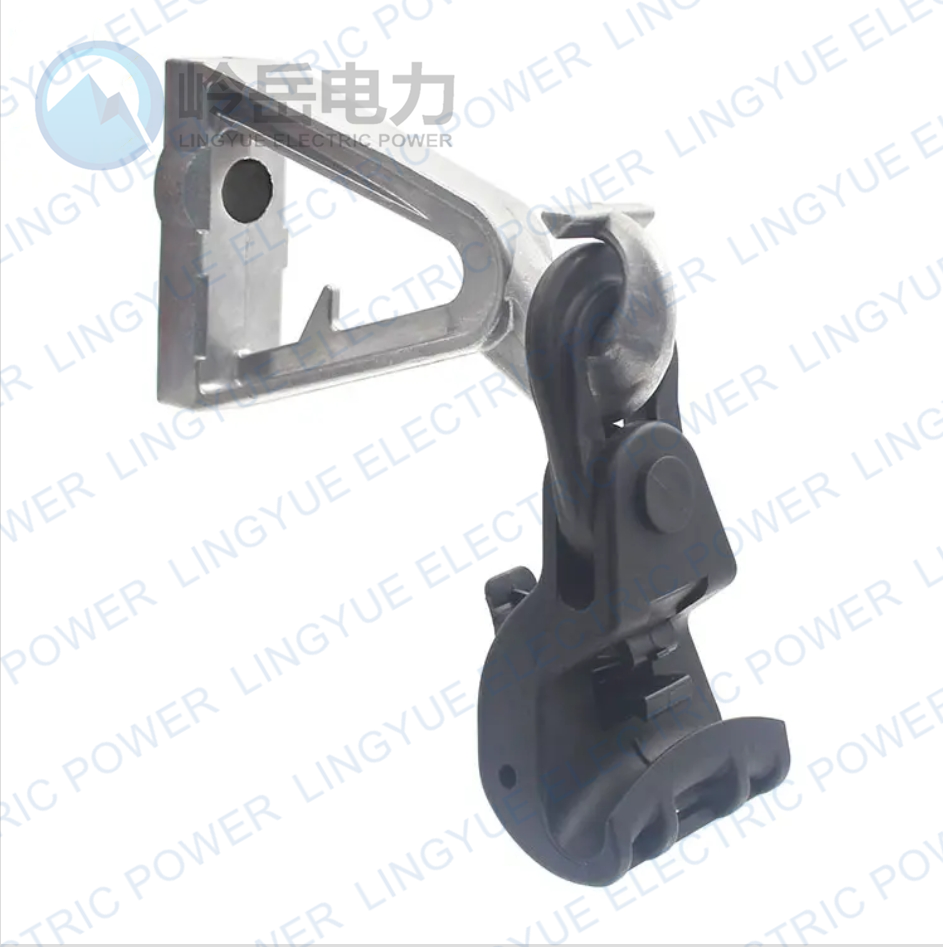

PS1500 is supplied with preinstalled bracket.The upper bulge of the bracket prevents the clamp from turning over the bracket.The fittings used to support the aerial bundle cable consist of one size of the suspension clamp(according the range of cable size) and the aluminum alloy bracket which can be bolted with M12 or M16 bolts or strapped to the pole with 2 stainless steel straps 20*0.7mm.No damage shall be made to the insulation of the conductors when clamping the bundle to a suspension assembly.



Item No.

Cross section(mm²)

Breaking load

PS 1500

25-95

12 KN

PS 1500-1

25-95

 12 KN

PS 1500-2

25-95

 15 KN



Structure Feature

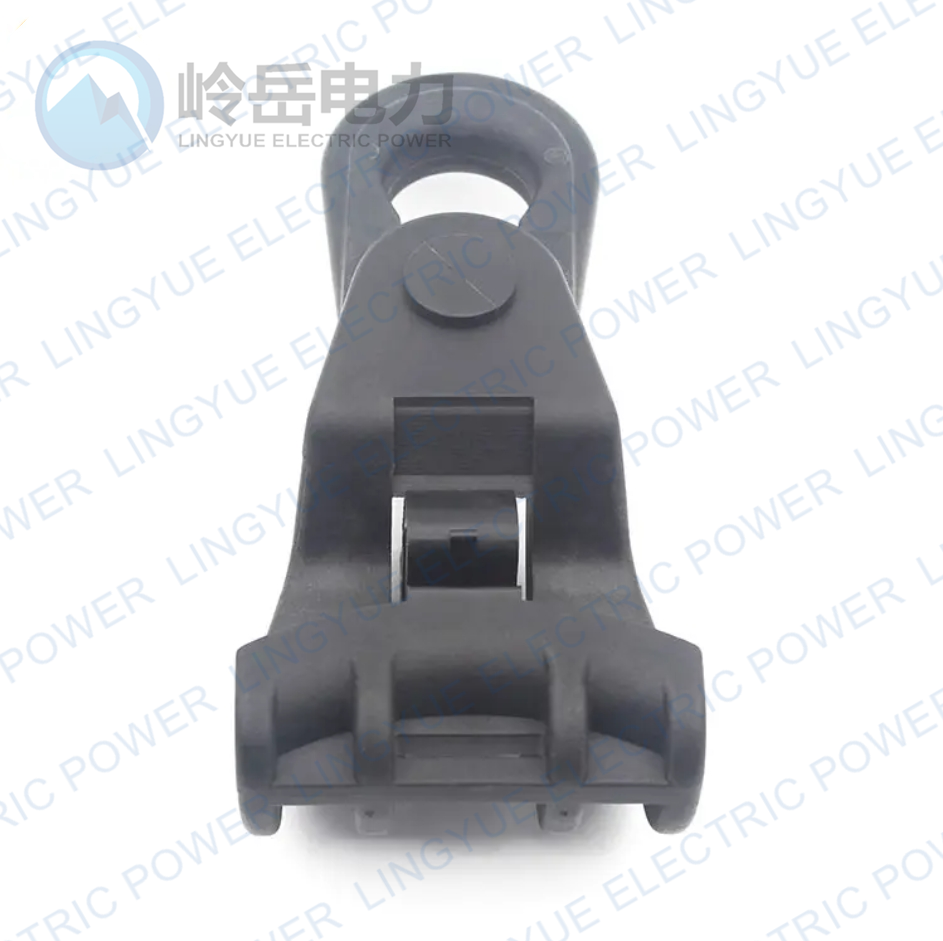

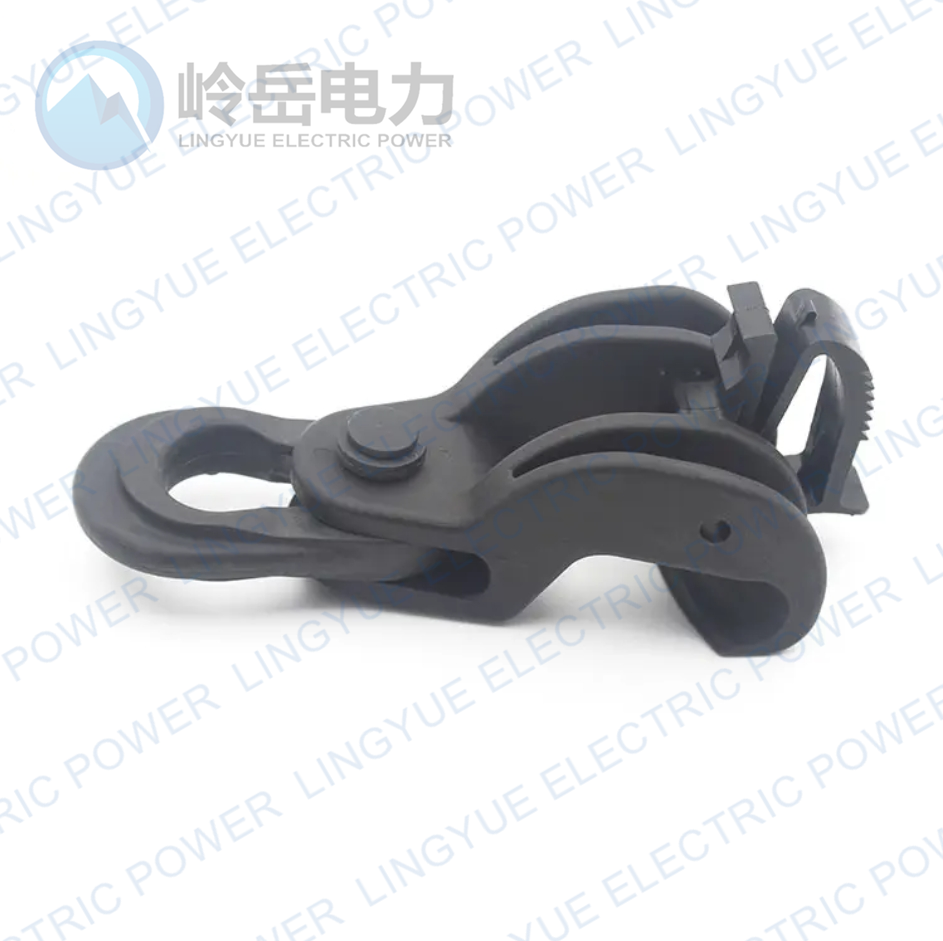

1.Clamp and ring pull are made of weather resistant and anti-UV material with high mechanical strength.

2.Neutral messenger is placed in the groove and locked by an adjustable grip device to fit different cable sizes.

3.Easy installation,without any additional tools.

4.No loose parts could fall off during installation.

5.Standard:EN 50483-3,NF C33-040
