SC-2 Suspension clamps

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Optical fiber suspension clamp SC-2 designed to suspension round or flat ADSS or drop wire cable in FTTX construction.

Optical fiber drop wire suspension clamp is very easy for installation, and installation doesn’t require the additional tools. This type of FTTH clamp us handily adjusted.

Designed for suspension of self-supporting optical cable type “8″ on intermediate supports of overhead lines up to 20 kV, communications,

urban electrical facilities (street lighting, ground electric transport), elements of buildings and structures with a span length of up to 110 m.

Item No.

Cable Diameter

Material

Breaking Load(KN)

Weight(KG)

SC-2

4-8mm

Galvanized steel，

Al-Alloy

2KN

85g

Feature

1) Easy installation good conductivity

2) Forging process creates a high strength performance

3) Slotted holes allow adjusting for varying conductors on each side

4) high strength corrosion resistant Al-Alloy

5) Oxide inhibitor in contact surfaces avoid oxidation

6) Serrated transverse grooves for maximum conductor contact

7) Insulating covers is select-able for protection and insulation

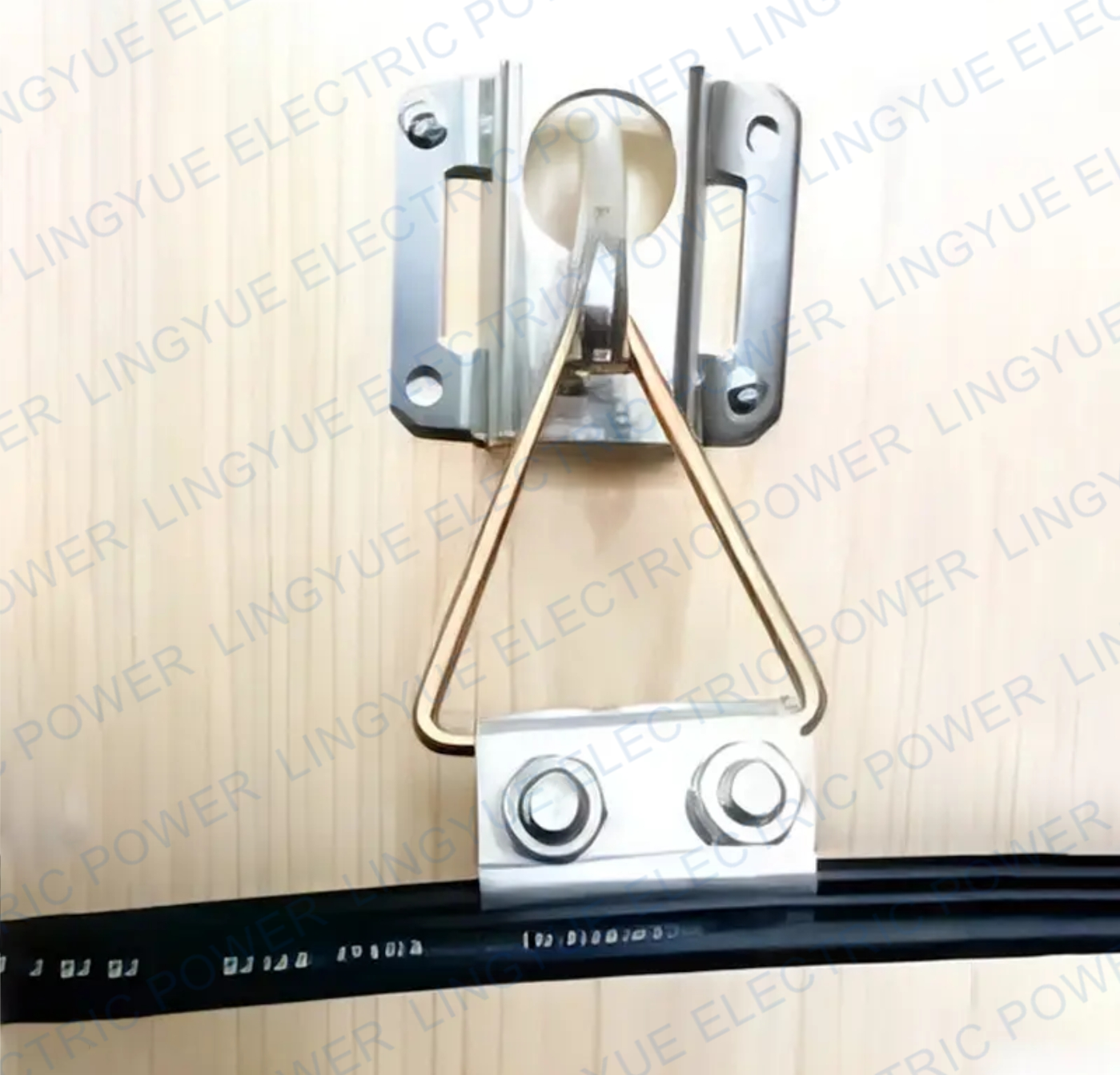

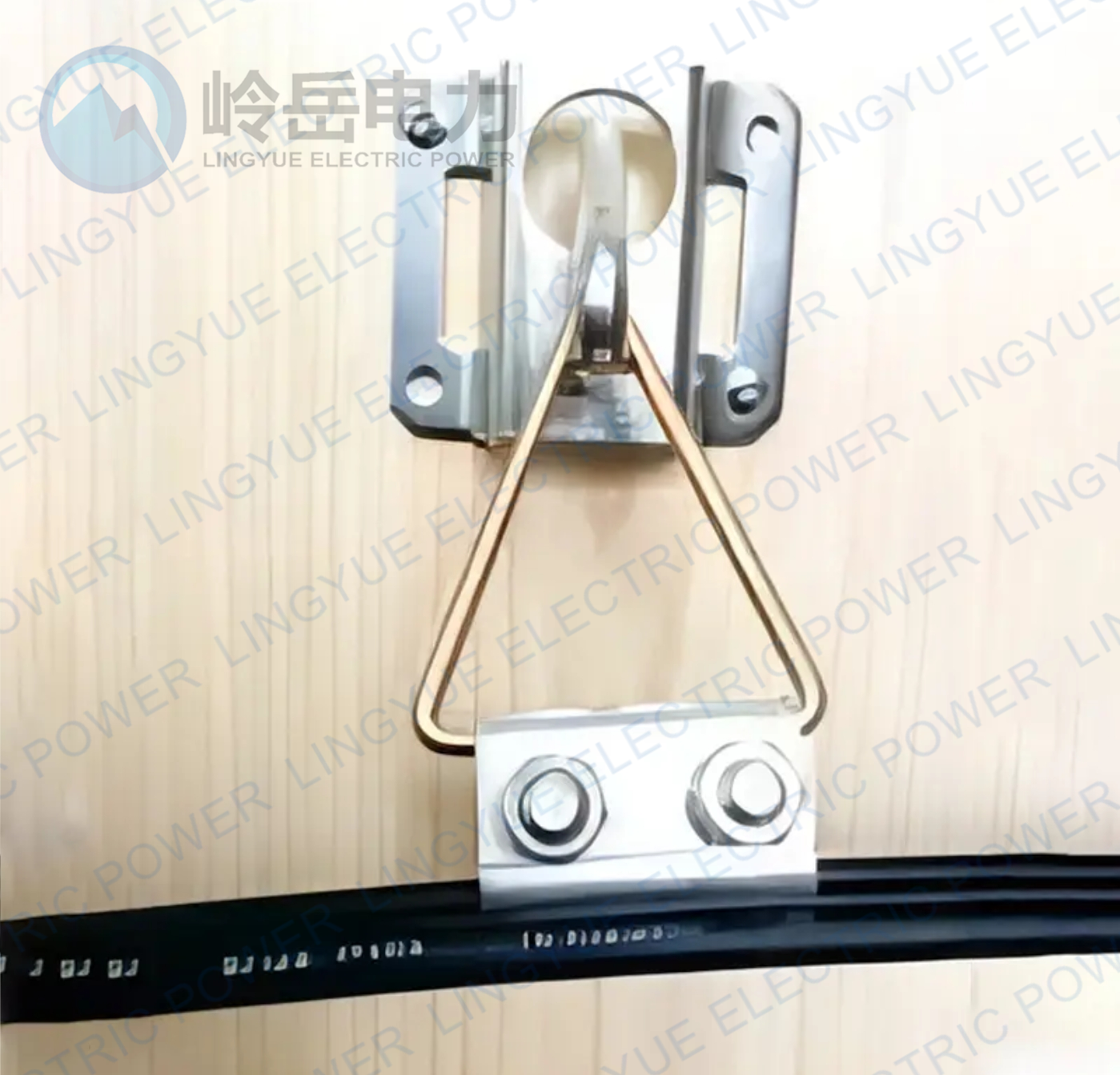

INSTALLATION
