CF series Hot Galvanizing Steel Pole Hook
Product Introduction

CF series hot galvanizing steel hook is used for receiving LV ABC across a dead end clamp or suspension clamp.


It is made of hot-dip galvanized steel and fastened using stainless steel strap

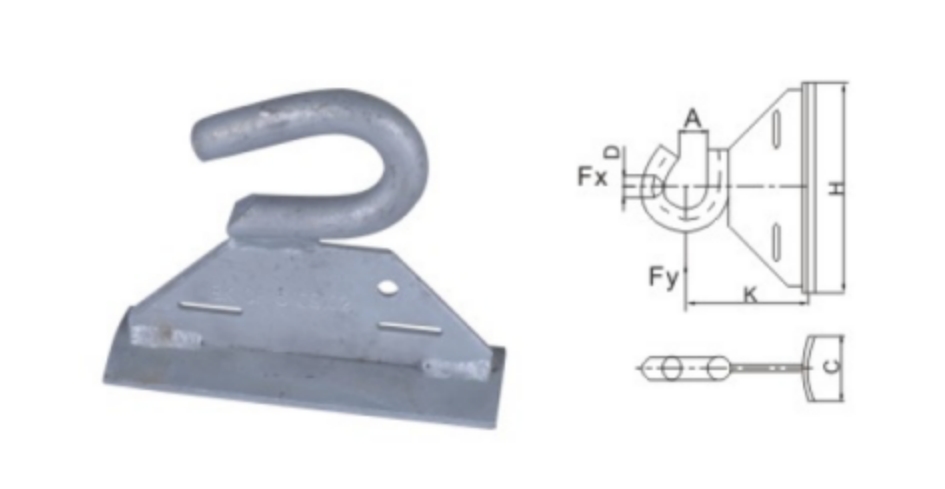

Item No.

Dimension(mm)

Breaking Load


D

A

K

H

C

Fx,kN

Fy,kN

Bec.r

CF16

16

18

85

150

45

17.8

12.5

610

CF20

20

18

91

150

45

27.7

17.7

740
