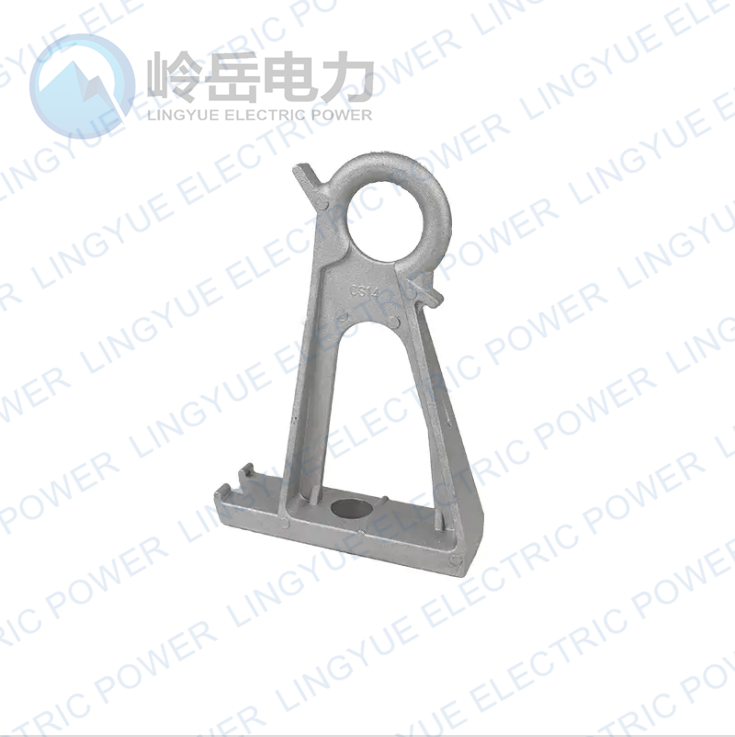

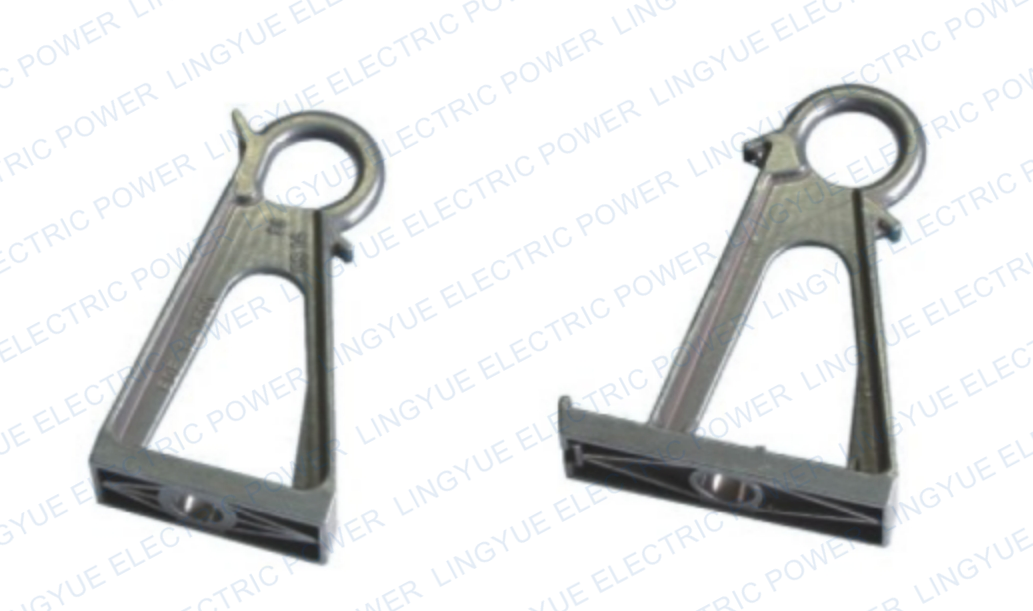

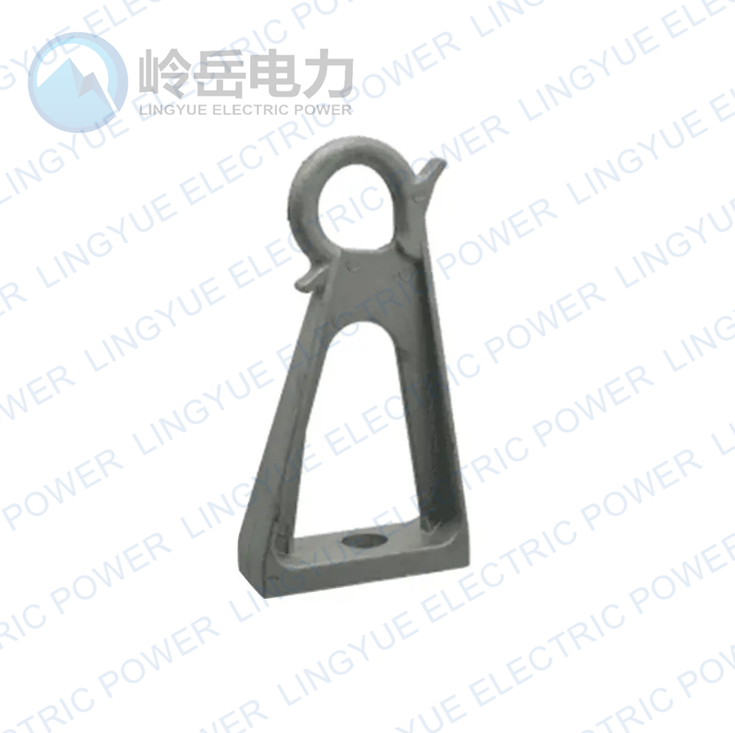

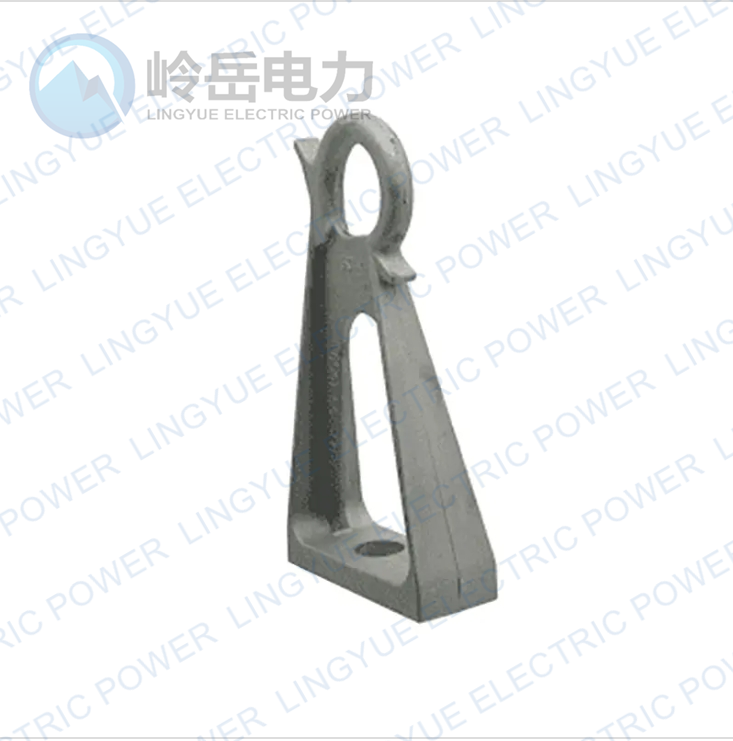

CR Series Aluminum Anchoring Bracket
Product Introduction

CR aluminium alloy is used for receiving LV ABC across a dead end clamp or suspension clamp.


It is used to fix the anchor clamp in metal, steel, wooden pillar or the wall of building.


It is made of extraordinary tensile strength aluminium alloy.

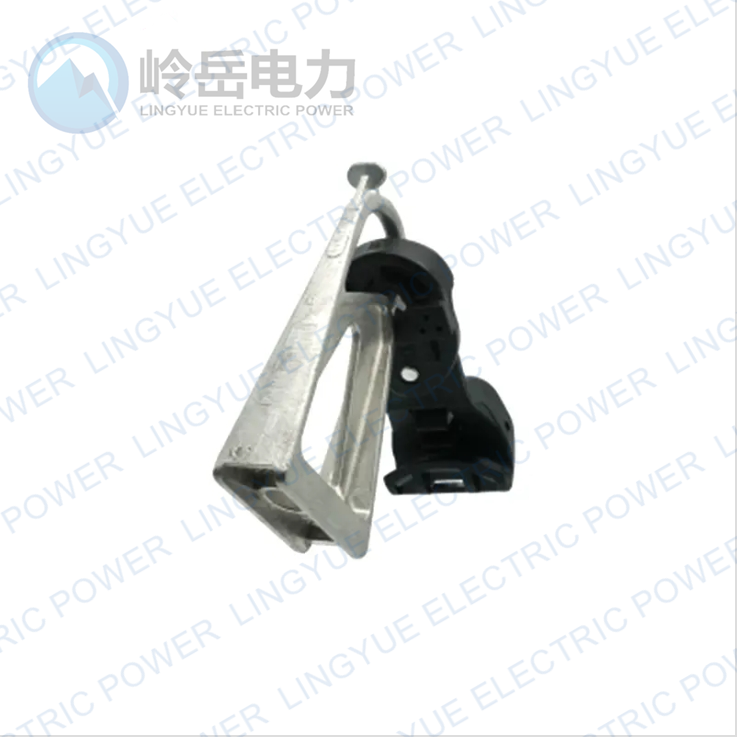

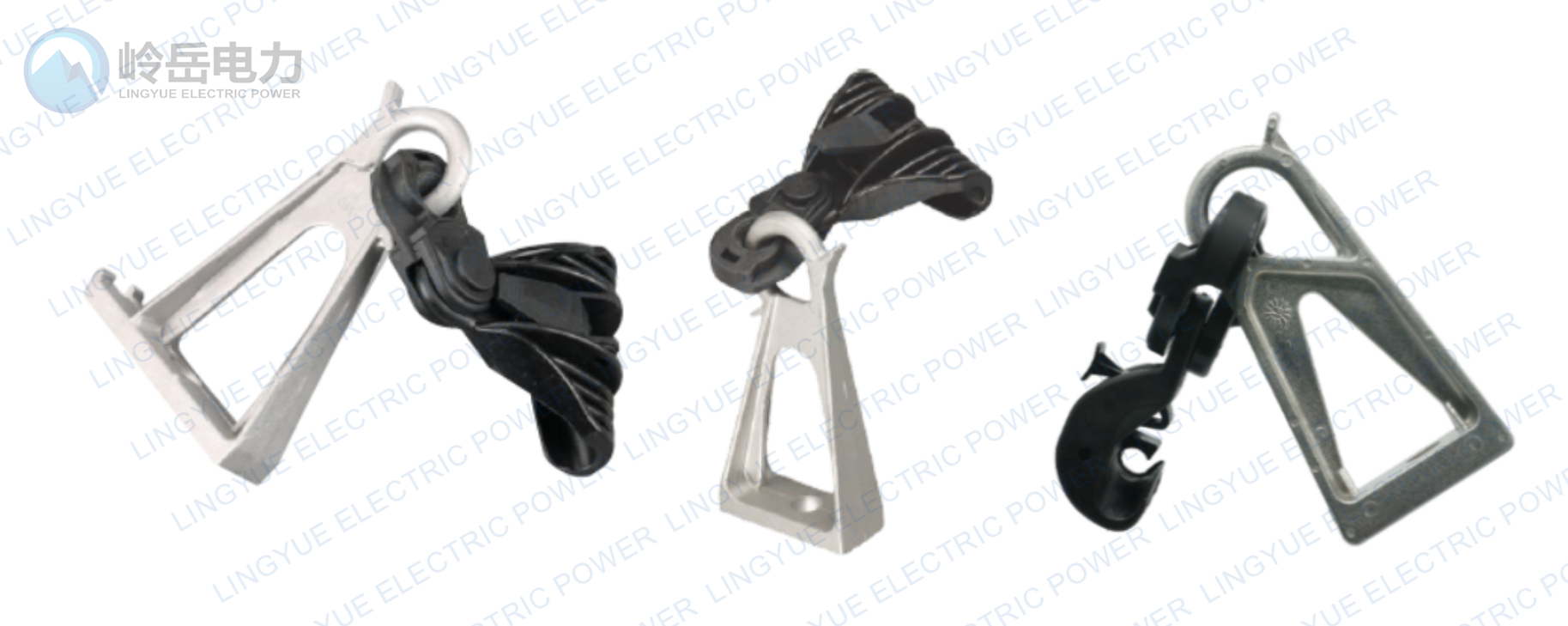

Anchoring bracket is used to anchor ABC cables with neutral messenger on poles (wood, concrete etc…), excellent in industrial and saline environment.
Anchoring ABC cables with neutral messenger on poles (wood, concrete etc……), excellent in industrial and saline environment. Fixed by 2×(14mm or 16mm) bolts or 2 stainless straps 0.75 × 20mm.



It is in accordance with NFC33-040.

Item No.

Breaking Load(KN)

CR1500A

15

CR1500B

15
