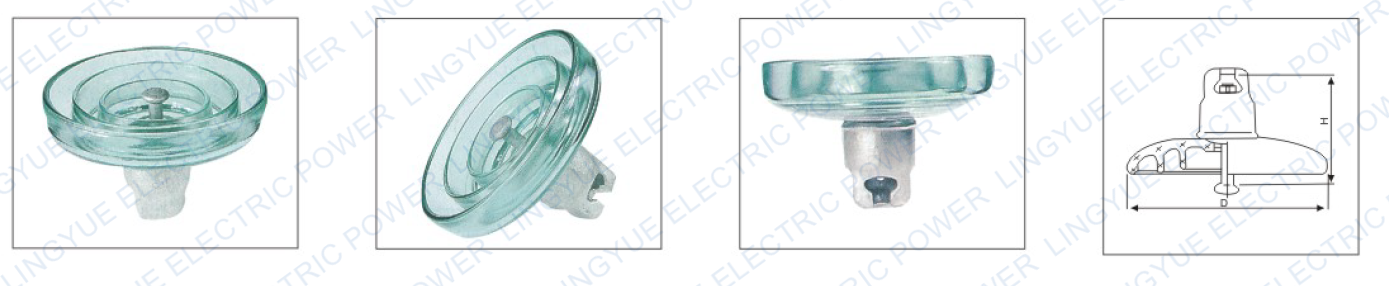

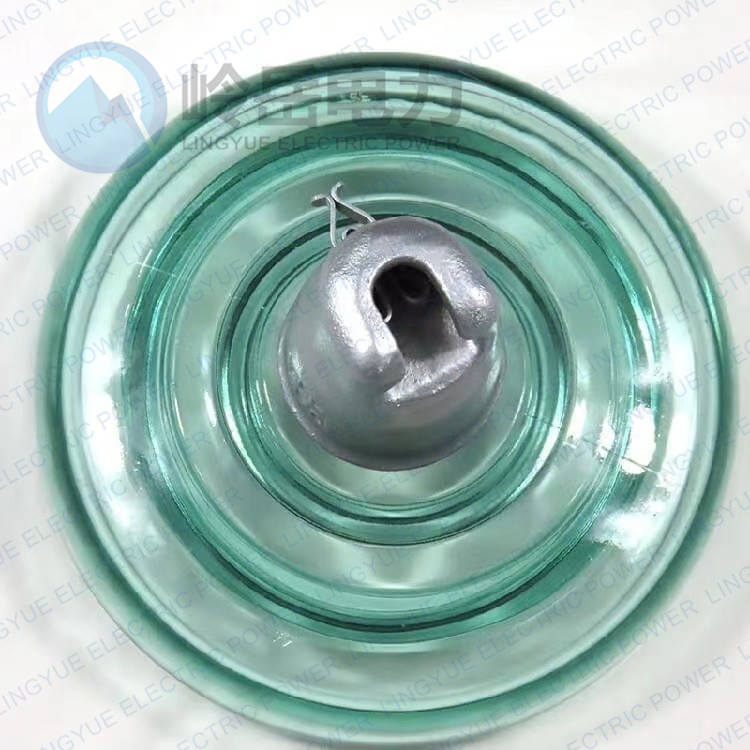

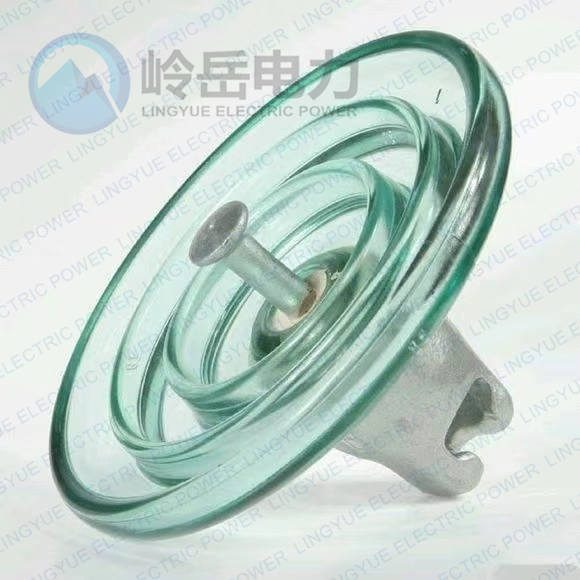

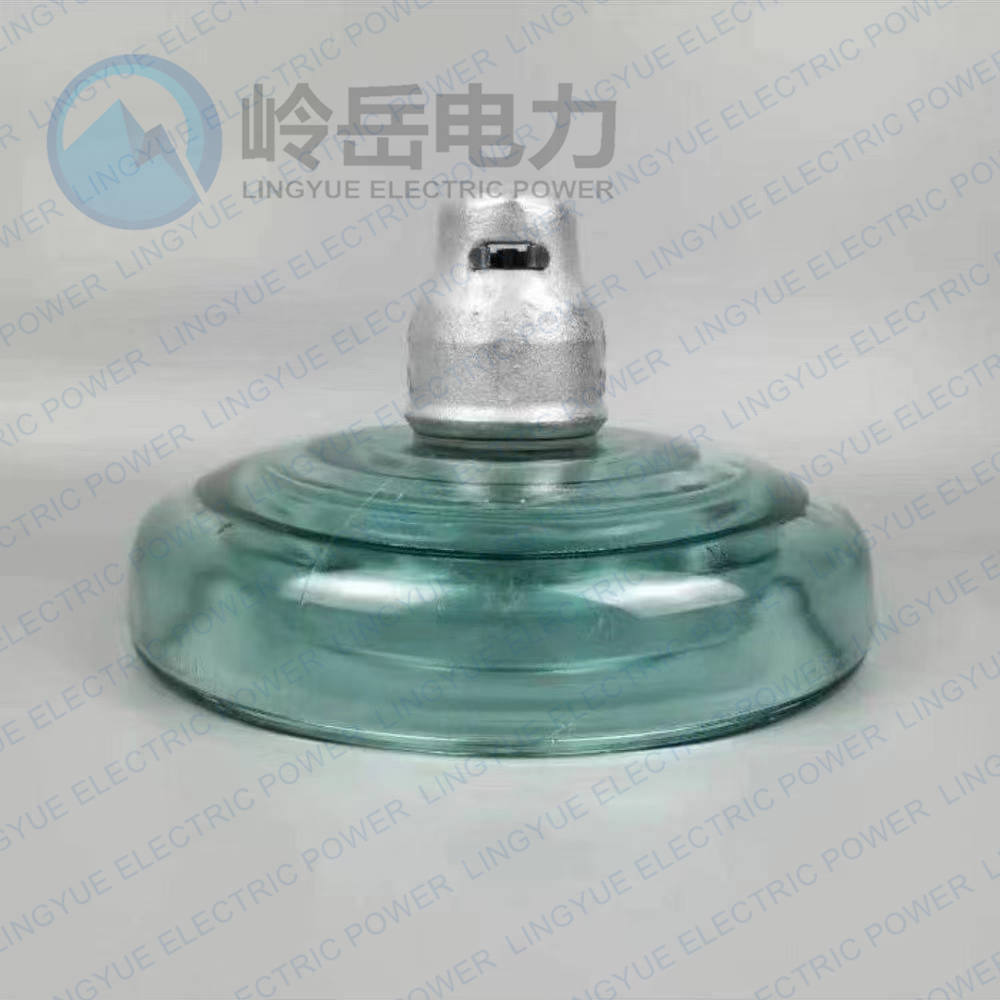

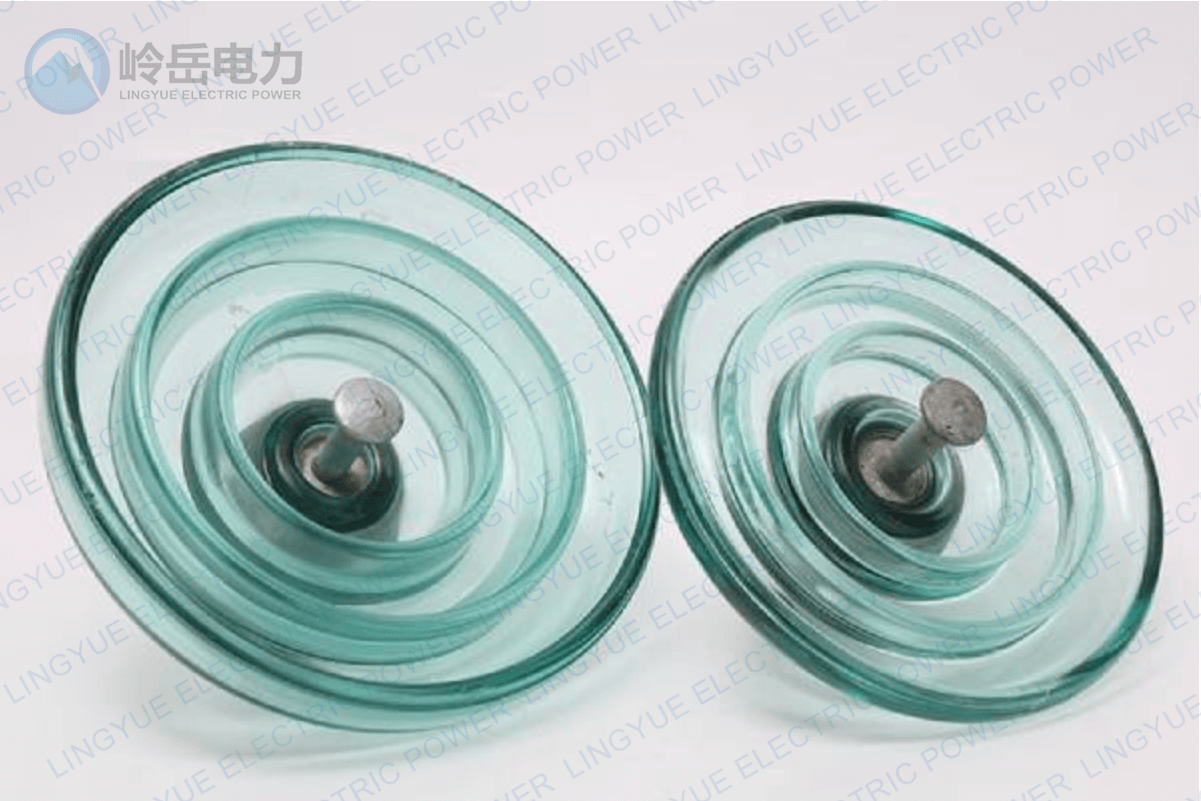

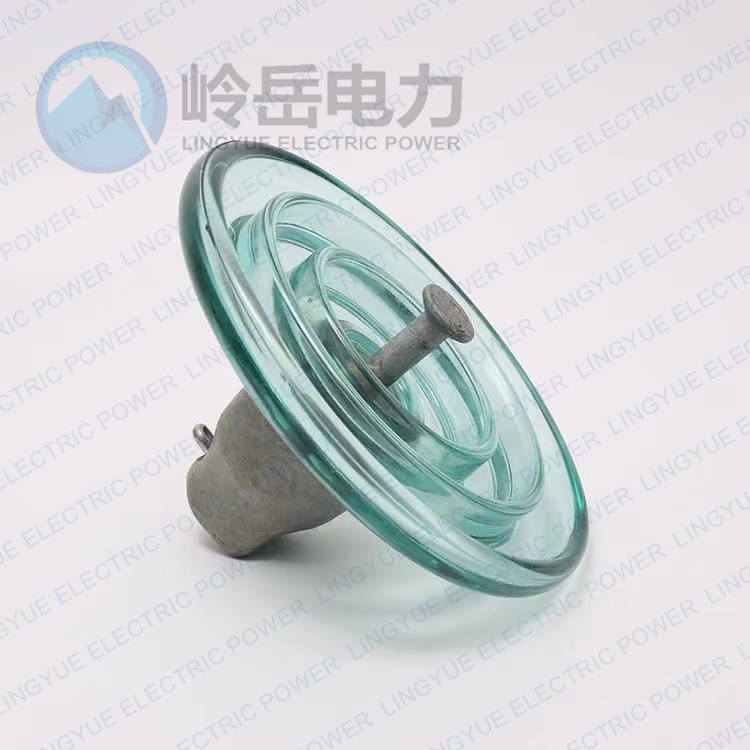

Disc glass insulator

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Product Description

Insulators made of glass as materials are glass insulators. It is mainly used to fix wires to poles, and to insulate wires and poles. Insulator is one of the key components of high voltage transmission line, its performance directly affects the operation safety of the whole transmission line. Glass insulators are widely used because of their self destruction and easy maintenance.

Product details:

Standard: IEC 60305, IEC60383

TYPE	IEC	Min Mechanical Failing Load(kN)	H (mm)	D (mm)	Nominal Creepage Distance(mm)	Dry Lightning Impulse Withstand Voltage(kV)	Power Frequency		Standard Coupling	Punture Withstand Voltage (kV)	Weight (Kg)
							Dry, 1 min	Wet, 1 min
LXY-40	U40B	70	110	175	190	75	55	30	11	90	2
LXY2 - 70	U70BL	70	127	255	320	100	70	40	16	130	3.5
LXY1-70	U70BL	70	146	255	320	100	70	40	16	130	3.9
LXY2 -100	U1008S	100	127	255	320	100	70	40	16	130	3.9
LXY-100	U100BL	100	146	255	320	100	70	40	16	130	4
LXY2-120	U120BS	120	127	255	320	100	70	40	16	130	3.9
LXY-120	U120BL	120	146	255	320	100	70	40	16	130	4
LXY4-160	U160BS	160	146	280	380	110	75	45	20	130	6.1
LXY3 - 160	U 1 60S	160	155	280	380	110	75	45	20	130	6.3
LXY-160	U160BL	160	170	280	380	110	75	45	20	130	6.5
LXY3 -210	U210B	210	170	280	400	110	75	45	20	130	6.9
