CS16 OHL hook bracket

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Product information:

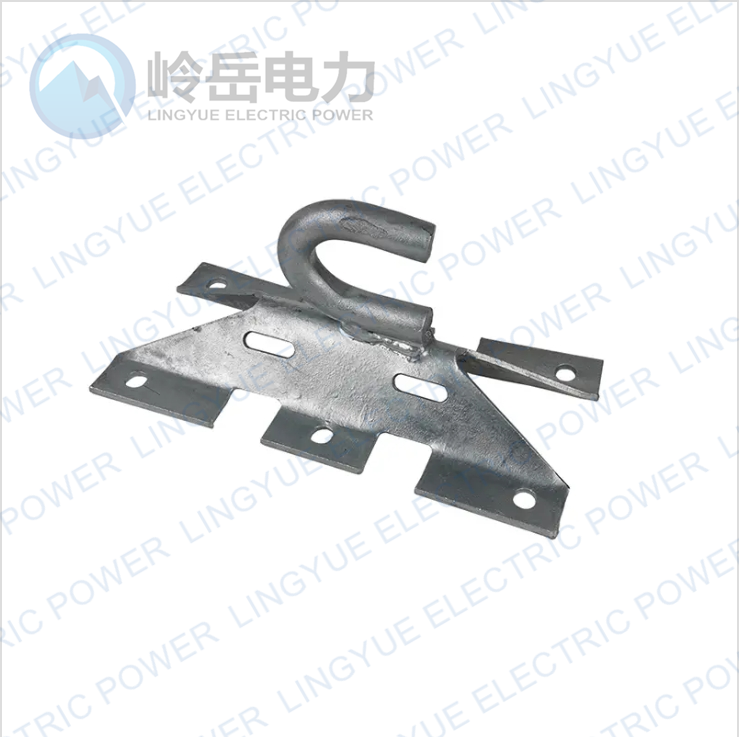

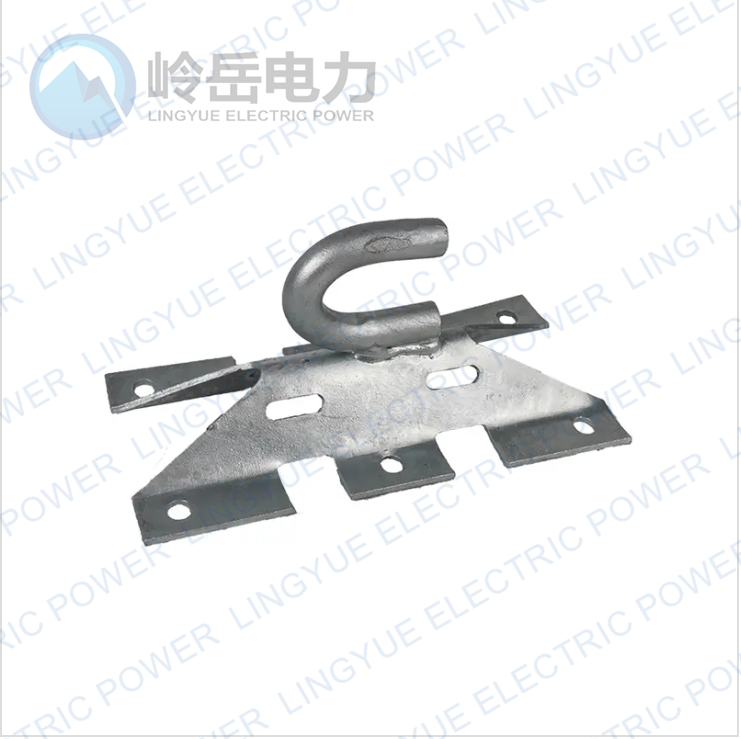

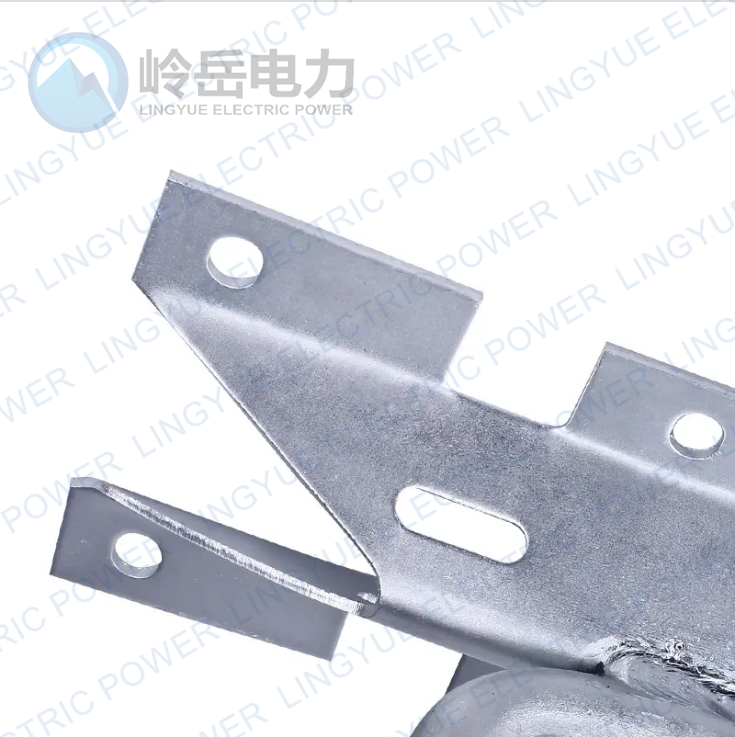

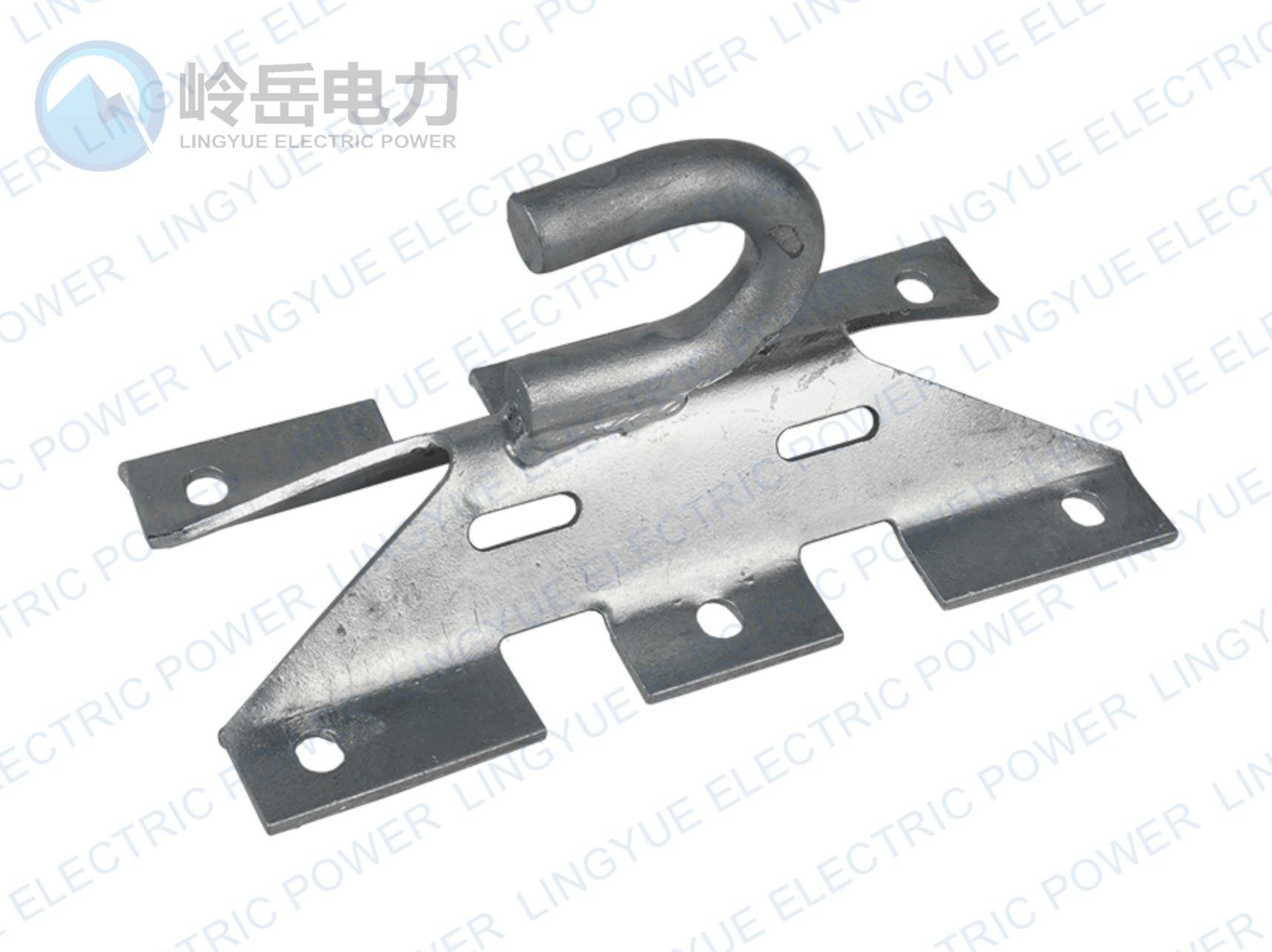

Low voltage ABC hook CS16, also called OHL hook bracket, applied on main or end use electrical connections,up to 1 KV on dead-end or intermediate routes with tension or suspension clamps.

CS16 hot galvanizing steel hook is used for aerial cables.
Material: High strength aluminium alloy by casting

Key Features:

Developed to be used on wooden, metal or concrete poles.

Installed by 2 stainless steel strap (20 mm) or 6 screws or bolts.

Hook brackets for LV-ABC line is made of hot dip galvanized steel.

The assembly have passed the voltage tests, tension test.

Meets the criteria of NF C 33042 and EN 50-483

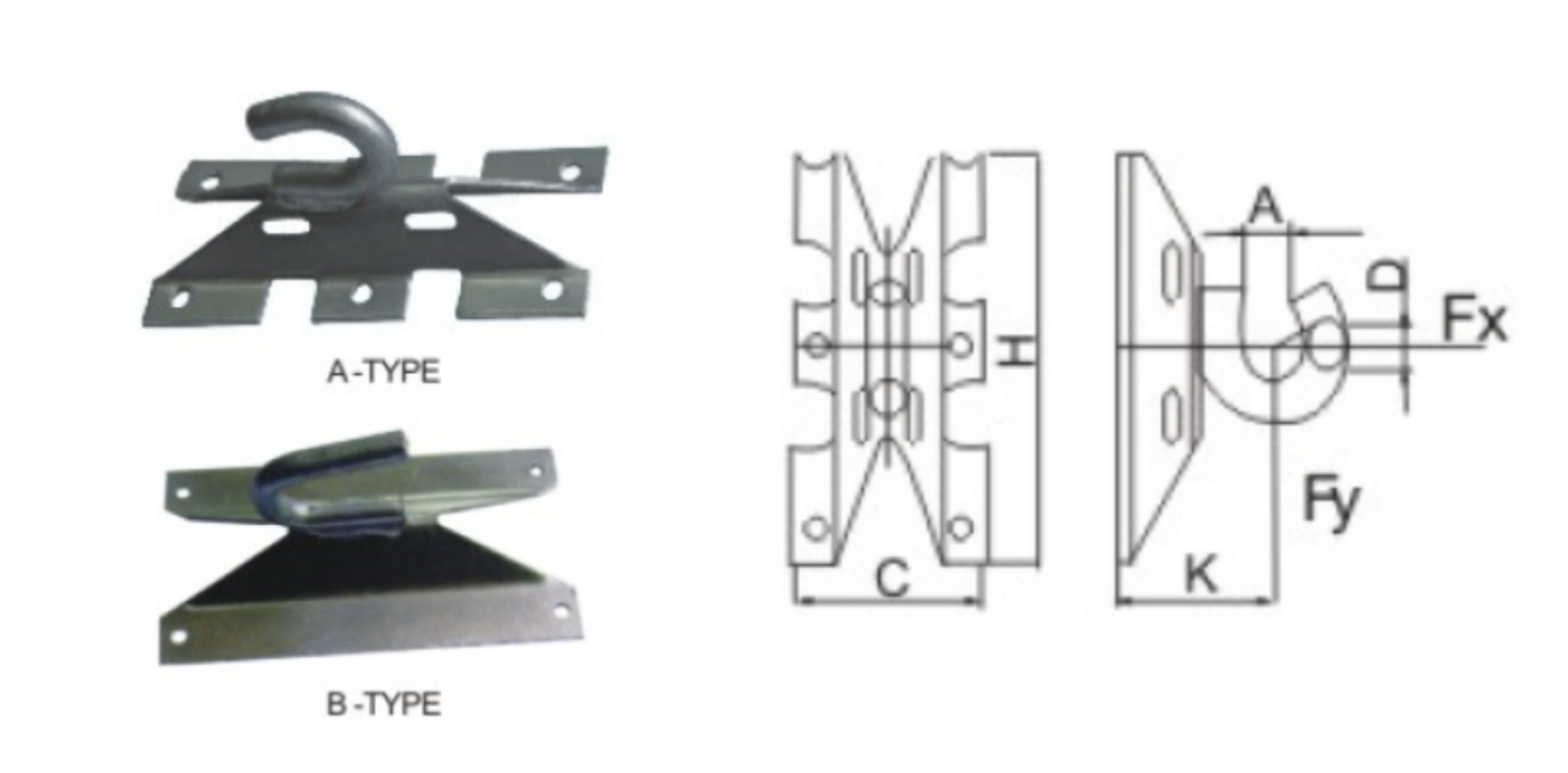

Technical Specification

Item No.	Dimension(mm)					Breaking Load
Item No.	D	A	K	H	C	Fx,kN	Fy,kH
CS16	16	18	67	200	96	17.4	13.3

Application areas:

Anchor hook CS16 is made of high quality carbon steel and overall surface processed by hot-dip galvanized finish which ensure a long period service life

during applications. And the tensile strength is up to 18KN,appreciate for most assembly such as suspension guy grip and suspension clamps.

Anchor hook CS16 is designed to be sued on wooden, metal or concrete poles, installed on pole or wall by 2 stainless steel band (20mm) or 6 screws during

electrical wire line constructions.

This hook have passed the aging test, tension test. Operation experience with temperatures ranging from-60 °C up to +60 °C test, temperature

cycling test. All the brackets meets the criteria of NF C 33042 and EN 50-483.
