CT Aluminum Alloy Pole Support

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

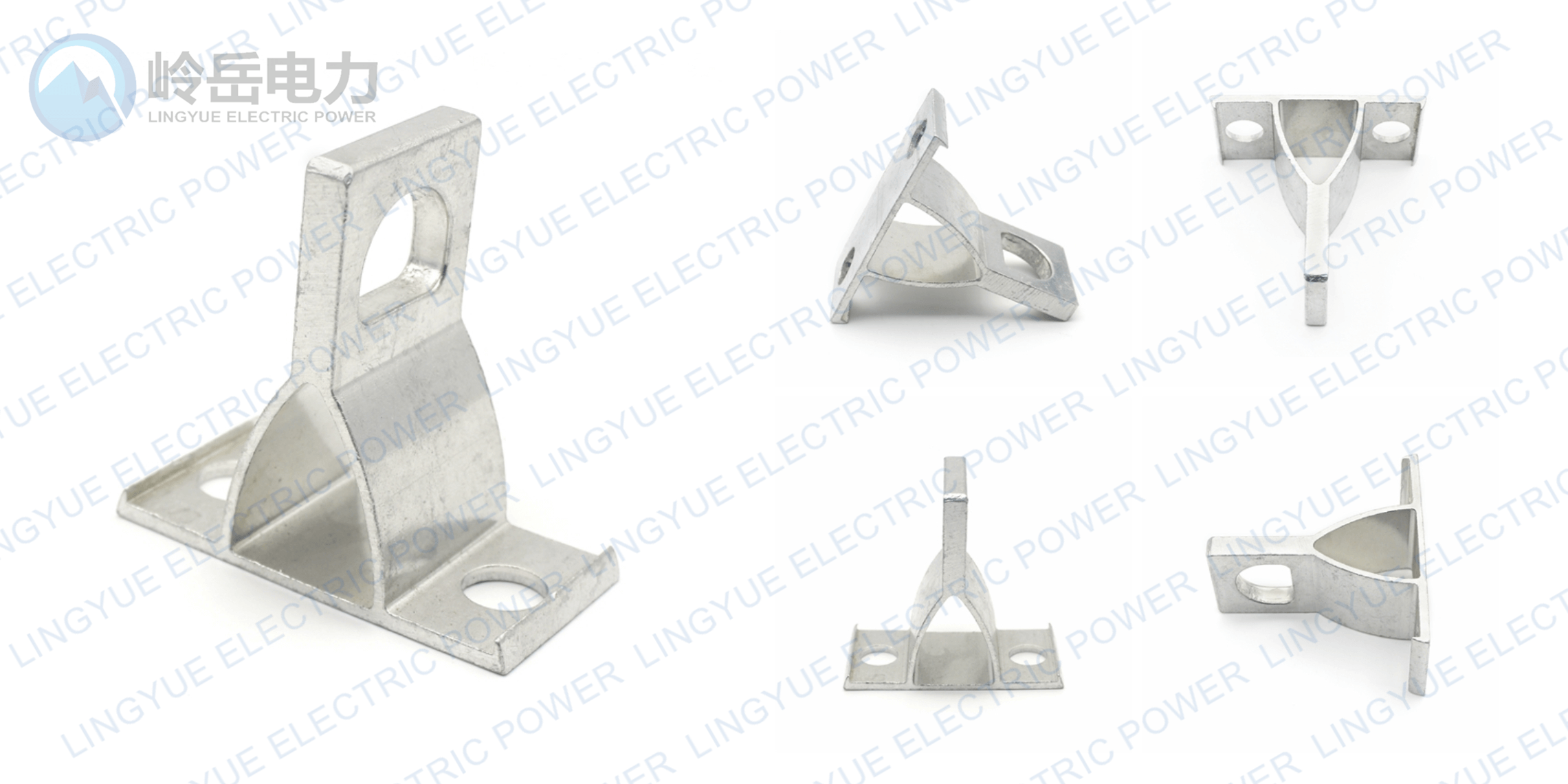

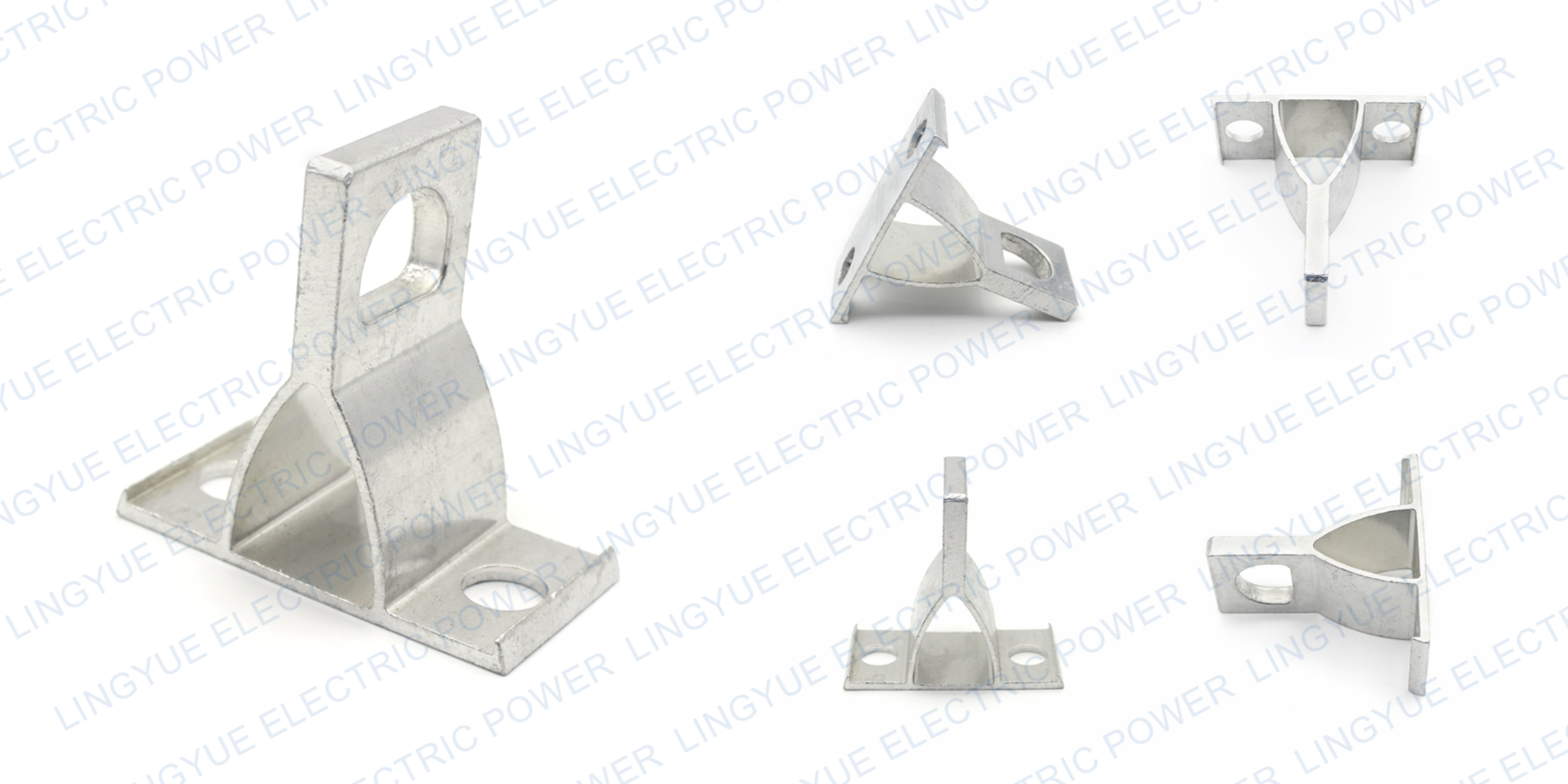

CT aluminum alloy pole support is used for receiving LV ABC across a dead end clamp or suspension clamp.

It is made of extraordinary tensile strength aluminium alloy.

Material: High strength aluminium alloy.

Fixed by 2 bolts or 2 stainless straps.

Anchoring bracket is used to anchor ABC cables with neutral messenger on poles (wood, concrete etc…), excellent in industrial and saline environment. Fixed by 2*(14mm or 16mm) bolts or 2 stainless straps 0.75*20mm.
Fixed by 2× (14mm or 16mm) bolts or 2 stainless straps 0.75 × 20mm.It is in accordance with NFC33-040.

Item No.	Breaking Load(KN)
CT1500	10
CT2000	15

This pole bracket is made of high quality and durable aluminum alloy and processed by die-casting technology. It can be used for both tensioning cable clamps and low voltage line to fix anchor clamps. The installation of this fifth bracket is very simple: it is fixed to a wooden or concrete pole with stainless steel straps and screwed to the building or wall.

Anchor bracket CT-2000 other calls low voltage bracket is designed for tensioning and hanging tension clamps or low voltage anchor clamps in the construction of outdoor antenna network or ABC line.

Product name	Low Voltage Anchor Bracket CT2000
Model No.	CT2000
Color	steel
Material	aluminum alloy
MBL,KN	20
Size	1004893 mm
Weight	0.11 kg
Package	403017 cm 25 pcs/box
