Product Introduction

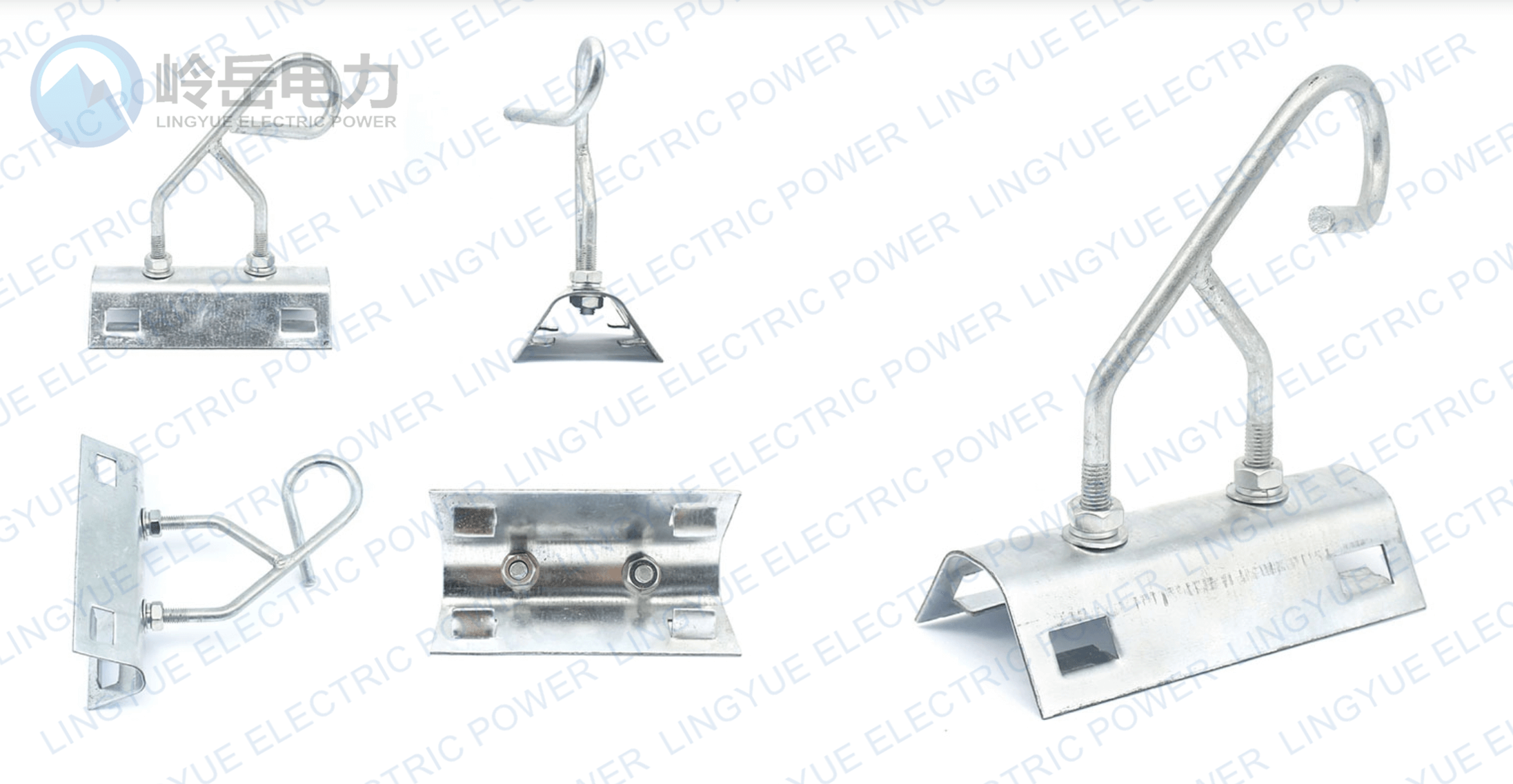

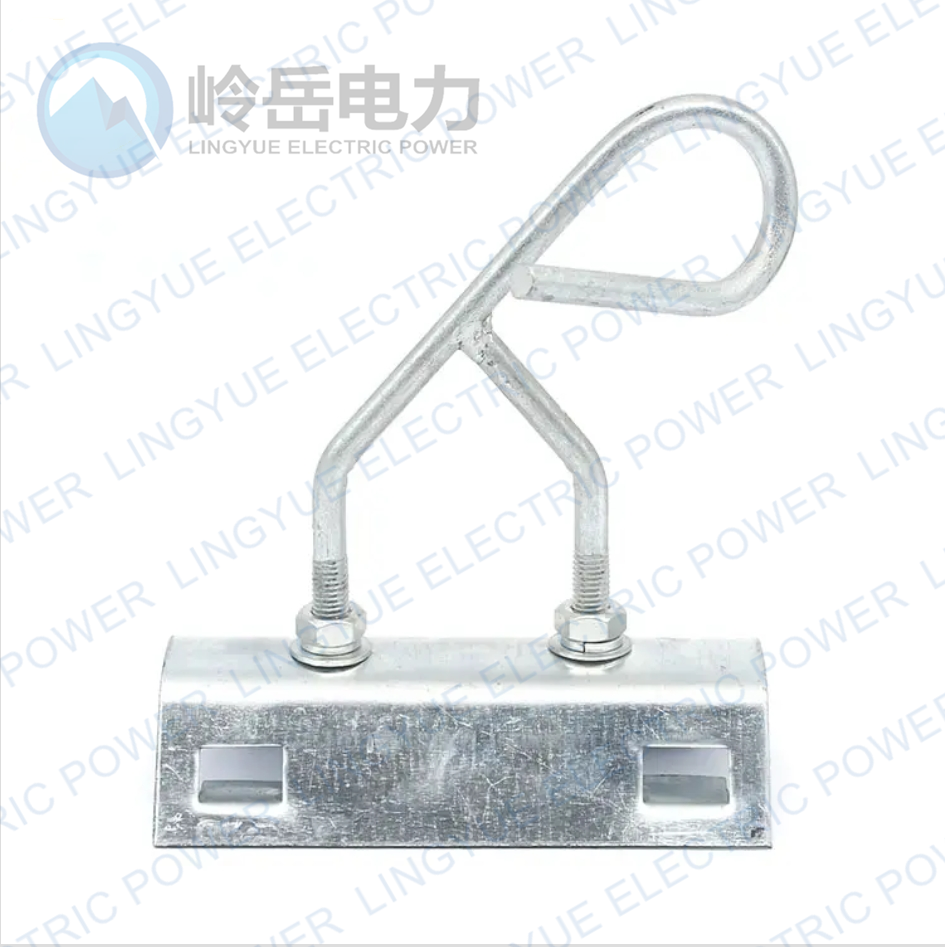

YK-P-02 is designed for supporting installation of optical cable on intermediate supports of overhead lines with voltage up to 20 kV, city power supply facilities (street lighting, ground electric transport). YK-P-02 is an excellent solution for fastening cable on wall elements, building facades, on structures with cable length up to 110 m.



● Allows for the attachment of an insulated neutral support supporting insulated wires up to 1000V to 4 brackets and up to 2 support clamps to the supports.

● Able to withstand various climatic conditions for many years, including temperature changes, rain, sunlight, strong wind.

● Suitable for installation on all types of supports, beams and pipe holders.

● Allows for quick and cost-effective cable installation.

● Manufactured with a protective zinc coating for UHL-1 protection according to TU 3449-041-2756023 0-98, which ensures long-term trouble-free operation.


Material

Galvanized iron

Max.Working load
(along the fiber optic communication line axis)

2 kN

Weight

510 g

Max.Working Load
(Vertical)

2 kN
