LINGYUE ELECTRIC POWER

LY-01 Galvanized steel hook

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Product information:

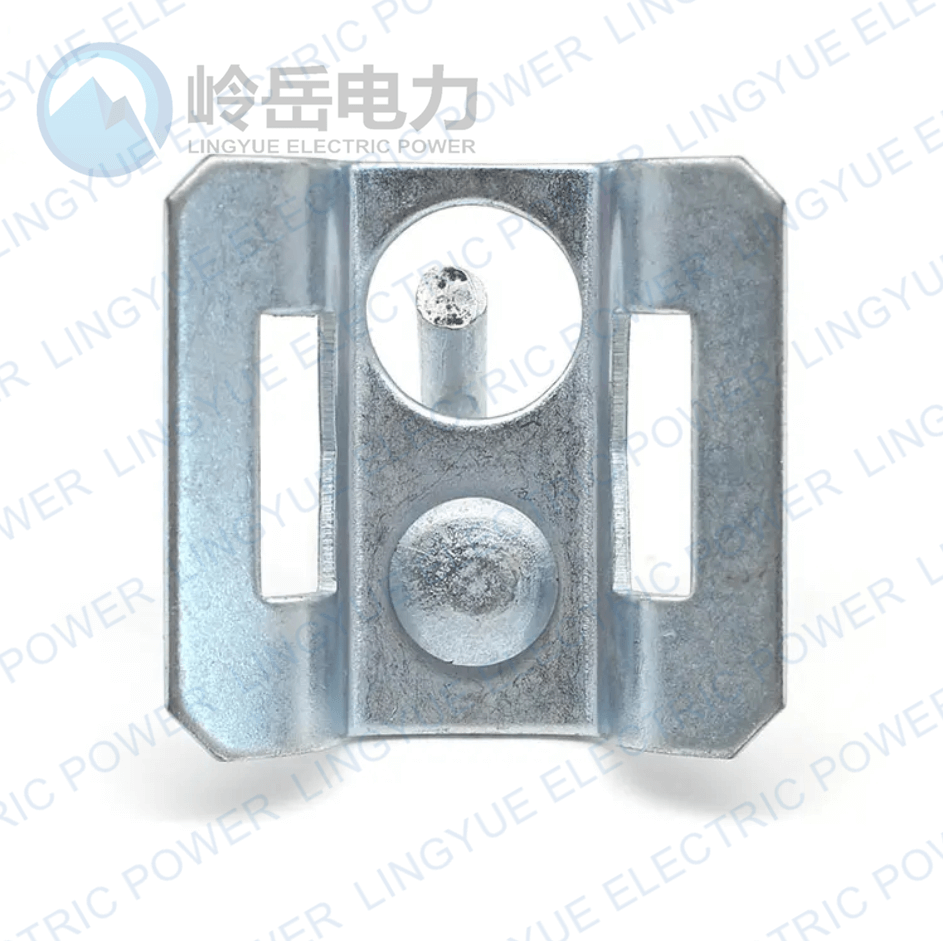

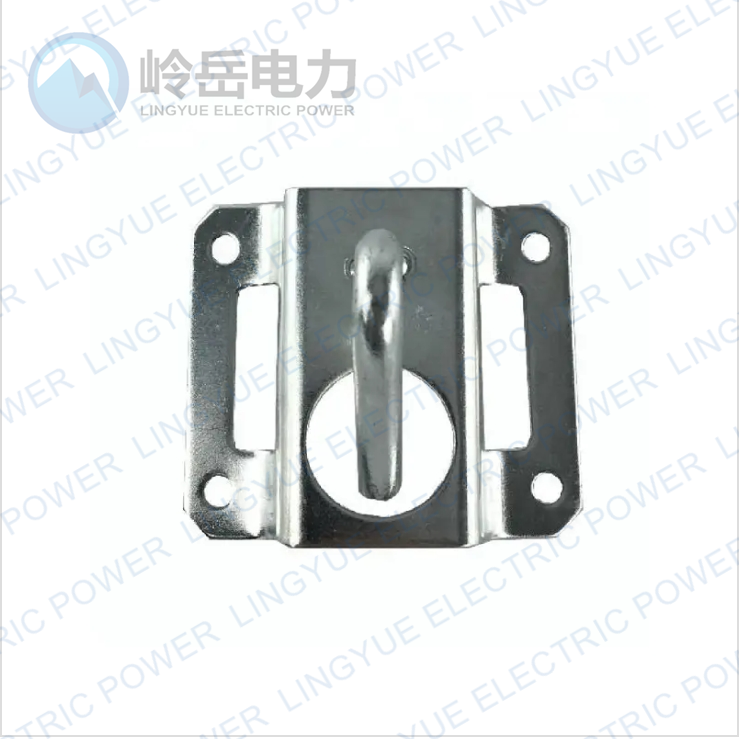

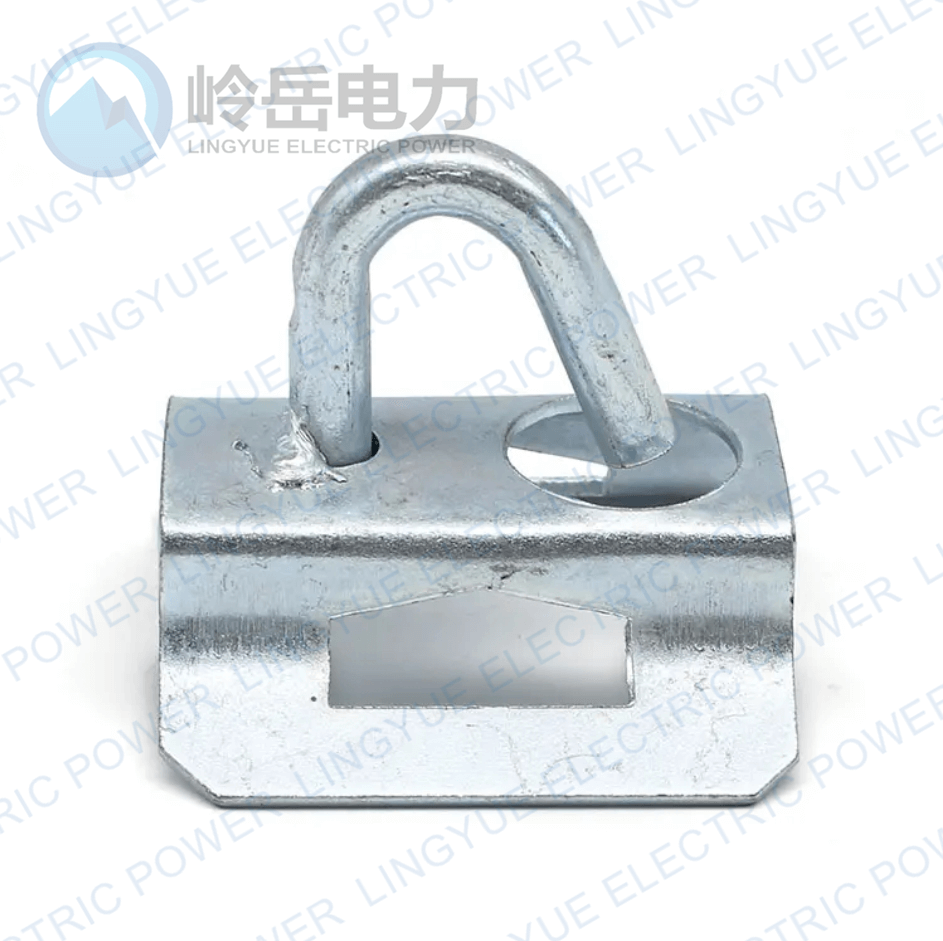

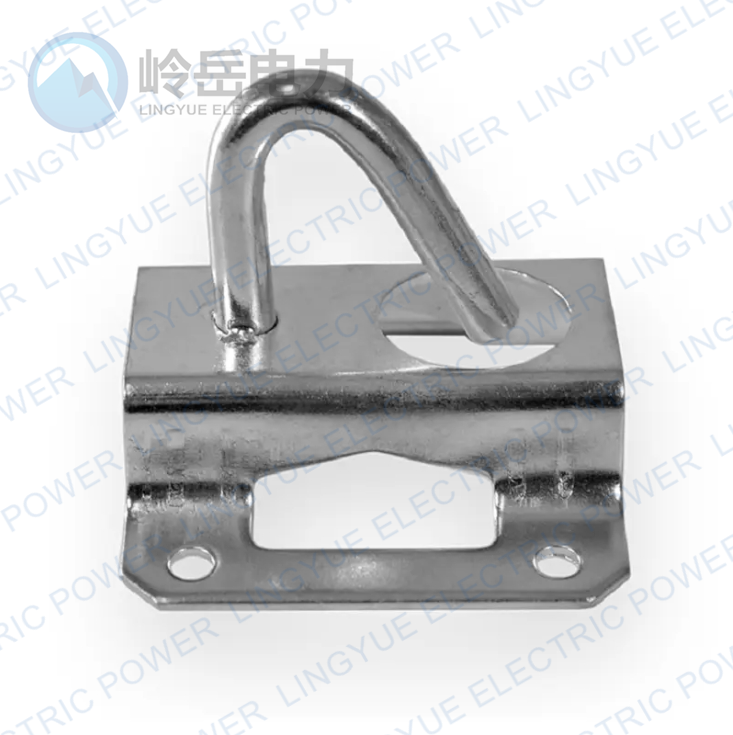

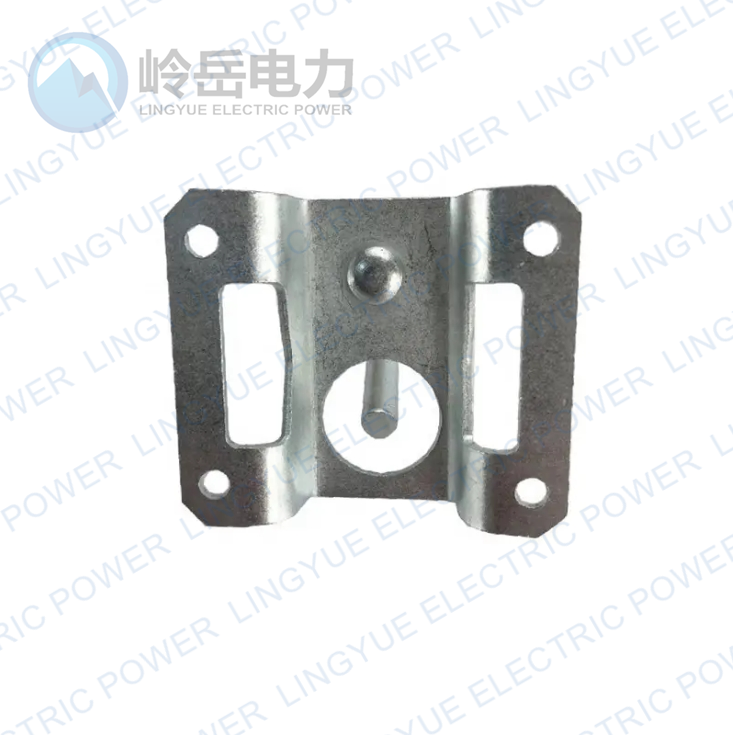

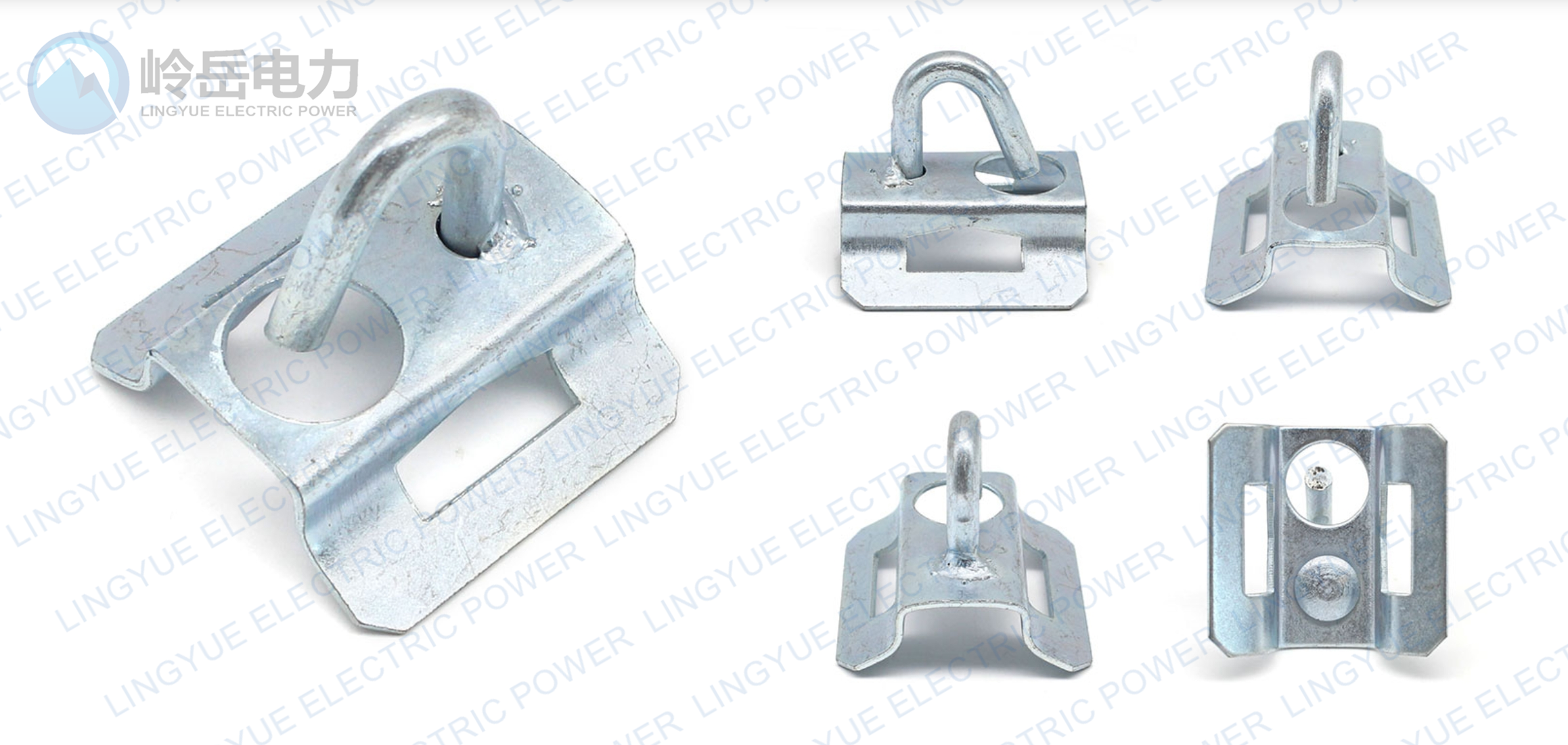

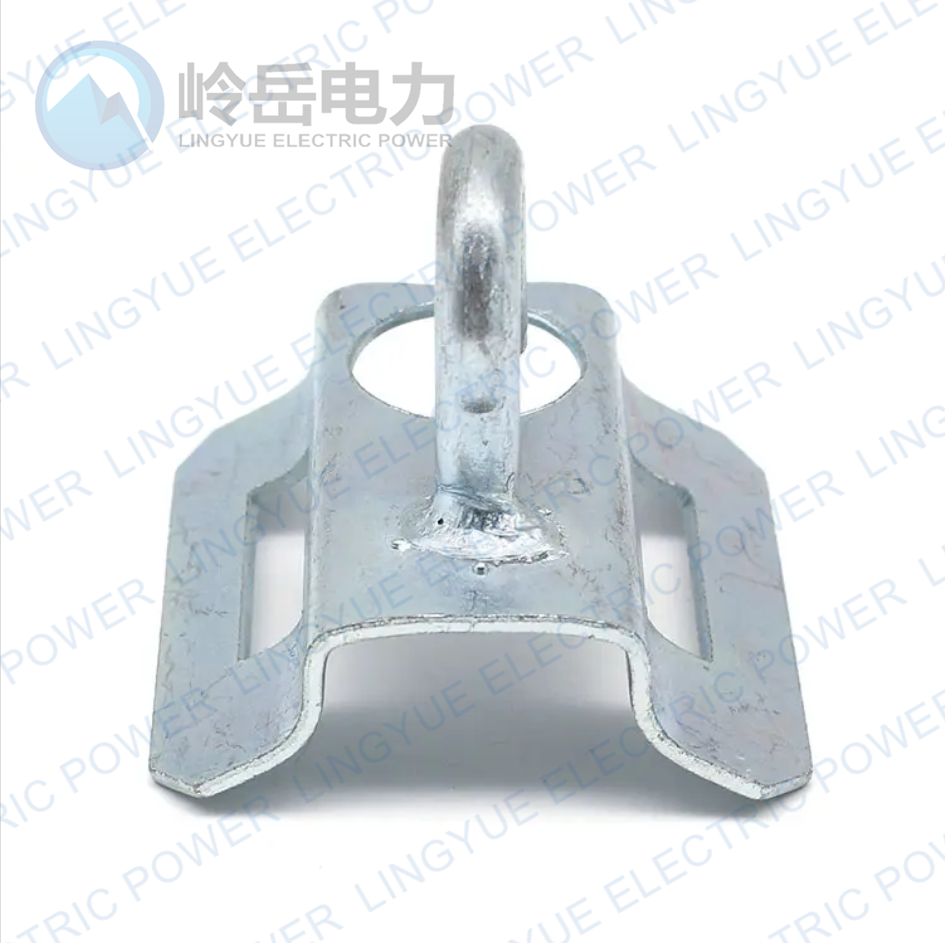

The universal bracket LY-01 is made from galvanized steel by cold stamping production method. Also called FTTH hook (pole bracket for FTTH).

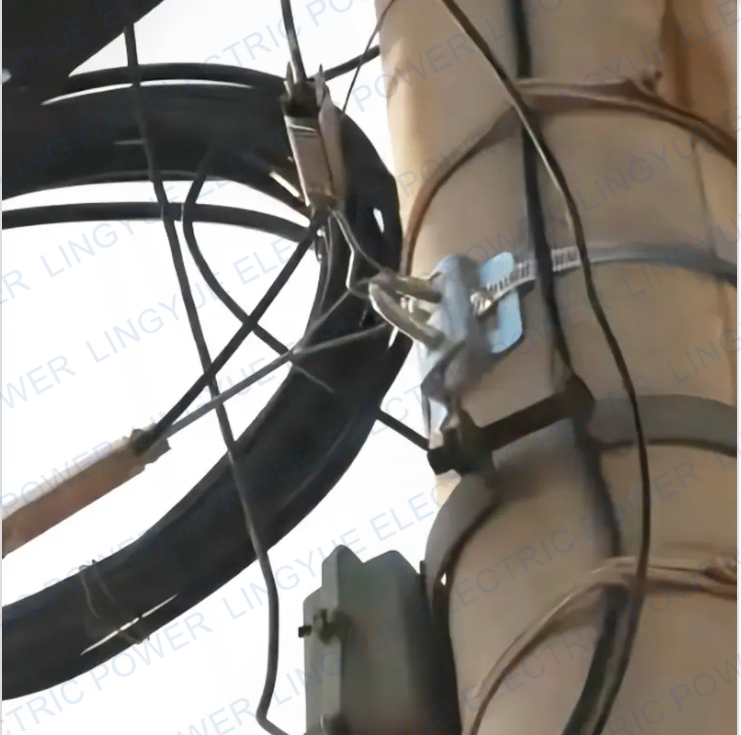

It can be attached on wooden, metal, concrete poles or buildings by stainless steel strap or bolts.

· The universal bracket LY-01 fiber drop wire clamp is made from galvanized steel by cold stamping production method;

· All the assemblies passed the tensile tests, operation experience with temperatures ranging from -60 °C up to +60 °C test, temperature-cycling test;

· Galvanized materials guarantee long time of usage. Fixed by stainless steel band (20-10 mm) or 4 bolts up to 4 mm diameter;

· YK allows withstand with small load with anchor clamp. Usually applied for anchoring FTTH cable, drop wire of different diameters and spans.

MODEL	Size	Material	Thickness of steel	MBL	Weight
LY-01	64×64×56mm	Dacromet or galvanized steel	2.0mm	1.5kN	125g
