GN1-12G(D) Series Outdoor High Voltage Isolate

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

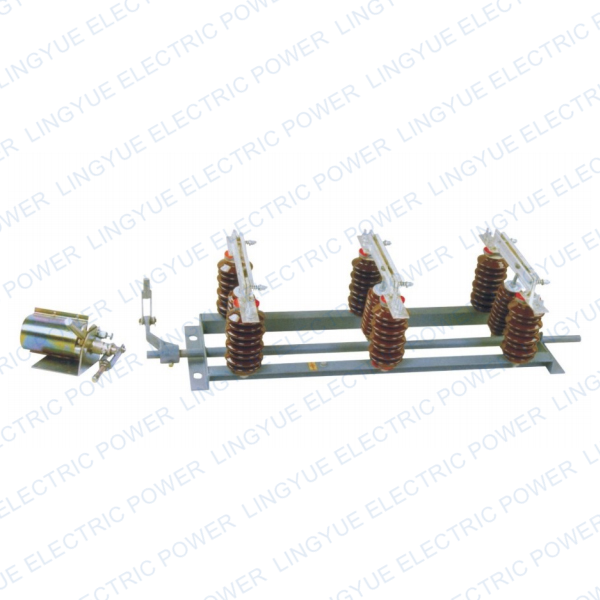

GN1-12G(D) series outdoor high voltage isolate switch is the high voltage switch equipment of composite structure, it is suitable for outdoor 12kV line net with voltage and no load to make opening and close. With CS □ type manpower operate machinery, can avoid earth line with power and composite flash-locks, wrong operate. The operator is no need to put another earth line. Pollution-proof type isolate switch satisfy customer in filthy conduction area. It can solve the pollution of shed when it is working.

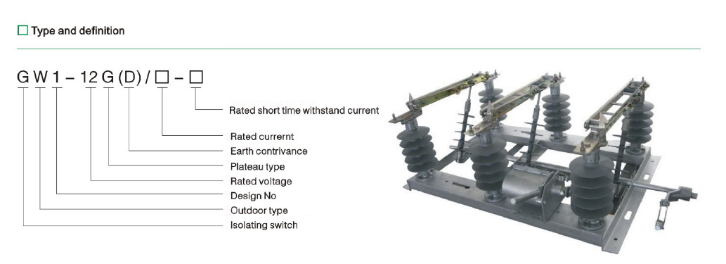

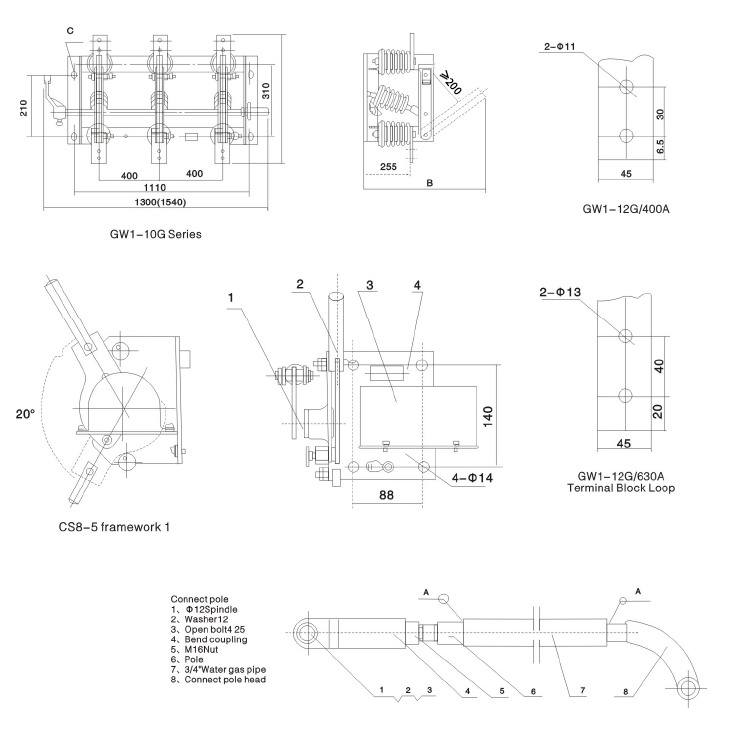

Definition of model

☆ Rated short time withstand current
☆ Rated current
☆ Earth contrivance
☆ Plateau type
☆ Rated voltage
☆ Design No
☆ Outdoor type
☆ Isolating switch

Service condition

1.The altitude above sea level: 2000m.
2.The ambient air temperatures: -40 to 40℃
3.Wind speed doesn't exceed 700Pa (not exceed 34m/s)
4.The earthquake intensity doesn't exceed 8 degrees.
5.The installation site of ordinary type isolator should be kept away from gas, smoke chemical deposition, salt-spray fog, dust and other explosive and corrosive maters that affect seriously insulation and conduction capability of the isolator.
6.Pollution proof type isolator applies to sever filthy conduction area. However, it shouldn't be any explosive matters and matters causing fire.

GW1 Key Technical Parameters

Items		Units	Technical parameters
Rated voltage		kV	10	15	20
Max. operating voltage			12	17.5	24
1 min Power frequency withstand voltage	To earth	kV	38	42	50
	Across open DS	kV	42	48	60
Lightning impulse withstand voltage	To earth	kV	75	105	125
	Across open DS	kV	85	120	145
Rated frequency		Hz	50
Rated current		A	200	400	630	1250
Short time withstand current(4s)		kA	6.3	12.5	20	31.5
Rated peak withstand current		kA	10	31.5	50	80
Mechanism supplied for disconnector		CS8-1、CS8-D、CD8-8 Rain type manual mechanism or CX6 motor drive mechanism

HGW1 Key Technical Parameters

Items		Units	Technical parameters
Rated voltage		kV	12	24	33
Max. operating voltage			15	27	35
1 min Power frequency withstand voltage	To earth	kV	40	50	80
	Across open DS	kV	47	60	90
Lightning impulse withstand voltage	To earth	kV	105	125	180
	Across open DS	kV	120	145	210
Rated frequency		Hz	50
Rated current		A	200	400	630	1250
Short time withstand current(4s)		kA	6.3	12.5	20	31.5
Rated peak withstand current		kA	16	31.5	50	80
Mechanism supplied for disconnector		CS8-1、CS8-D、CD8-8 Rain type manual mechanism or CX8-5 motor drive mechanism
