Product Introduction

Product information:

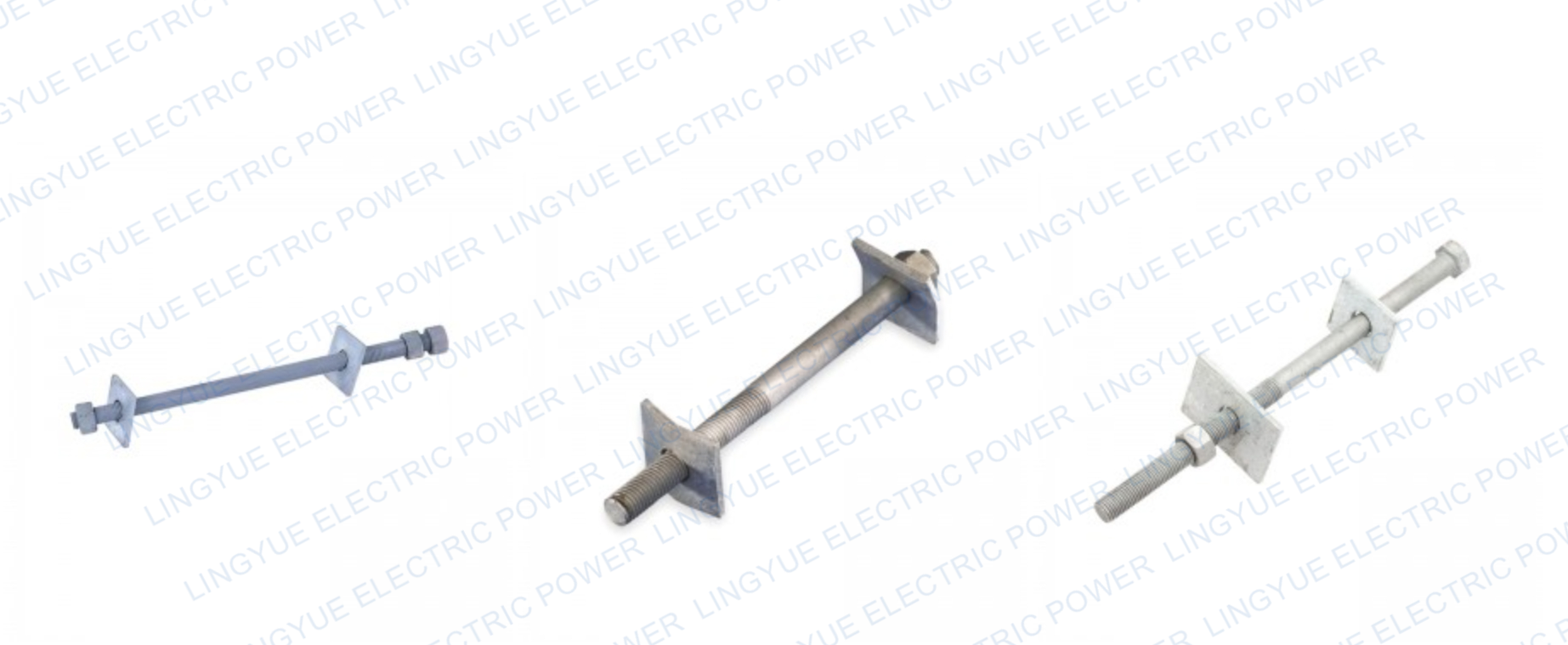

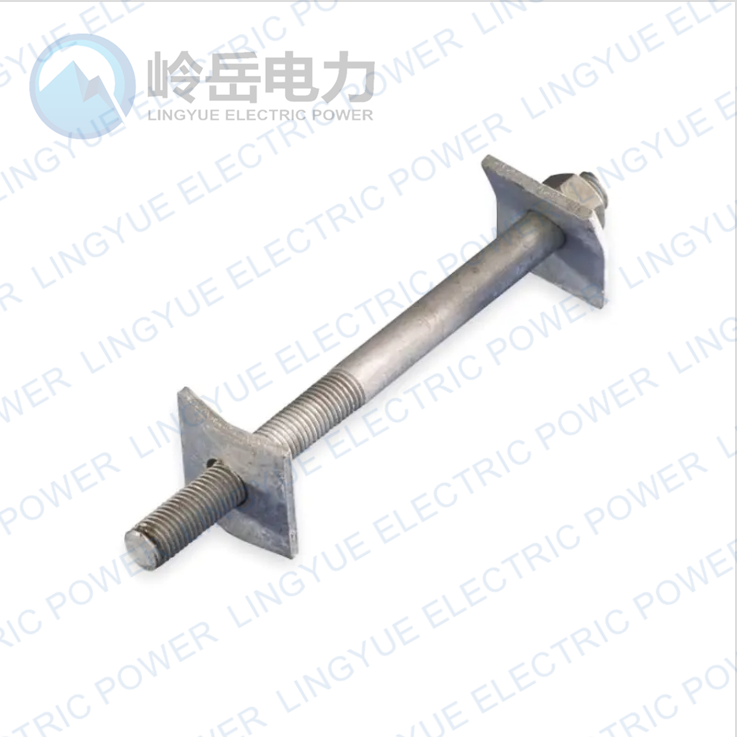

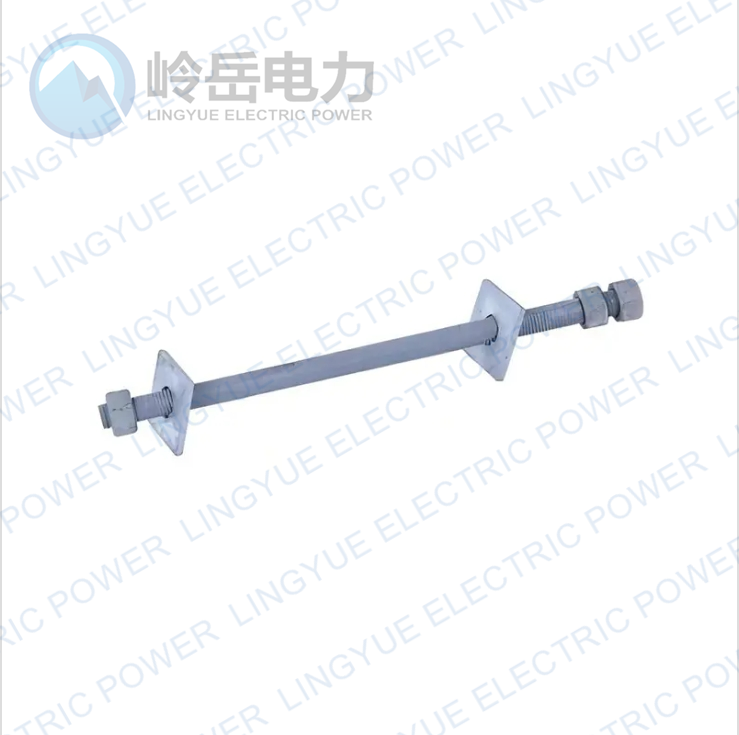

Pole line Bolt B-16-300-140 other called pole coupling bolt designed to secure cable suspension clamps or other pole line hardware just like telecommunication brackets, fiber optic cable brackets or electrical cable console in outdoor overhead FTTH network or electrical line constructions.

Key Features:

Easy assembly and low installation cost

Can be applied on concrete or wooden pole

Hot dip galvanized steel processed for long time usage

Excellent environmental stability

High mechanical strength

Technical Specification

Product code	Material	Nut	Diameter,mm	Length,mm	Thread length, mm	MBL,KN
B-16-300-140	Hot dip galvanized steel	M24	16	300	140	10

Application areas:

Outdoor fiber optical cable deployment,FTTX

Outdoor electrical cable deployment

Overhead hardware fitting installation

This suspension bolt is made of high strength steel, hot dip galvanized production technology.Galvanizing offers an exceptional corrosion resistant zinc coating for steel fasteners, the process provides durability, long service life and is economical in comparison to other coating options.
