UPB Pole Bracket Made of Aluminum Alloy

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Product information:

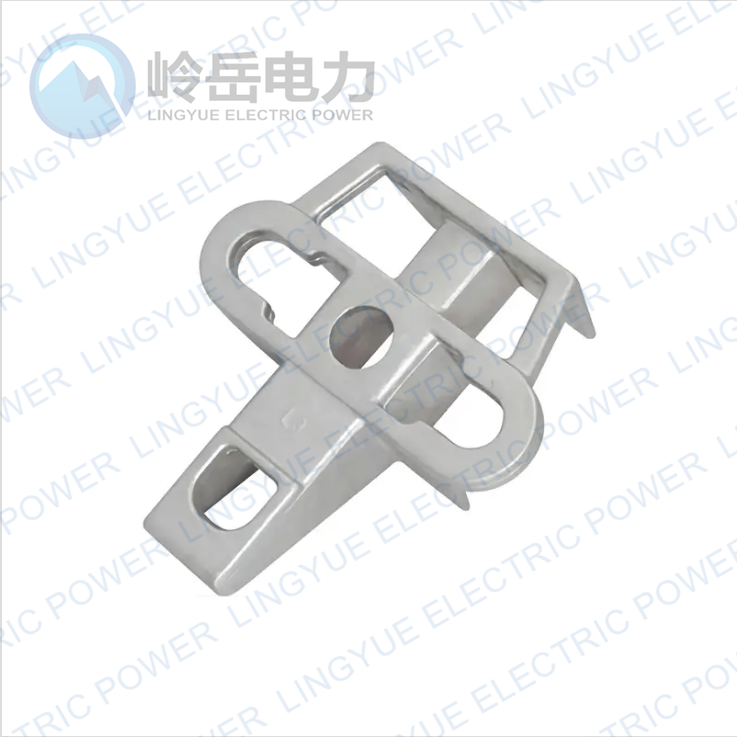

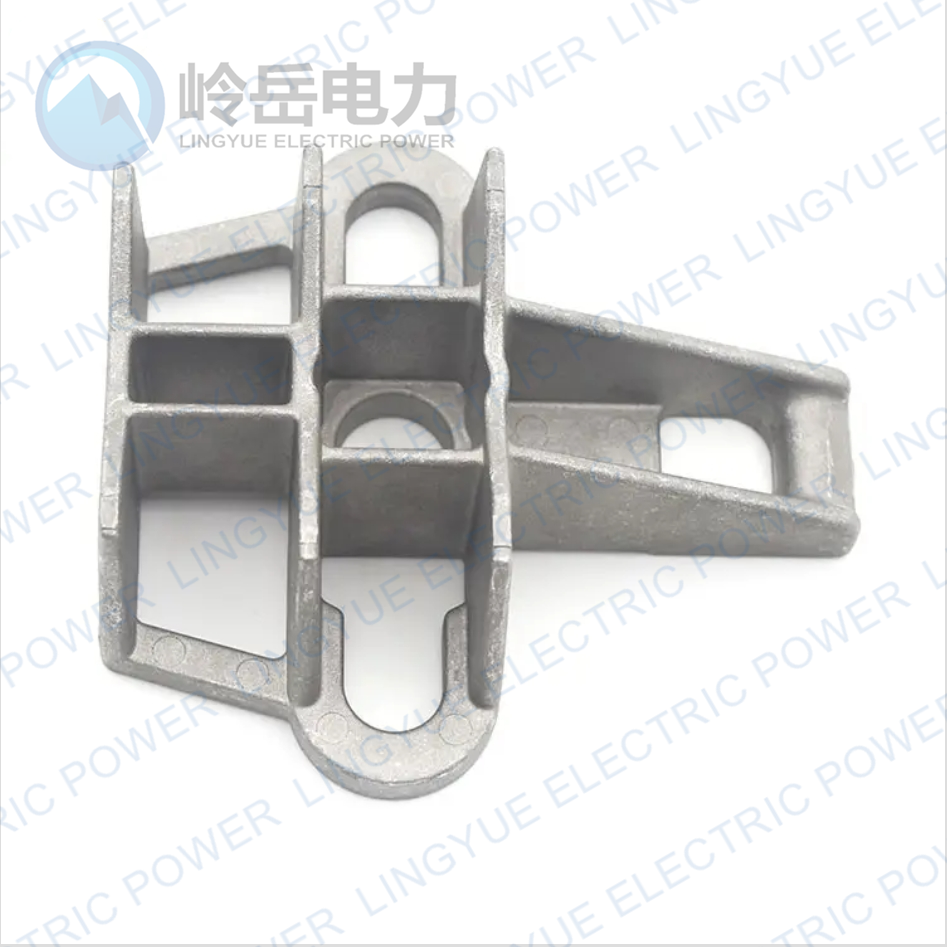

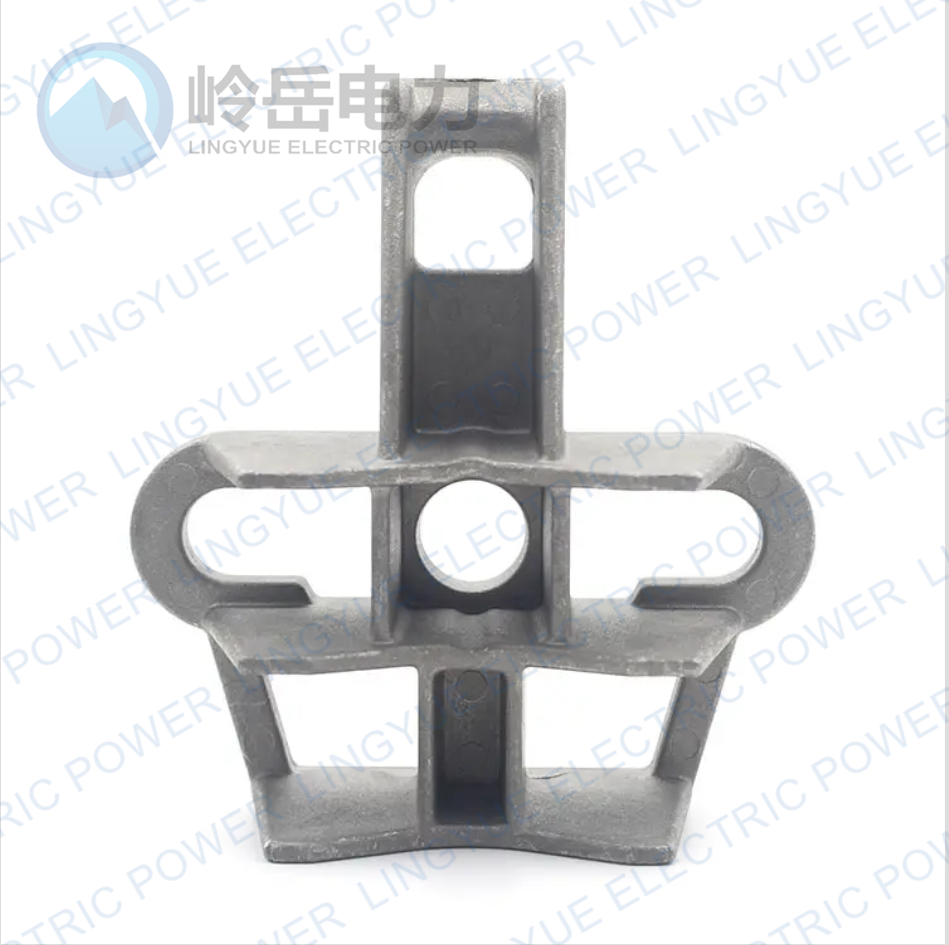

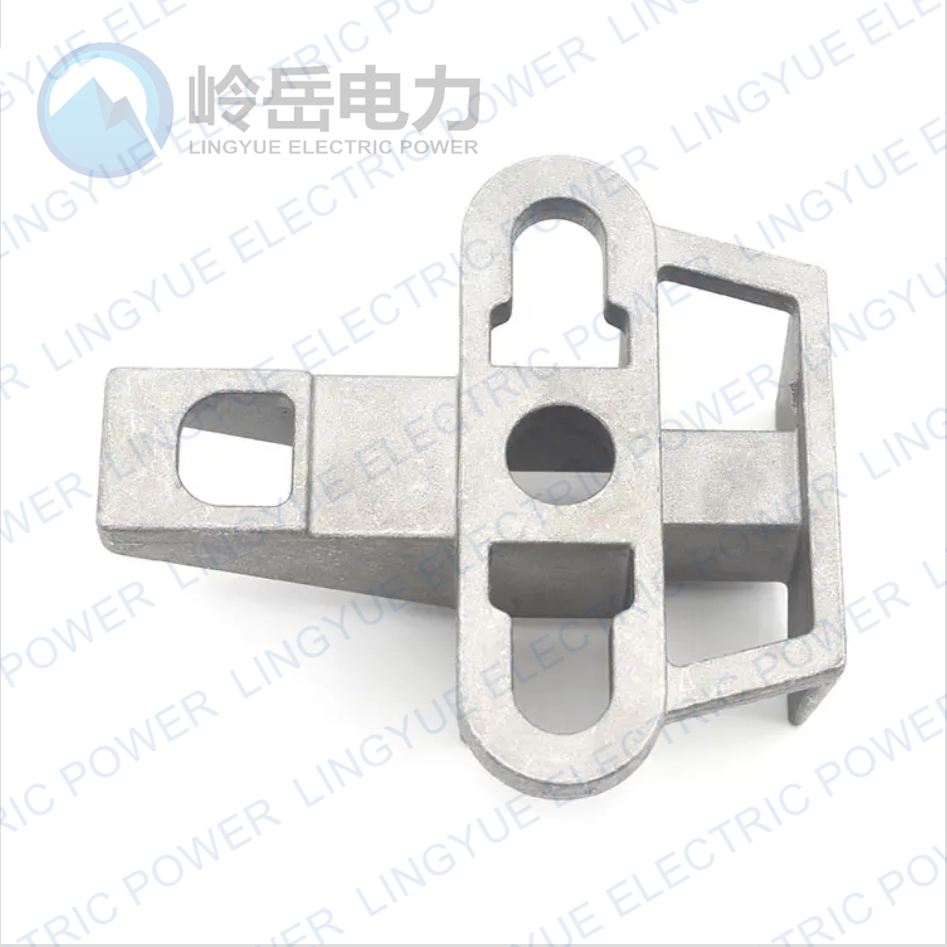

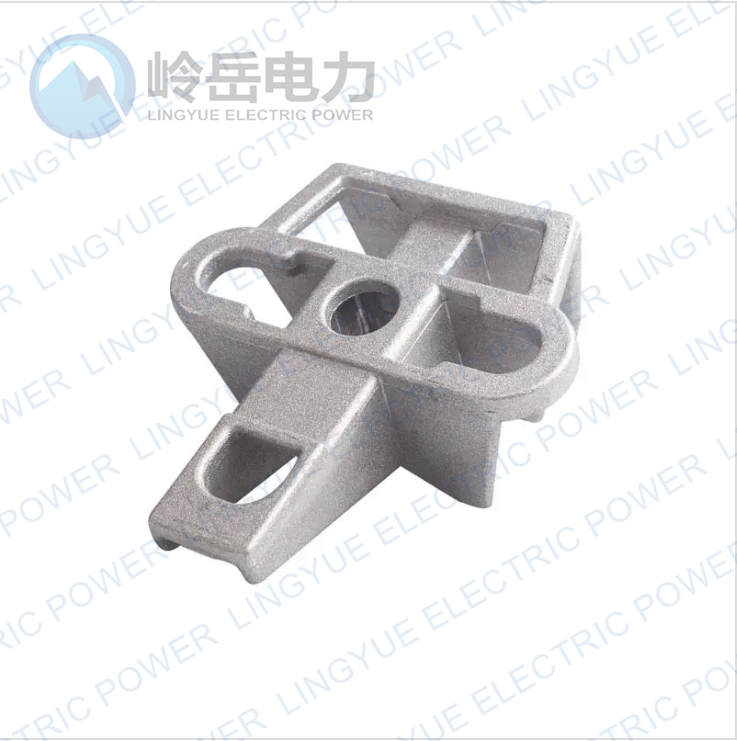

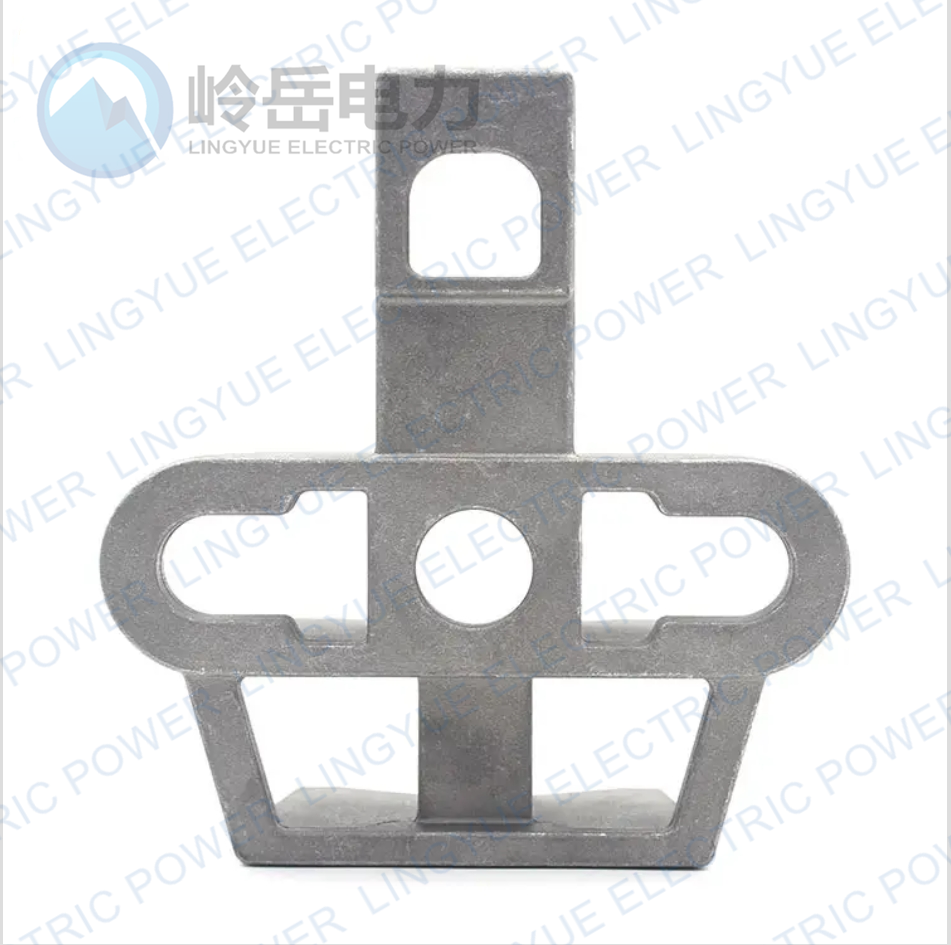

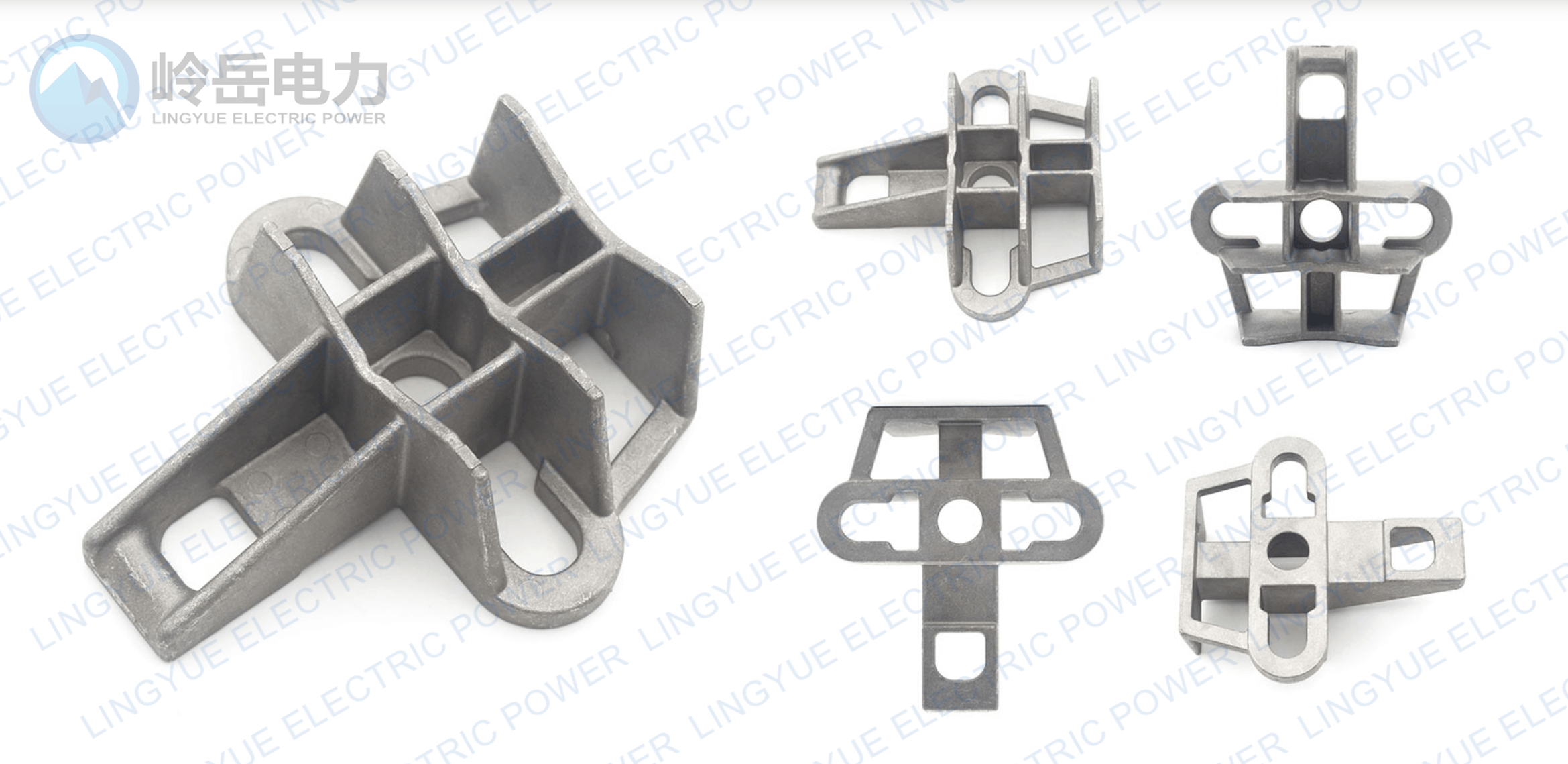

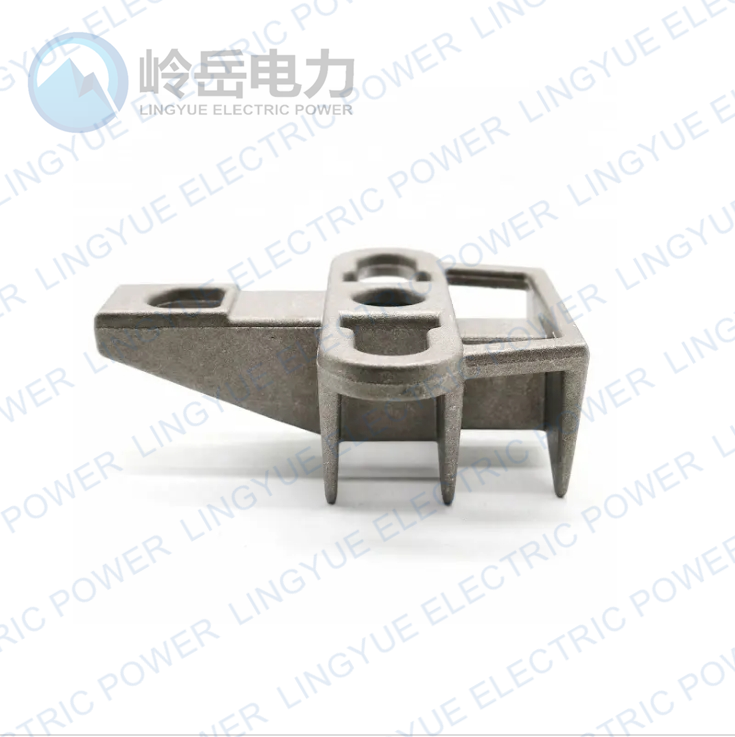

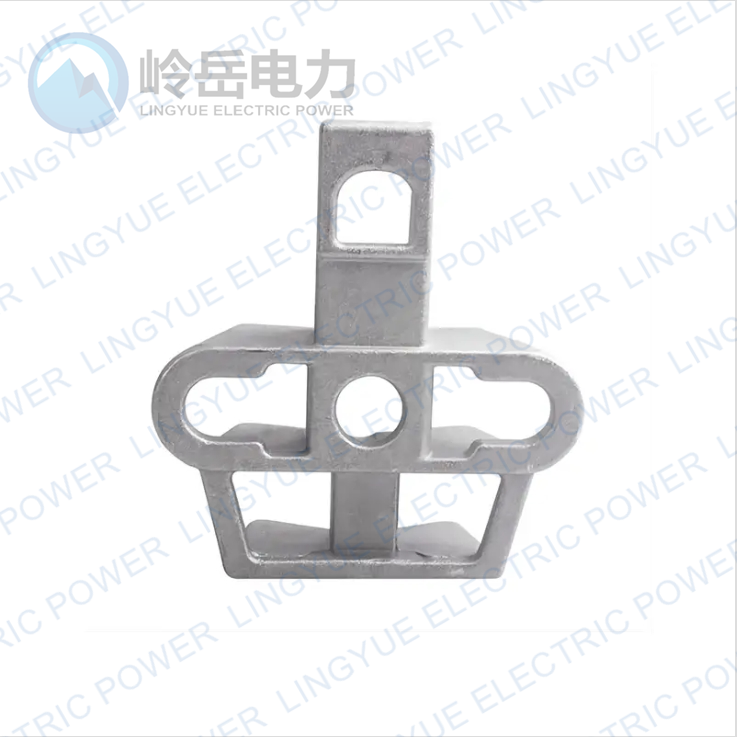

The UPB universal bracket is a pole hardware made of aluminum alloy offering high mechanical properties. Its unique design has been engineered so

to offer an universal pole hardware solution able to adapt to all cable installation configurations on wooden

Material: aluminum alloy.

● Reusable product; provides crossbar fastening

● Mechanical strength: from 200 to 930 daN (depending on single or double fastening, cable fastening at the attachment points and use)

● Compact and lightweight model: compatible with wooden, metal or concrete pole.

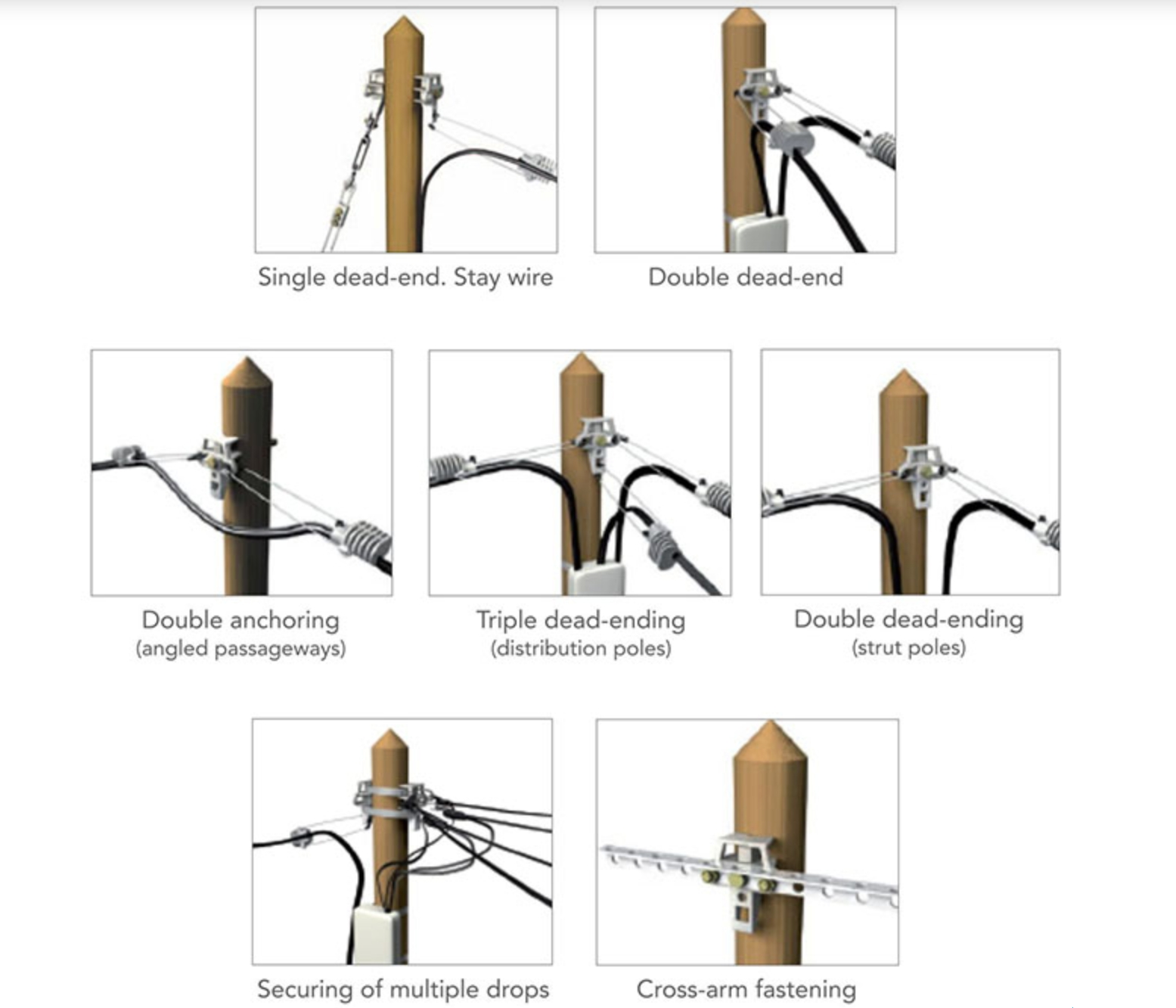

Our installation guidance:

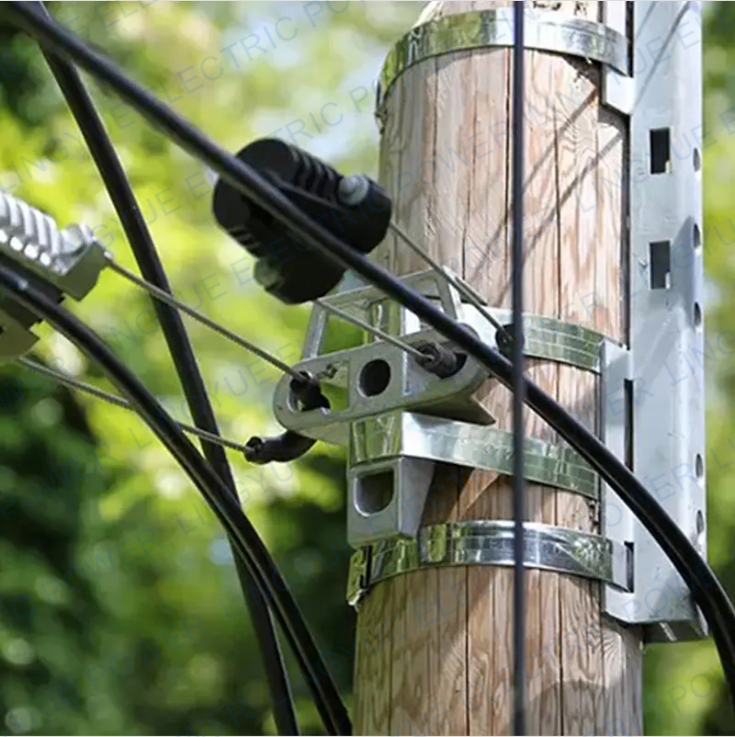

With pole band: the UPB universal bracket fixes on all type of poles, drilled or undrilled, by using two pole bands of 20mm width；

SB204or SB207 and two buckles B20 or two clevis fasteners A20. On average, two meters of pole band are required per bracket；

The choice of the pole band’s thickness depends on the required resistance and on the loads to which the bracket is submitted；

With bolt: if the pole head is drilled (wooden, sometimes concrete) the universal pole bracket UPB can also be mounted with a cross-through bolt Ø 14 or 16mm. The bolt’s length is then proportional to the pole head’s diameter + 42mm (the bracket’s thickness).
