Product information:

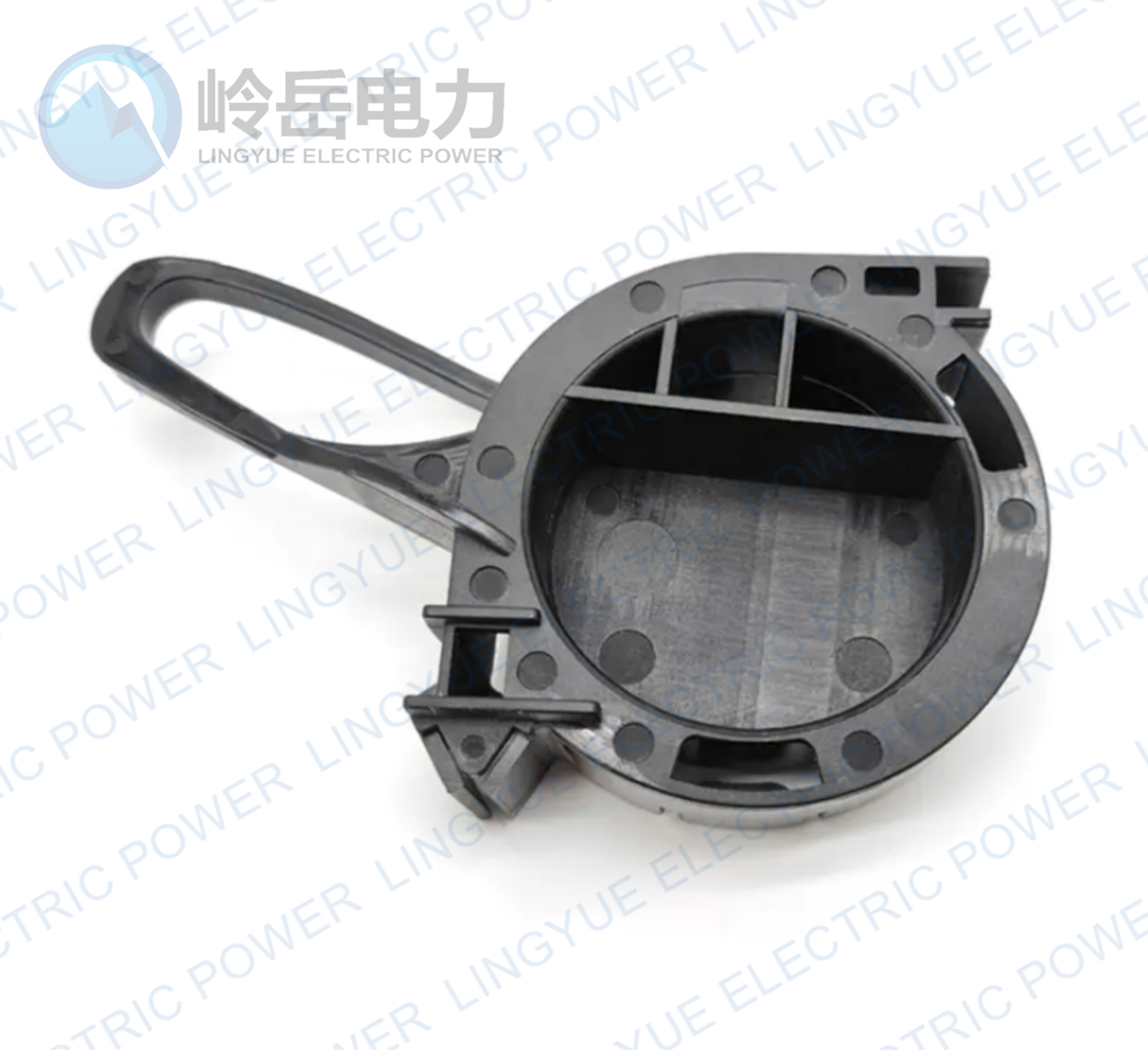

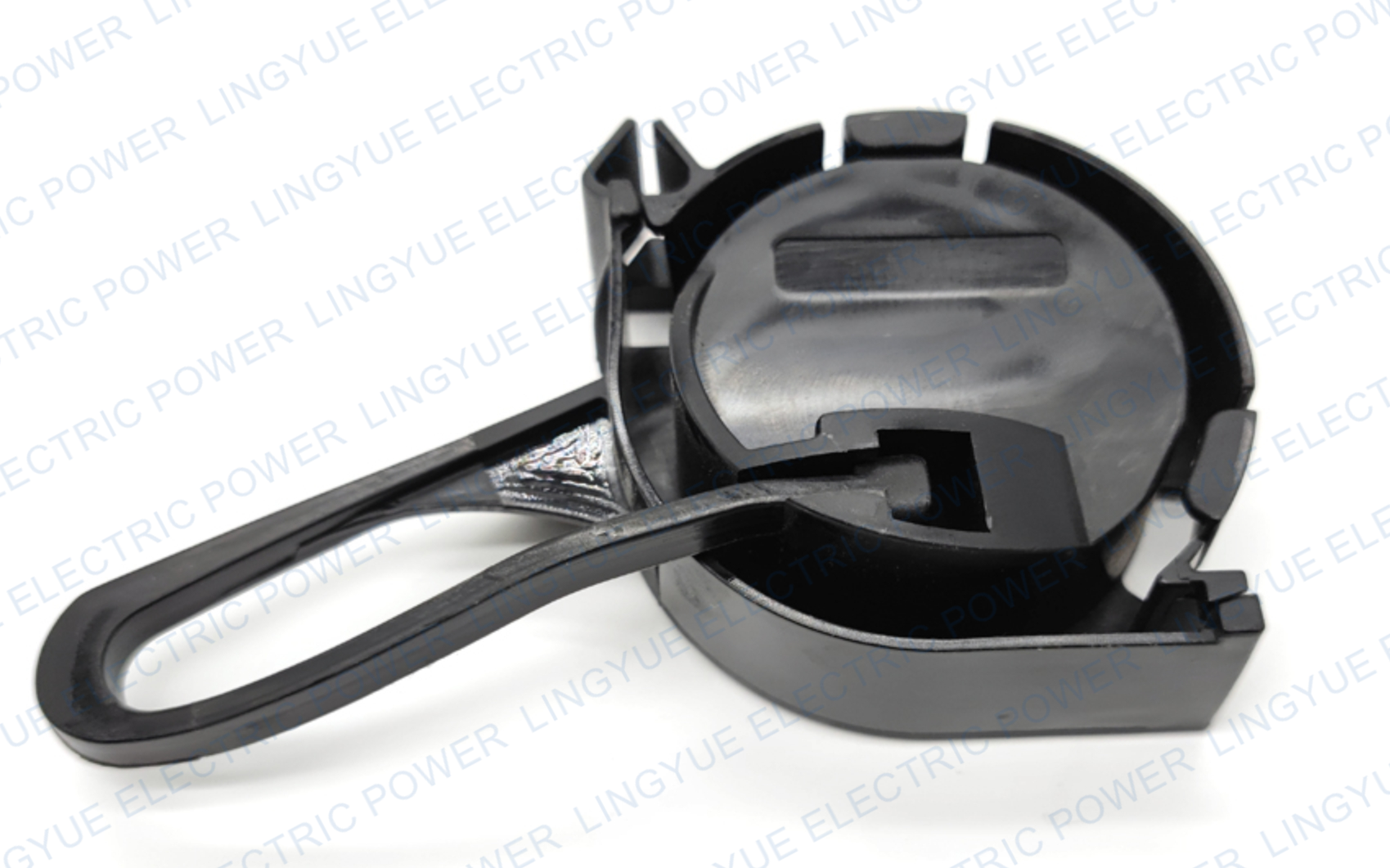

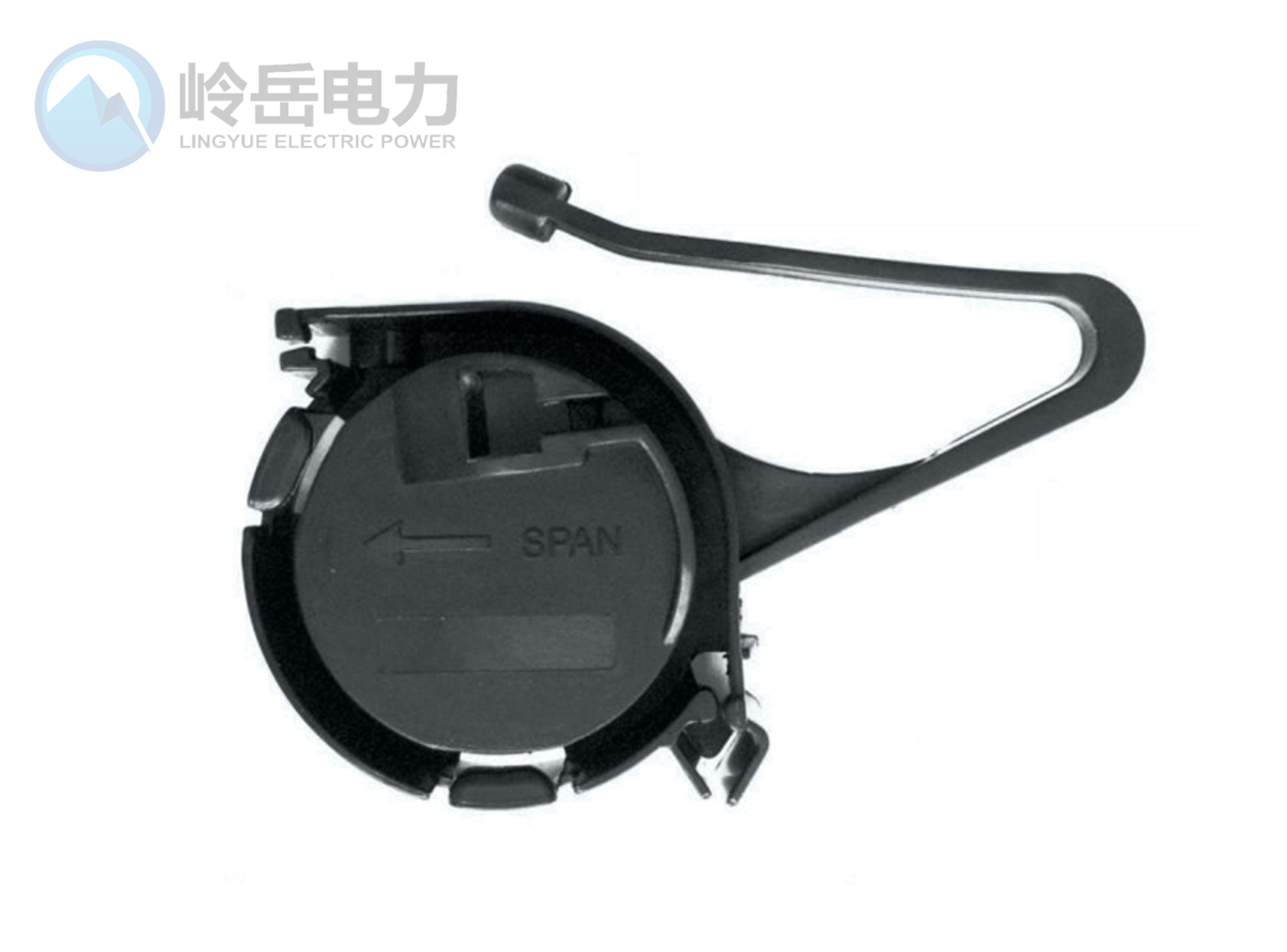

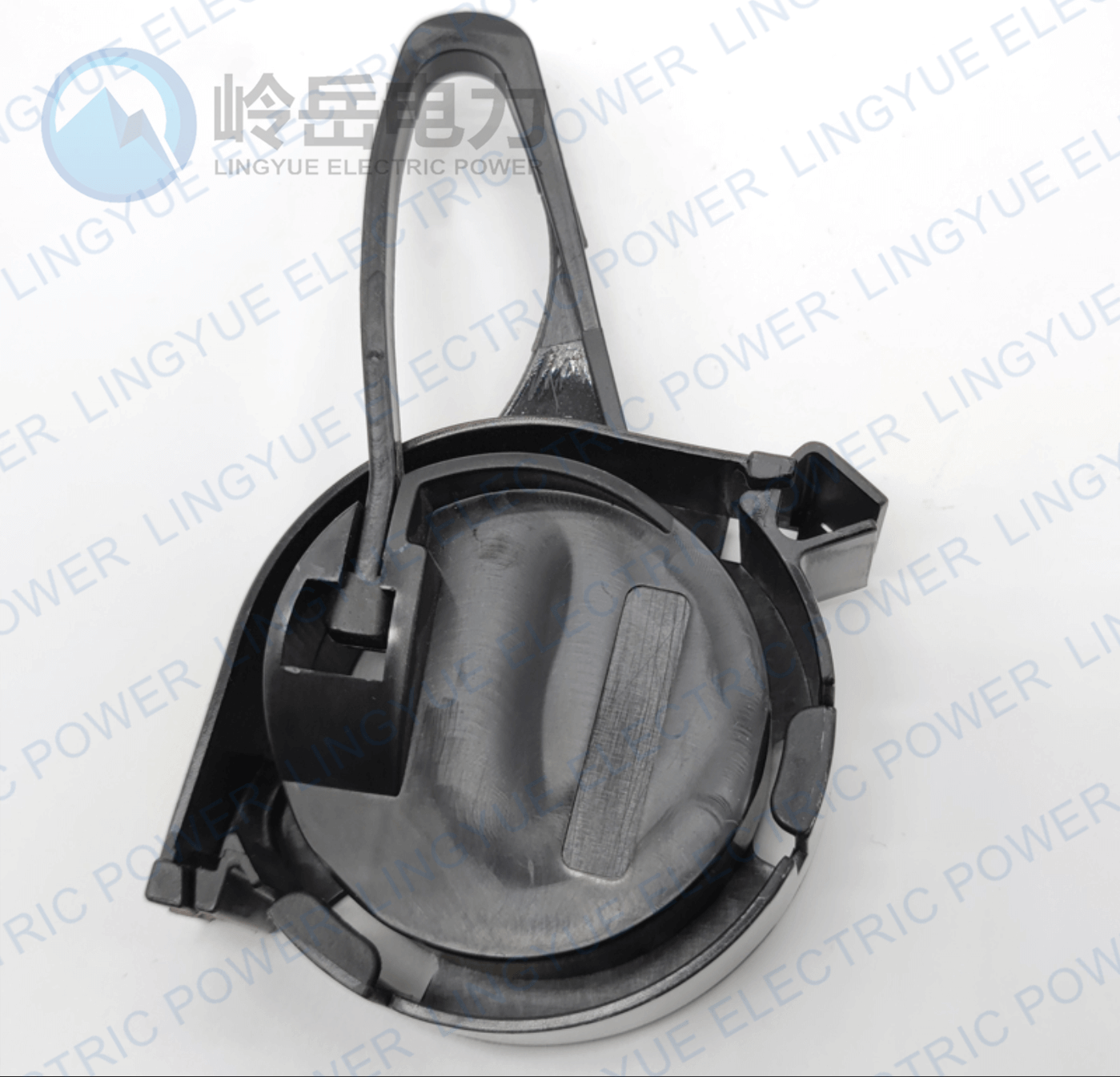

The drop wire clamp contains a mandrel shaped body and an opened bail. It can lock into the clamp body. Its main material is UV resistant nylon.

Optical drop cable clamp is a type of wire clamp. It applies to support telephone drop wire at span clamps, drive hooks and various drop attachments,and applies to round FTTH drop cable in FTTX or fiber optic to home construction. With unique design, it allows the anchoring of the cable on the end support, without any radial pressure on the cable and fiber, and provides additional protection for the FTTH cable.

Installation:

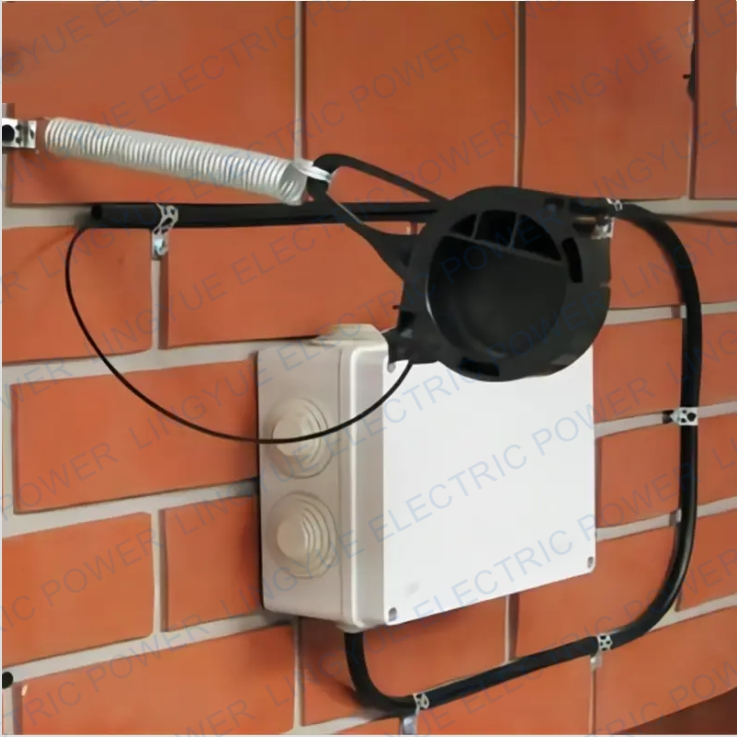

1.keep the bail of the clamp open.The cable span end is introduced in the clamp at a point.

2.The cable roll up carries out aound the mandrel clockwise,until the full width of the mandrel covering.The drop cable exits the clamp through another point.The cable section after that point is free of any load,it connects to the wall or pole fitting. Or it installs the next drop clamp in case of double dead-ending.

3.Adjusting the load on the span side,it’s easily pushing the cable on side point,and easy pull the cable on side another point.

4.The cable also installs from side point to side another point.

Application:

Used for securing many kinds of cables, such as fiber optic cables.
Used to relieve strain on messenger wire.
Used to support telephone drop wire at span clamps, drive hooks and various drop attachments.
Good anti-corrosion performance. High strength. Abrasion and wear resistant. Maintenance-free.
Durable. Easy installation. Removable.
Fiber optic drop cable S-type clamp other called Drop Wire P Clamp,
can be used on dead-end fiber network routes.

Its material is PC or ABS plastic. PC has high strength and elasticity coefficient, high impact strength, wide temperature range of use; high transparency and free dyeability; low molding shrinkage, good dimensional stability; good fatigue resistance; good weather resistance; excellent electrical properties.

Acrylonitrile Butadiene Styrene is a thermoplastic polymer structural material with high strength, good toughness, and easy processing and forming. ABS has excellent mechanical properties, excellent impact strength, and can be used at extremely low temperatures: ABS has excellent wear resistance, good dimensional stability, and oil resistance, and can be used for bearings under medium loads and speeds. The creep resistance of ABS is larger than that of PSF and PC, but smaller than that of PA and POM. The bending strength and compressive strength of ABS are the poorest among plastics. The mechanical properties of ABS are greatly affected by temperature.
