ODWAC-22 FTTH Drop Fiber Cable Wire Clamp
ODWAC-22 FTTH Drop Fiber Cable Wire Clamp
ODWAC-22 FTTH Drop Fiber Cable Wire Clamp
ODWAC-22 FTTH Drop Fiber Cable Wire Clamp
ODWAC-22 FTTH Drop Fiber Cable Wire Clamp
ODWAC-22 FTTH Drop Fiber Cable Wire Clamp
ODWAC-22 FTTH Drop Fiber Cable Wire Clamp
ODWAC-22 FTTH Drop Fiber Cable Wire Clamp
ODWAC-22 FTTH Drop Fiber Cable Wire Clamp
Inquiry Contact us

Like this product? Share with friends:

Product Introduction

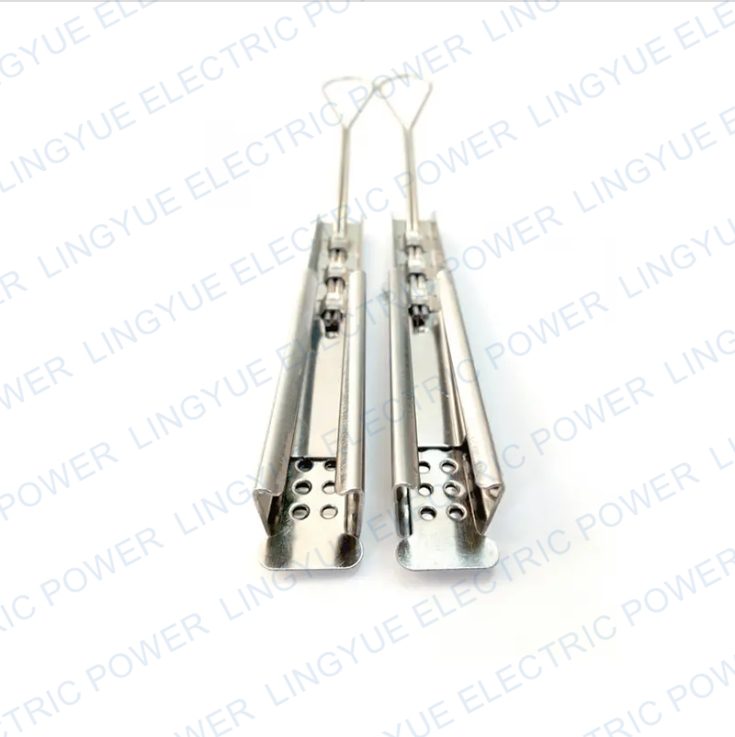

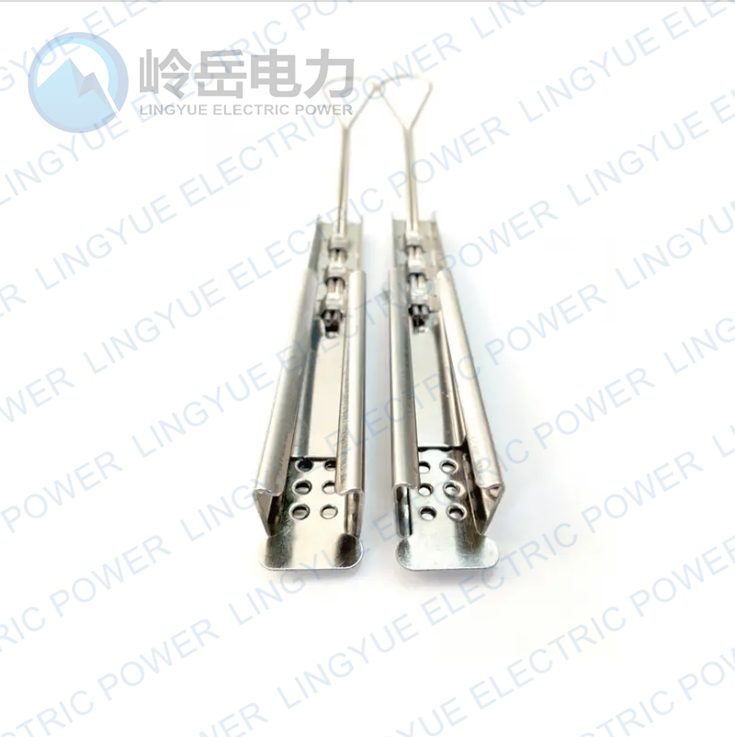

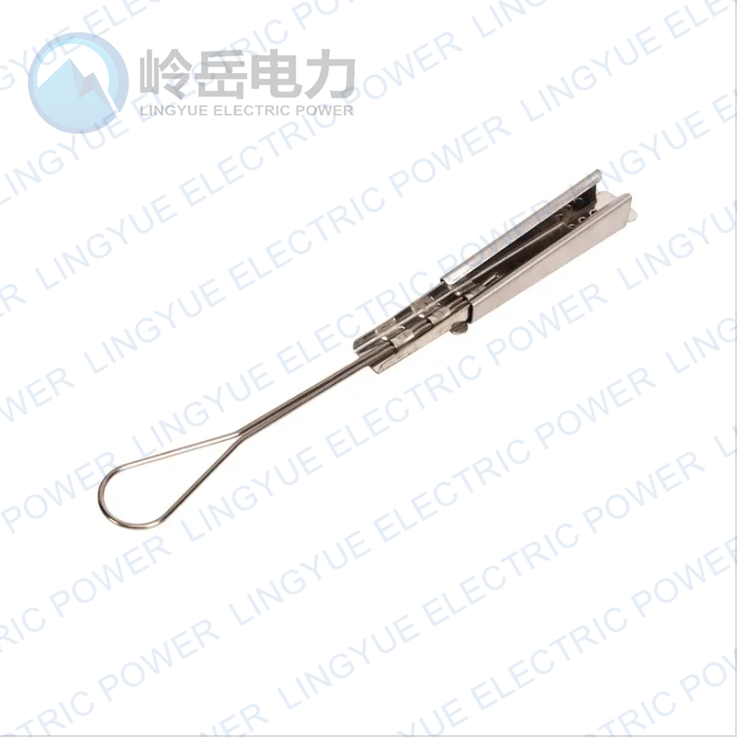

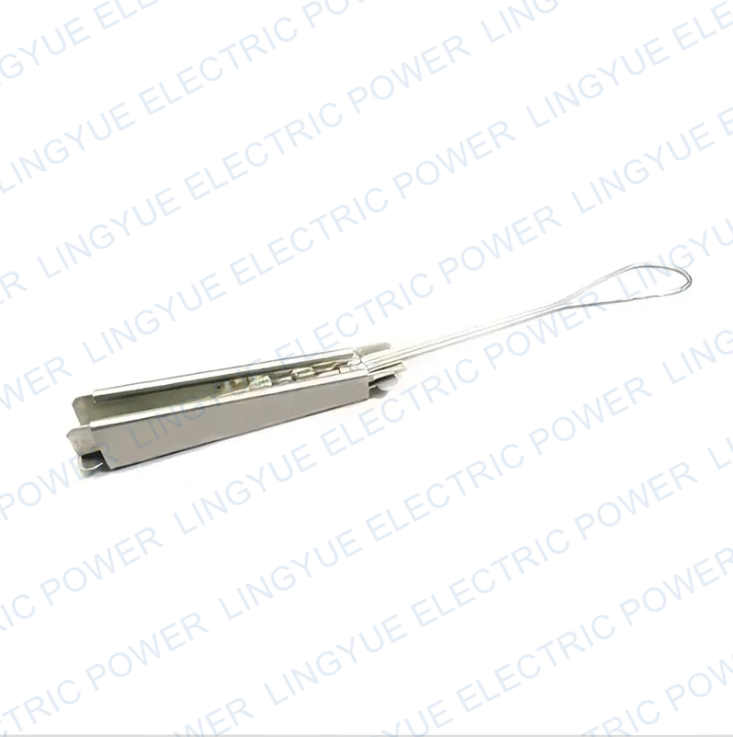

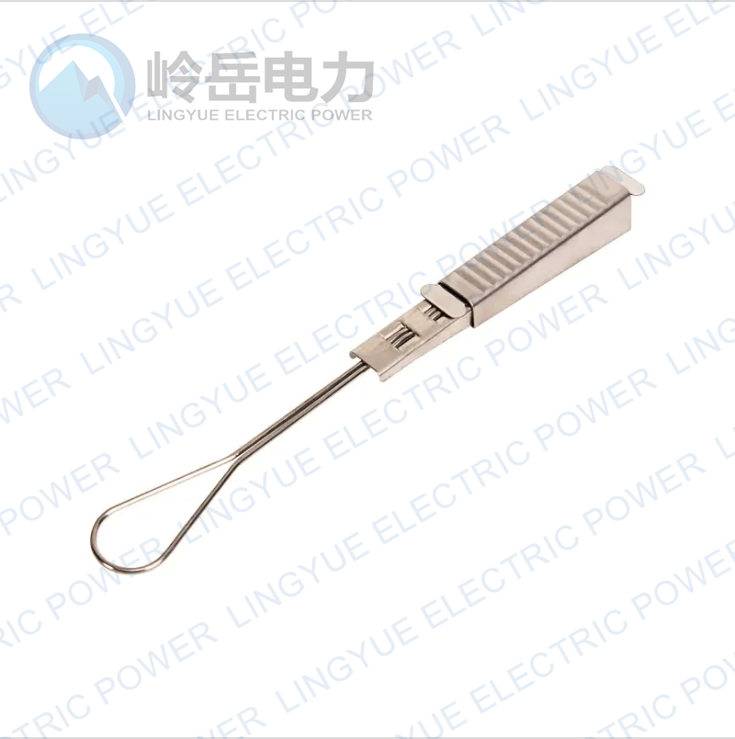

Anchor clamp ODWAC-22 (metal) is designed for anchor (tension) fastening of subscriber flat cable (Drop cable FTTH) on pylons of overhead power lines (VLI 0.4/1 kV) and various structures. The clamp is installed without the use of tools.



Anchor clamp ODWAC-22 is made of stainless steel in the climatic version of UHL category 1 according to GOST 15150. The clamp is resistant to UV radiation, high and low temperature, to the thermal and light effects of solar radiation.



Maximum cable dimensions (W*H), mm -12х5;

Minimum destructive load – kN-1,2;

Clamp length.mm-220-5;

Clamping weight, kg-0,04;

The operating temperature ° C is from -60 to +70.



Features

• Suit for flat cable: 5x16mm.

• Composed of a shell, a wedge and a shim.

• All parts are made of stainless steel.



Product Model

Cable size,mm

MBL,KN

Weight.kg

ODWAC-22

6*13

1.2

0.04
