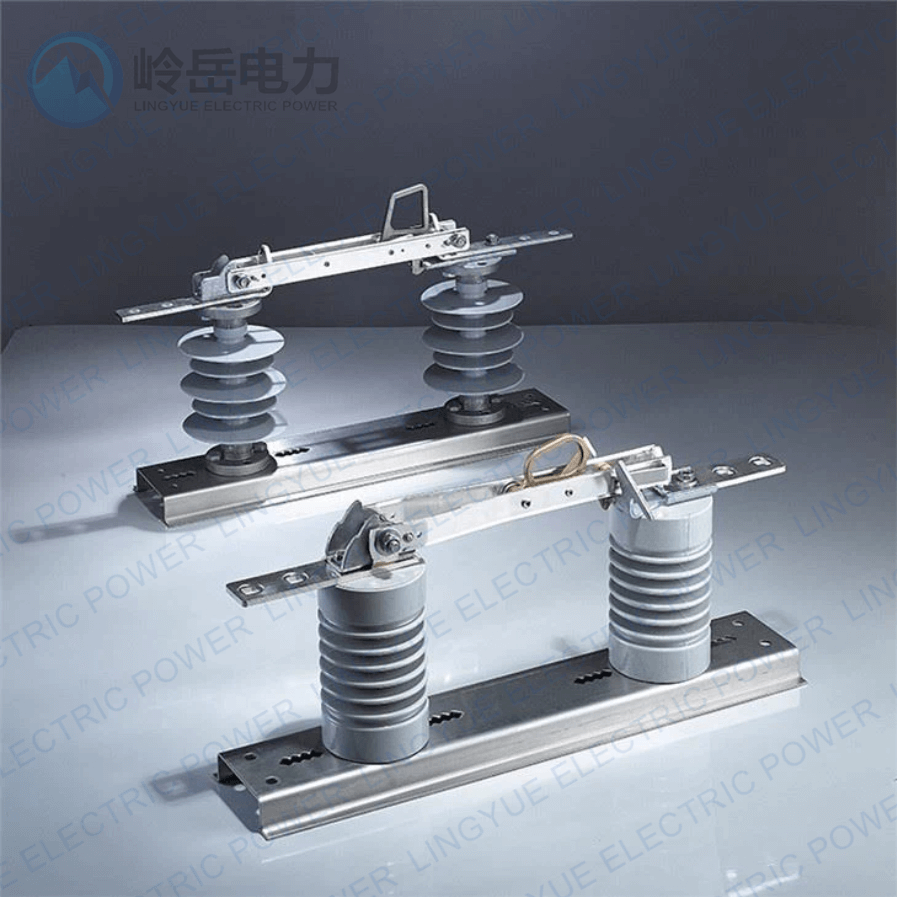

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

GW9-11 kV disconnect switch

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Description GW9 disconnector

Isolation switch is a switching device which is mainly used for "isolation of power supply, disconnection of work, and connection and disconnection of small current circuits" without arc extinguishing function.

Technical specification

Type	Nominal voltage (kV)	Rated current (A)	2S Heat-resistant current (KA)	Shock current (KA)	Impulse withstand voltage (kV)		Power voltage
Type	Nominal voltage (kV)	Rated current (A)	2S Heat-resistant current (KA)	Shock current (KA)	To ground (kV)	Through insulation distance (kV)	To ground (kV)	Through insulation distance (kV)
(N) GW9-12/200	12	400	8	20	75	85	38	42
(N) GW9-12/400	12	400	8	20	75	85	38	42
(N) GW9-12/630	12	630	20	50	75	85	38	42
(N) GW9-12/1000	12	630	25	65	75	85	38	42
(N) GW9-12G/400	12	400	8	20	75	85	38	42
(N) GW9-12G630	12	630	20	50	75	85	38	42
(N) GW9-12G / 1000	12	630	25	45	75	85	38	42
(N) GW9-12G / 1250	12	630	+31.5	80	75	85	38	42

Normal terms of service:

Ø Height: no more than 1000 m

Ø Temperature: not higher than 40 ℃ and not lower than -30 ℃,

Ø Wind pressure: no more than 700 Pa (equivalent to wind speed of 34 m / s)

Ø earthquake intensity no more than 8 degrees, absence of frequent shock points.

Ø Ice thickness no more than 10 mm

Ø No fire, explosion, serious dirt, chemical corrosion and strong vibration of the place.
