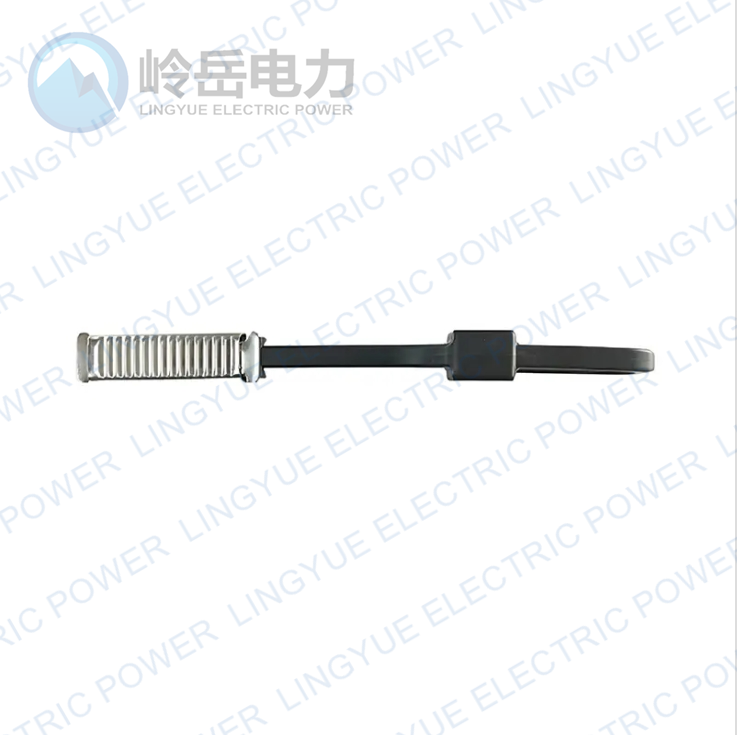

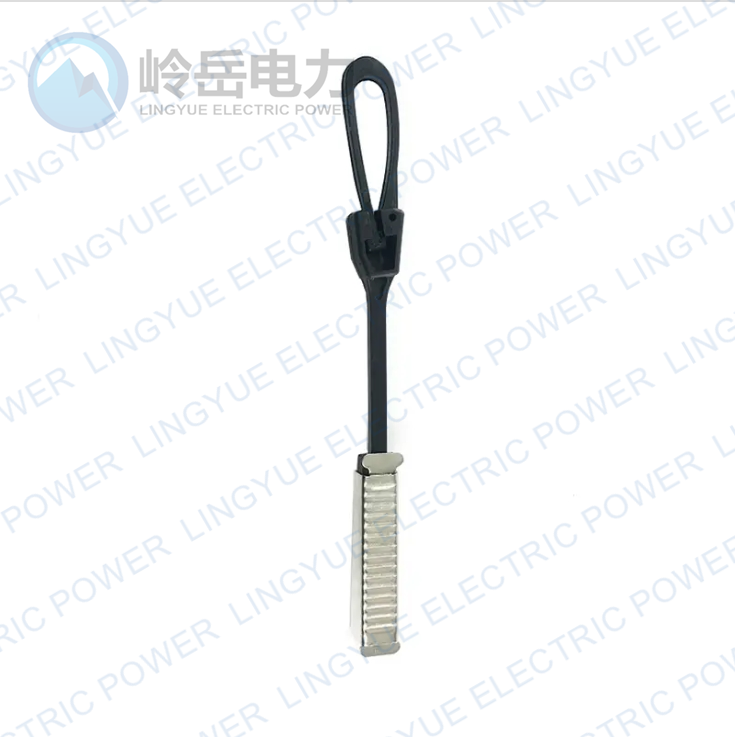

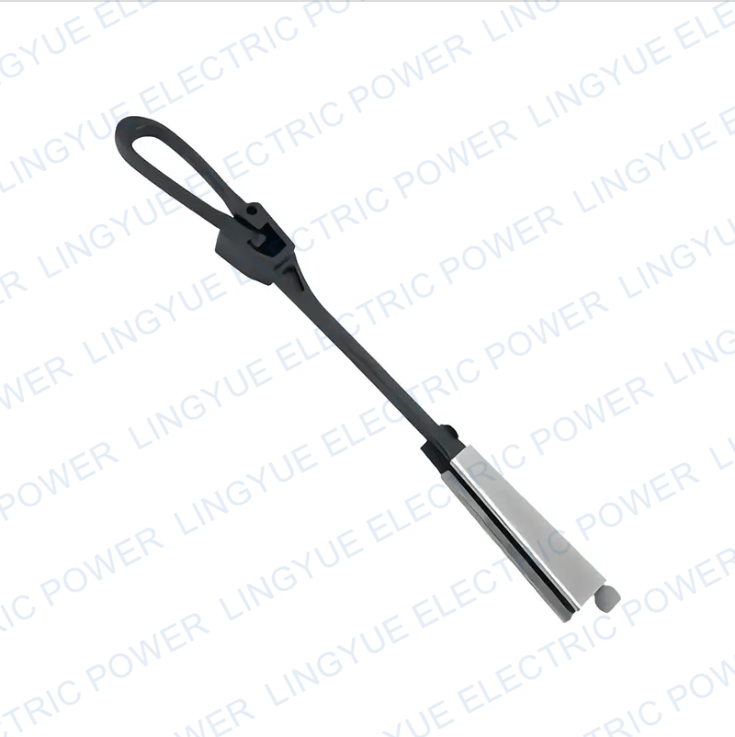

ODWAC-HY Fiber Optic Drop Cable Clamp

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

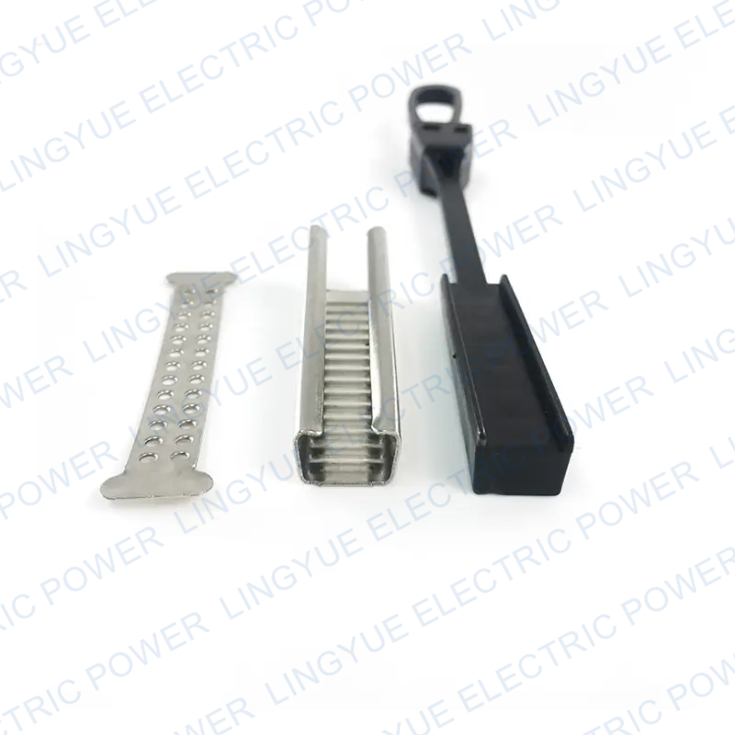

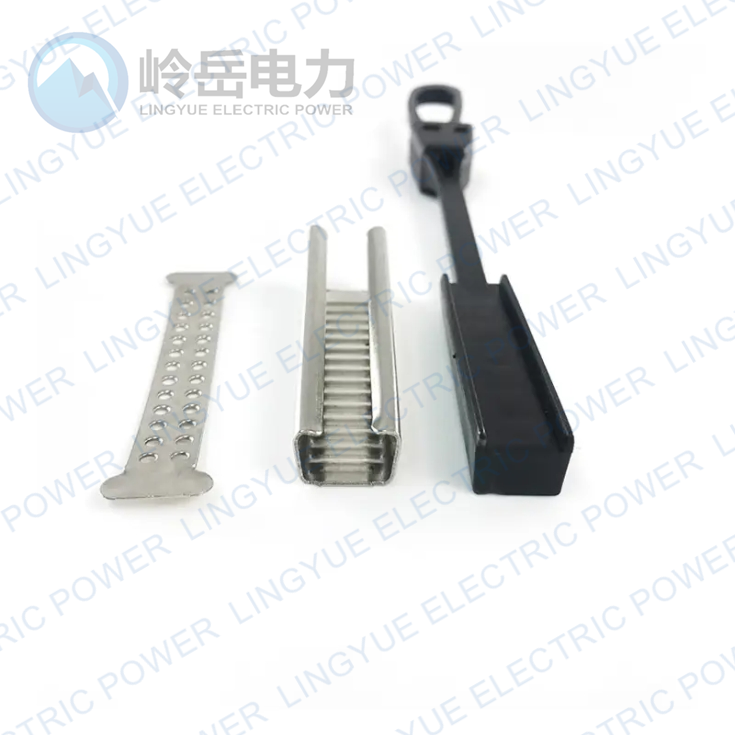

The fiber drop wire clamp ODWAC is composed of a body, a wedge and a shim. A solid wire bail is crimped to the wedge.All parts are made out of stainless steel. All the assemblies passed the tensile tests, operation experience with temperatures ranging from -60 °C up to +60 °C test, temperature-cycling test。

FTTH clamp ODWAC-HY also called hypo clamp, designed for suspension of flat fiber optic cable 4*8 mm size. Fiber optic cable clamp applies outdoor, on fiber optic cable spans, which do not exceed 70 meters of house installation with aerial fiber optic cable, FTTH fiber optic cables.

Features

- Place the cable in the clamp body

-Place the shim in the clamp body over the cable, the grip side in contact with the cable

- Insert the wedge through the front of the body and pull to secure the cable

type of reinforcement	Anchor
Cable Type	flat
Workload	1,0 kN
Clamped cable dimensions	5×13 mm
Distance between supports	≤ 50 m
Case material	stainless steel
Loop material	High-strength UV-resistant polymer
Operating temperature	from minus 40 °С to 50 °С
Product Dimensions (L x W x H)	220х25х20 mm
Product volume	0,00011 m3
Product weight ±10%	0.050 kg
