ODWAC-P Fiber Optic Drop Cable Clamp

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

They are used for mounting flat and oval cables with a width of up to 11 mm and a height of up to 5 mm on poles and supports in urban and suburban PON FTTH networks, due to the design features of the clamp, the cable can be hung on cable routes at any angles of rotation.

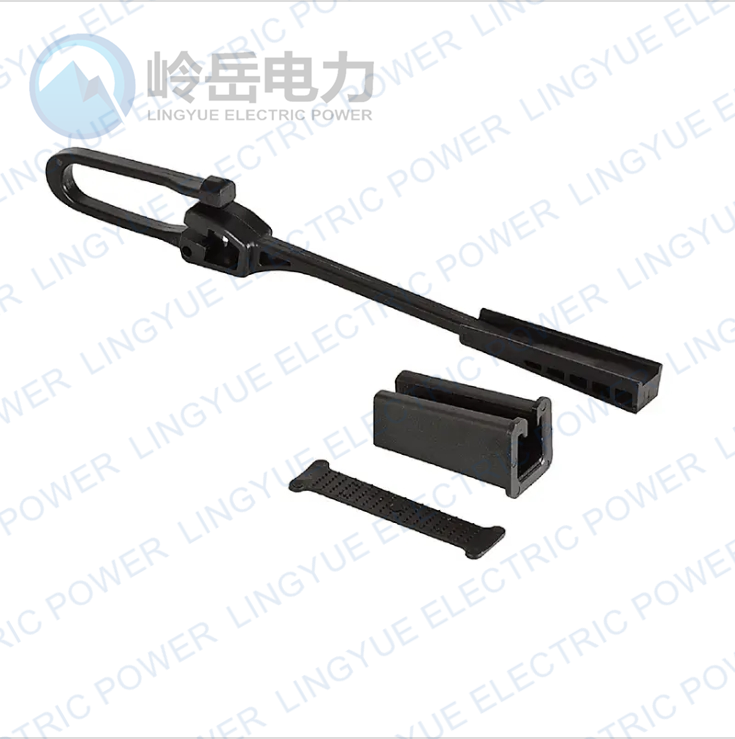

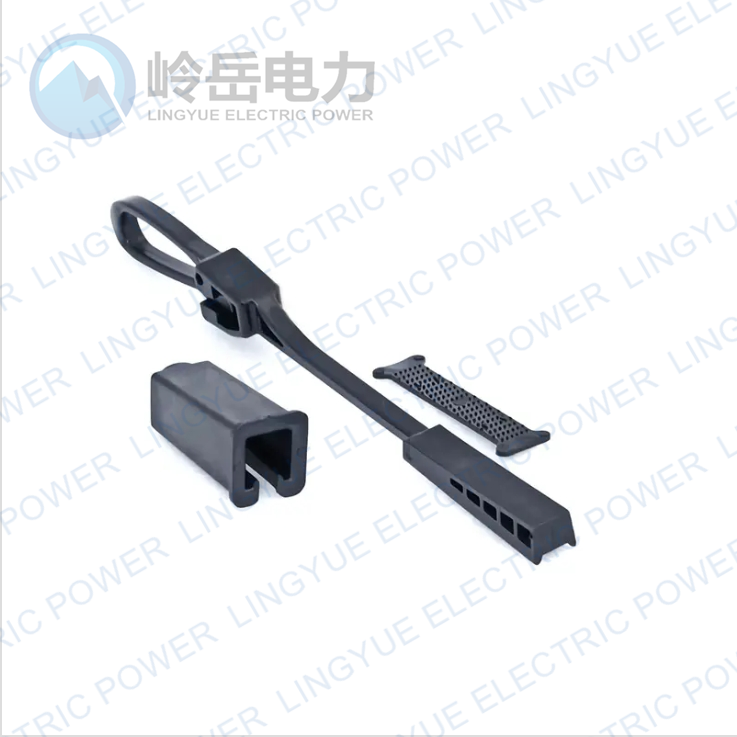

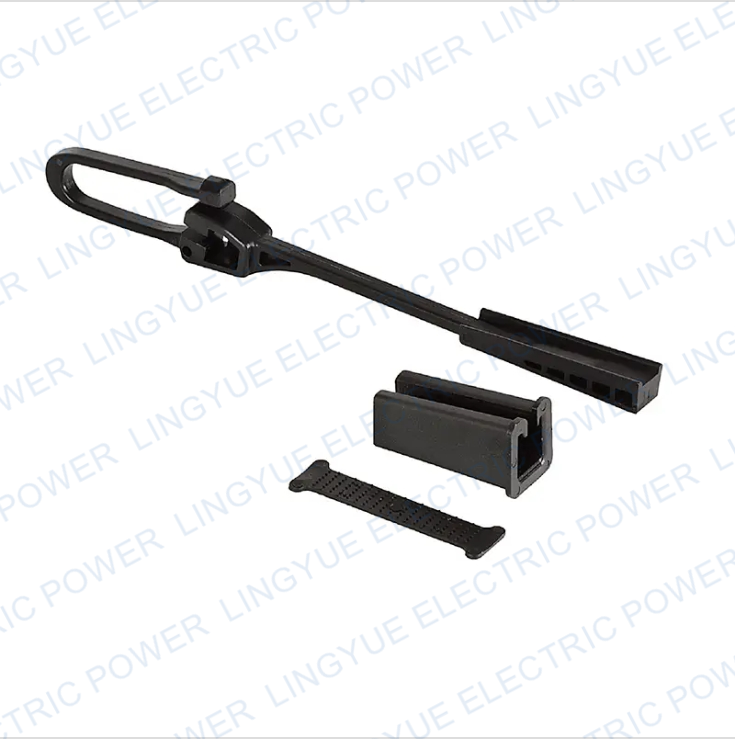

The clamps are made of high-strength and UV-resistant plastic, the clamp design is made of a longitudinal body with a ribbed inner part,a plastic grater for better adhesion to the outer shell of flat and oval optical FTTH cables and a wedge-shaped longitudinal rod, and a detachable loop for mounting to brackets and nodes.

These clamps and production technology allow them to be used in any climatic zones. The design of the clamp at high loads (drop of branches, icicles) is destroyed without damaging the cable shell, thereby preserving in some cases the optical signal and access to the Internet to subscribers.

Features

· Self-adjusting wedge

· Easy installation, tools free

· Anti-drop wire bail design

· Full dielectric UV resistant thermoplastic, durable

· Excellent environment stability

· Competitive price

stamp	ODWAC-P
Material of manufacture	UV-resistant plastic
workload, kn	0.6
maximum destructive load, kn	0.8
diameter of clamped cable, mm	2-5/3-11
temperature range, °С	from minus 40 ° C to plus 55 ° C
weight, g	40
Weight	0.033 kg
