PA535 Branch Wire Clamp For Cables

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

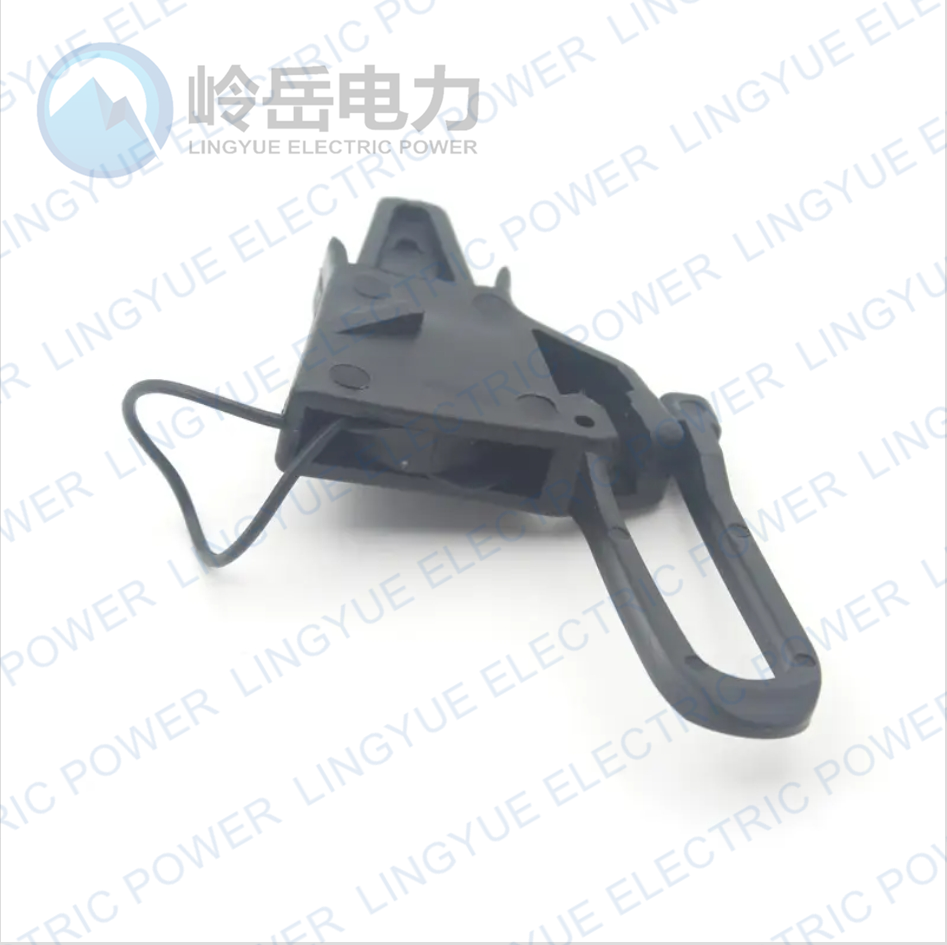

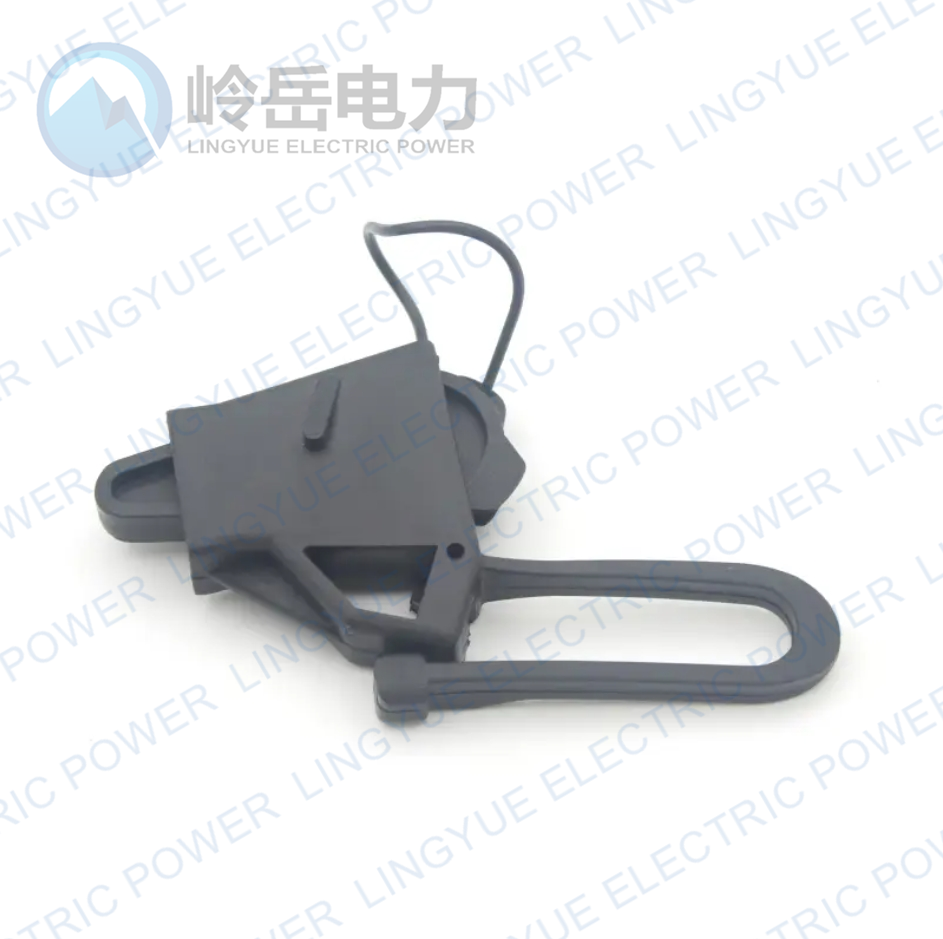

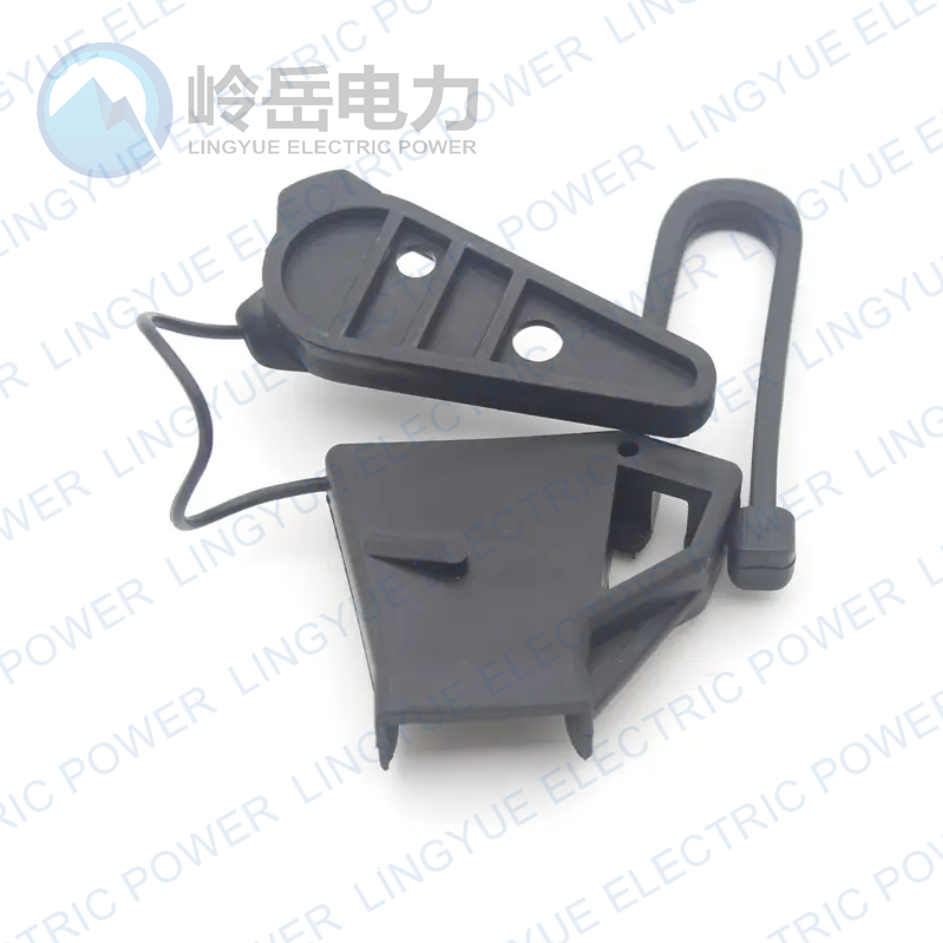

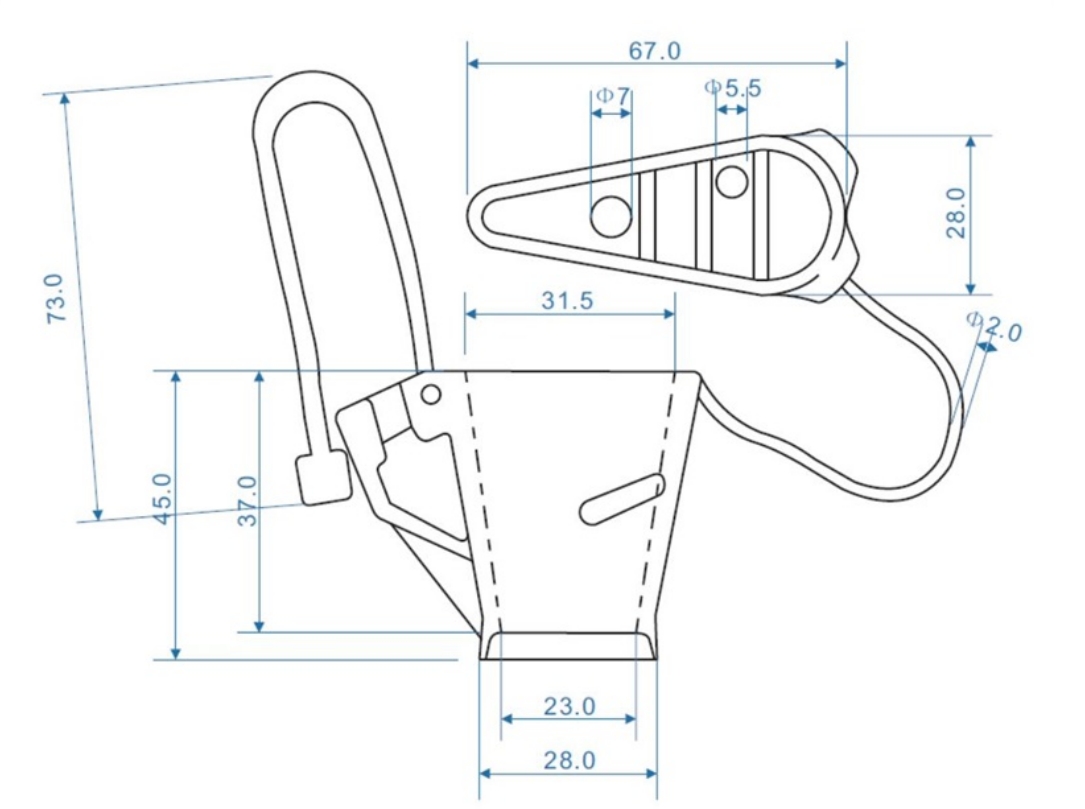

Dead ends and suspension of flat branch wires 5/9 and 5/99. One-piece clamp made of thermoplastic, having a closed conical body shape, a flat wedge connected to the body via a flexible link that ensures its retention, and an opening bracket

Material

Thermoplastic handle with UV protection.

Characteristics

• Can be re-inserted and reused.
• Easy cable slack adjustment to ensure proper tension.
• Weather and corrosion resistant plastic components.
• No special tools required for installation.

Application

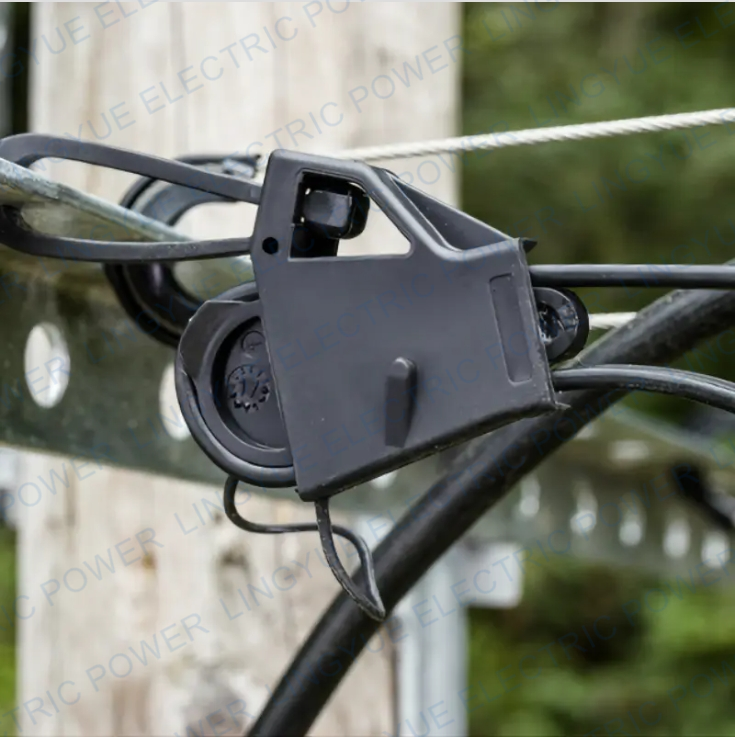

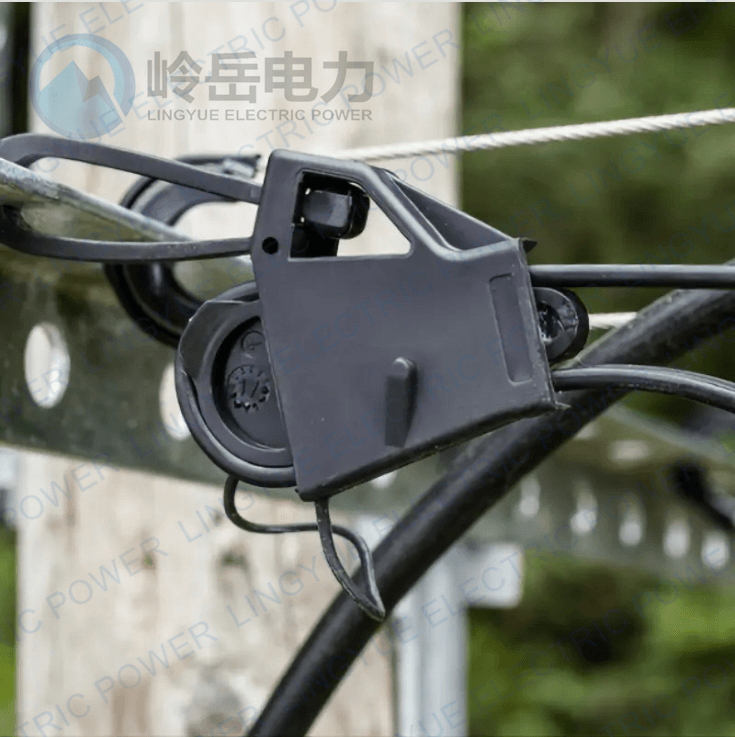

1. Pass the free end of the plastic shackle through the ring or crossbar, fix the shackle in the clamp body.
2. Form a loop from the branch wire. Pass this loop through the stretched end of the clamp body. Insert the clamp wedge into the loop.
3. Adjust the load on the sagging wire by pulling it through the clamp wedge.
4. Cable tie and hanger for copper cable TE1SE. Ideal for flat cables 8x3 mm or round cables Ø7 mm.
