Product Introduction

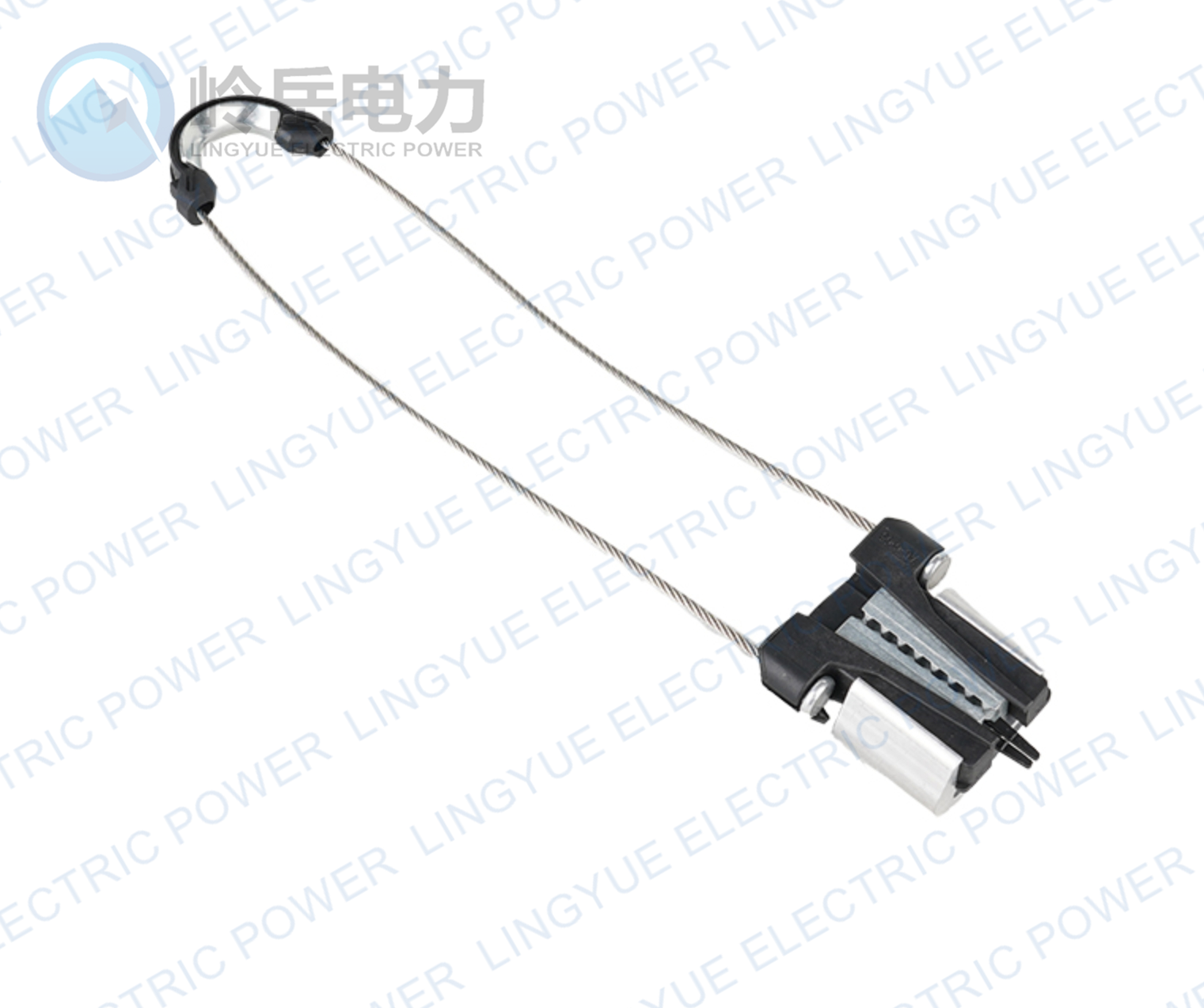

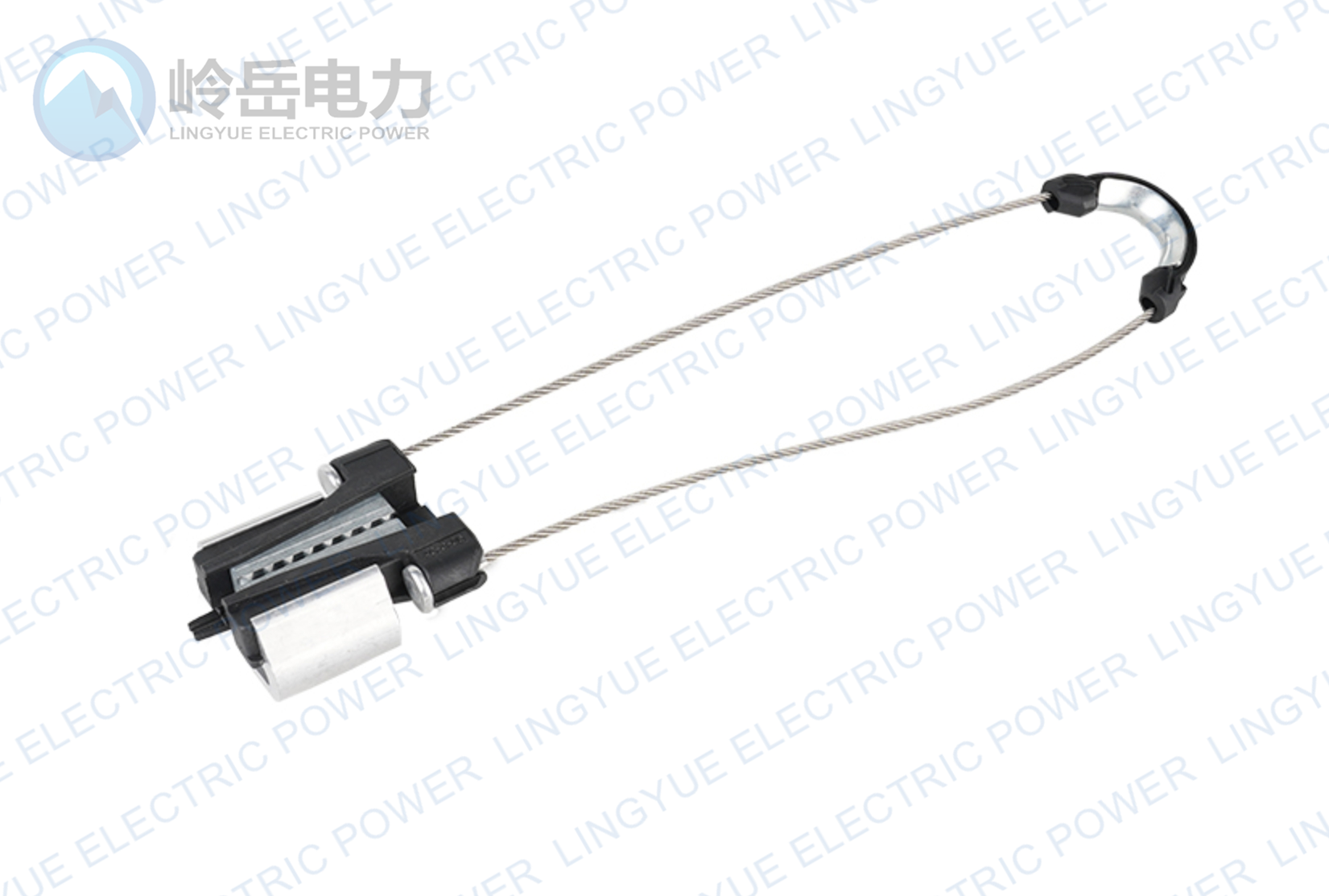

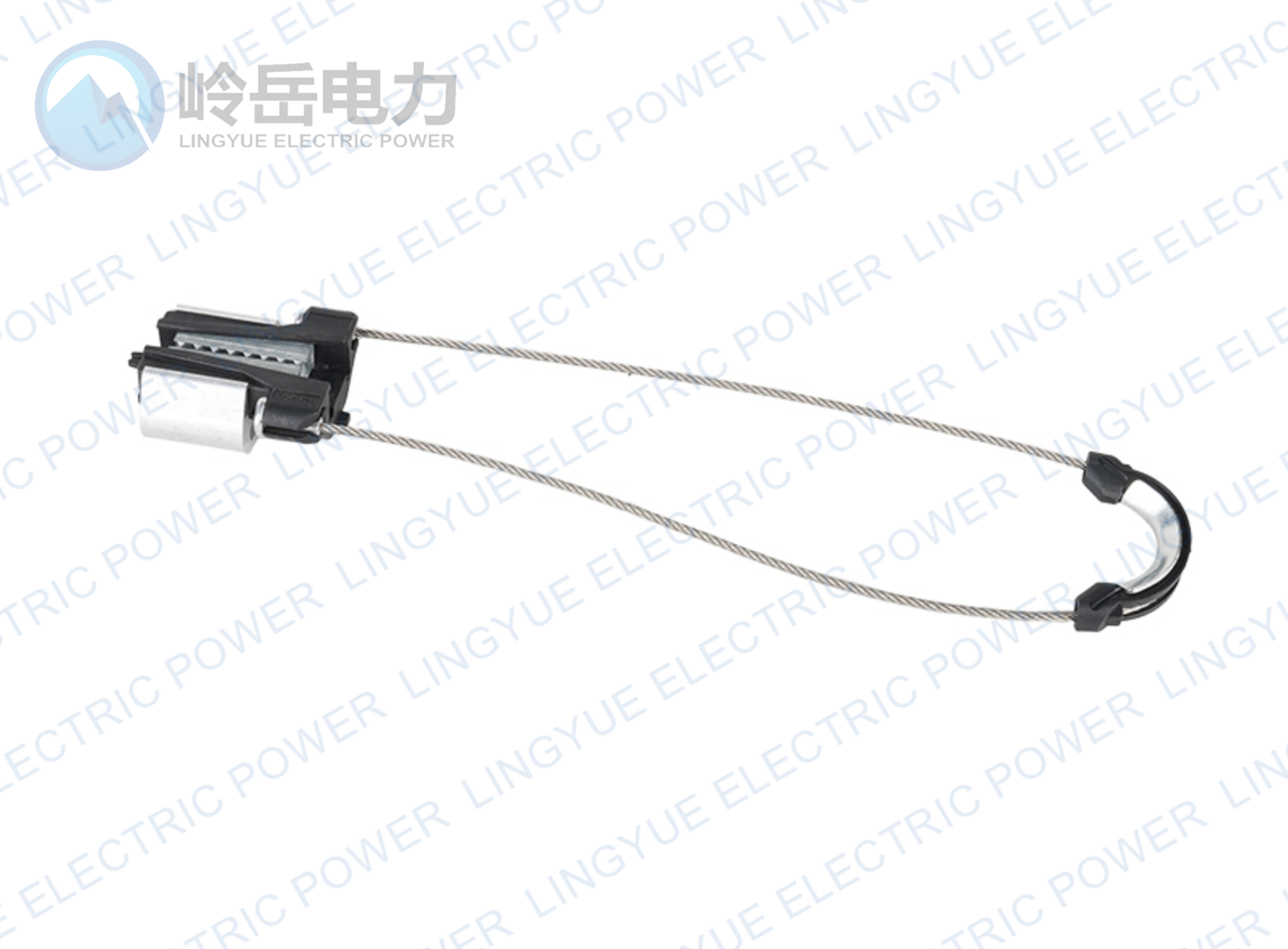

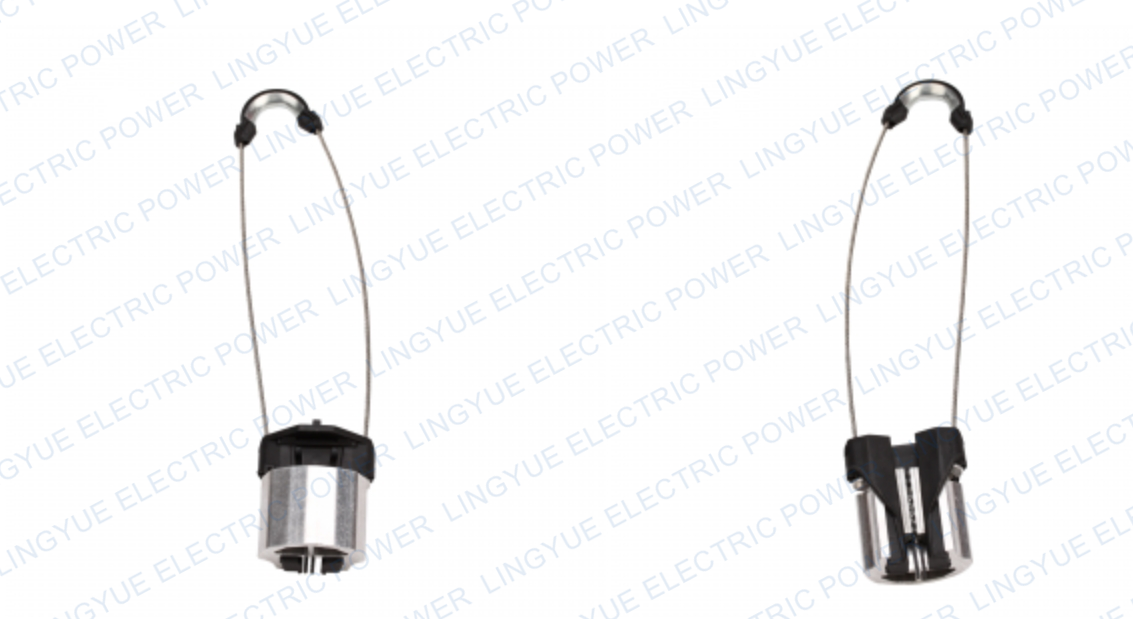

AC-O-06 and AC-O-07 Dead End Clamp

The AC-O-06 and AC-O-07 Dead End Clamp are applicable to fix the self-supporting insulated cable.

Clamp body is made of corrosion resistant aluminium alloy with high mechanical strength and bail is made of stainless steel.

Wedges are made of weather resistant material.

No special tools are required.

Item No.	Cross Section(mm²)	Conductor(mm)	Breaking Load(KN)
AC-O-06	16-25	3-6	3
AC-O-07	16-35	3-7	5

Dead end clamp has high strength and reliable grip.

A pair of wedges grips the cable automatically within the conical body.One core Anchor clamps are design to supporting the neutral messenger,

the wedge can be self-adjusting.The installation does not require any specific tools and the operating time is drastically reduced.

The stress distribution of anchoring clamp to the twisted wire is uniform. The twisted wire is not damaged, and the anti-vibration ability of the twisted wire is improved.

Simple installation and easy construction.

Easy to open bail permits fixing to brackets and pigtails.

Adjustable length of bail in three steps.

The quality of the installation of anchoring clamp is guaranteed

Good corrosion resistance, use high quality materials.

And the installation instruction are as followed:

1.Attach the clamp to the pole bracket using its flexible bail.

2.Place the clamp body over the cable with the wedges in their back position.

3.Push on the wedges by hand to initiate the gripping onto the cable.

4.Check the correct positioning of the cable between the wedges.

5.When the cable is brought to its installation load at the end pole,the wedges move further onto the clamp body.When installing a double

dead-end leave some extra length of cable between the two clamps.
