Product Introduction

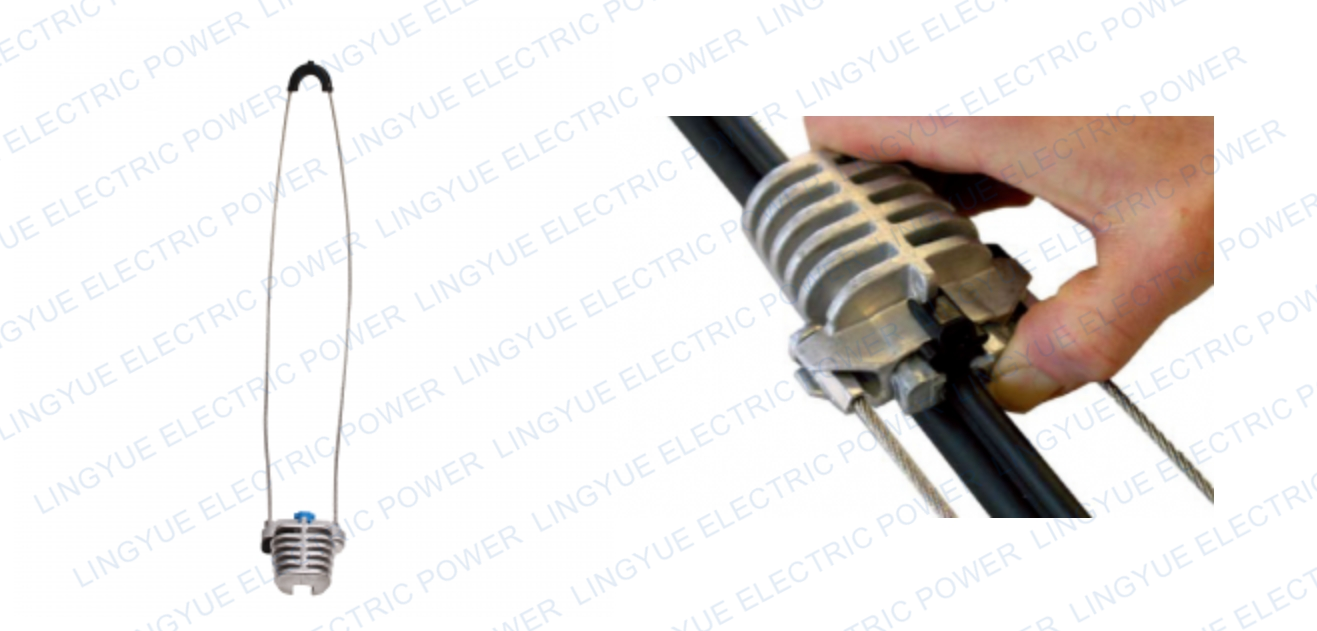

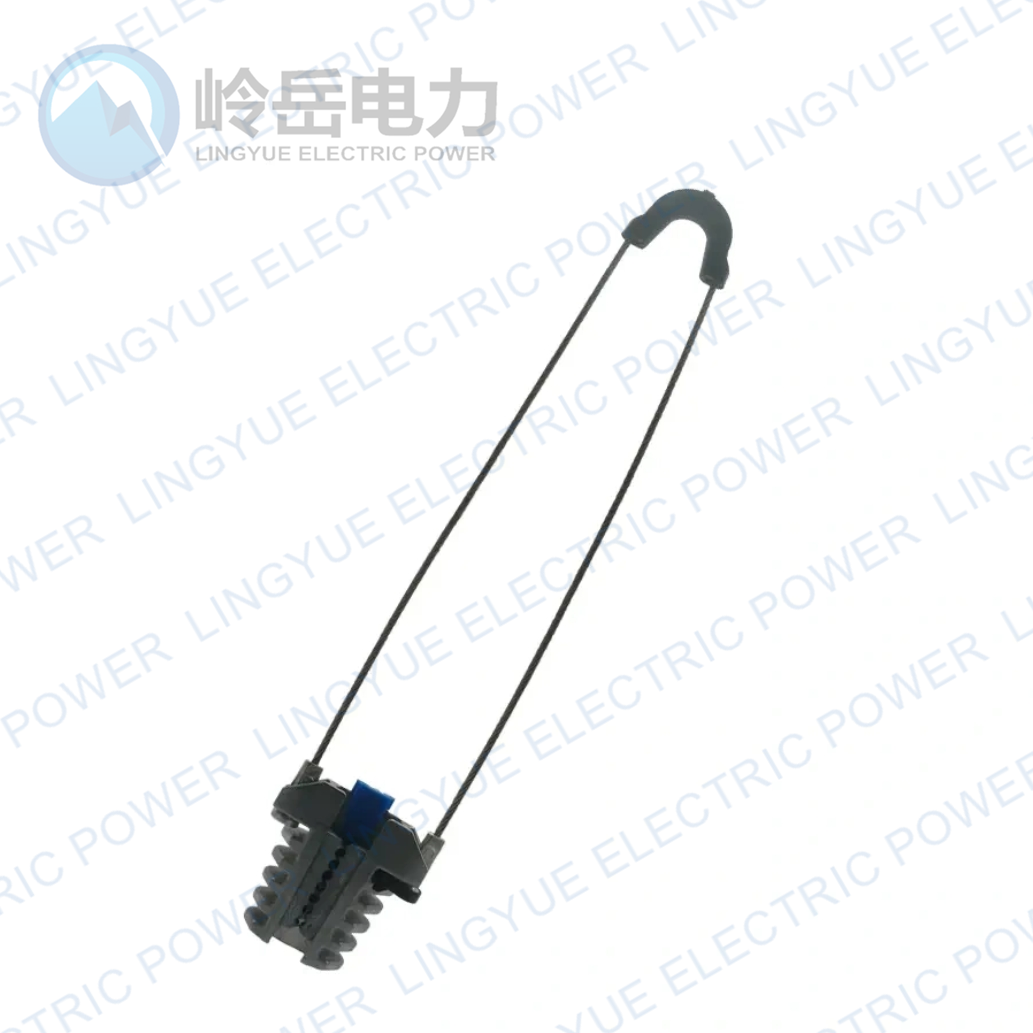

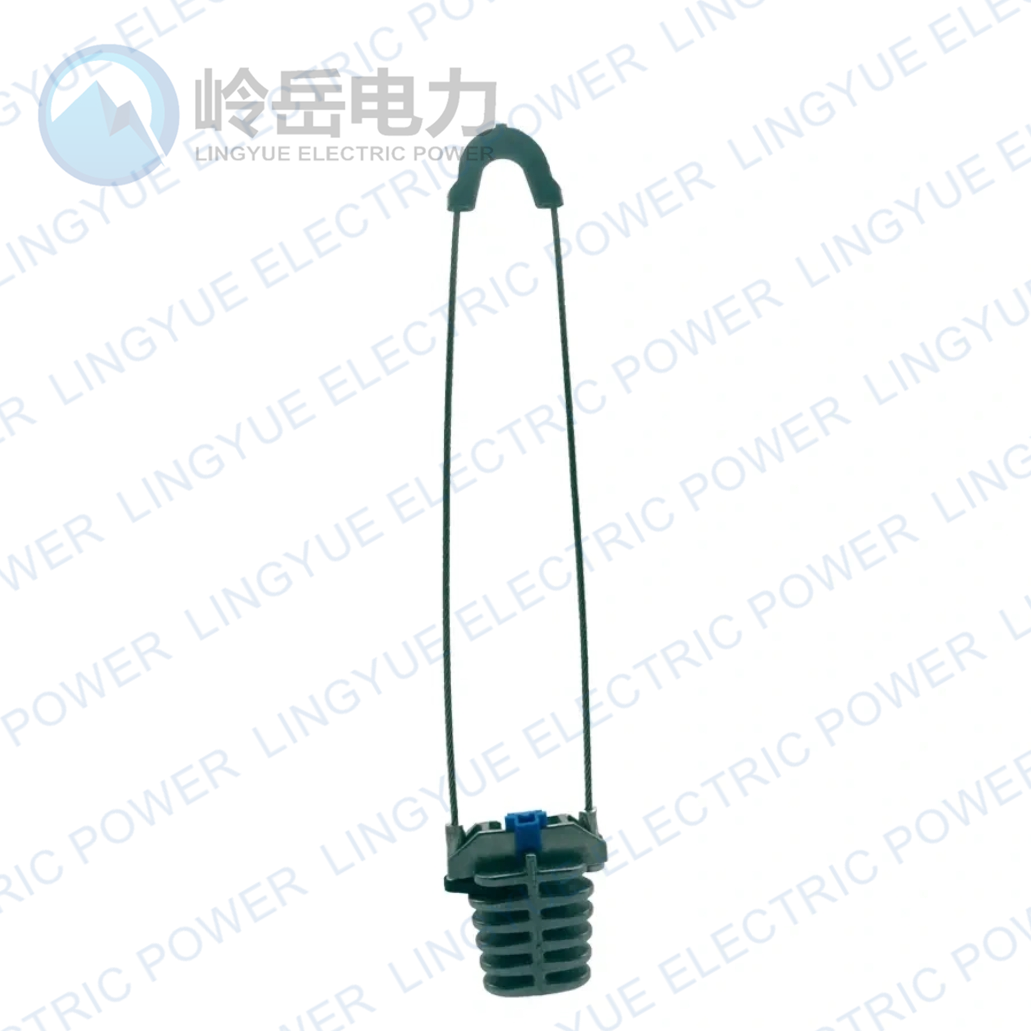

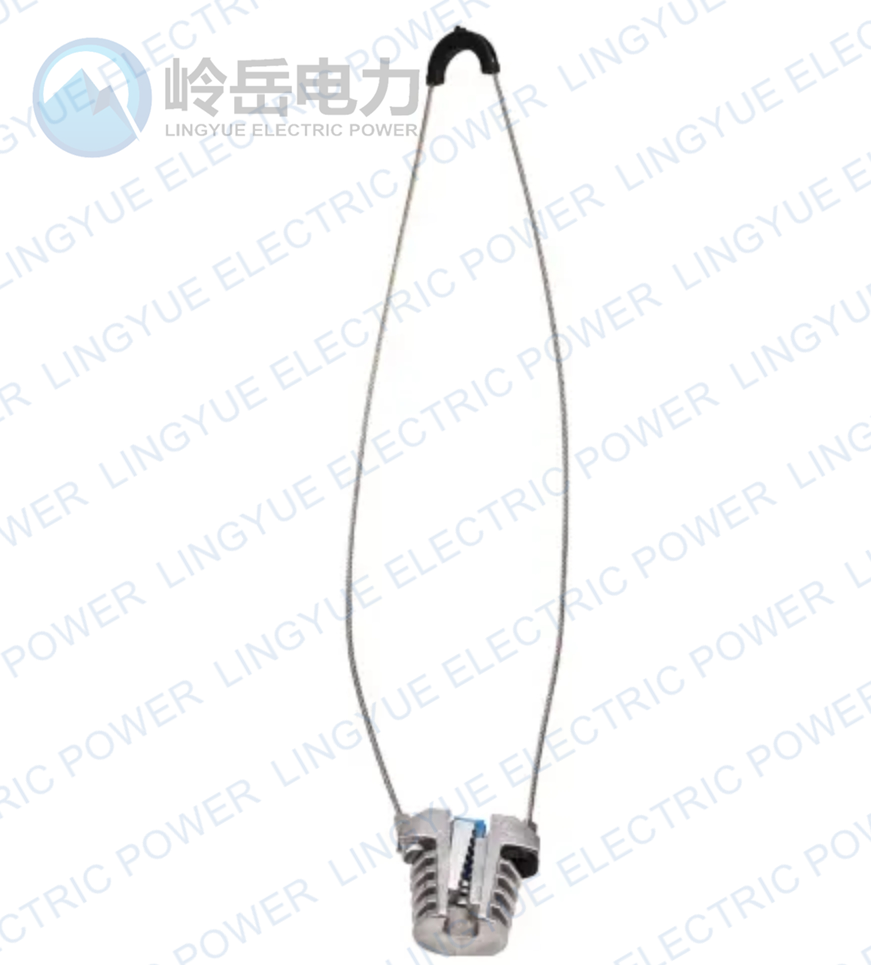

AC-O-07-500 Dead End Clamp

The Dead End Clamp are applicable to fix the self-supporting insulated cable.

Clamp body is made of corrosion resistant aluminium alloy with high mechanical strength and bail is made of stainless steel.

Wedges are made of weather resistant material

No special tools are required.

Item No.	Cross Section(mm²)	Conductor(mm)	Breaking Load(KN)
AC-O-07-500	16-25	3-7	7
AC-O-10-500	16-25	6-10	10

Description

The anchor clamp is designed to anchor insulated main line with 4 conductors to the Pole, or service lines with 2 or 4 conductors

to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad.

One core Anchor clamps are design to supporting the neutral messenger, the wedge can be self-adjusting. Good corrosion resistance,

use high quality materials.The quality of the installation of anchoring clamp is guaranteed.

Features

Tool free installation with wedges sliding inside the body.

Easy to open bail permits fixing to brackets and pigtails.

Adjustable length of bail in three steps.

high mechanical stability.

And the installation instruction are as followed:

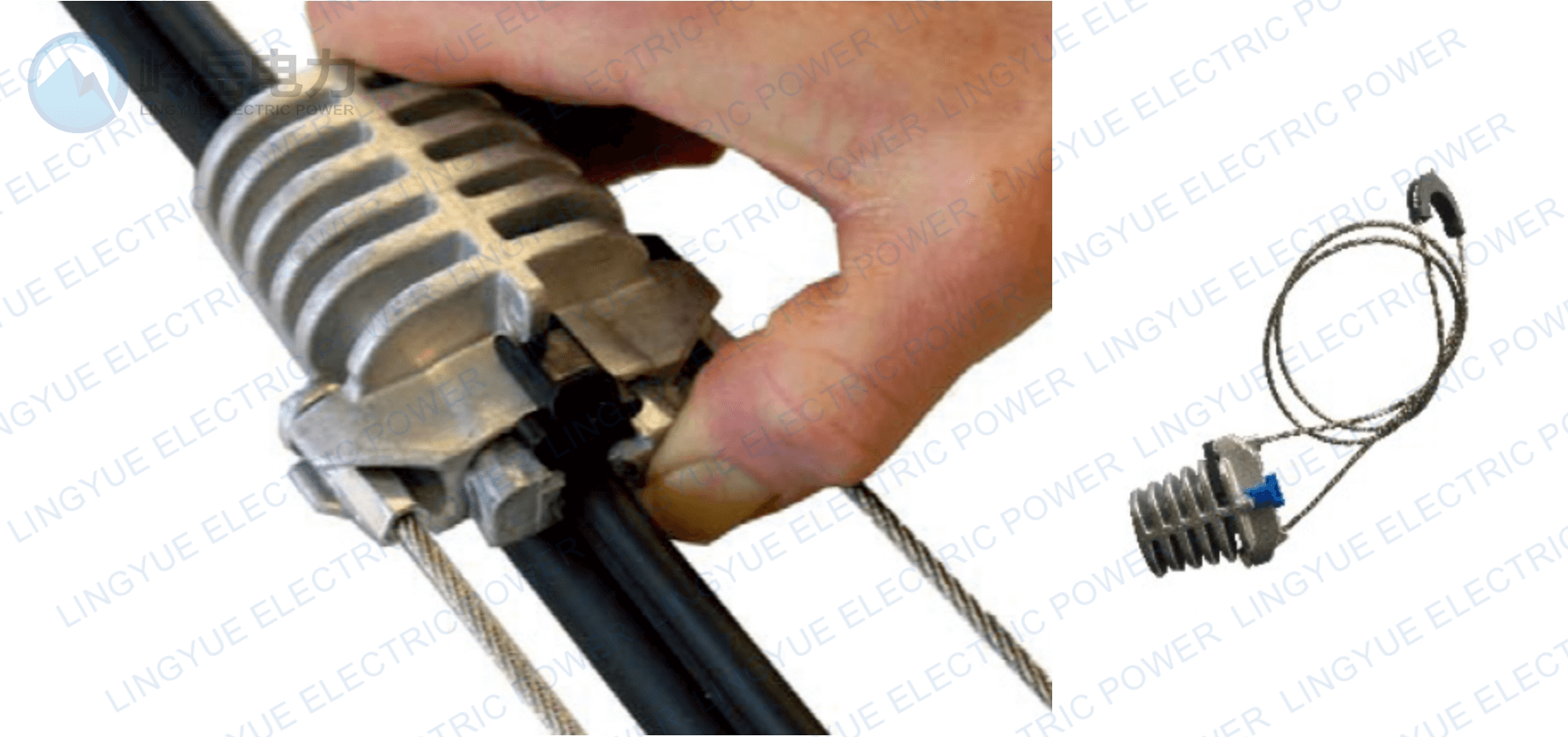

1.Attach the clamp to the pole bracket using its flexible bail.

2.Place the clamp body over the cable with the wedges in their back position.

3.Push on the wedges by hand to initiate the gripping onto the cable.

4.Check the correct positioning of the cable between the wedges.

5.When the cable is brought to its installation load at the end pole,the wedges move further onto the clamp body.When installing a double

dead-end leave some extra length of cable between the two clamps.
