JBG tension clamp

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

JBG series dead end clamp is used for LV-ABC lines with insulated neutral messenger.

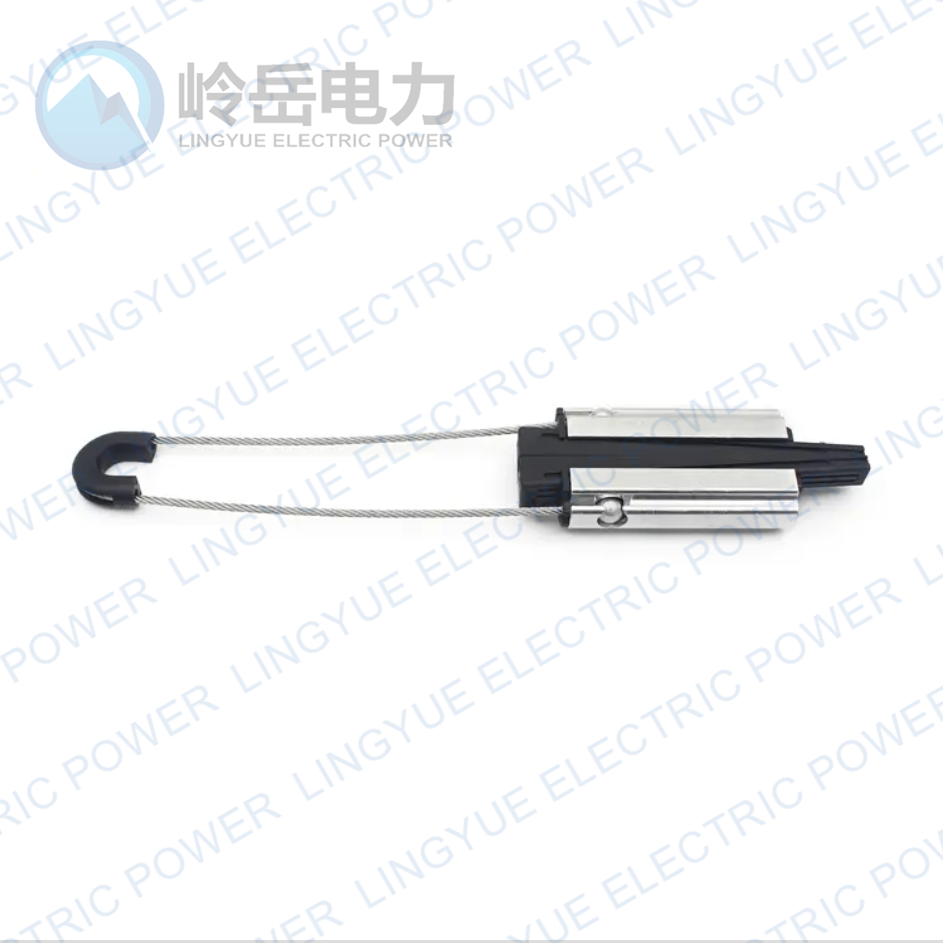

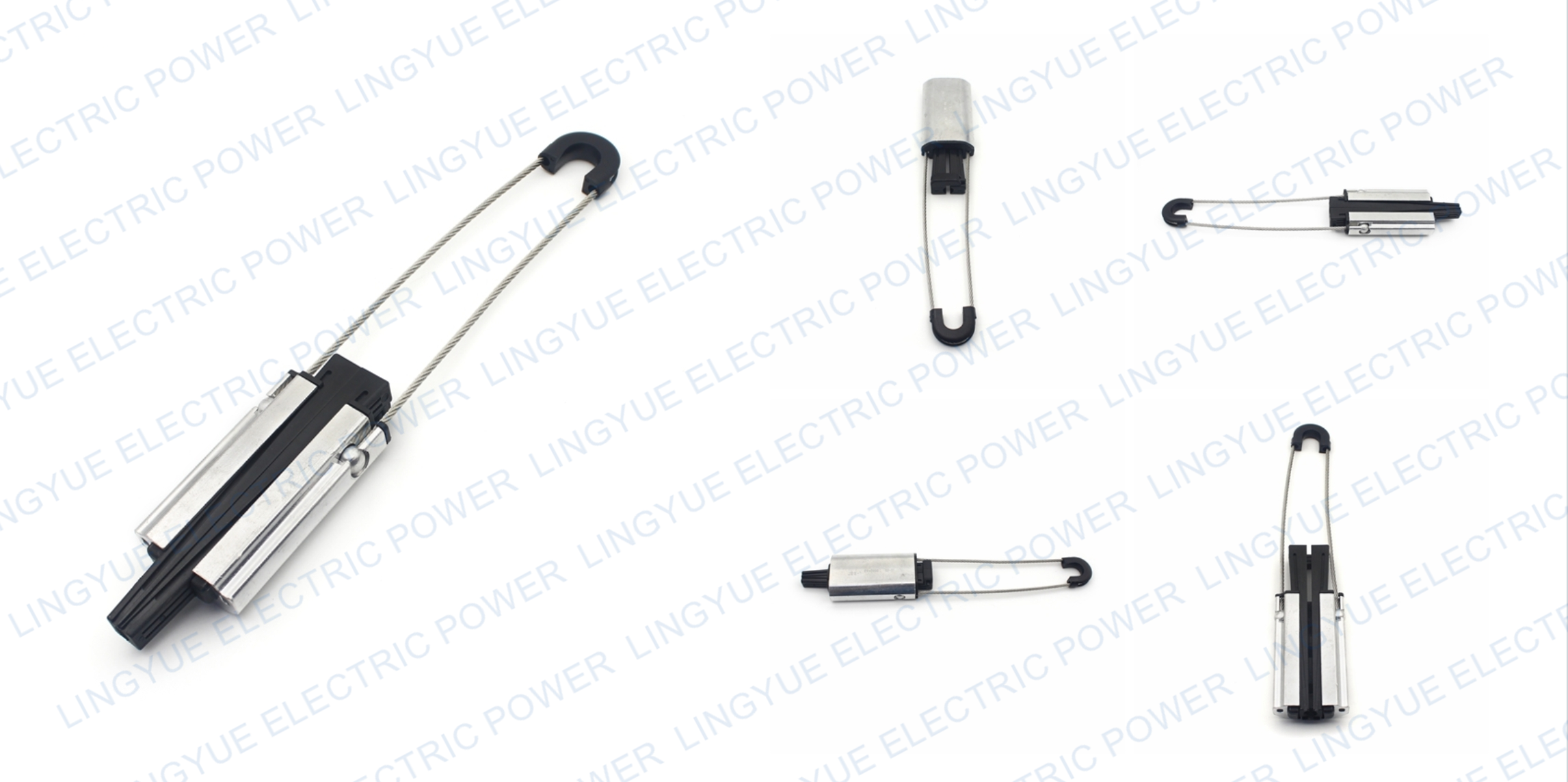

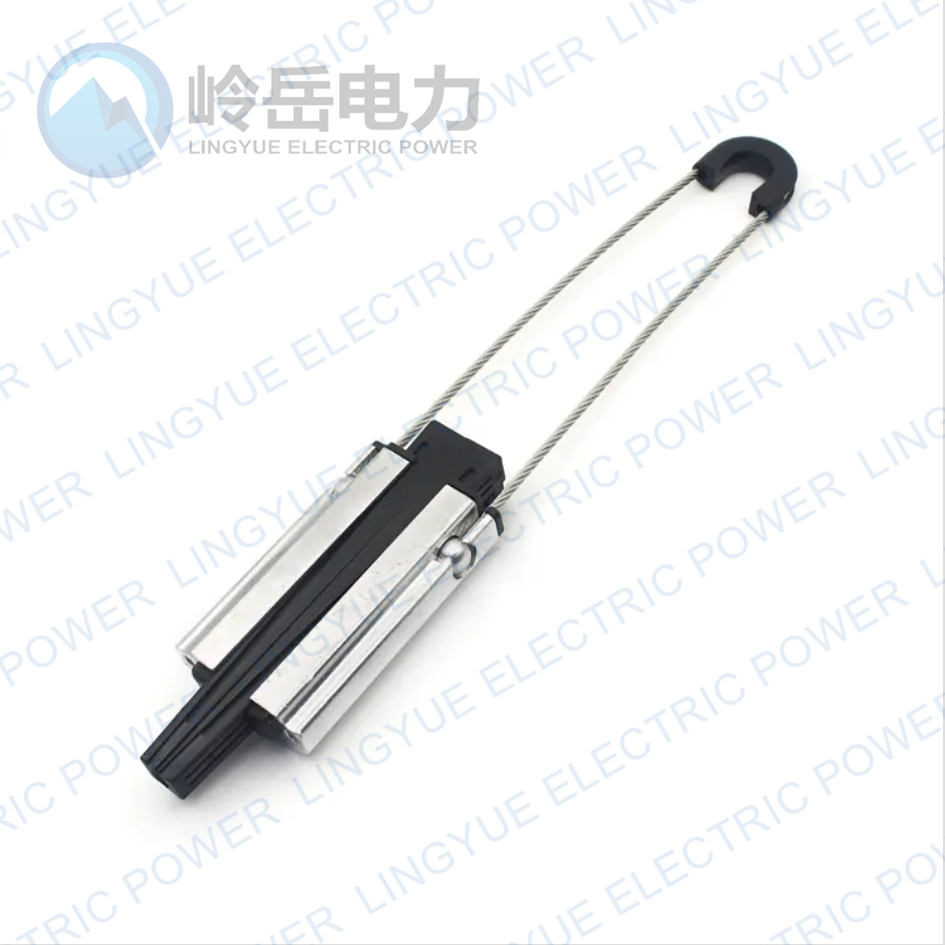

The clamp consists of an aluminium alloy cast body and self-adjusting plastic wedges which tighten the conductor without insulation damage.

All parts of the clamp are resistant to corrosion, environmental effects and UV radiation.

Item No.	Cross section(mm²)	Messsenger DIA.（mm）	Breaking load
JBG-1000	25-35	8-11	10 KN
JBG-1500	50-70	11-14	15 KN
JBG-2000	70-95	14-16	20 KN

Features:
1) The shell is made of corrosion-resistant aluminum alloy.
2) The arc is made of stainless steel.
3) The wedges are made of weather-resistant material.
4) Standard: NFK33-041 EN50483-3
