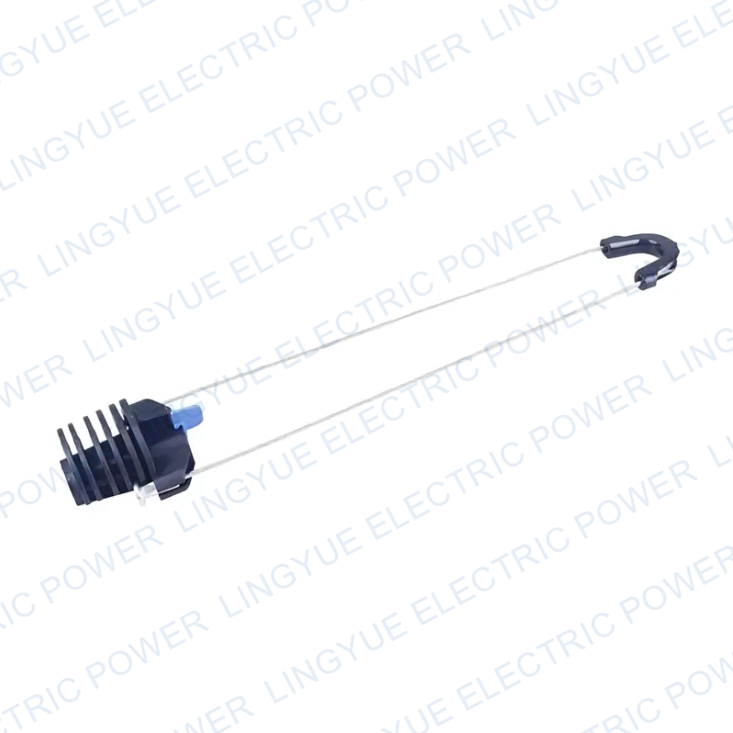

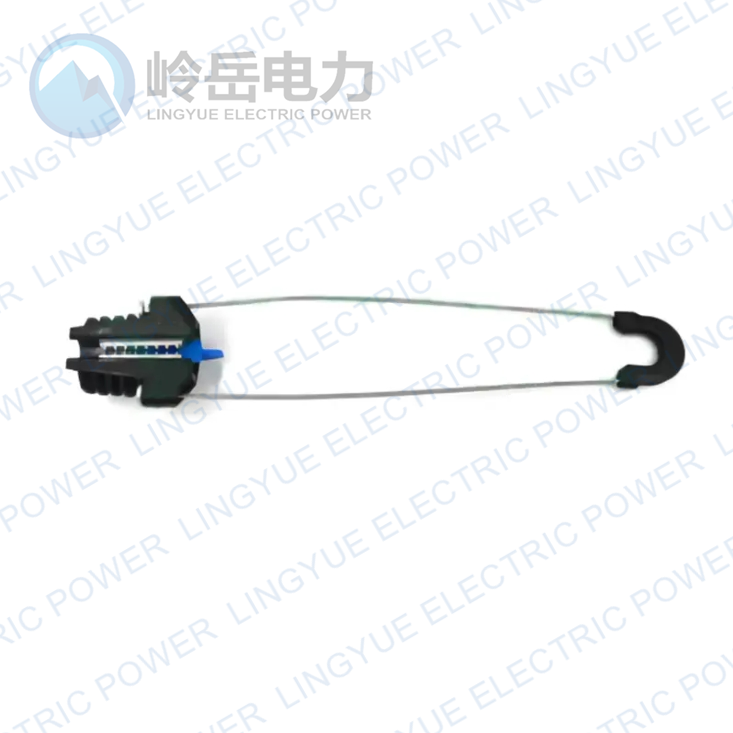

The AC-O-05 UV Protect Dead End Clamp is designed for a fast, easy and reliable dead-ending of fiber optic cables on access networks with spans up to 100 m.
A pair of wedges grips the cable automatically within the conical body.
No special tools are required.
• Standard: NFC33-042
Clamp body made of weather and UV resistance Polymer.Made of UV resistant, glass fiber reinforced synthetic material.
>The handle and the hook have good corrosion resistance.
>All of the elements are captive.
INSTALLATION
Item No. | Cross Section(mm2) | Conductor(mm) | Breaking Load(KN) |
AC-O-05 | 16-25 | 3-7 | 3 |
AC-O-08 | 16-25 | 6-8 | 4 |
AC-O-10 | 16-25 | 8-10 | 5 |
Dead end clamp has high strength and reliable grip.
A pair of wedges grips the cable automatically within the conical body.One core Anchor clamps are design to supporting the neutral messenger, the wedge can be self-adjusting.The installation does not require any specific tools and the operating time is drastically reduced.
The stress distribution of anchoring clamp to the twisted wire is uniform. The twisted wire is not damaged, and the anti-vibration ability of the twisted wire is improved.
Simple installation and easy construction.
The quality of the installation of anchoring clamp is guaranteed
Good corrosion resistance, use high quality materials.
And the installation instruction are as followed:

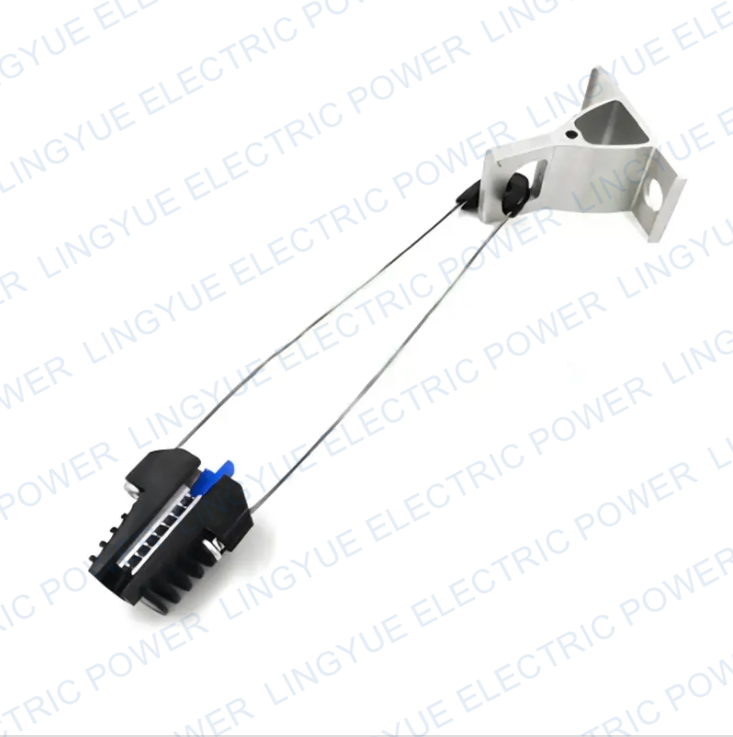

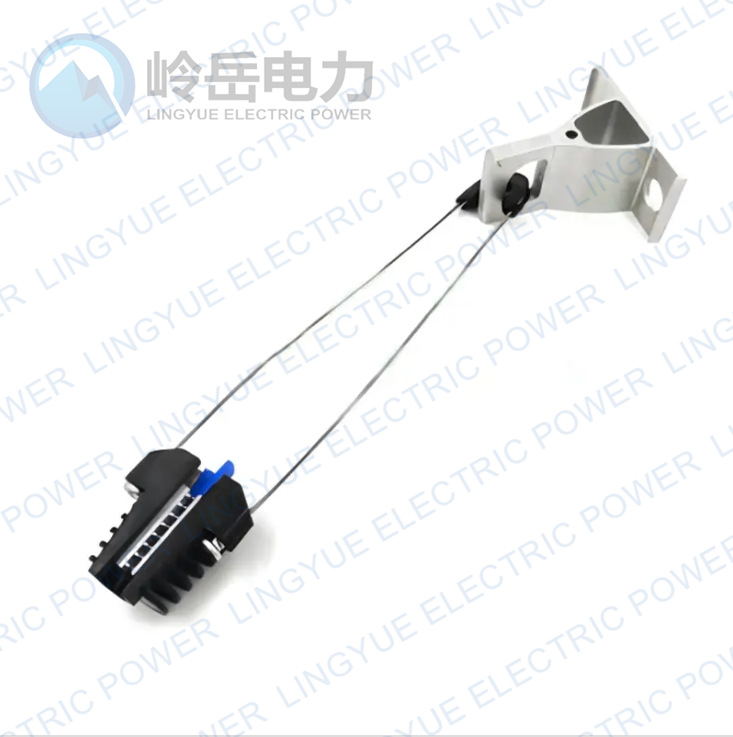

1.Attach the clamp to the pole bracket using its flexible bail.
2.Place the clamp body over the cable with the wedges in their back position.
3.Push on the wedges by hand to initiate the gripping onto the cable.
4.Check the correct positioning of the cable between the wedges.
5.When the cable is brought to its installation load at the end pole,the wedges move further onto the clamp body.When installing a double dead-end leave some extra length of cable between the two clamps.
