PA-07 tension clamp

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

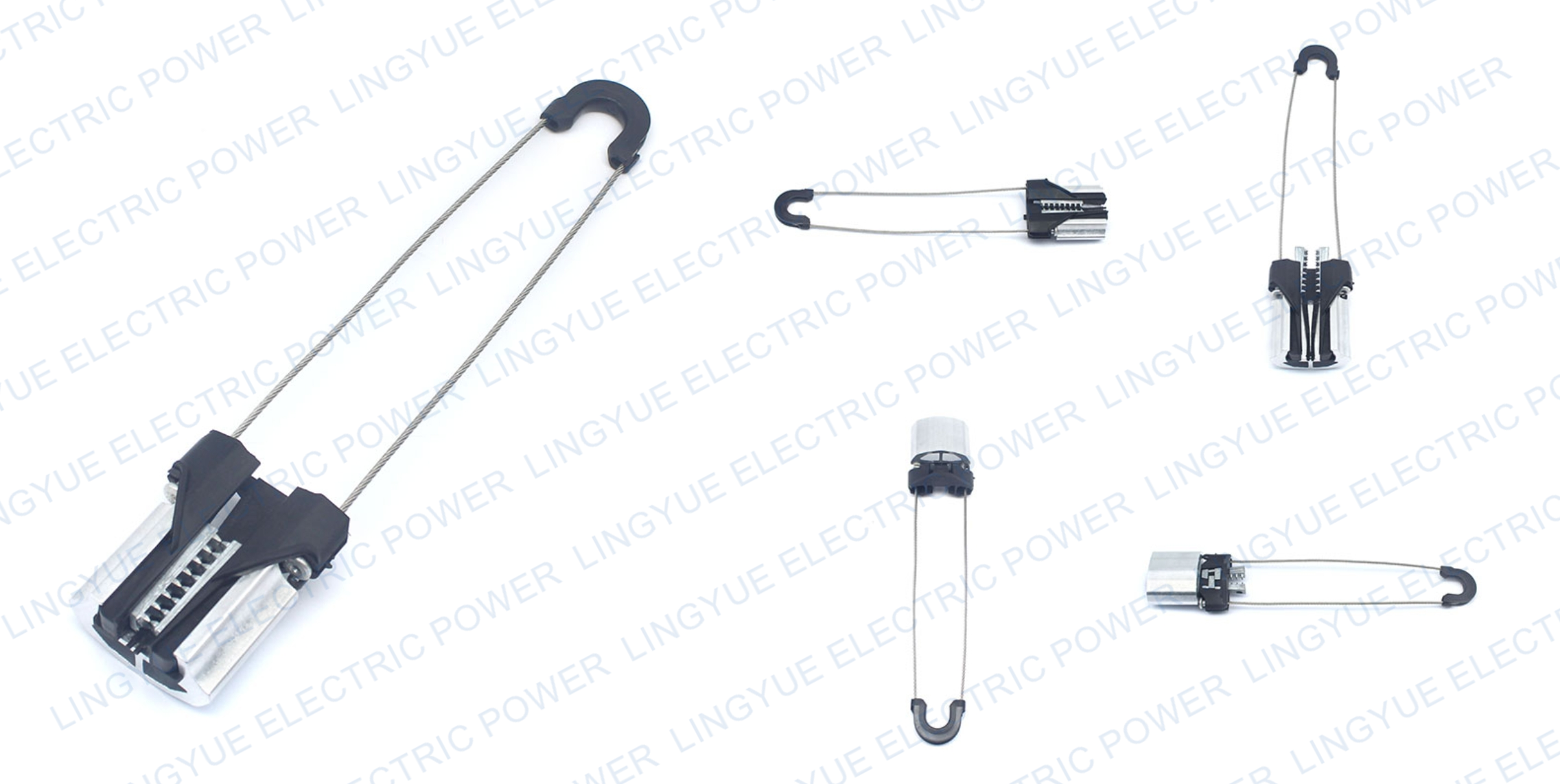

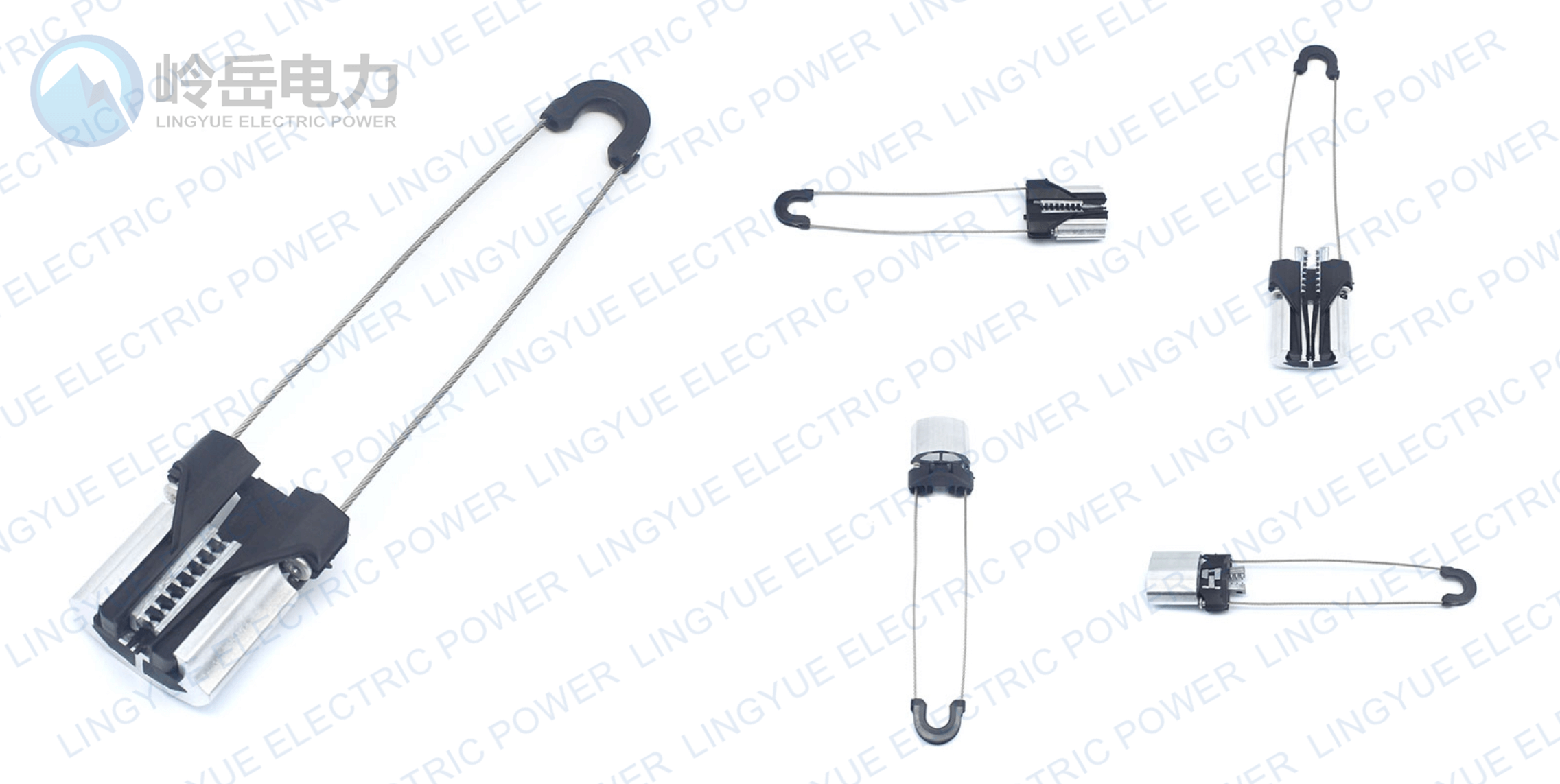

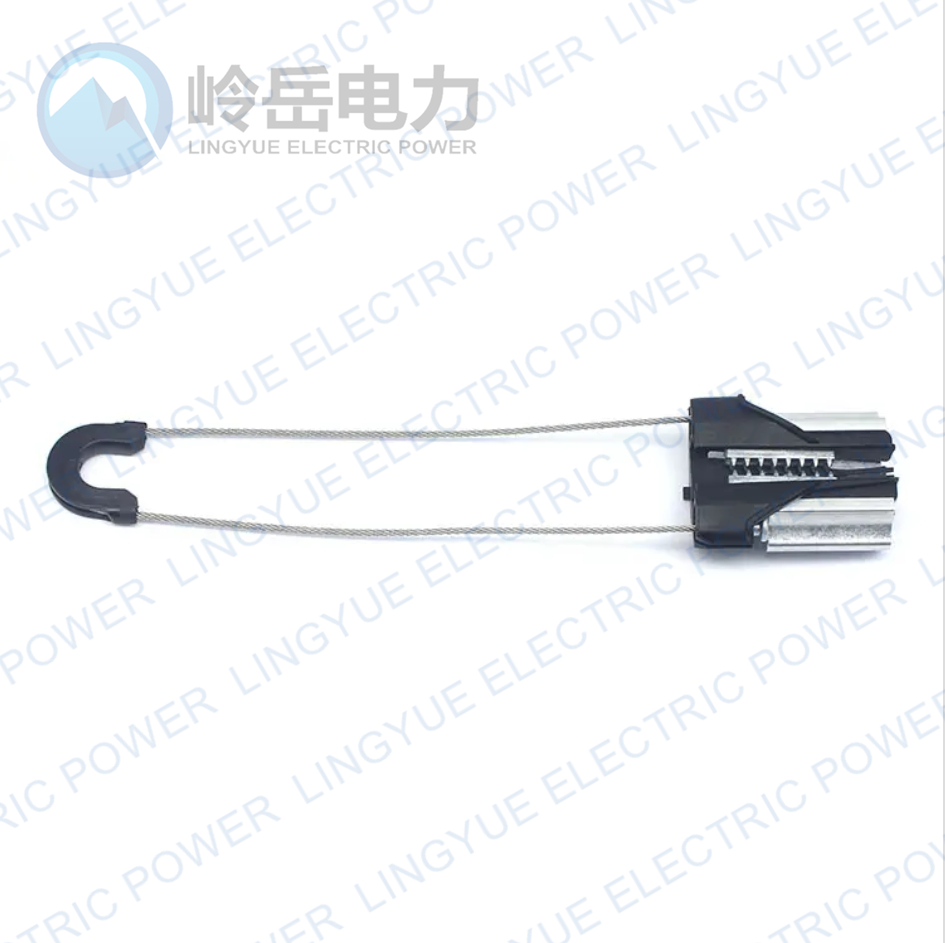

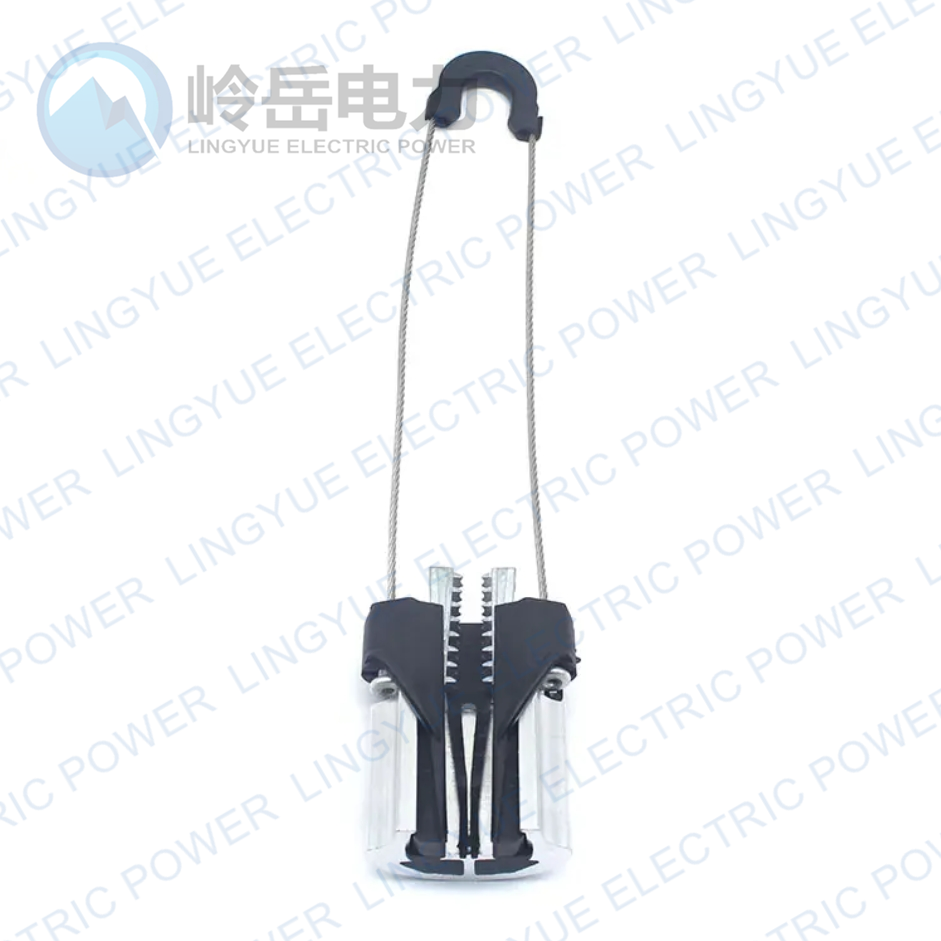

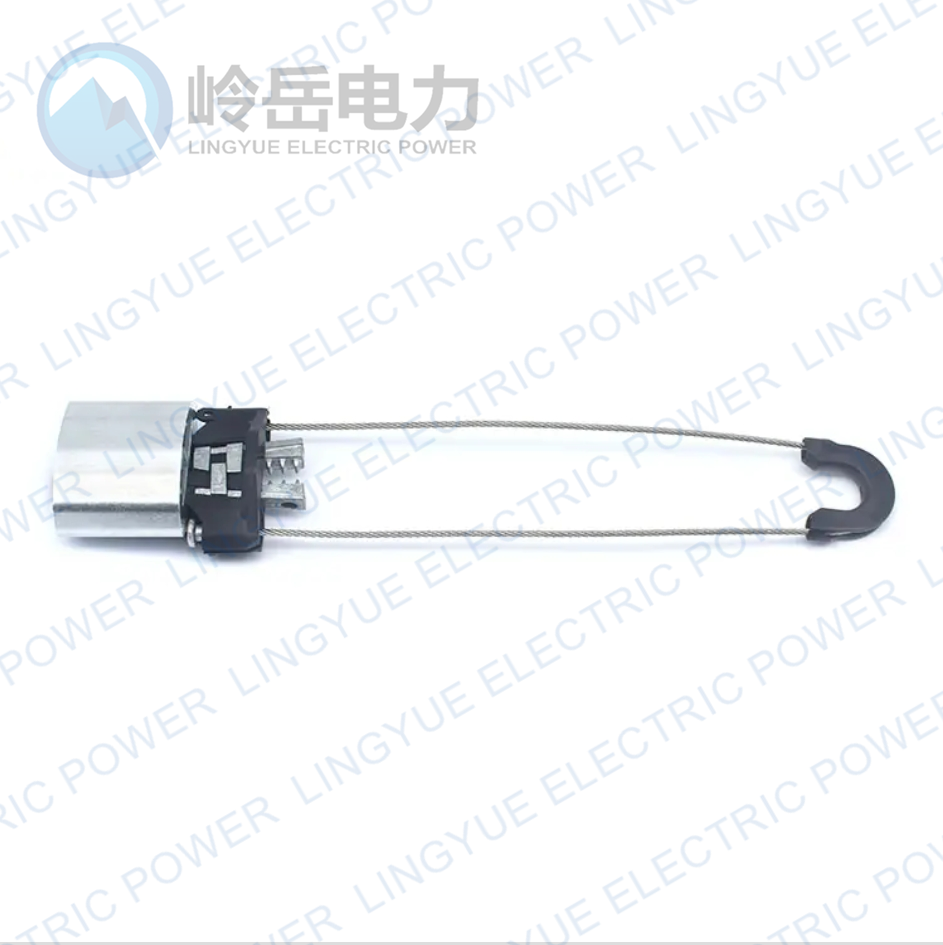

PA-07 are designed for fastening and holding in tension an optical cable with an external metal power element of type 8 on supports of overhead power lines, communications, urban electrical facilities (street lighting, ground electric transport), elements of buildings and structures with a span length of up to 100 meters. The clamp consists of a body made of high-strength polymer, steel wedges with teeth for fixing the cable from slipping, a cable made of stainless steel 3-8 mm. It complies with the international standard NFC 33-041.

AVERAGE NO.	DESCRIPTION	UNIT	DATA
1	Clamp type		Anchor clamp
2	Item number:		PA07
3	International standard it complies with		NFC 33-041
4	Conductor size range	mm	3-8
5	Connector core color		BLACK
6	Body material		UV STABILIZED THERMOPLASTICNylon with fiberglass, aluminum alloy
7	Collateral material		Stainless steel 304 handrail
8	Breaking load	kN	5
9	Logo		/
10	Scheduled test		1. Dimensional check 2. Mechanical test a) Product breakthrough 3. Visual a) Marking (printing and embossing) b) General finishing c) Packaging quality
