PA235 and PA435

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Application:

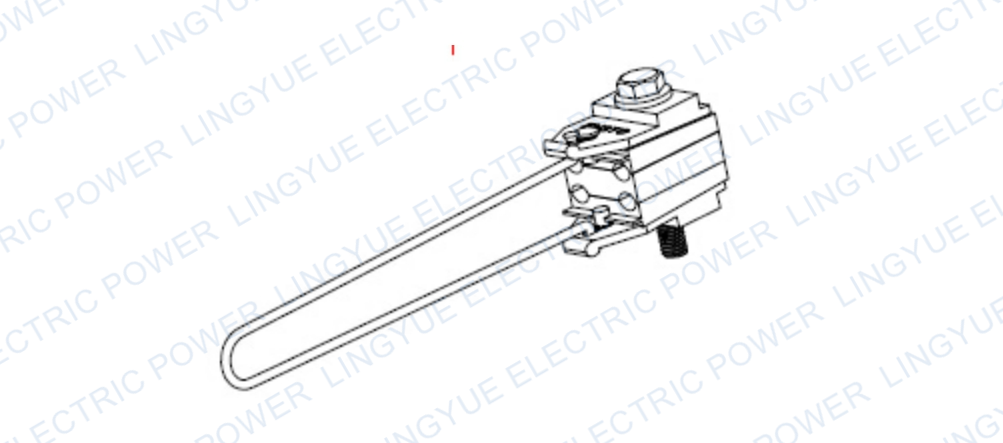

The PA dead-end clamp is designed to fasten insulated two-wire power lines.

Features:
1) The housing is made of corrosion-resistant aluminum alloy, the automatic adjustment wedge is made of a special polymer material, it does not change when exposed to ultraviolet radiation.
2) Tool-free installation with wedges sliding inside the housing, an easy-to-open bracket allows you to fix brackets and pigtails.
3) The PA anchor branch clamp is made of weather-resistant polymer with reinforced thermoplastic coating, resistant to ultraviolet radiation.
4) There is a flexible stainless steel wire with a clamp.

Item number.	Section (mm2)	Material	Conductor (mm)	Breaking load
PA2/35	2X(16-35)	Nylon, Steel	3-6	6.5KN
PA4-35	4X(16-35)	Nylon, Steel	3-6	8KN

The wedge type clamp is self-adjusting.
•The Clamp is made of weather and UV light resistant glass fibre reinforced polymer and hot dip galvanized steel
