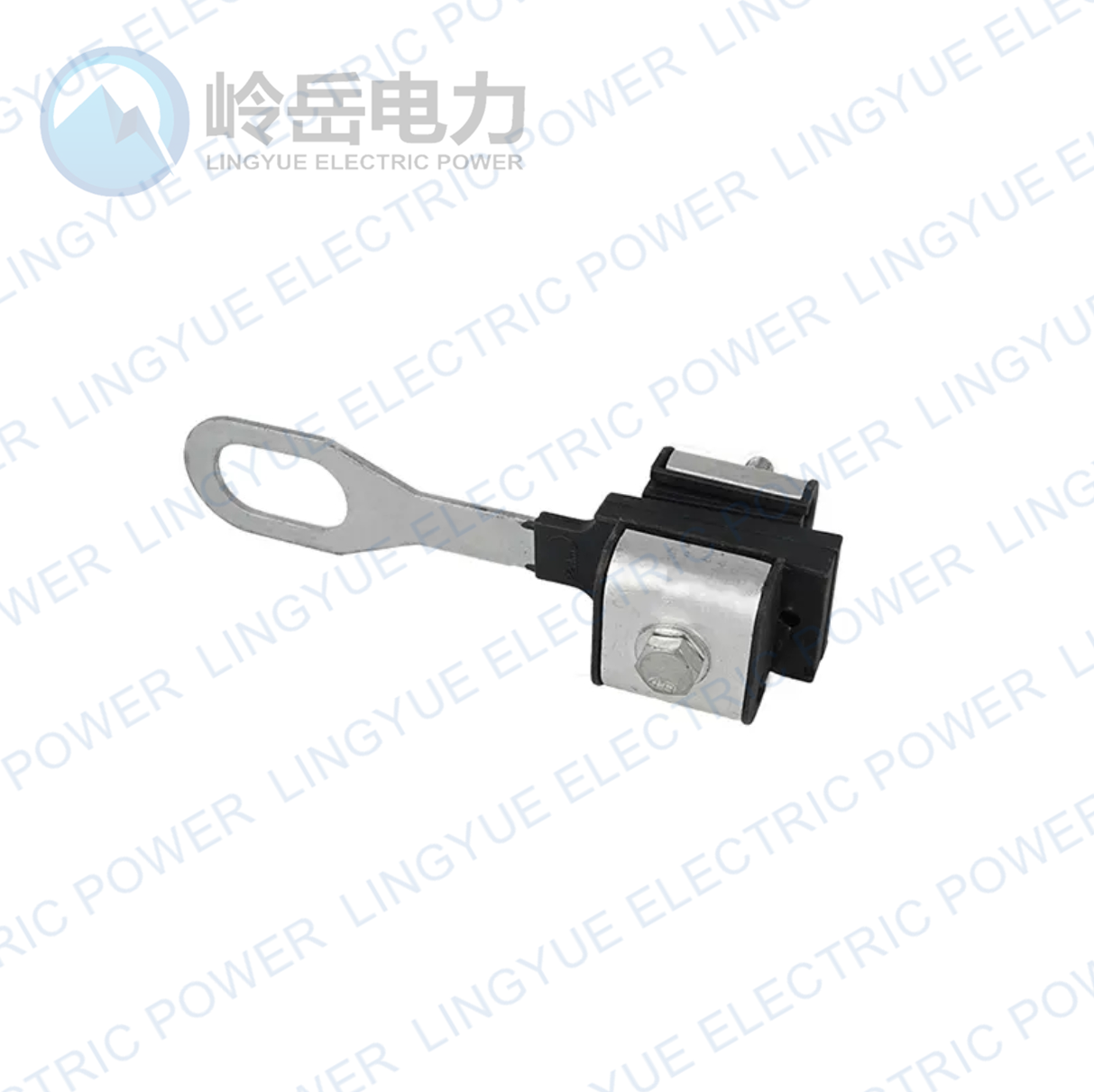

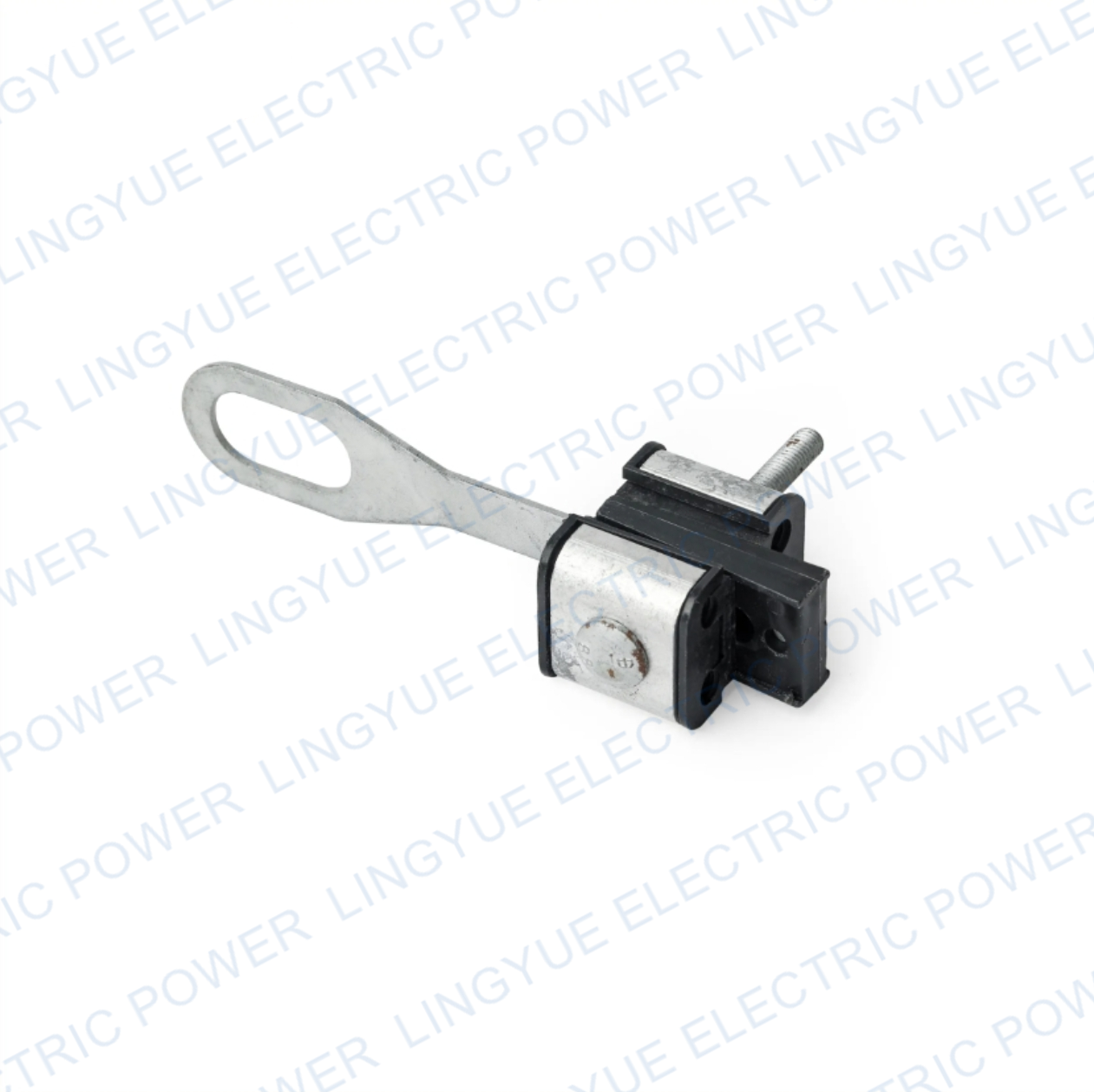

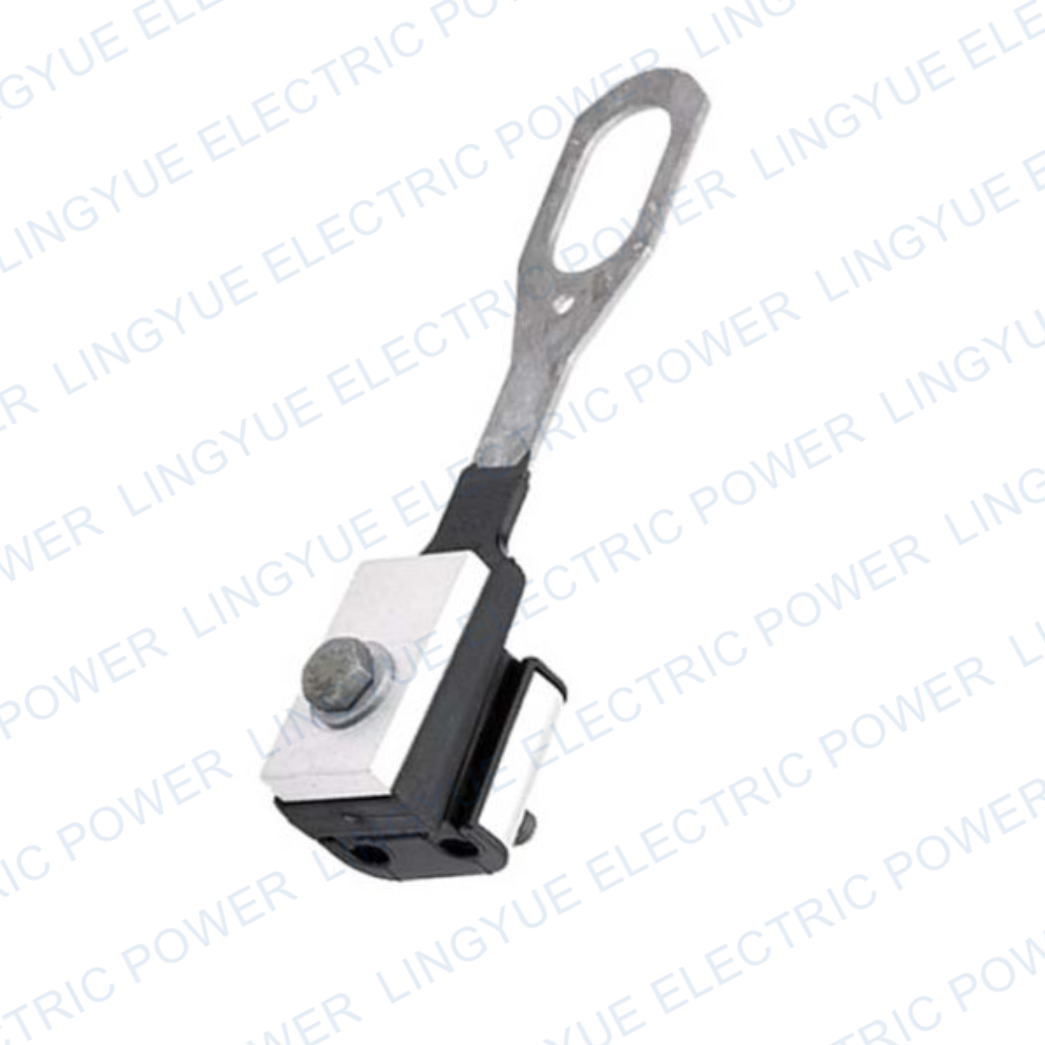

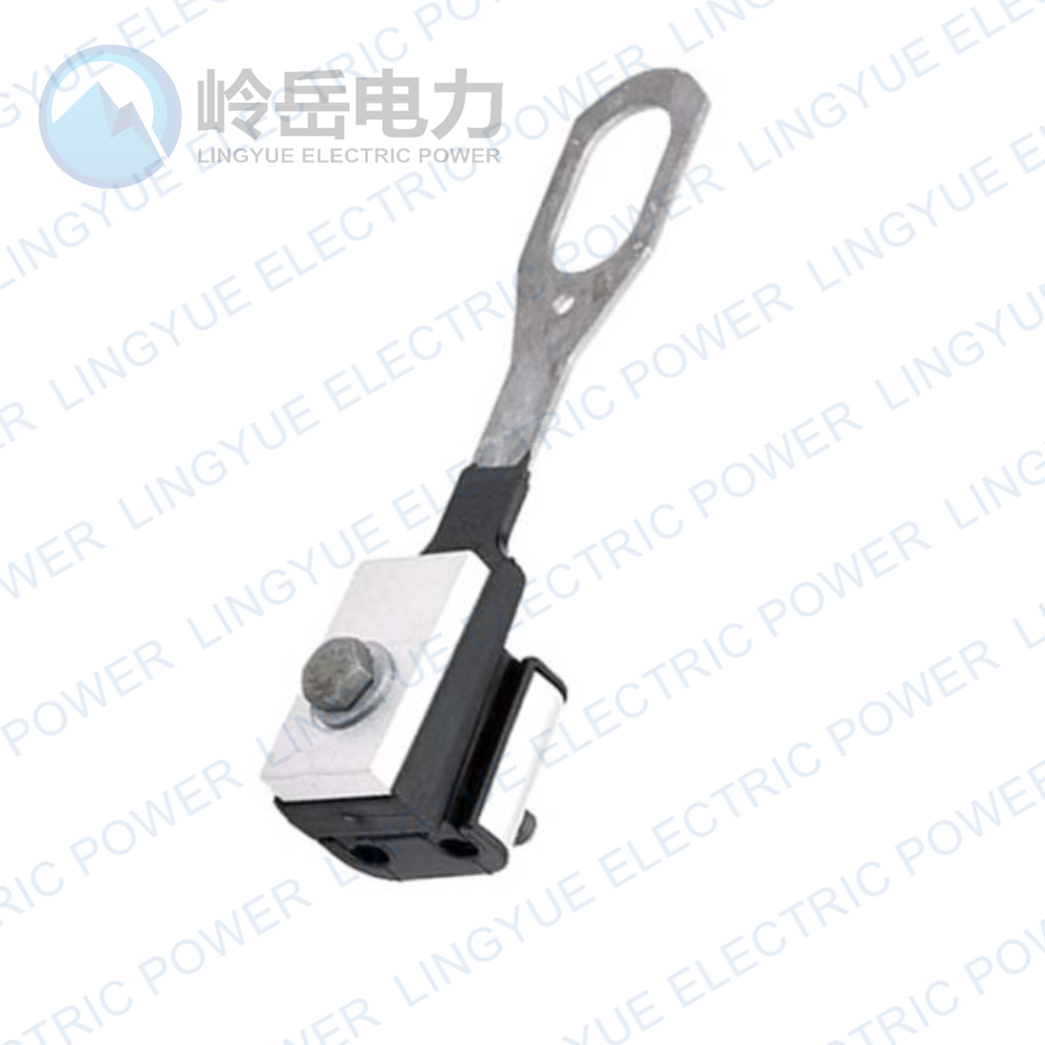

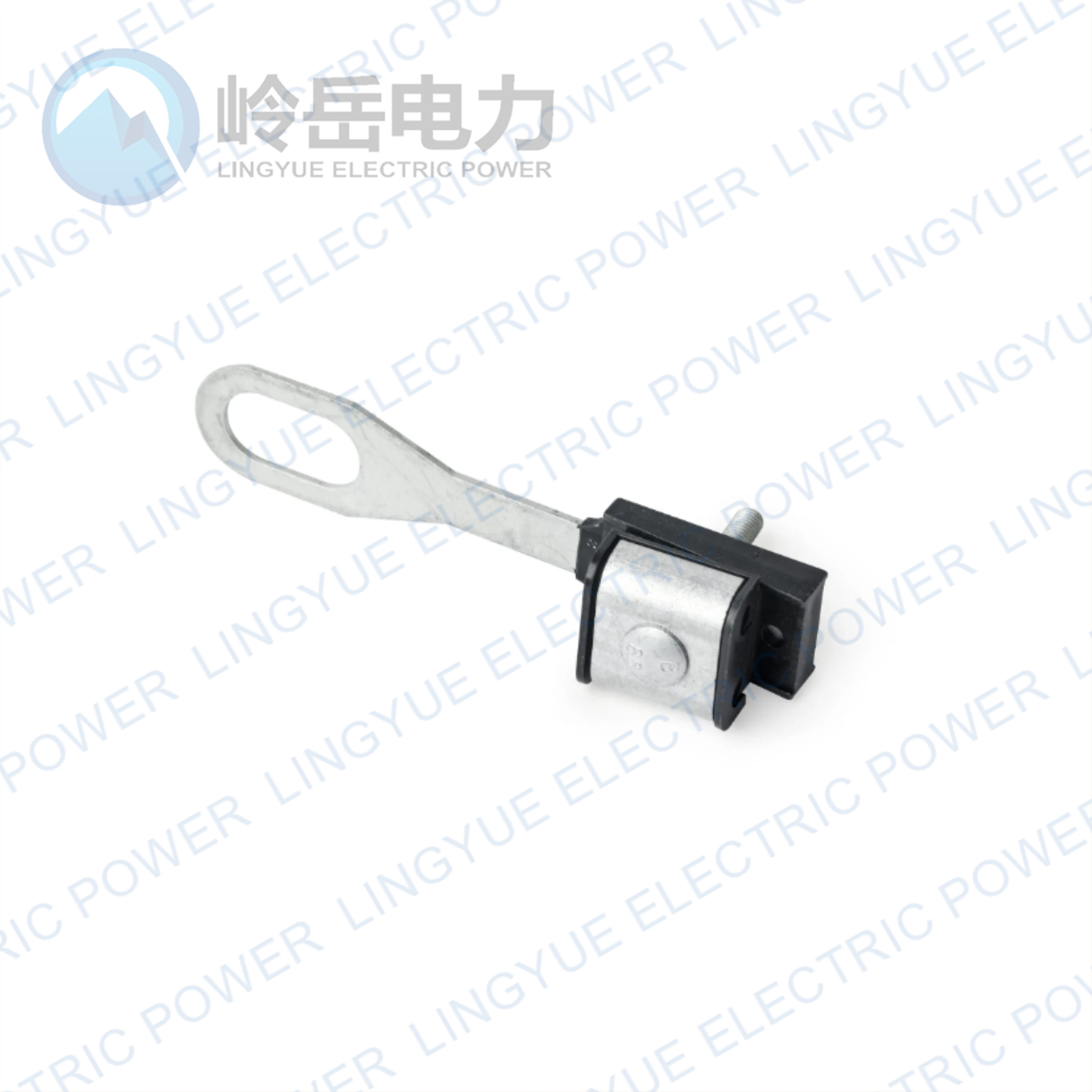

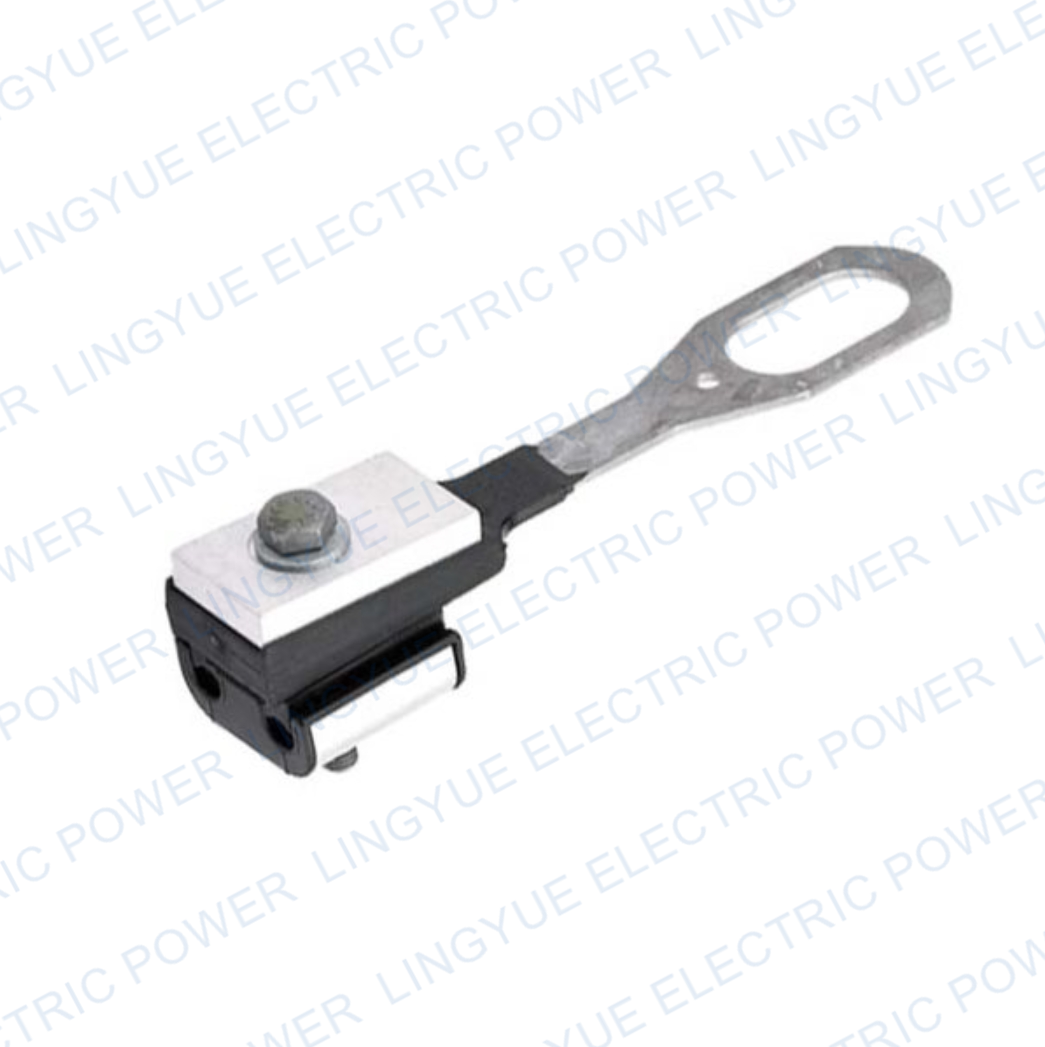

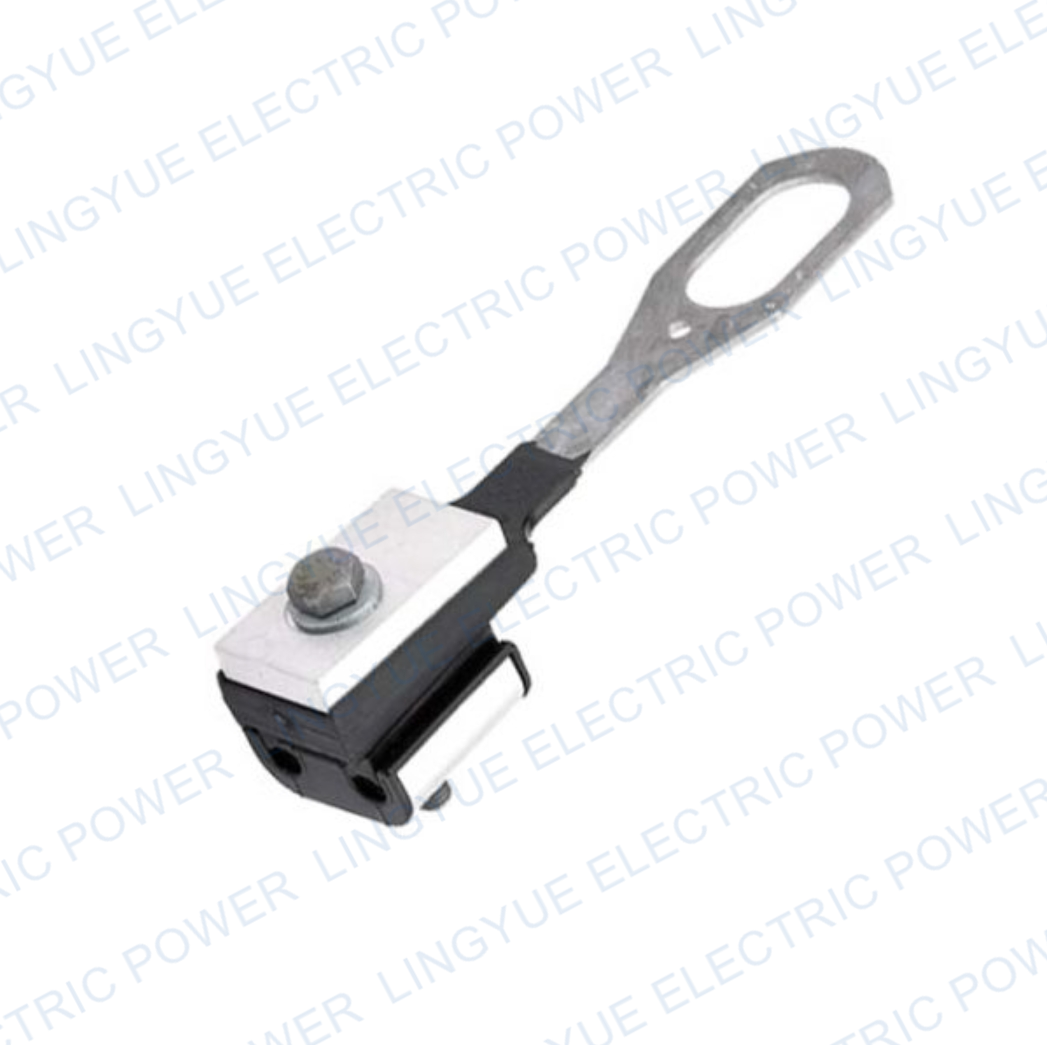

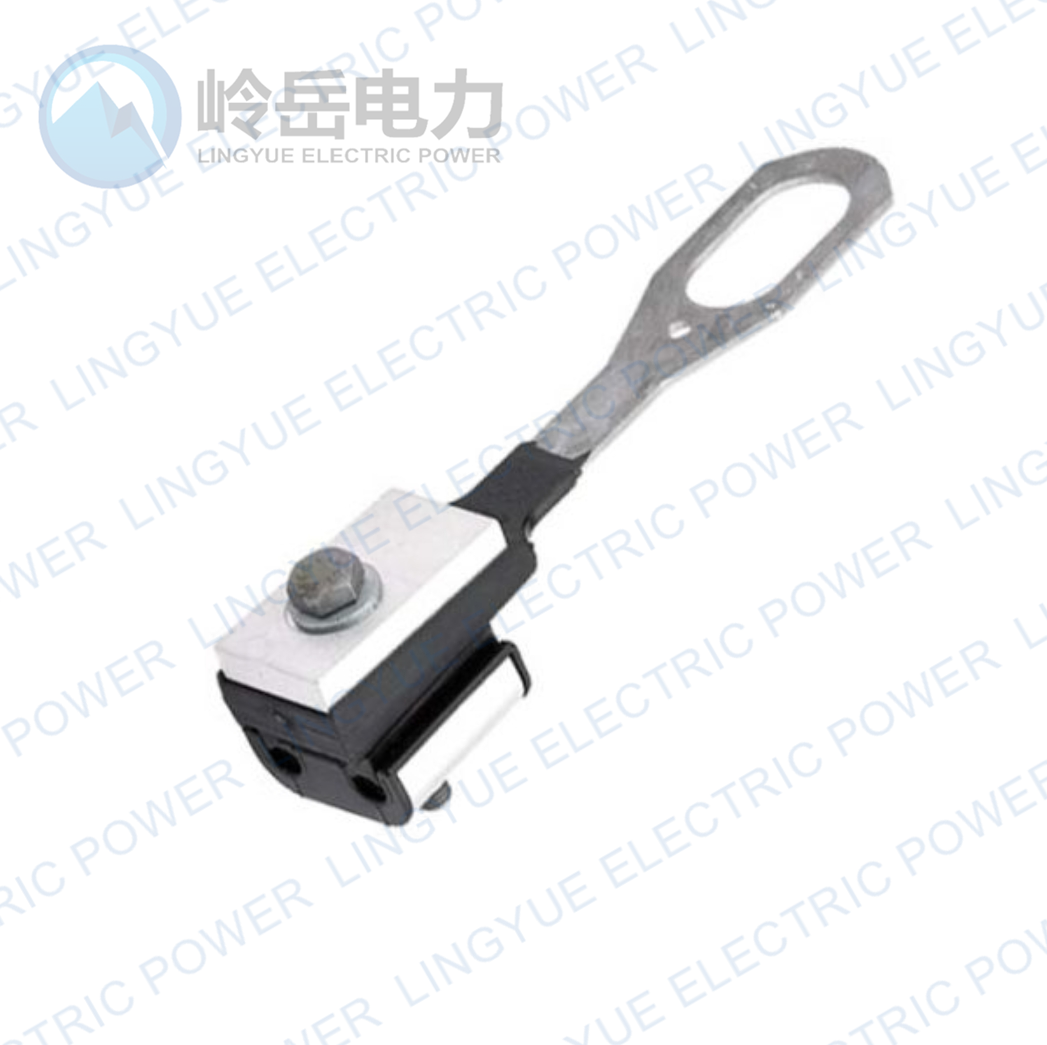

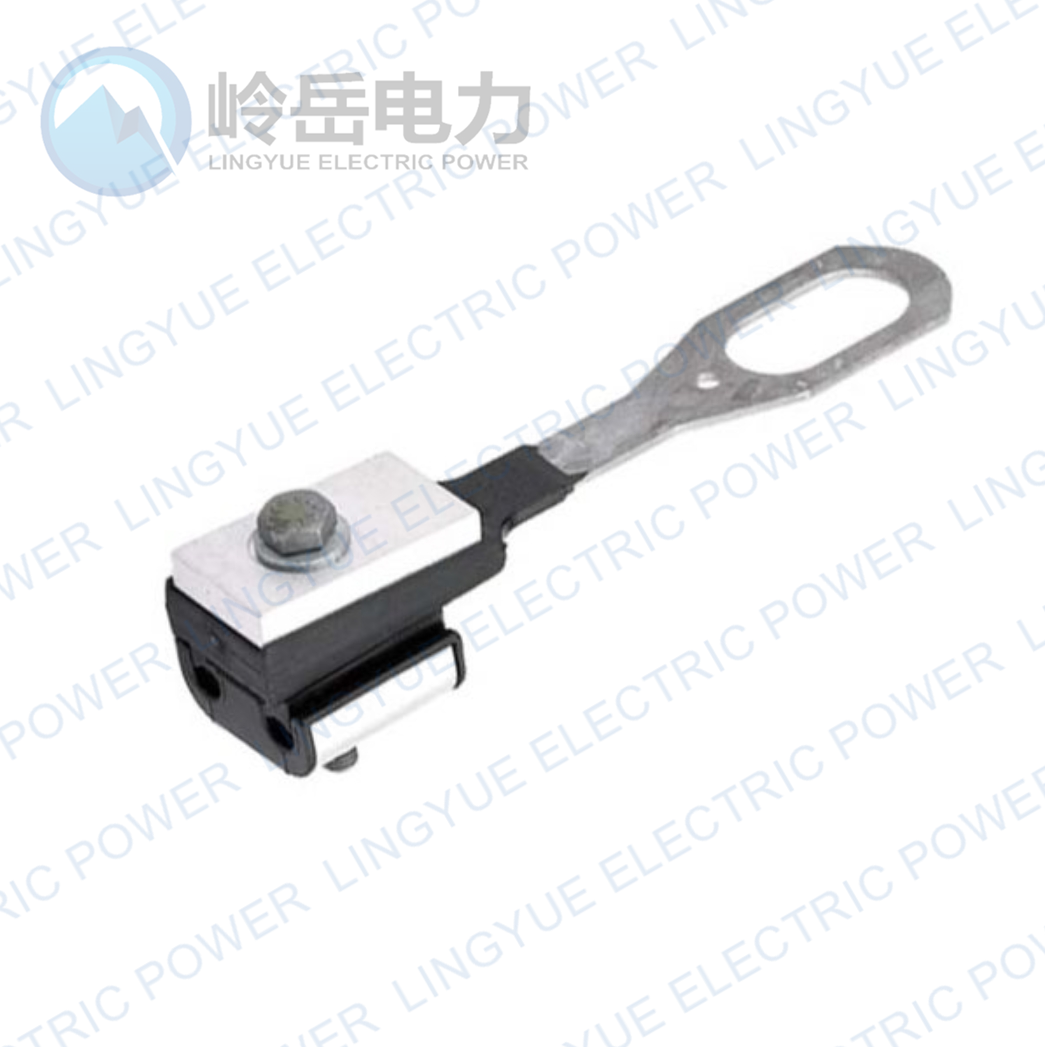

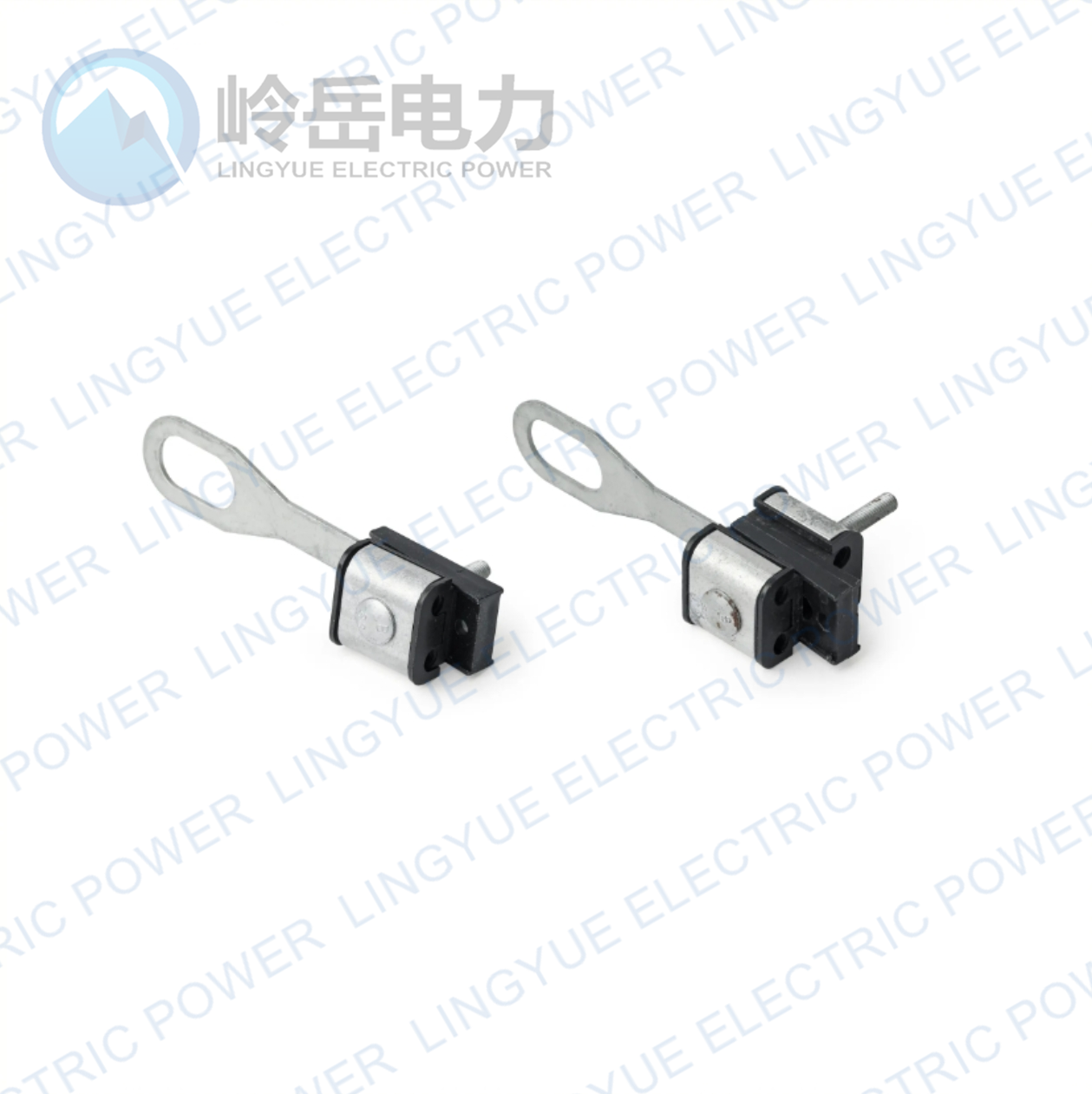

PAG tension clamp

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

PAG Series dead end clamp is designed to anchor self-supporting LV-ABC lines with 2 to 4 cores.

•The wedge type clamp is self-adjusting.
• The Clamp is made of weather and UV light resistant glass fibre reinforced polymer and hot dip galvanized steel

Type

Cross section(mm²）

Messenger DIA.(mm)

Breaking load

PAG1

2*(16-35)

4-8

6kN

PAG2

4*(16-35)

4-8

8kN

Features:
1.Reinforced polyamide with fiberglass body.
2.Two clamping steel plates with steel bolts
3.The spring,provide automatic opening of clamp for installation and fastening of wires.

The aluminum anchor clamp has many applications. . It can be used in many places . Suitable for low voltage ABC cable. . And it's easy to install and operate. Easy-to-open bracket allows attachment to brackets and braids. . The anchor clamp is made of aluminum alloy .And it can be used under conditions equivalent to many years of tropical use. .
