Product Introduction

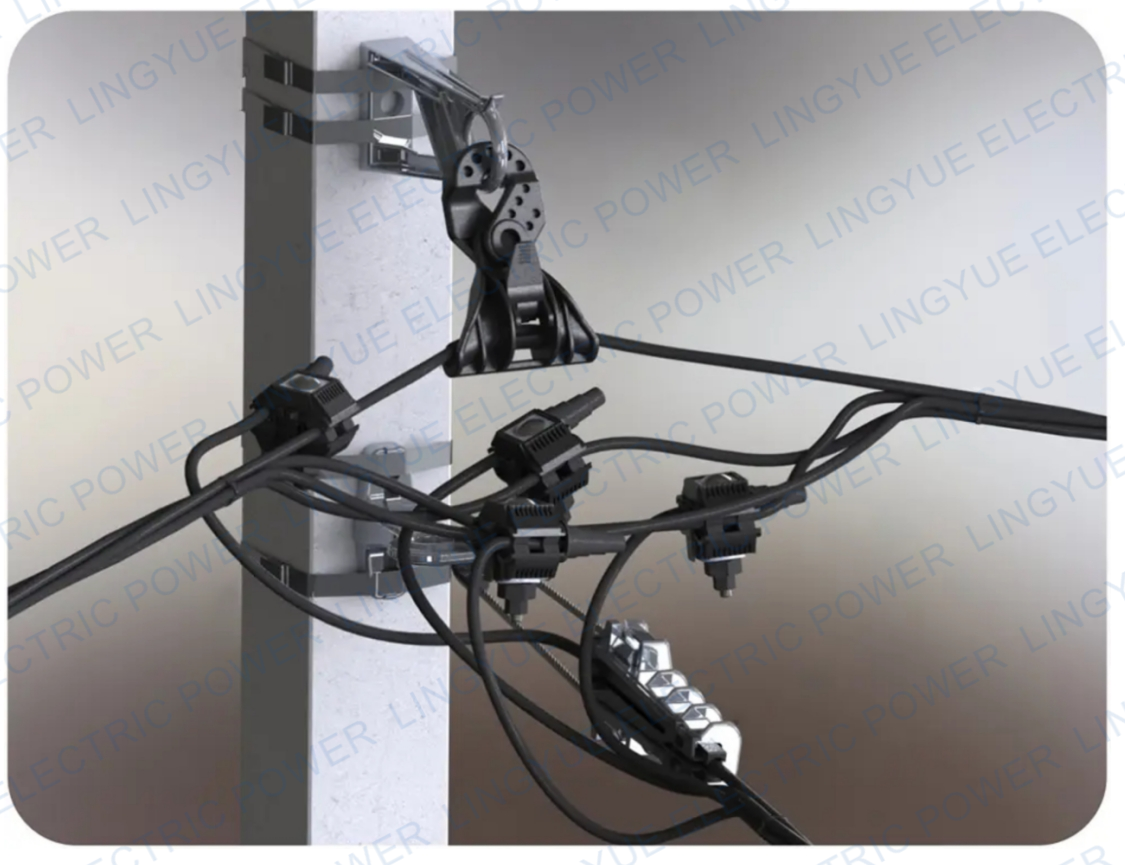

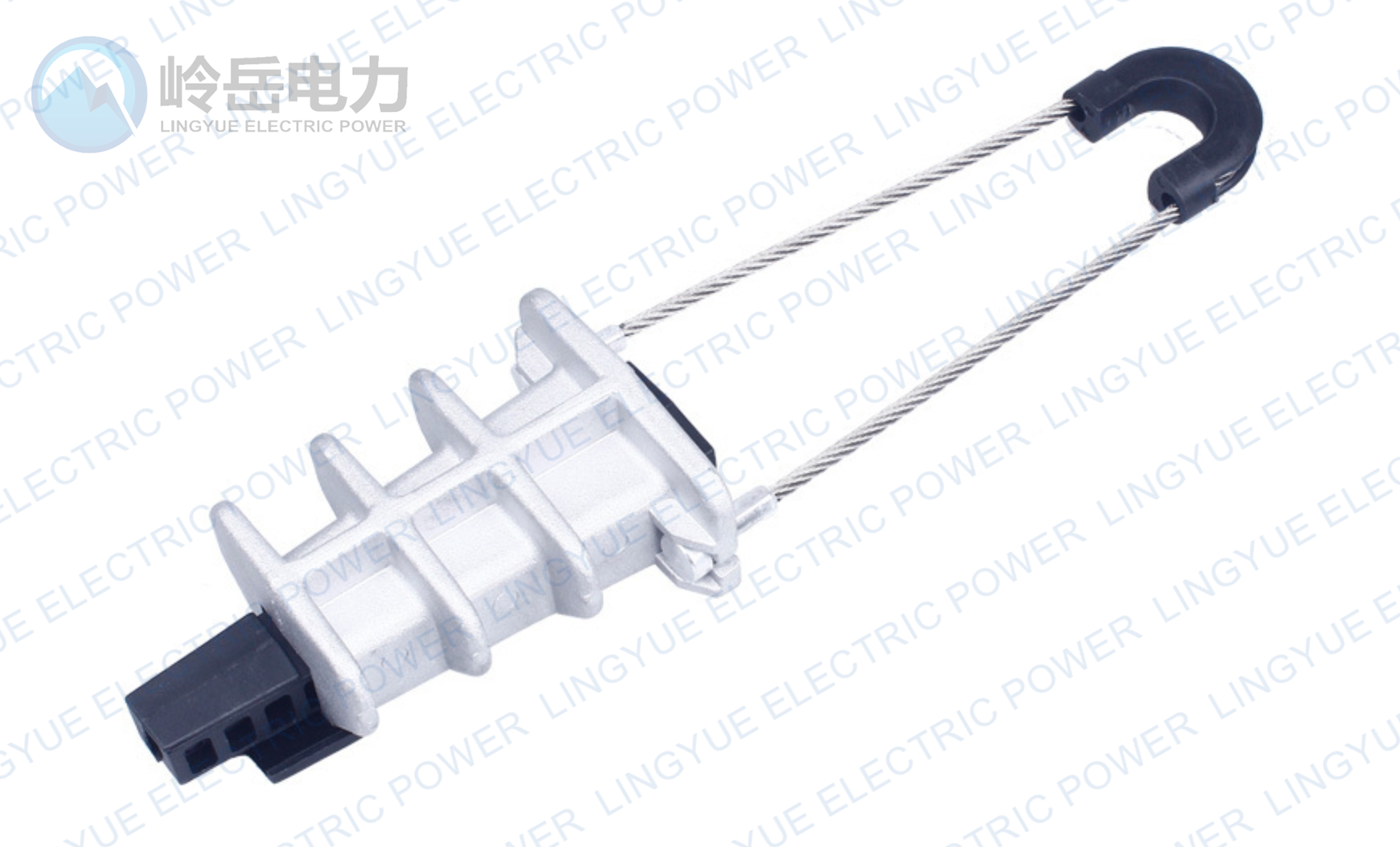

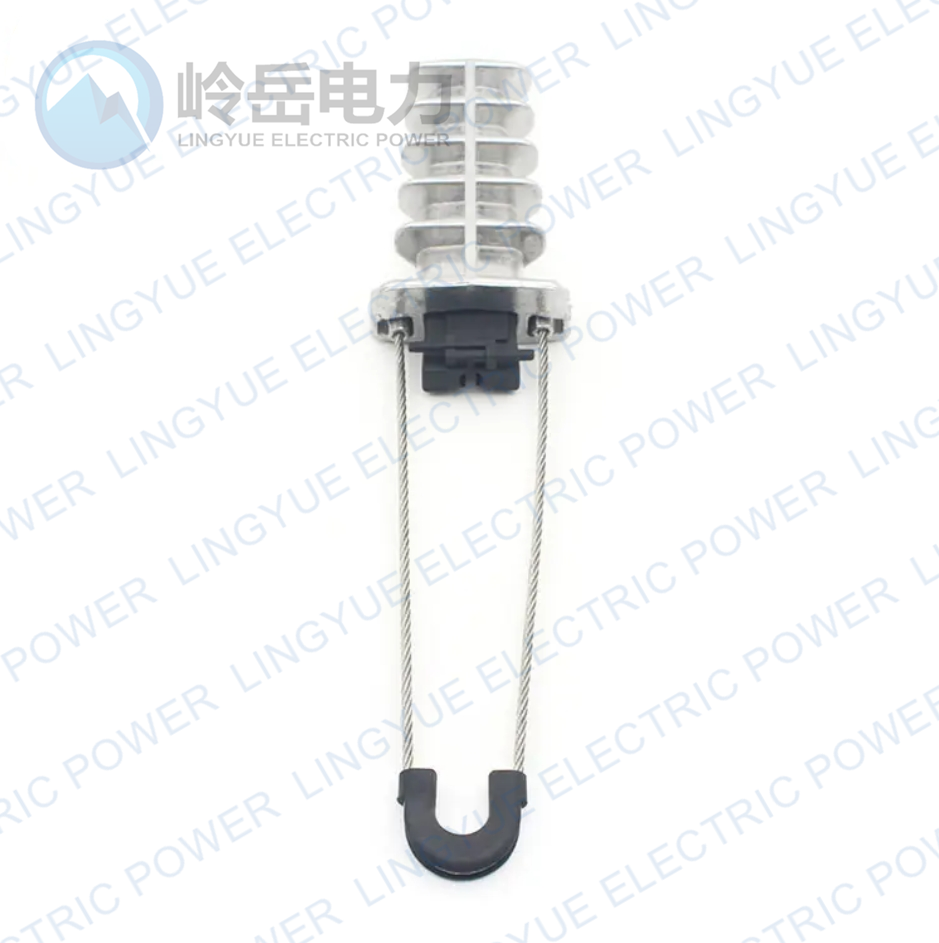

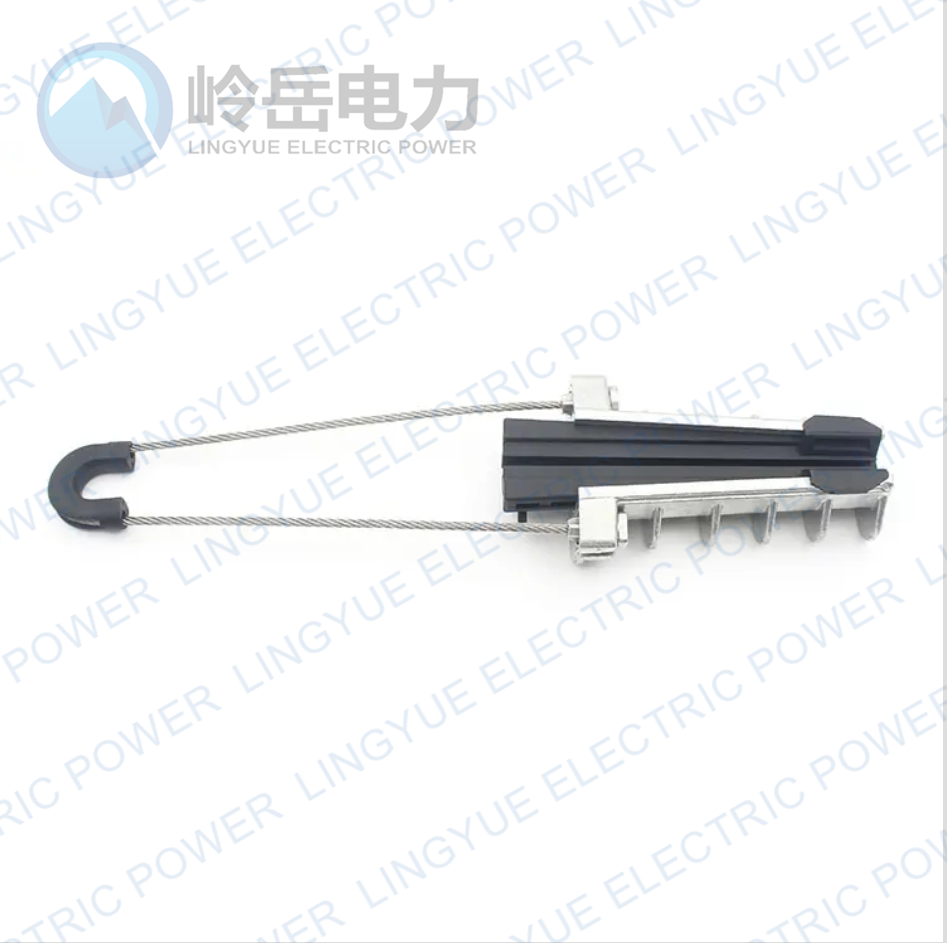

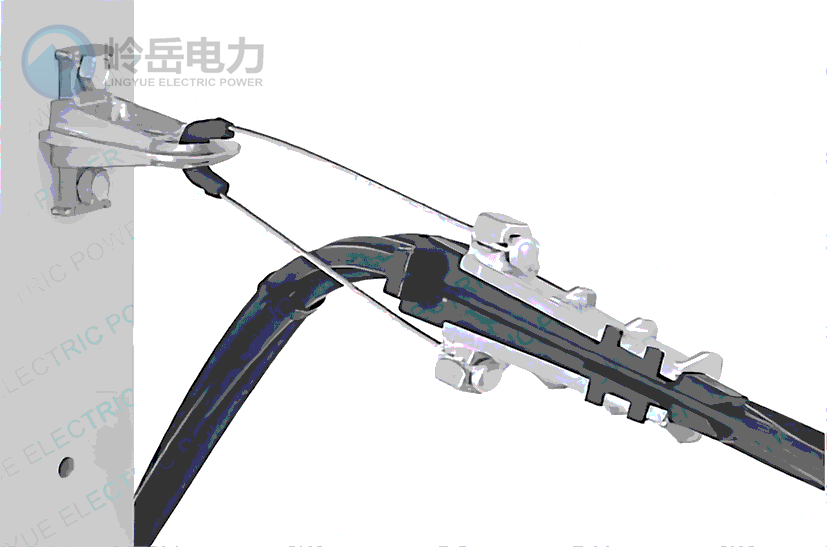

PAL tension clamp are used to anchor and tighten low voltage aerial cables with insulated neutral messenger.

Features:

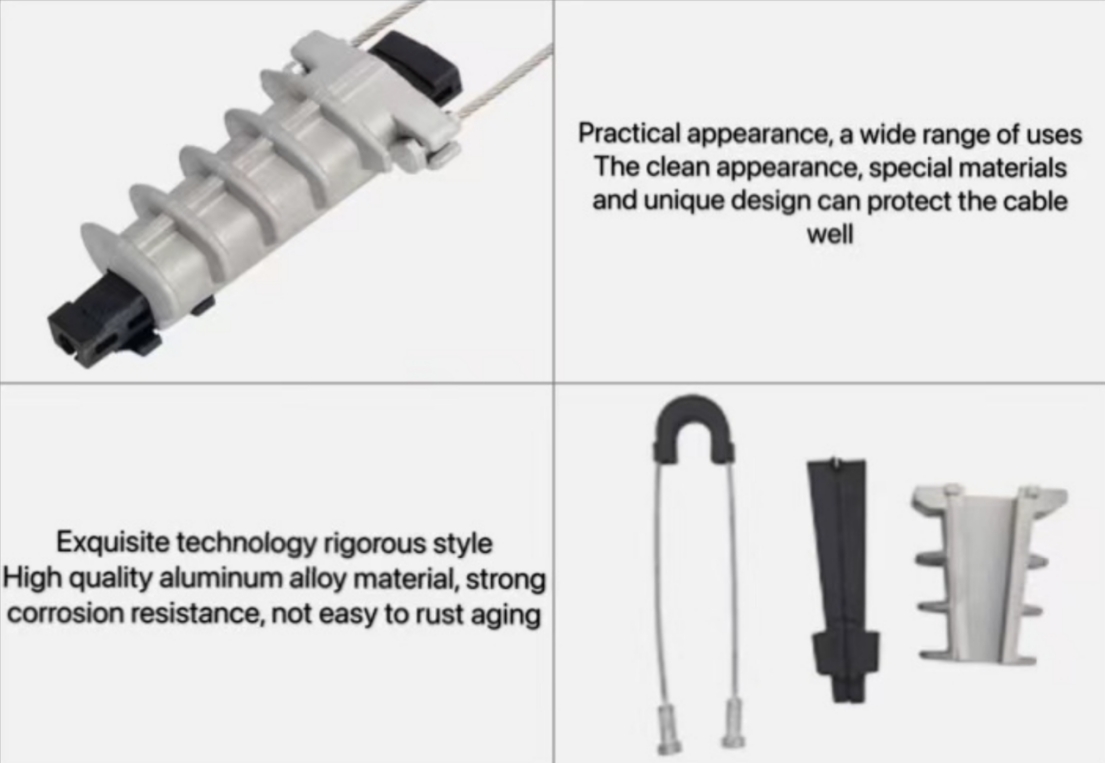

1.Body is casted of corrosion resistant aluminum alloy with high mechanical strength.
2.Metal support is made of stainless steel or steel.
3.Wedges are made of weather resistant and anti-UV material with high mechanical strength.

Standard:EN 50483-3,NF C33-041



Item number.

Section (mm2)

Conductor (mm)

Breaking load

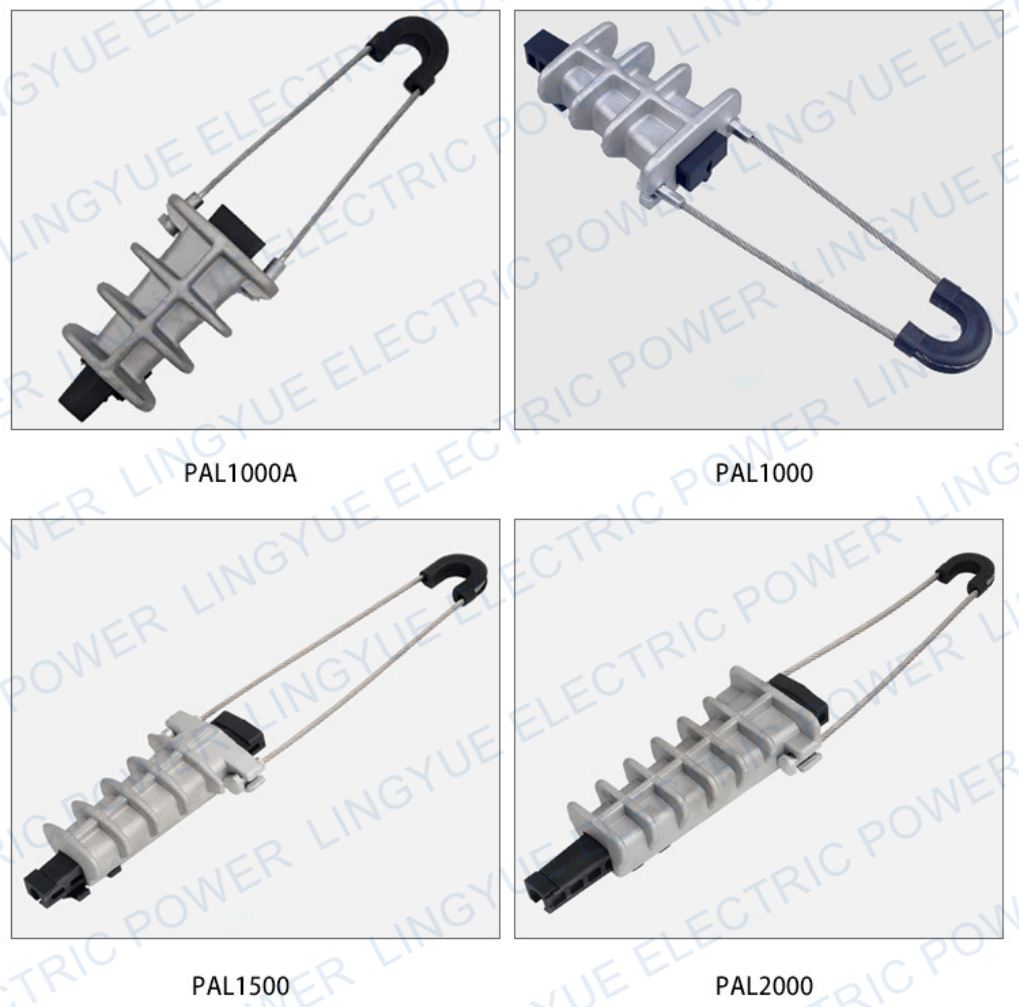

PAL-500

16-35

8-11

6KN

PAL-1000

25-35

8-11

10KN

PAL-1500

35-70

10-14

15KN

PAL-1500

50-70

12-14

15KN

PAL-2000

70-95

14-16

15KN

PAL-2500

120-150

16-20

20KN
