RPA tension clamp

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

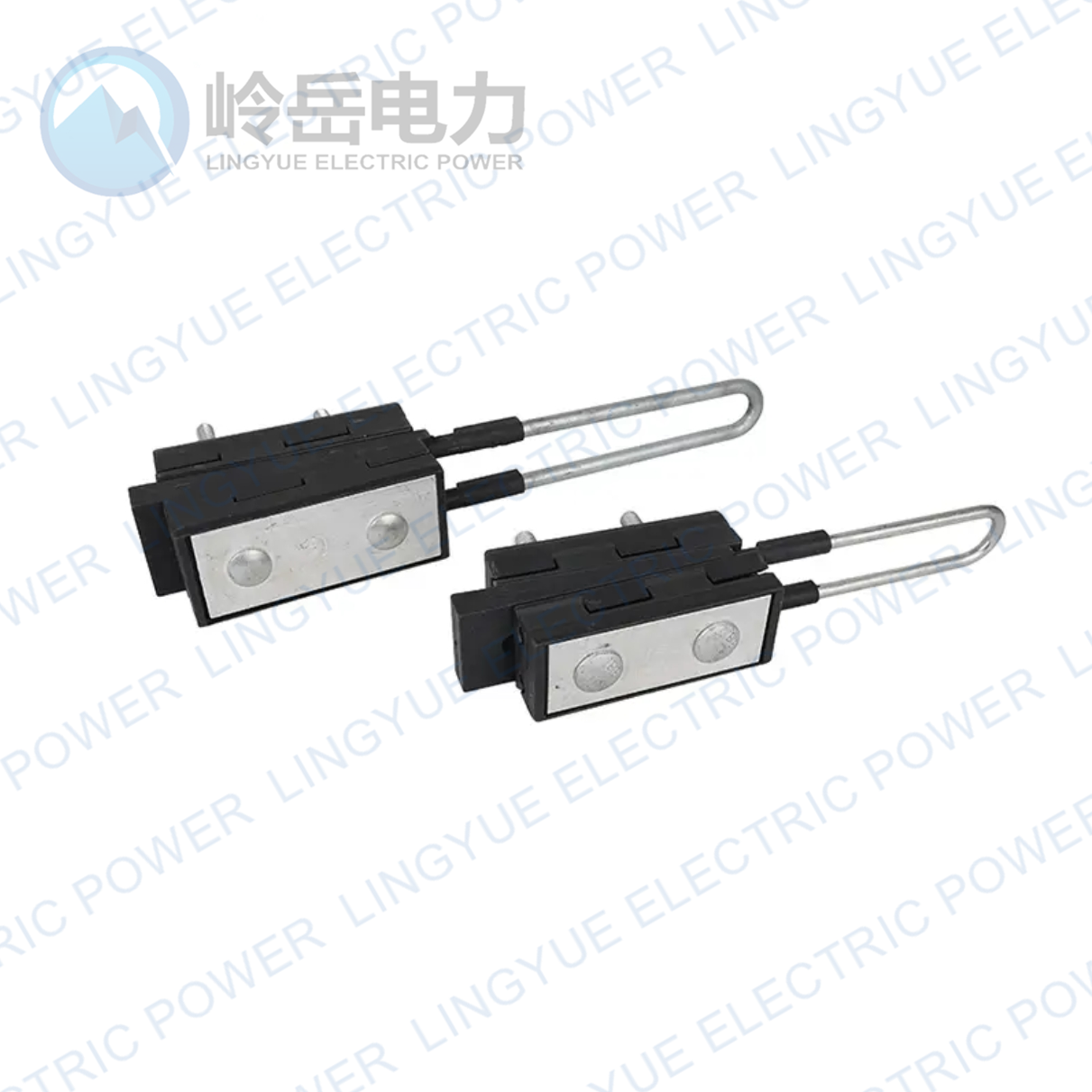

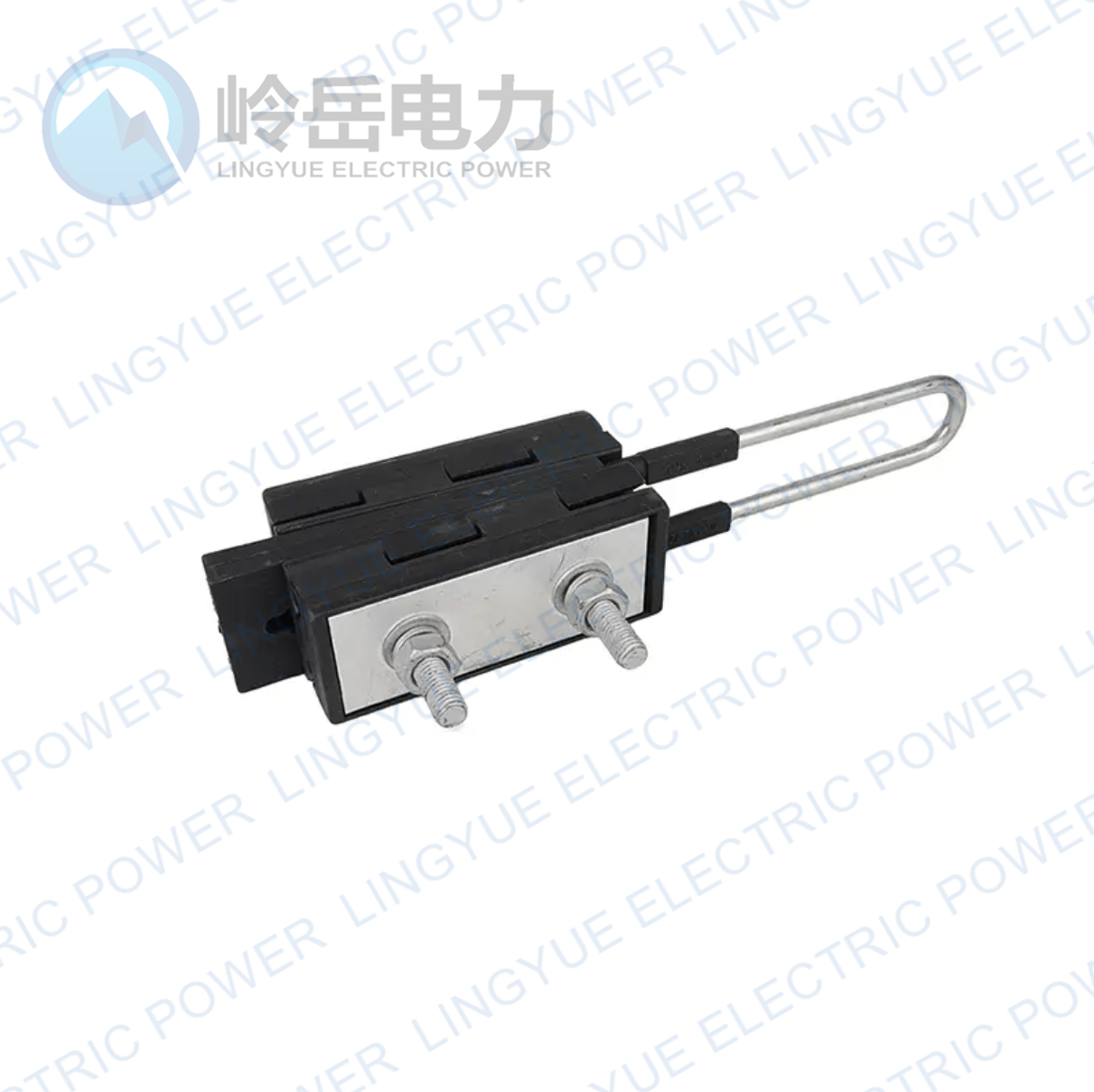

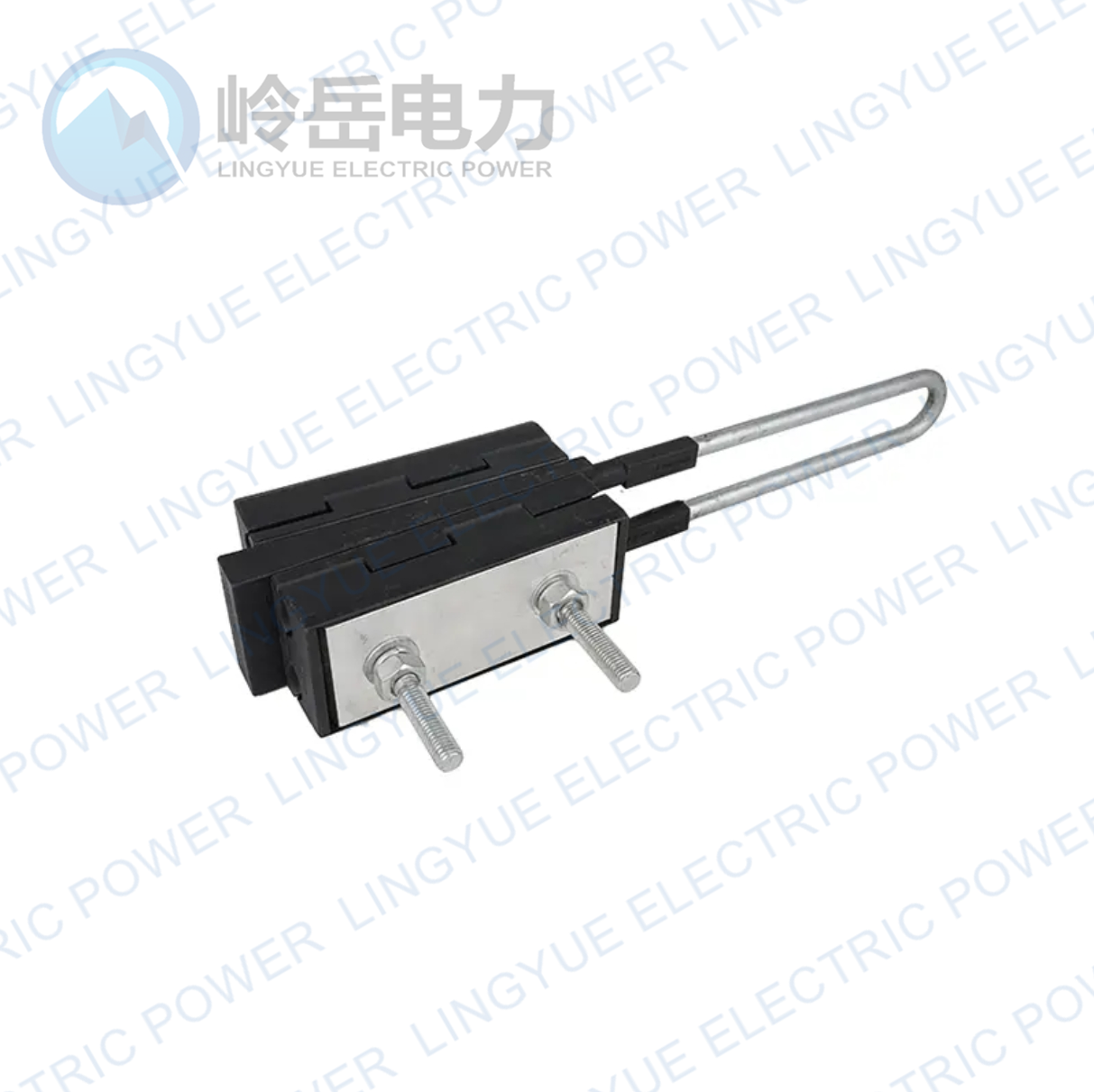

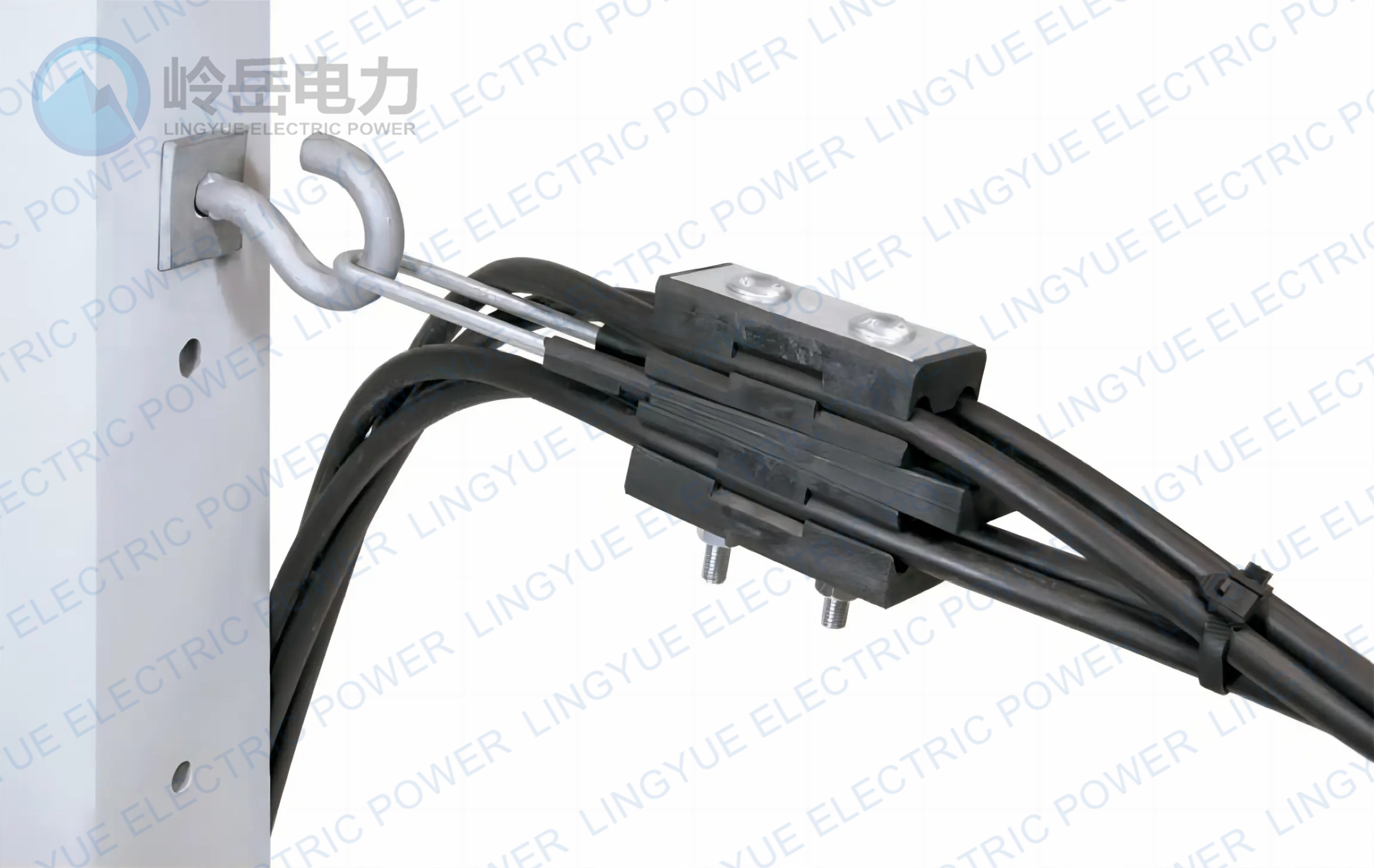

RPA series dead end clamps are designed to anchor self-supporting LV-ABC lines with 2 to 4 cores.

The aluminum alloy body anchor clamp is suitable for low-voltage ABC cable.Wedge-type anchoring clamps are intended for fastening of aerial bundle

cables on trunk lines or their branches. The clamps provide the required tension of the cable over the span length. The clamp made of high strength

aluminum alloy which clamp the neutral messenger without damaging the insulation.

Features:

• Easy to open bail permits fixing to brackets and pigtails

• Tool free installation with wedges sliding inside the body

• The wedge type clamp is self-adjusting.

• Clamp made of weather and UV light resistant glass fibre reinforced polymer and hot dip galvanized steel

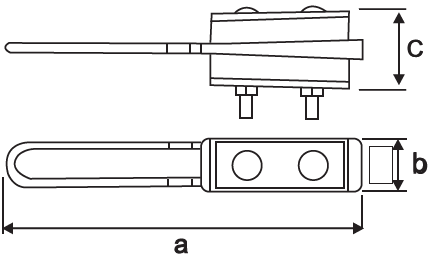

Type

Cross section(mm²）

Messenger DIA.(mm)

Breaking load

RPA 425/50

4*(25-50)

10-12

15kN

RPA 450/120

4*(50-120)

11-17

20kN
