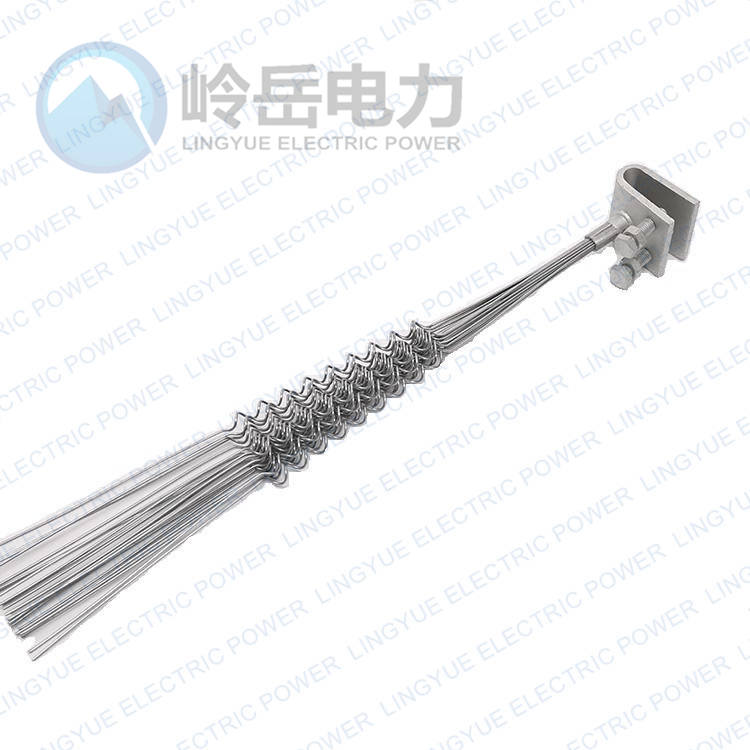

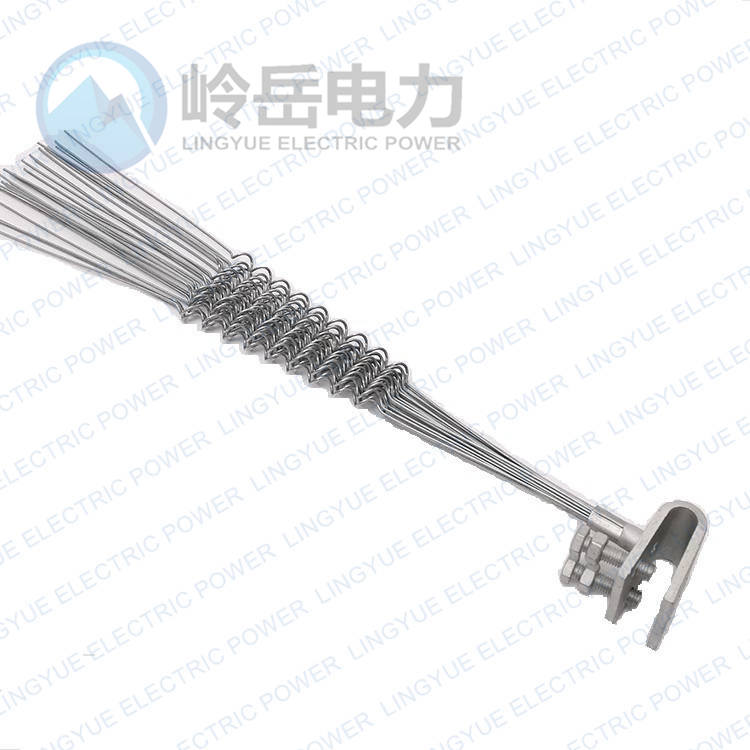

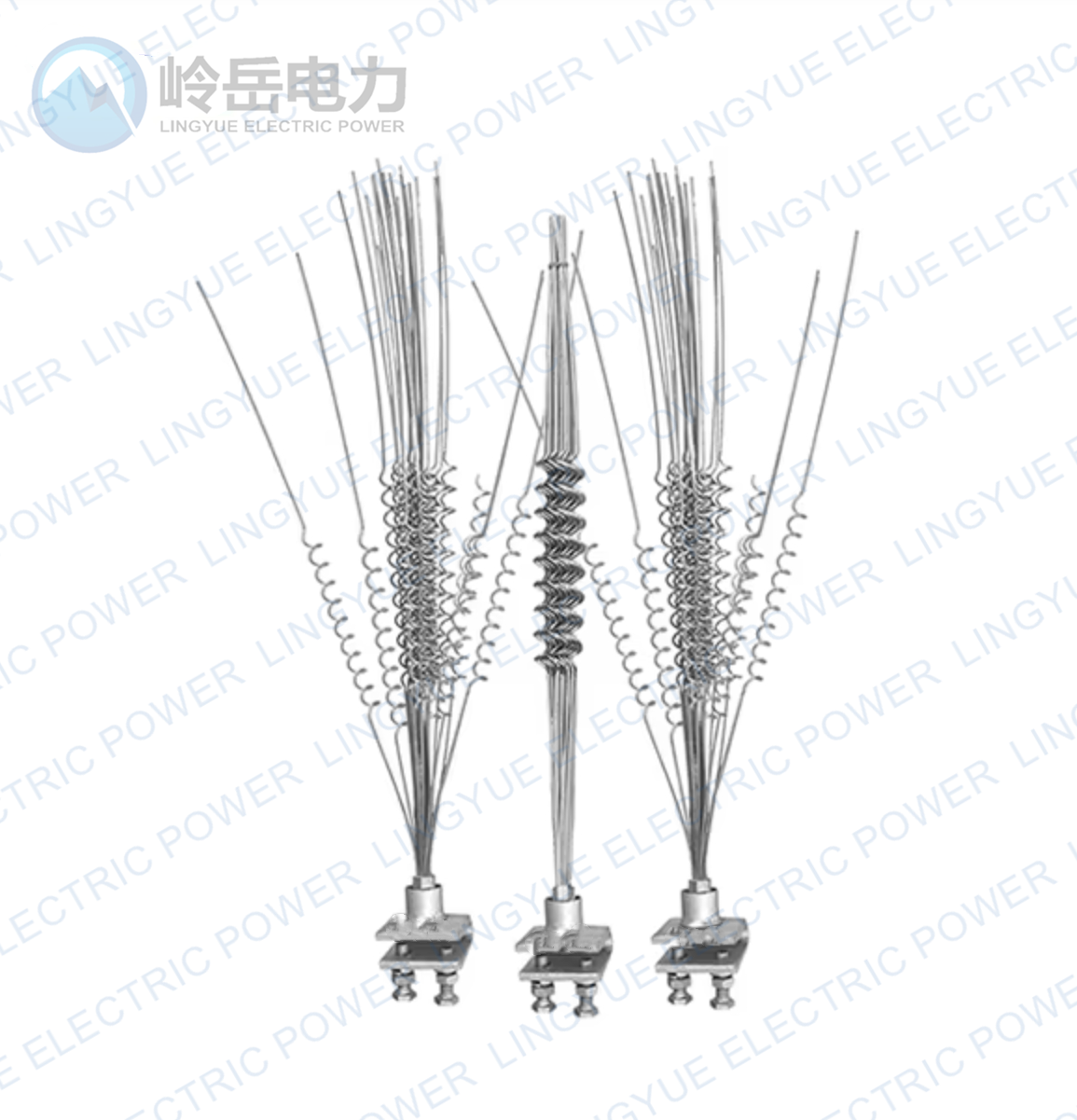

Anti-bird sting is a product designed to prevent birds from nesting in the power plant tower. It is installed on the top of the transmission and transformation line equipment tower cross-arm. It is composed of 24 steel wires and has a scattered shape. It can effectively prevent birds from fighting, staying and nesting directly above the wire insulator string, ensure the smoothness of the line, reduce power outage accidents, drive away birds and prevent birds from damaging the survival of birds, the principle of harmonious coexistence between humans and birds.

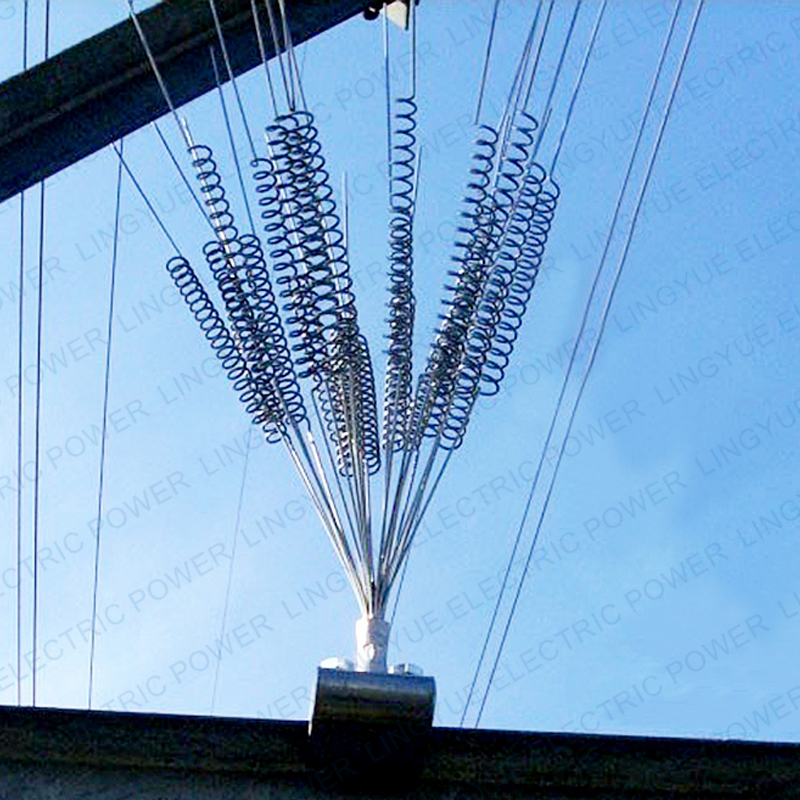

The anti-bird power spike is placed on the crossarm on the insulator of the power transmission line support to prevent birds from nesting on the crossarm and staying between cities to ensure the safe operation of the power grid.

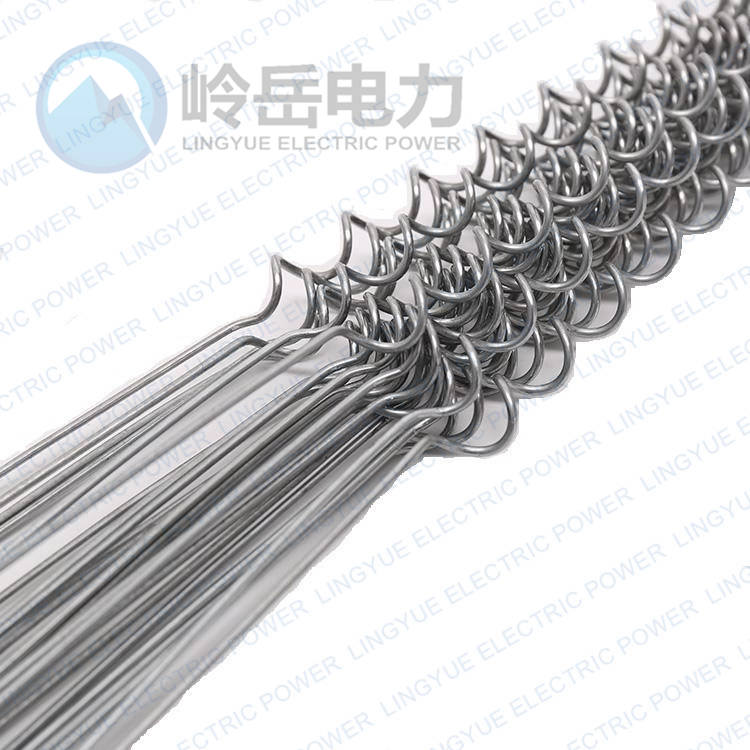

Generally, the steel wire is 2mm in diameter, and the medium spiral structure (spring type) is adopted, which increases the elasticity and makes the birds unable to stay and fly away, which not only ensures the safety of electricity, but also avoids damage to the birds.

Description of Bird Bite Repellent : In recent years, with the increasing awareness of people about environmental protection and the continuous improvement of the ecological environment, the population, quantity and range of activities of birds living in nature have gradually increased. Since most of the overhead power lines in China are operating in the wild and are not always easily monitored by human resources in time, they are greatly affected by the activities of birds. According to the statistics of the relevant departments of the State Grid, the number of accidents such as short circuit and tripping caused by birds nesting and roosting on the iron tower is increasing every year. The frequent occurrence of bird strike accidents not only brings great losses to the human and material resources of the operation and maintenance departments, but also seriously threatens the safe operation of the power grid.

In response to this phenomenon, our factory developed a new type of bird protection spike with the characteristics of convenient installation, strong installation adaptability and easy maintenance, which has outstanding bird protection performance and is well received by users.

Product structure and functions:

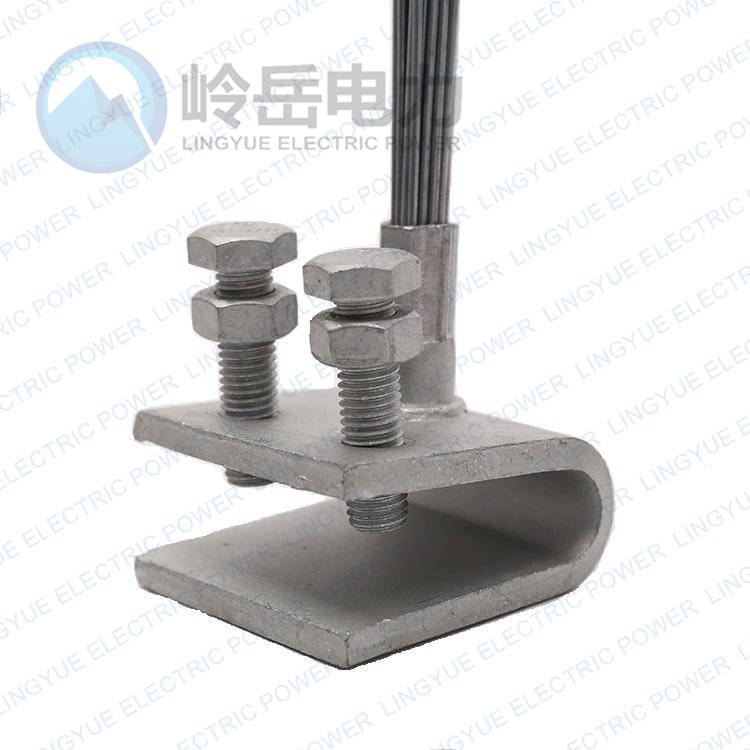

1. The steel wire, steel groove and U-shaped anti-bird sting ring are subjected to hot-dip galvanizing anti-corrosion treatment, and the steel strand is scattered into balls, which are installed on the top of the crossarm at the suspension ring position of the mast crossbar, effectively preventing birds from nesting and being directly above the wire insulator string, and ensuring the safe operation of the power system. The surface of this product is galvanized iron wire, which is not easy to rust after electrostatic spraying treatment.
2. The product uses a variety of fixing methods and is firmly connected with the cross-arm to effectively avoid falling due to metal fatigue.
3. The end uses pressing technology to effectively prevent the single steel wire from falling. The top is equipped with a protective top wire, which has better protection.
4. The bottom is equipped with a water leakage hole to prevent water accumulation.

Application :
