Product Introduction


Product Name:

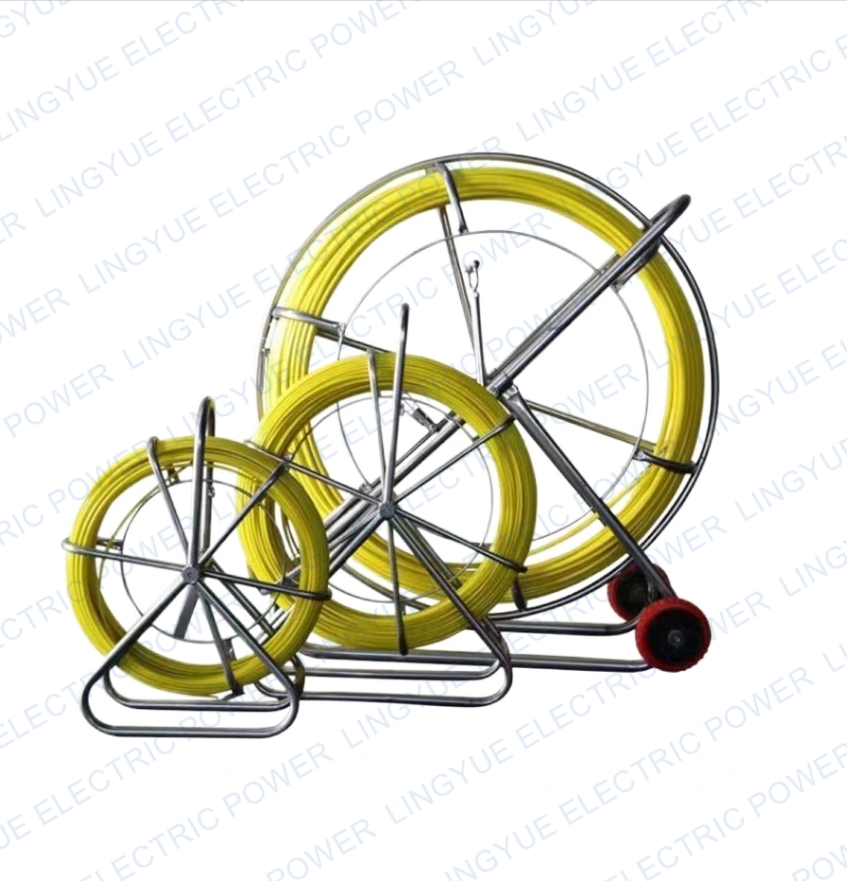

Catheter Rod Standard and Detectable Fiberglass Rod

Type:

Fiberglass Conduit Rod

Diameter:

4-16mm

Length:

50 to 500 m

Color:

Custom yellow or white

Scope of application:

Cable laying and drainage pipe cleaning

Warranty period:

1 year

Rod Material:

FRP inner core, composite jacket

High brightness:

Pipe Rod Standard Fiberglass Rod

Detectable glass fiber rod

Conveying fiberglass rods through pipes

Specification





Specification

Diameter (mm)

Φ4.5,Φ6,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16

Pole Length (m)

30~500

Frame size (cm)

50*40*15, 67*55*16, 76*66*16, 95*90*48, 105*100*48, 130*120*48, 150*140*48

Color

Blue, yellow, red, white etc







Materials

Inner rod

High temperature extrusion of glass fiber and high strength resin

Outer rod

high density polyethylene coating

Framework

high temperature sprayed steel

Wheel

Rubber

Drawing head

Copper





physical characteristics

Density

55g/m

Working temperature

-40 ° C to 80 ° C

Sudden tension

100kg

Bending radius

295mm

Technology

pultrusion



Packaging

Inside

The plastic braid is wound around the frame

On the outside

Carton, wooden pallet or wooden case
