Short description:

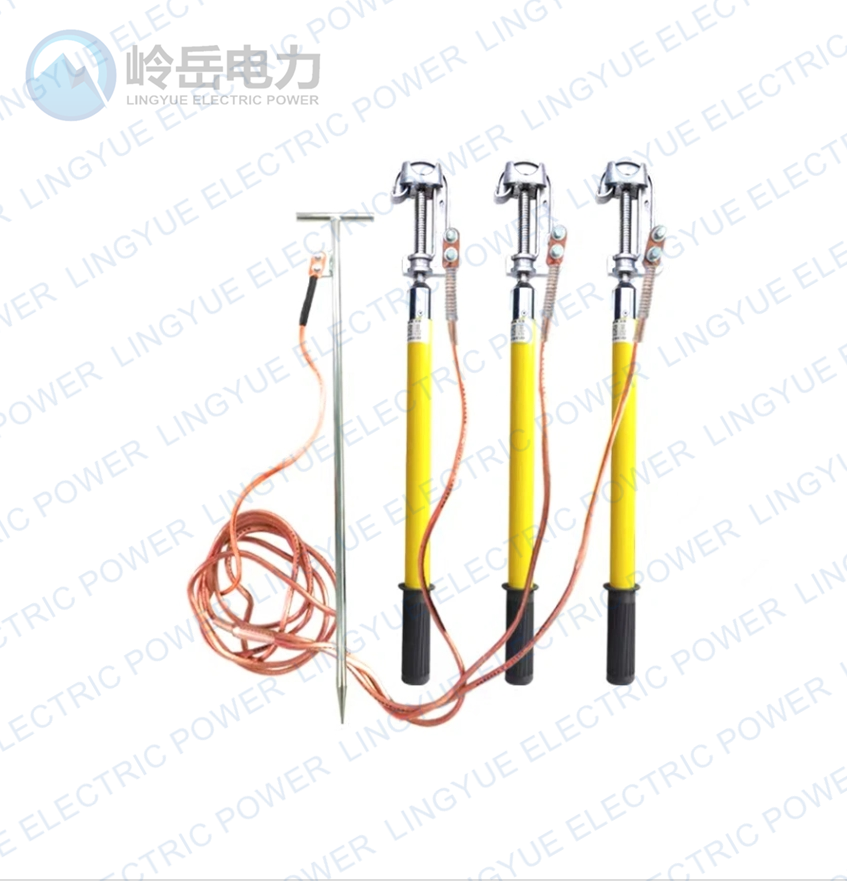

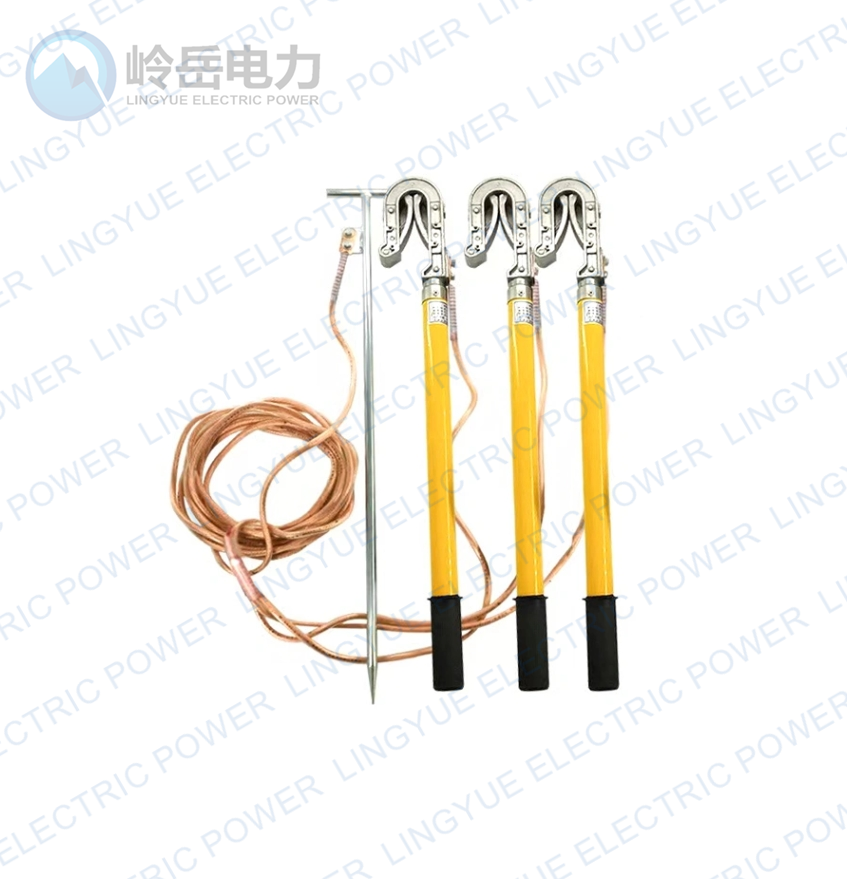

High-voltage portable grounding rods are used in power construction or substations to prevent electric shock and ensure safety.
The high-voltage portable grounding rod is a device that needs to be connected in the power industry to prevent accidental calls from personnel or equipment after the equipment or line is powered off.
Application
High-voltage portable grounding rod, suitable for the following places:
1. This line turns indoors.
2. Distribution lines and systems
3. Transmission lines and systems
4. Substation high-voltage portable grounding rod, suitable for the following places:
5. Underground system
6. Industrial Circuits and Systems
Characters:

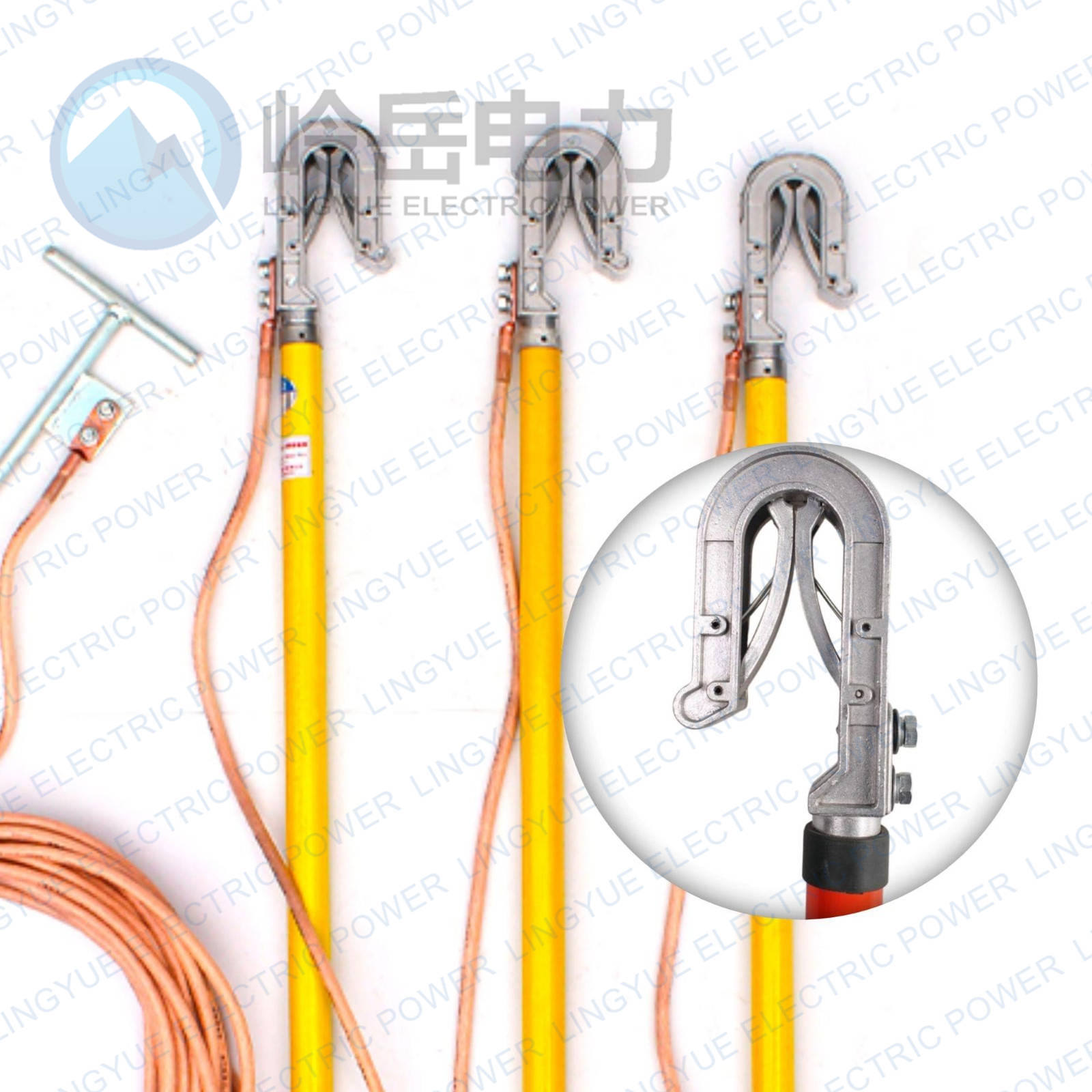

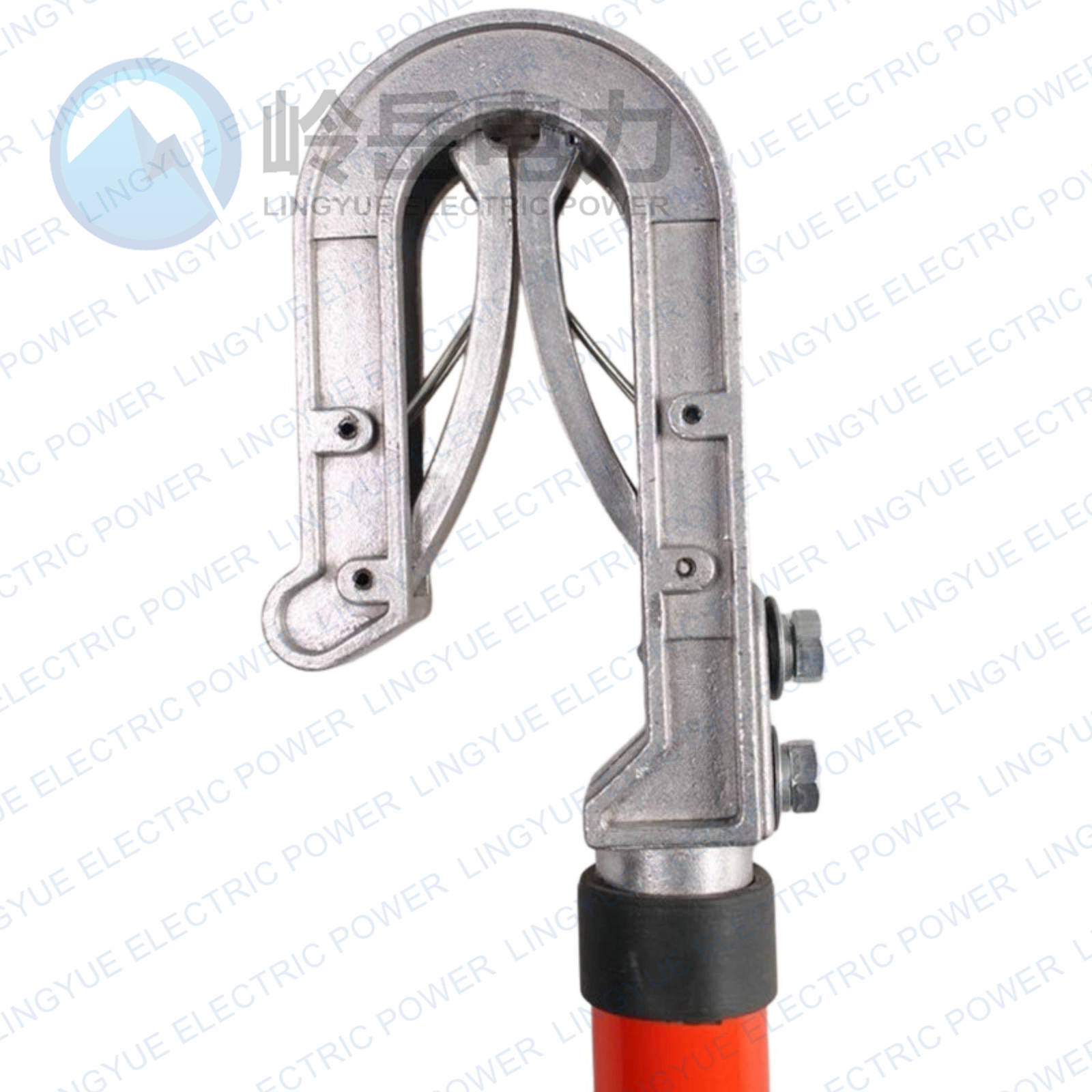

1. The operating hook is made of forged aluminum and copper, with strong conductivity
2. Light epoxy resin for operating lever with high strength
3. Pure copper wire
4. line clothing using soft PVC, soft wear-resistant antifreeze
5. Easy to use and carry
Reference data
Voltage resistance: 10 kV-500 kV pole: φ30mm, generally 3-4 pieces, the length of each piece is optional. Cross-sectional area of copper wire: 16mm/25mm/35mm/50mm/70mm; Material of grounding clip: aluminum or copper
Grounding rod | Epoxy resin, good insulation performance, generally 3-4 pieces, the length is optional. |
Cross-sectional area of copper conductor | 16 square meters/25 square meters/35 square meters/50 square meters/70 square meters; Customized |

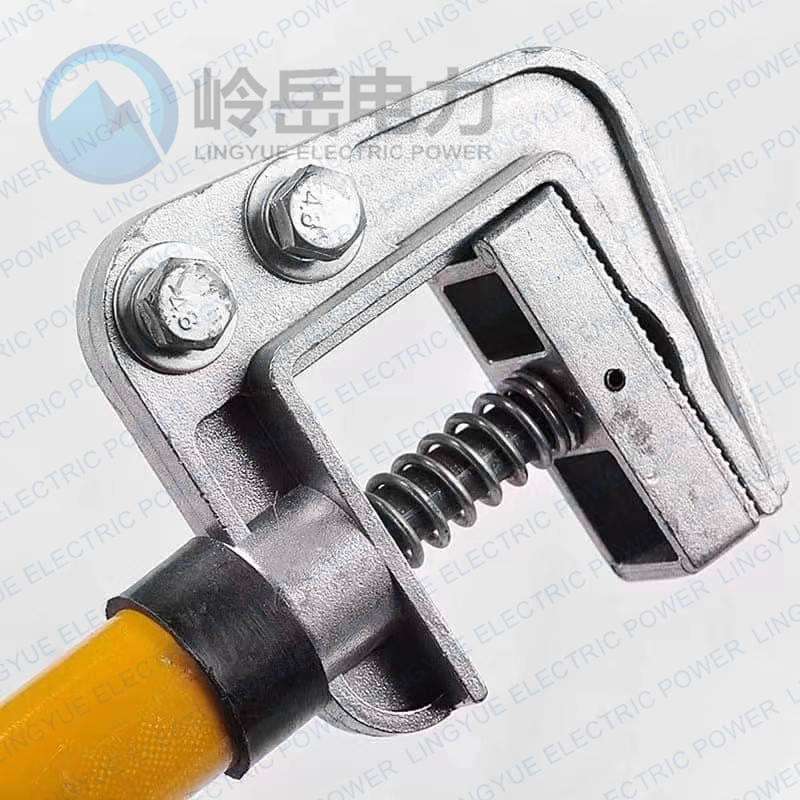

Grounder clip material | Aluminum or copper |
Grounding cable size | Recommended cable length | Ground rod length | Ground rod number |
16mm2 | 3*1.5m 8m | 0.5m | 3 Pole |
25mm2 | 3*1.5m 10m | 1.0m | 3 Pole |
35mm2 | 3*1.5m 10m | 1.5m | 3 Pole |
35mm2 | 3*2m 12m | 2.0m | 3 Pole |
50mm2 | 3*2m 15m | 3.0m | 3 Pole |
Advantages
1. Resistance to moisture. Nice looking.
2. Light weight, high strength epoxy resin rod
3. Easy to maintain; simple operation and flexible structure
4. Good insulation performance
