Wire clamp

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Scope of application:

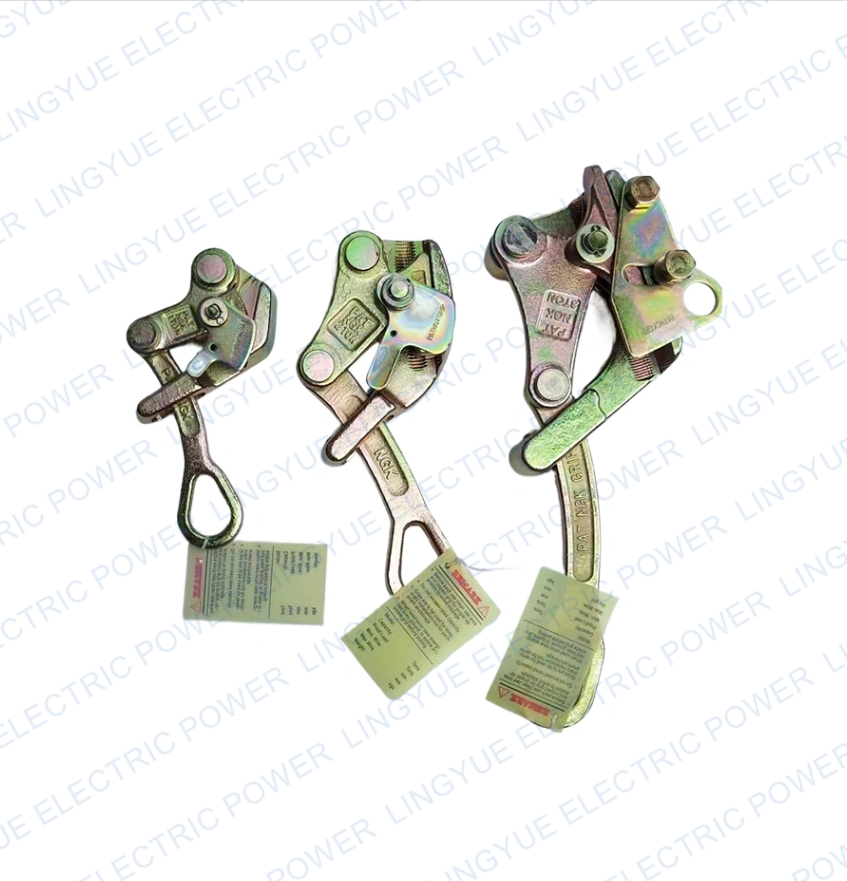

The universal wire holder is forged with excellent alloy steel, and the jaws are specially heat treated. The jaw part is equipped with a safety device to prevent jumpers. Used for grabbing and fastening of steel wire, steel core aluminum stranded wire or insulated wire.

Features:

1. The rack has strong tension resistance and high bite strength. It is not easy to slide and deform.

2. The product adopts alloy steel forging, heat treatment, excellent quality.

3. All clamping jaws are produced with new technology to increase the service life.

Data Sheet

Specification	Rated load	Mouth size	Dimensions (mm)
Specification	Rated load	Mouth size	a kind	B	C	L
1T	1 pass	2.5-16mm	38	23.3	93	179
2T	2 passes	4-22mm	43	26.3	104	249
3T	3-way	16-32mm	50	30.3	139.5	340
